Buk-M1

Buk-M1

Area Air Defenses
Spotted an error? Sign in to suggest an edit.
Buk-M1

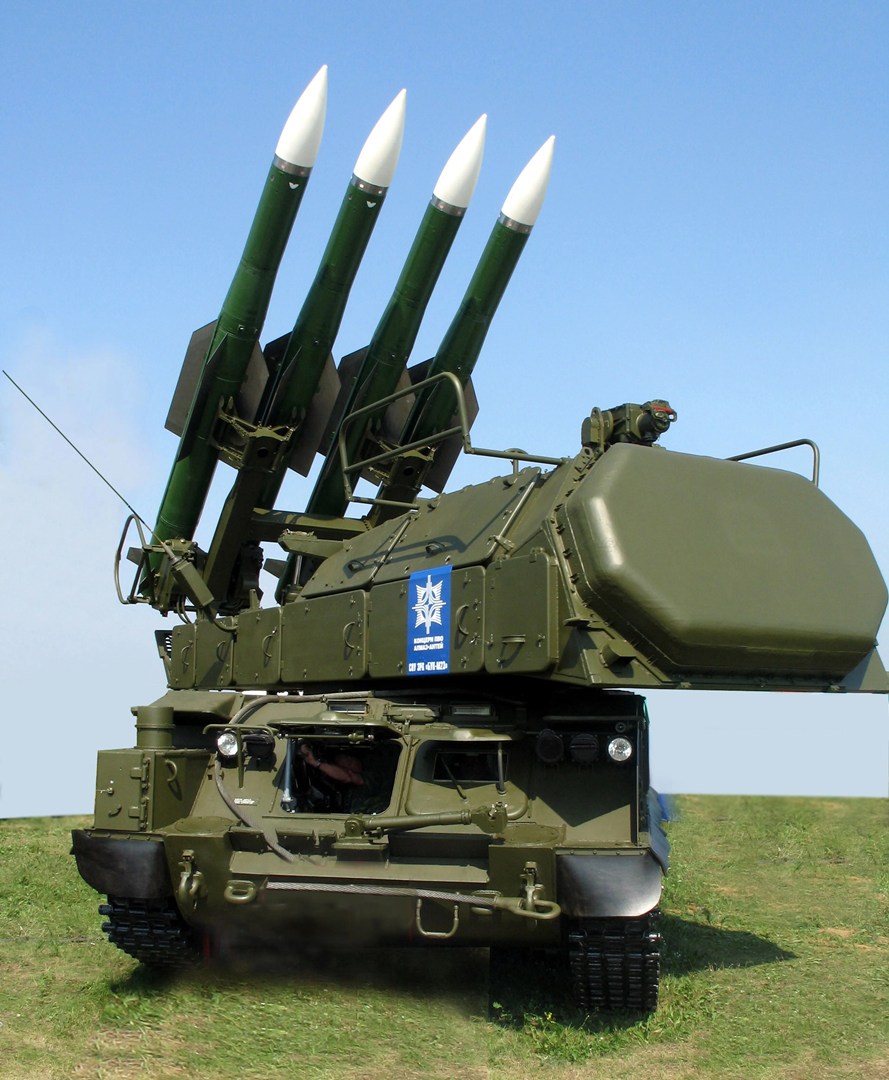

Operational Photo
deagel.com
Basic Information
Name
Buk-M1
Designation
Buk-M1
Alternate Designation
9K37M1, Buk-M1-2, SA-11 Gadfly
Equipment Type
Area Air Defenses
Manufacturer
Almaz-Antey Concern
Date of Introduction
1979
Description

The Buk-M1 is a road mobile, medium range Surface-to-Air Missile (SAM) system designed to engage aircraft, helicopters and cruise missiles in intense clutter and jamming environment. High Speed Anti-Radiation missiles and theater ballistic missiles can also be engaged by Buk-M1 air defense system. The Buk-M1 consists of a 54K6E command post vehicle, a target acquisition radar mounted on a tracked vehicle, and up to 6 loader-launcher vehicles designated the 9A39M1 carrying 4 9M38 missiles. The entire system can be ready to fire in just 5 minutes. It can engage up to 6 targets simultaneously. The Buk-M1 road mobile air defense system entered service in 1979 replacing the SA-6 Gainful. It overcomes some of the most important shortfalls detected on the Gainful SAM system. The upgraded Buk-M1-2 was introduced in 1998.

Ground Specifications
Mobility Type Tracked
Max Speed 2880.0 km/h
Range 35.0 km
Overview (Deagel)
Group Area Air Defenses
Status Active
Also Known As 9K37M1, Buk-M1-2, SA-11 Gadfly
Origin Russia
Contractor Almaz-Antey Concern
Initial Operational Capability (IOC) 1979
Total Production ?
Specifications (Deagel)
Engaged Aerial Targets 6
Mass — Combat Weight 35,000 kilogram
Percentage — Hit Probability 90 %
Performance — Target's Max Altitude 22,000 meter
Performance — Target's Min Altitude 25 meter
Performance — Weapon Max Range 35,000 meter
Performance — Weapon Min Range 3.5 kilometer
Speed — Target's Max Speed 800 mps
Time — Reaction Time 22 second
Time — SetUp Time 5 minute
Gear (Deagel)
Item 1 Surface-to-Air Missiles: 9M38 (24)
Variants
Variant 1 Buk-M1
Variant 2 Buk-M2
Variant 3 SHF
Variant 4 Buk-M3
Details
Country of Origin Russia
Category Air Defense
Land > Air Defense
Sources

deagel.com: https://www.deagel.com/x/x/a000374

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
35000 kg
Operators (11)
Russia
Ukraine
India
Serbia
Belarus
Armenia
Azerbaijan
Egypt
Finland
Georgia
Syria
