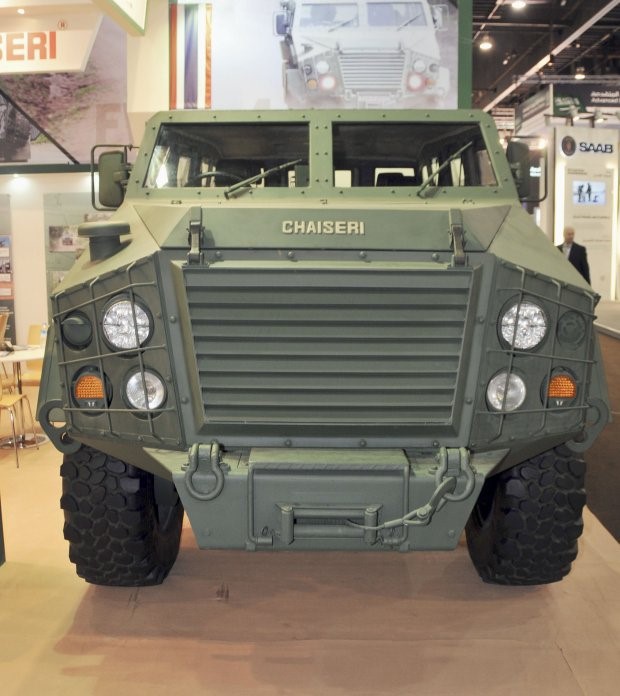

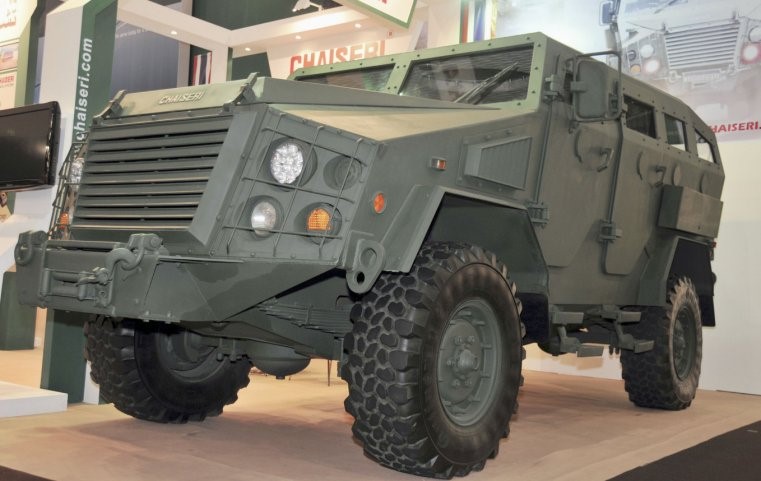

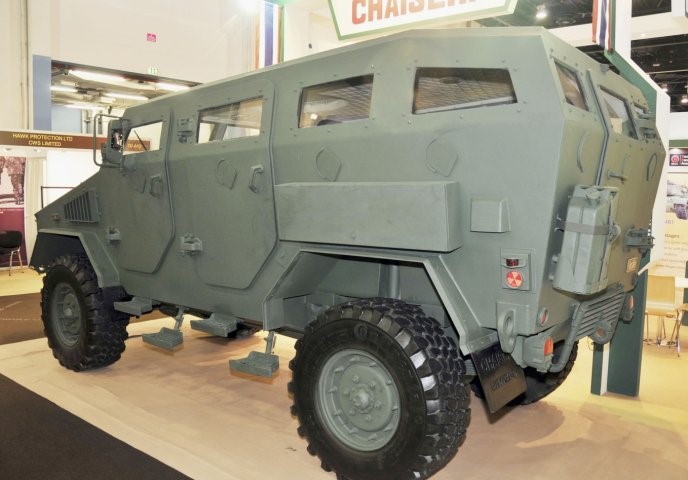

First Win Thai 4x4 Mine Resistant Ambush Protected (MRAP)

First Win

Mine-Resistant Ambush Protected (MRAP)

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

First Win Thai 4x4 Mine Resistant Ambush Protected (MRAP)

Designation

First Win

Alternate Designation

First Win

Equipment Type

Mine-Resistant Ambush Protected (MRAP)

Manufacturer

Chaiseri Metal and Rubber Co., Ltd. (Thailand) DefTech (Malaysia)

Date of Introduction

2010

Description

The First Win Thai 4x4 Mine Resistant Ambush Protected (MRAP) is the original vehicle of the family. It is designed to be an economical solution to protected mobility requirements. It carries protection against ballistic and mine threats as well as limited weapon options.

Ground Specifications

Crew 1

Mobility Type Wheeled (4x4)

Engine Diesel (300 hp)

NBC Protection Yes

Max Speed 110.0 km/h

Range 800.0 km

Variants

First Win The original model. Known as First Win Armored Multi-Purpose Vehicle.

First Win II Model developed from First Win ICV. To offer in the Royal Thai Navy 4x4 Armored Multi-Purpose Vehicle procurement project. And it's the same model that was exported to the Malaysian Army.

First Win AAV (Armored Ambulance Vehicle) Developed from First Win II.

First Win AFV (Armored Fighting Vehicle) It is a wheeled armored vehicle used for tactical 4 x 4 combat or other missions. It is strong enough to withstand local conditions.

First Win AIFV (Armored Infantry Fighting Vehicle) Developed from First Win AFV.

First Win ALV (Armored Light Vehicle) Can carry personnel with maneuverability in limited terrain. It is robust enough to withstand the operating conditions in an area of operation where there are armed attacks and improvised explosive devices.

First Win Anti-Riot Used by the Royal Thai Police with a remote control weapon system turret on top. Has a capacity of eight occupants.

First Win ATV (Armored Tactical Vehicle) A armored Vehicle used in reconnaissance missions, Operating in risk areas.

First Win ATV II Slightly different on the front of the car from the First Win ATV.

First Win AWAV (Armored Wheel Amphibious Vehicle) Prototype, in testing.

First Win-E A more compact variant with gross vehicle weight of 10 tons, comparable to the HMMWV.

First Win IFV (Infantry Fighting Vehicle) Equipped with automatic armed turrets can fire from inside the car. Developed from First Win II.

First Win RV (Reconnaissance Vehicle) Introduced in 2019 at the 2019 Navy Training, it equipped M134 on top of a vehicle. And proposed to the Royal Thai Army to consider as a reconnaissance vehicle for infantry. Developed from First Win II.

AV4 Lipanbara License built by DefTech for Malaysian Armed Forces and Royal Malaysian Police.

Hanuman Version made by Indonesia.

System

Alternative Designation First Win

Type Mine Resistant Ambush Protected (MRAP)

Manufacturer Chaiseri Metal and Rubber Co., Ltd. (Thailand) DefTech (Malaysia)

Configuration 4x4

Crew 1 ea

Passengers 10 ea

Payload Capacity 2,000 kg

Dimensions

Length 6.2 m

Width 2.45 m

Height 2.85 m

Weight, Standard 11,500 kg

Weight, Combat 13,500 kg

Ground Clearance 0.49 m

Wheelbase 3.47 m

Automotive

Engine Name Cummins ISBe300E4

Engine Type Diesel

Engine Power 300 hp at 2,850 rpm

Power-to-Weight Ratio 23 hp/t

Fuel Capacity 200 liters

Maximum Speed 110 km/h

Maximum Range 800 km

Amphibious No

Angle of Approach 38°

Angle of Departure 40°

Gradient 60%

Side Slope 40%

Vertical Obstacle 0.5 m

Trench 0.9 m

Turning Radius 9.2 m

Main Weapon System

Note The primary armament of the First Win is installed on the roof hatch in the centre of the roof. This can be armed either with a swivel-mounted MG or a protected weapon station. Both options would likely be armed with a 7.62 mm or 12.7 mm MG. If required, the vehicle could be armed with an ROWS or turret to provide increased protection to the crew whilst operating the weapon. The vehicle is also fitted with an array of firing ports so that the embarked personnel can use their personal weapons.

Protection

Hull Armor The First Win is built on a V-shaped monocoque hull that is built from welded steel and at its base level protects against ballistic threats to the STANAG 4569 Level 1+.

Applique Armor Available

Mine Protection Mine protection is stated to be at STANAG 4569 Level 2 a/b. Both can be increased to Level 3 through the addition of ceramic armours or other passive systems as required by the customer.

NBC Protection Yes

Smoke Equipment INA

Image Sources

Notes https://www.armyrecognition.com/idex_2011_defense_news_daily_pictures_video_uk/chaiseri_defence_vhttps://www.recomonkey.com/Newsfeed/Army-2019-Static-2; ehicle_present_for_the_first_time_at_idex.html; http://www.army-guide.com/eng/product4594.html;

Details

Country of Origin Thailand

Category Mine-Resistant Ambush Protected (MRAP)

Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

6.2 m

Width

2.45 m

Height

2.85 m

Weight

13500 kg

Operators (4)

Bhutan

Indonesia

Malaysia

Thailand
