VP-10 Chinese 8x8 Amphibious Armored Personnel Carrier (APC)

INA

Amphibious Armored Personnel Carrier (APC)

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

VP-10 Chinese 8x8 Amphibious Armored Personnel Carrier (APC)

Designation

INA

Alternate Designation

INA

Equipment Type

Amphibious Armored Personnel Carrier (APC)

Manufacturer

NORINCO

Date of Introduction

2014

Description

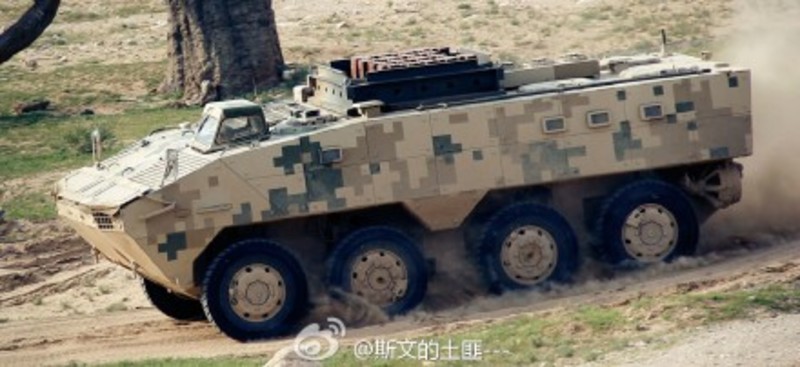

The VP10 is a Chinese armored personnel carrier with 8x8 configuration. It was developed mainly for export. Externally it resembles a successful Finnish Patria AMV armored personnel carrier, however it is a different design. It was first observed in 2014. Development of this armored vehicle was completed in around 2015. The VP10 is being proposed for various export customers. China's army uses a broadly similar ZBL-09 armored personnel carrier, which is proposed for export as the VN1.

Ground Specifications

Crew 2

Mobility Type Wheeled (8x8)

Main Weapon 12.7 mm machine gun

Engine Turbocharged Diesel (362 hp)

Active Protection None

Max Speed 105.0 km/h

Range 800.0 km

Variants

VP10 8x8 APC with Remotely-Controlled Weapon Station (12.7mm Machine Gune) Armored personnel carrier is fitted with a remotely-controlled weapon station, armed with a 12.7 mm machine gun.

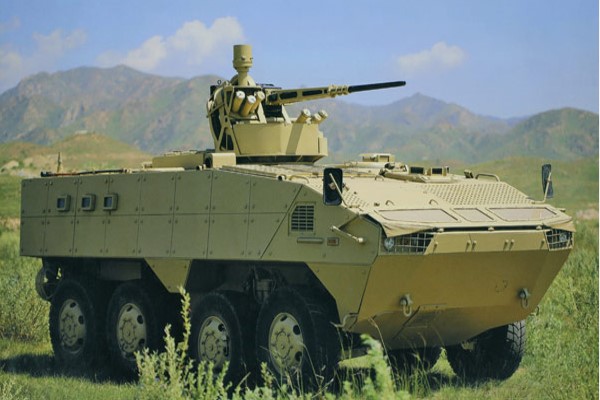

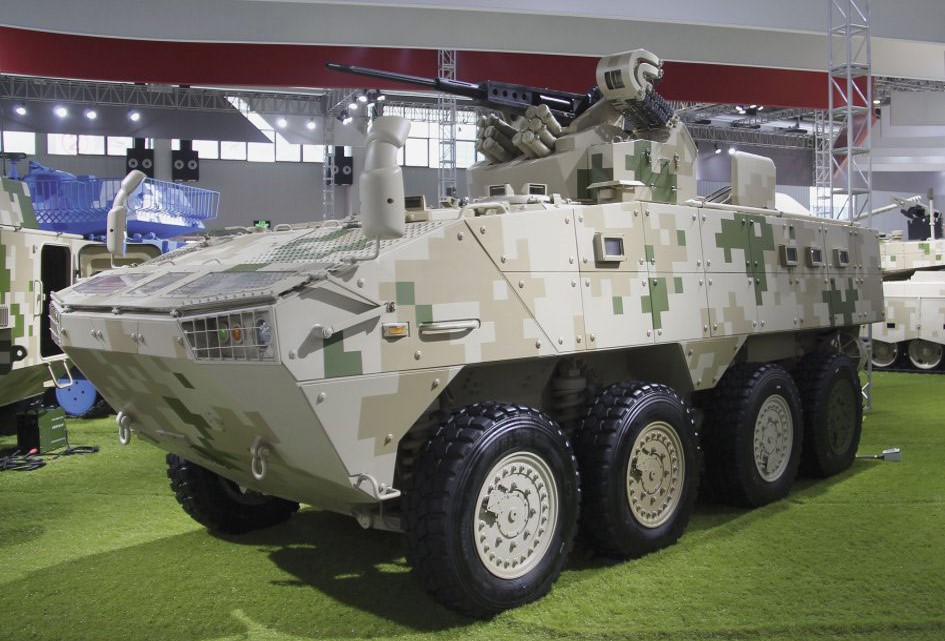

VP10 8x8 APC with UW4A Remotely-Controlled Weapon Station (30mm Cannon) Armored personnel carrier, fitted with a UW4A remotely-controlled weapon station, armed with a 30 mm dual-feed cannon and coaxial 7.62 mm machine gun. It can effectively engage lightly armored vehicles. It can also target low-flying helicopters.

VP10 8x8 APC with Fire Support (105mm Rifled Gun) Fire support vehicle, armed with a 105 mm rifled gun. It was first publicly revealed in 2016. This combat vehicle was designed to provide direct fire against hostile armored vehicles, buildings and field fortifications. It also has a coaxial 7.62 mm machine gun. It looks that this armored vehicle can carry some dismounts in its troop compartment, as there were some firing ports with associated vision blocks at the rear part of the hull. Despite heavier turret it looks like this armored vehicle retains its amphibious capability.

System

Alternative Designation INA

Manufacturer Norinco

Type Armored Personnel Carrier (APC)

Crew 2 ea

Troop Compartment Capacity 12 ea, dismounts seated on inward facing, blast-attenuating seats in the rear compartment, which is entered via a large power-operated ramp.

Cargo Capacity 5,443 kg

Maximum Effective Range 800 km

Dimensions

Length 6.9 m

Width 2.7 m

Height 2.1 m

Weight, Combat 11,340 kg

Gound Pressure INA kg/m

Gradient 60 %

Side Slope 40 %

Vertical Step 0.48 m

Trench 1.8 m

Fording Amphibious

Automotive

Engine Name INA

Engine Type Turbocharged diesel engine,Diesel

Engine Power 362 hp

Cruising Range 800 km

Speed, Maximum Road 105 km/h

Speed, Average Cross INA, Limited

Speed, Maximum Swim 8 km/h

Fording Depth INA m

Transmission Automatic

Central Tire Inflation System Yes

Communications

TBR-121 VHF Radio

VHF Transceiver Yes

VHF Range 1 to 50 km

Proliferated Widely

Digital Data Yes, Full

Control Self-Adaptive Control (Including Automatic Antenna Tuner)

Frequency Agile Yes

Wireless Network Capabilities Yes

Note: Very similar in capabilities to the US SINCGARS ASIP

Main Gun

System (Option 1)

Name Type 54 (DShKM)

Type Remotely-Controlled Heavy Machine Gun. 12.7 mm Type 54 Heavy Machine Gun.

Proliferation over 1 Million

Length 1,625 mm

Barrel Length 1,070 mm

Weight (Gun Only) 34 kg

Weight (On Wheeled Mounting) 157 kg

Rate of Fire 600 rds/m

Action Gas-Operated, Flapper Locking

Feed System 50 Round Belt

Sights Iron/Optical

Variants DK, DShKM, DSHKS, Type 54 HMG

Turret single seat and placed at the rear of the vehicle roof. It is sharp-pointed at the front.

Ammunition (Option 1)

Type Heavy Machine Gun and Anti-Materiel Rifle Cartridge

Caliber 12.7x108 mm

Muzzle Velocity 850 m/s

Number of Rounds 1,200 ea

Max Range 2,500 m

Effective Firing Range 2,000 m

Armor Penetration API: 21 at 500 m & 13 at 1000 m (RHA) km

System (Option 2)

Name Type 80 Chinese Heavy Machine Gun

Manufacturer Norinco

Type 7.62 Machine Gun

Length, Total 1,192 mm

Length, Barrel 658 mm

Diameter INA mm

Action Gas Operated

Rate of Fire 700-800 reds/m

Feed System Belts in 100/200/250 round boxes

Sights Open sights. Optical/Night vision scope can be outfitted.

Ammunition (Option 2)

Type 7.62×54mmR

Caliber 7.62

Muzzle Velocity 840 m/s

Basic Load Belts in 100/200/250 round boxes

Effective Firing Range 100-1,500 m

Armor Penetration INA

Fire Control

Name INA

Computerized FCS Yes

Thermal Tank Commander Yes

Thermal Gunner INA

Main Gun Stabilization INA

Range, Day Sight INA km

Range, Thermal Sight INA km

IFF INA

Protection

Hull Armor (Front) 12.7 (Round) mm

Hull Armor (Side and Back) 7.62 (Round) mm

Applique Armor Available

Explosive Reactive Armor No

Active Protection System No

Mine Clearing INA

NBC Protection INA

Smoke Equipment INA

Note The VP10 is very lightly armored. Compared to other APC's the VP10 has poor protection.

Image Sources

Notes https://www.militarytoday.com/apc/vp10.htm; https://below-the-turret-ring.blogspot.com/2015/07/china-is-developing-new-apc.html; https://pdf.defence.pk/threads/vp10-armored-personnel-carrier.518442/;

Details

Country of Origin China

Category Land

Land

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

6.9 m

Width

2.7 m

Height

2.1 m

Weight

11340 kg

Operators (1)

China
