Ironclad Ukrainian 4x4 Unmanned Ground Vehicles (UGV)
Ironclad
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Ironclad Ukrainian 4x4 Unmanned Ground Vehicles (UGV)
Designation
Ironclad
Alternate Designation
Ironclad
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Roboneers
Date of Introduction
2014
Description

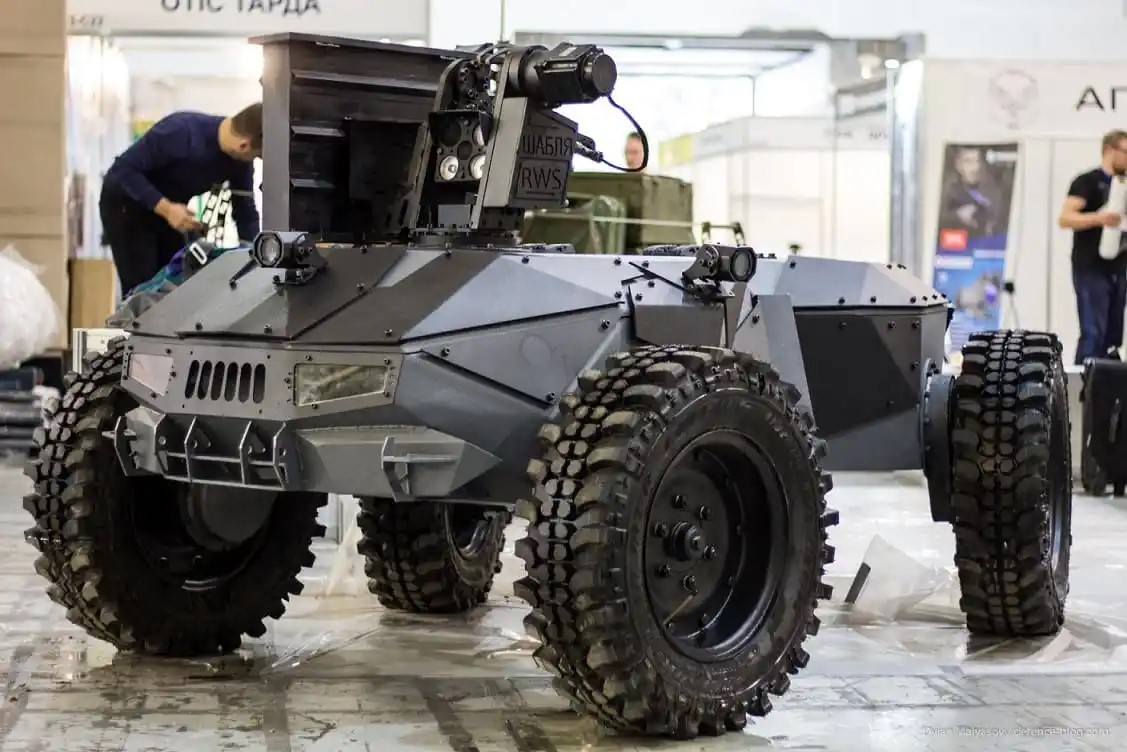

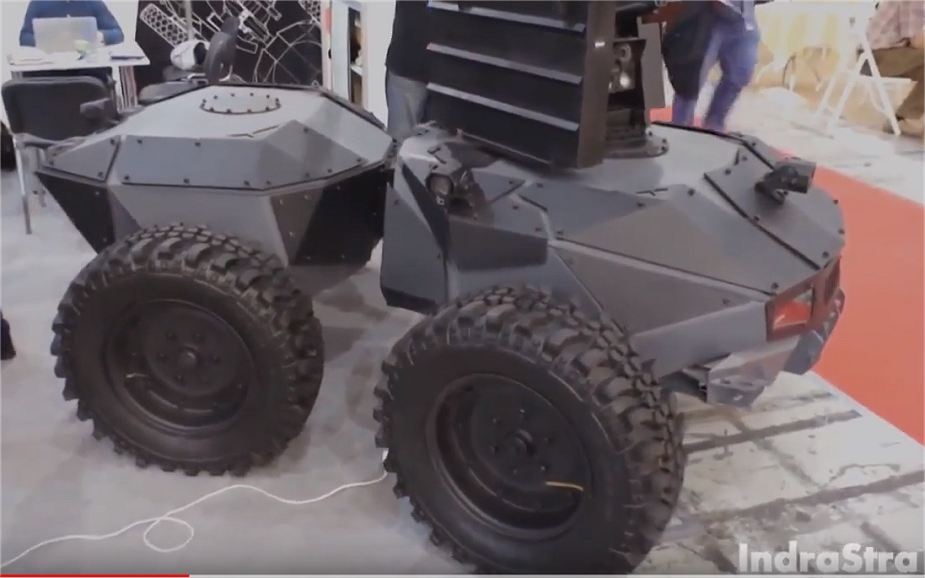

The Ironclad Ukrainian 4x4 Unmanned Ground Vehicles (UGV) comprise two articulated units designed to improve maneuverability in confined environments. Ironclad can be integrated with reconnaissance systems, UAVs, and quadcopters. The platform can also be used to launch UAVs from its tactical drone landing pad.
Ground Specifications
Mobility Type
Wheeled (4x4)
Main Weapon
12.6 and 7.62 caliber machine guns (MGs)
Engine
The Ironclad is now fitted with a 15 kWh cooled battery pack to the rear module and 15 kW liquid-cooled diesel generator in the front section.
Max Speed
20.0 km/h
System
Alternative Designation
Ironclad
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Roboneers
Configuration
4x4
Crew
Unmanned
Operator
The UGV’s remote control is enabled via a secure radio control channel but also has a backup fiber-optic line.
Software
C4IVISION operates the control and navigation of the system.
Cameras
Six cameras are mounted on the chassis of the Ironclad. The platform is also equipped with daylight cameras, a thermal camera, and a laser rangefinder. A mast-mounted 360° elevated camera provides situational awareness.
Payload Capacity
200 kg
Dimensions
Length
2.57 m
Width
1.7 m
Height
0.95 m
Weight, Combat
1,100 kg
Ground Clearance
40 cm
Automotive
Engine Name
INA
Engine Type
The Ironclad is now fitted with a 15 kWh cooled battery pack to the rear module and 15 kW liquid-cooled diesel generator in the front section.
Engine Power
INA
Amphibious
No
Maximum Speed
20 km/h
Maximum Gradient
30 deg
Side Slope
33 deg
Endurance
10 hours depending on payload
Communications
Note
Remote control is enabled via a secure radio control channel (BRRS radio) with backup fibre-optic tether. Each Ironclad radio system extends the reach of the network coverage and allows for the connection of additional MESH nodes.
Main Weapon System
Weapon Systems

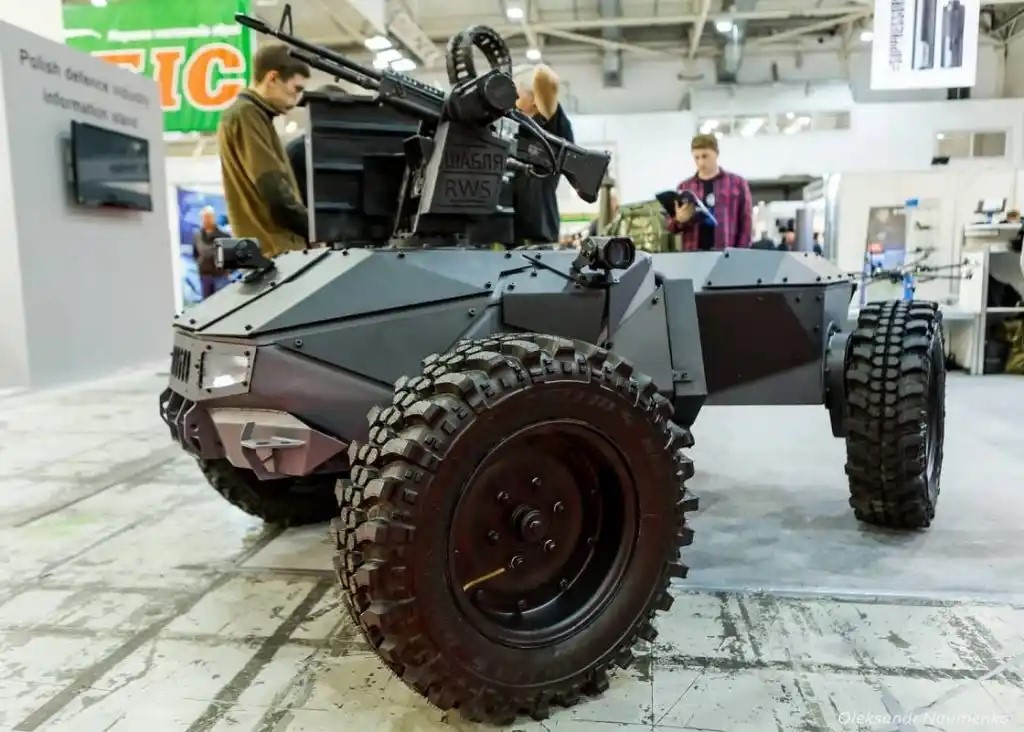

The prototype Ironclad front unit was shown fitted with a Shablya remote weapon station (RWS) mounted on top, which has an interchangeable weapon cradle that allows for the installation of standard 12.6 and 7.62 caliber machine guns (MGs).
Turret Angle of Elevation
10 deg to 45 deg
Turret Traverse
360 deg
Protection
Armor
The modular layered armour of the vehicle allows quick replacement of damaged parts and offers protection against 7.62 mm bullets. The diesel and battery capsules are both fitted with additional protection.
Applique Armor
INA
Details
Country of Origin
Ukraine
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
I
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
2.57 m
Width
1.7 m
Height
0.95 m
Weight
1100 kg
Operators (1)
Ukraine
