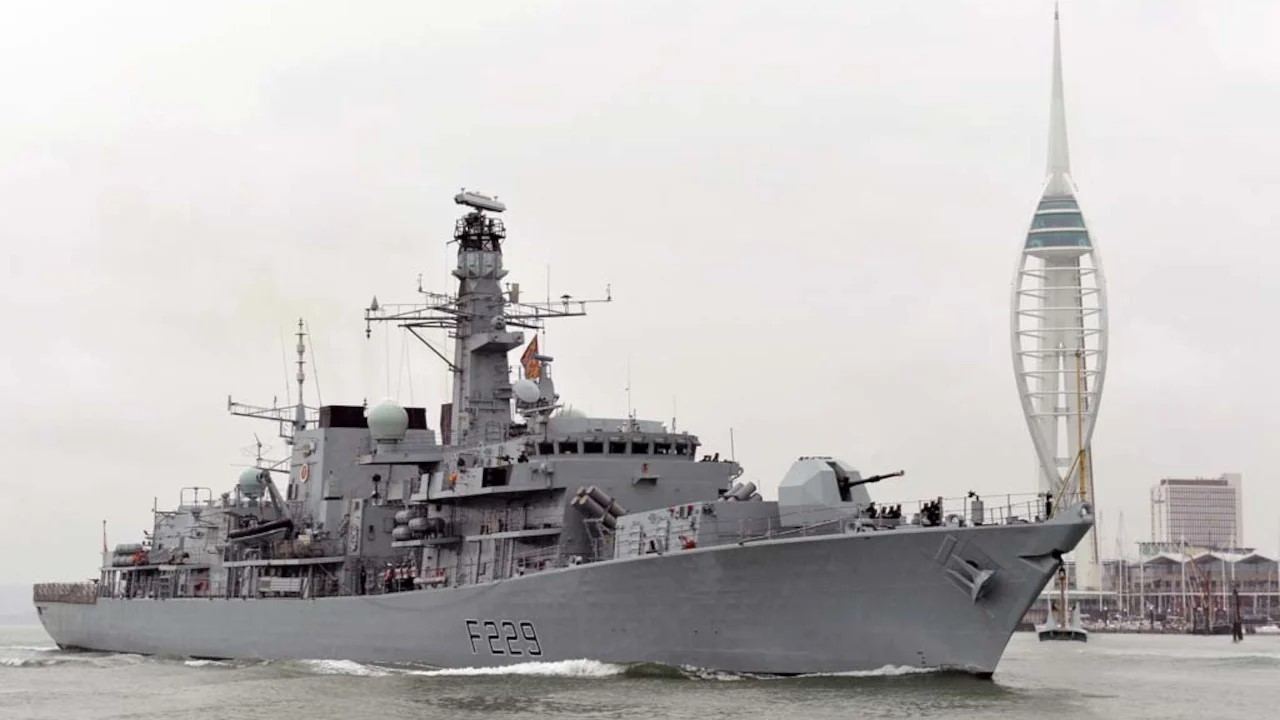

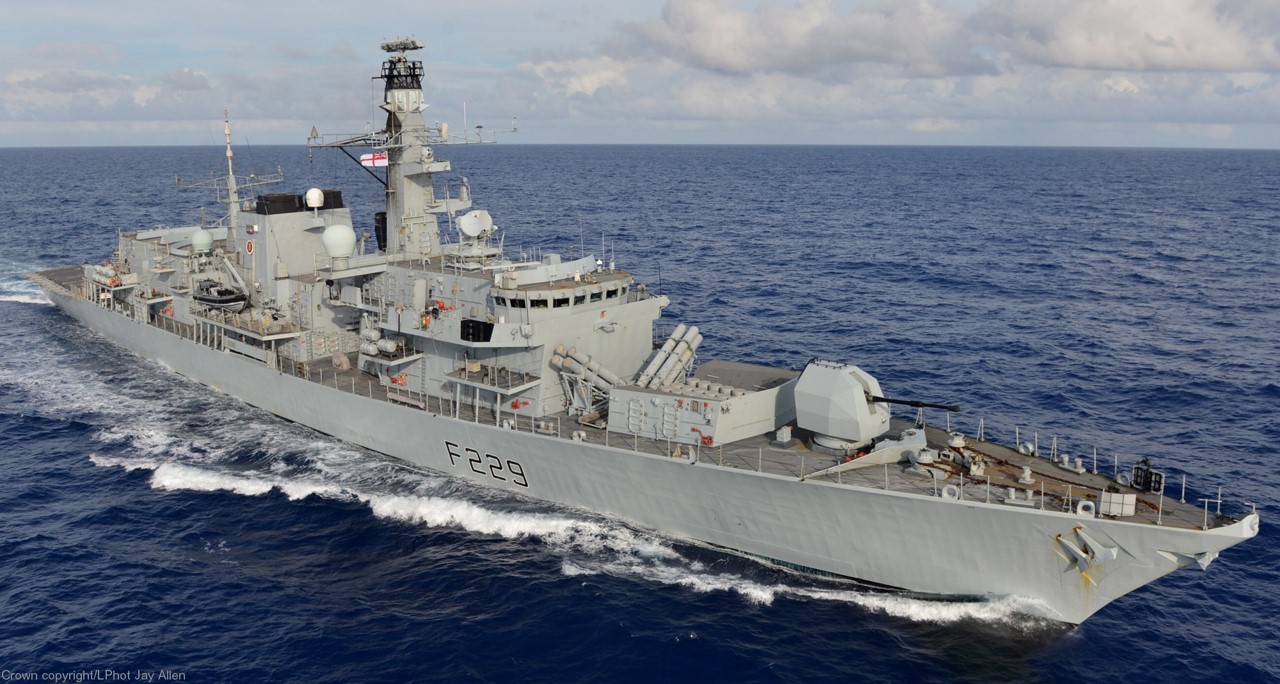

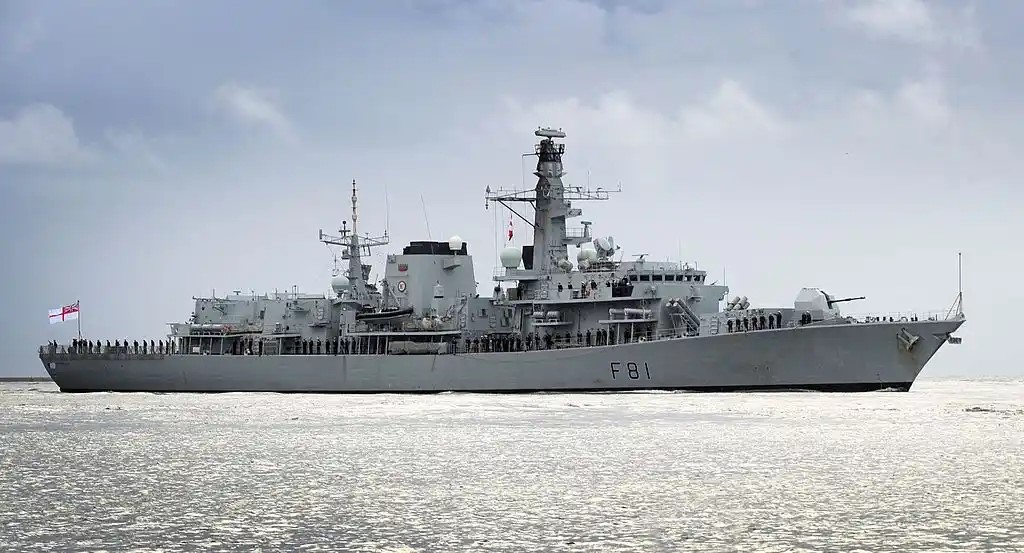

Duke Class (Type 23 Class) British Frigate
Duke Class
Frigate
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Duke Class (Type 23 Class) British Frigate
Designation
Duke Class
Alternate Designation
Duke Class; Type 23 Class
Equipment Type
Frigate
Manufacturer
Yarrow Shipbuilders
Date of Introduction
1990
Description
The Duke Class (Type 23 Class) British Frigate is a class of frigates built for the United Kingdom's Royal Navy. The ships are named after British Dukes, thus leading to the class being commonly known as the Duke class.
Naval & Littoral Specifications
Crew
185
Beam
16.10 m
Draft
5.50 m
Variants
Norfolk
Navy: Royal Navy
Commissioned: 1990
Status: Transferred to Chilean Navy in 2006, and renamed Almirante Cochrane.
Almirante Cochrane
Navy: Chilean Navy
Commissioned: 2006
Status: Active
Note: Transferred from Royal Navy, and renamed Almirante Cochrane.
Marlborough
Navy: Royal Navy
Commissioned: 1991
Status: Transferred to Chilean Navy in 2008, and renamed Almirante Condell.
Almirante Condell
Navy: Chilean Navy
Commissioned: 2008
Status: Active
Note: Transferred to Chilean Navy, and renamed Almirante Cochrane.
Grafton
Navy: Royal Navy
Commissioned: 1997
Status: Transferred to Chilean Navy in 2007, and renamed Almirante Lynch.
Almirante Lynch
Navy: Chilean Navy
Commissioned: 2007
Status: Active
Note: Transferred to Chilean Navy, and renamed Almirante Cochrane.
Argyll
Navy: Royal Navy
Commissioned: 1991
Status: Active
Lancaster
Navy: Royal Navy
Commissioned:1992
Status: Active
Iron Duke
Navy: Royal Navy
Commissioned: 1993
Status: Active
Monmouth
Navy: Royal Navy
Commissioned: 1993
Status: Decommissioned in 2021
Montrose
Navy: Royal Navy
Commissioned:1994
Status: Active
Westminster
Navy: Royal Navy
Commissioned:1994
Status: Active
Northumberland
Navy: Royal Navy
Commissioned: 1994
Status: Active
Richmond
Navy: Royal Navy
Commissioned: 1995
Status: Active
Somerset
Navy: Royal Navy
Commissioned: 1996
Status: Active
Sutherland
Navy: Royal Navy
Commissioned: 1997
Status: Active
Kent
Navy: Royal Navy
Commissioned: 2000
Status: Active
Portland
Navy: Royal Navy
Commissioned: 2001
Status: Active
St Albans
Navy: Royal Navy
Commissioned: 2002
Status: Active
System
Alternative Designation
Duke Class; Type 23 Class
Type
Frigate
Builder
Yarrow Shipbuilders, Glasgow
Crew
185 with accommodation for up to 205
Dimensions
Length
133 m
Height
INA
Beam
16.1 m
Draft
5.5 m
Displacement, Standard
3,556 tons
Displacement, Full Load
4,267 tons
Propulsion System
Engine Name
2 x RR Spey SM1A (F 229–F 236) or SM1C (F 237 onwards)
Engine Type
Gas Turbines
Engine Power
31,100 hp
Generator
4 × 1,510 kW (2,025 hp) Paxman Valenta 12CM diesel generators (Non-PGMU ships)
4 × 1,650 kW (2,210 shp) MTU 12V4000 M53 diesel generators (PGMU ships)
Maximum Range
7,800 n miles (14,445.6 km) at 15 kt (27.8 km/h)
Maximum Speed
28 kt (51.9 km/h)
Missile Weapon Systems
Missile Weapon System #1
Name
8 x McDonnell Douglas RGM-84D Harpoon Block IC
Type
Surface-to-Surface Missile
Active Radar Homing
124+ km
Speed
Mach 0.85
Warhead
221.6 kg
Missile Weapon System #2
Name
1 × 32-cell Sea Ceptor GWS 35 Vertical Launching System (VLS)
Type
Surface-to-Air Missile
Maximum Range
25 km
Speed
Mach 3
Warhead
High-explosive blast fragmentation warhead with proximity and impact fuze
Missile Basic Load
32 ea
Gun Weapon Systems
Main Gun System #1
Name
1 x Vickers Mk 8 Mod 1
Type
Naval Gun
Caliber
114 mm
Rate of Fire
24 rds/min
Maximum Range
27.5 km
Weight of Shell
21 kg
Main Gun System #2
Note:
2 × 30 mm DS30M Mk2 guns, or, 2 × 30 mm DS30B guns
Main Gun System #3
Note:
2 × Miniguns
Main Gun System #4
Note:
4 × General-purpose machine guns
Torpedoes' System
Launcher
2 × twin 324 mm Sting Ray torpedo tubes.
Radar Systems
Air/Surface Search Radar
1 x Type 997 (BAE Systems Artisan); 3D; E/F-band.
Surface Search Radar
1 x Kelvin Hughes SharpEye; E/F-band.
Navigation Radar
1 x Kelvin Hughes Type 1007; I-band.
IFF
1010/1011 or 1018/1019.
Sonar Systems
Active Search and Attack Sonar
1 x Ferranti/Thomson Sintra Type 2050; bow-mounted; active search and attack (being replaced by Ultra Electronics Sonar 2150 starting with F 79).
Towed Passive Array Sonar
1 x Thales Type 2087 (F 78, 79, 81, 82, 83, 237, 238, 239); active low-frequency (500 Hz) towed body with passive array (100 Hz).
Fire Control System
Combat Data Systems
BAE Systems Insyte Surface Ship Command System (DNA 2). Links 11 and 16. 2 Astrium SCOT 5 satcoms. Bowman. Xeres MCS. RNCSS.
Weapon Control System
BASE GSA 8B/GPEOD TV/IR/Laser director [Ref 10]. GWS 60 (for SSM). ASCG for 30 mm.
Aviation Faculties
Flight Deck
Yes
Hanger
Yes
Aircraft (Options 1)
1 × Wildcat HMA2, armed with:
2 × anti-submarine torpedoes (Martlet and Sea Venom ASM initially deployed with RN carrier strike group helicopters in 2021).
Aircraft (Options 2)
1 × Westland Merlin HM2, armed with;
4 × anti-submarine torpedoes.
Protection
Hull Armor
INA
Physical Countermeasures
Outfit DLH; 4 6-barrelled launchers; IR flares, chaff and active RF decoys. Outfit DLF 3B offboard decoys. Ultra Electronics Sonar 2170 surface ship torpedo defense system; towed detection array/decoy; decoy launchers.
Electronic Countermeasures
RESM: Racal UAT; intercept.
CESM: Babcock Hammerhead (to be replaced by Babcock Ardent Wolf)
NBC Water Washdown System
Yes
Details
Country of Origin
United Kingdom
Category
Naval
Naval
Filter Label
D
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
133 m
Width
16.1 m
Height
—
Weight
—
Operators (2)
United Kingdom
Chile
