Renault Sherpa 5/10

Renault Sherpa 5/10

Military Trucks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Renault Sherpa 5/10
Designation
Renault Sherpa 5/10
Alternate Designation
Equipment Type
Military Trucks
Manufacturer
Renault Trucks Defense
Date of Introduction
Description

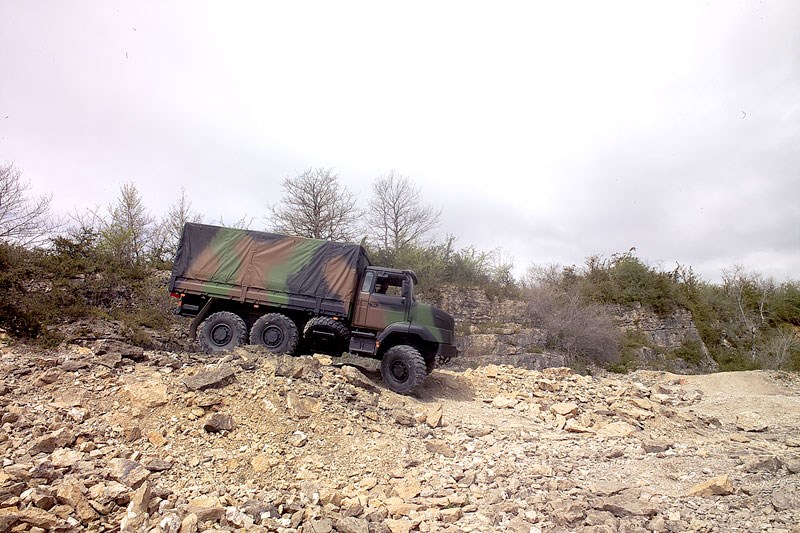

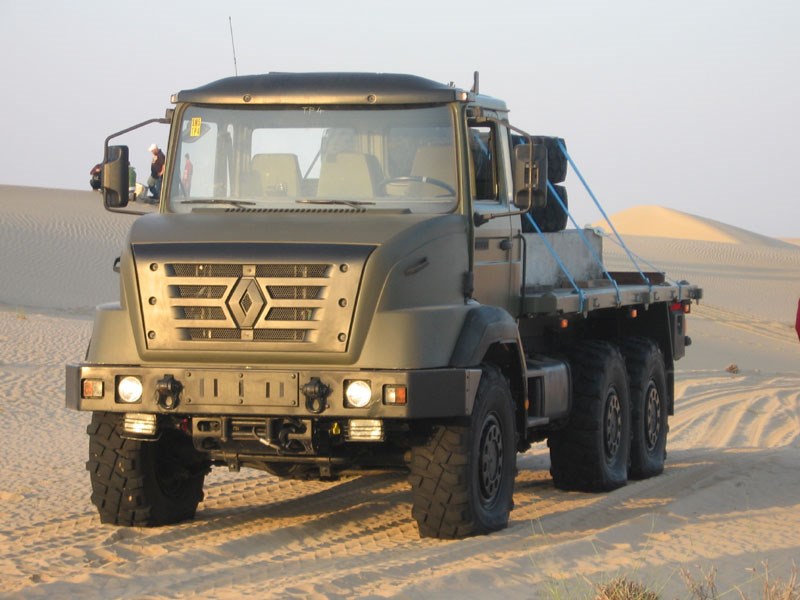

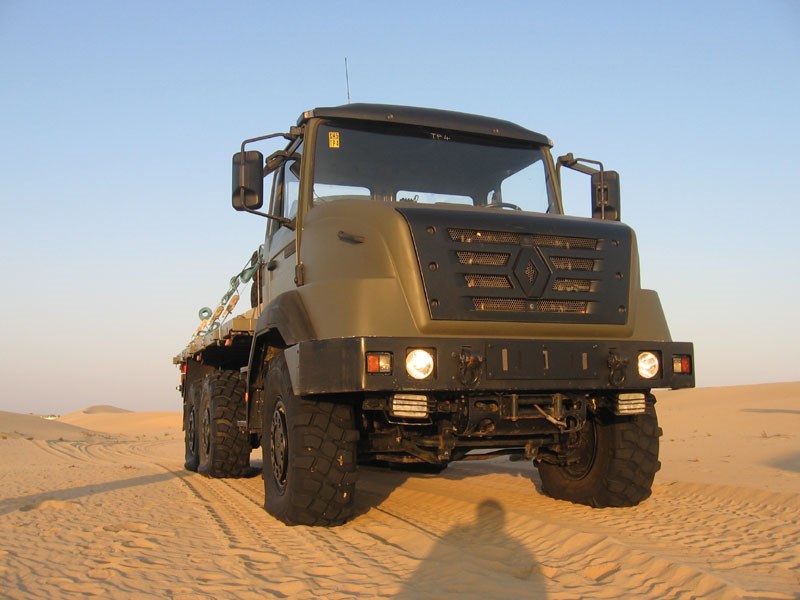

The Sherpa 5 is a 20-ton class 6x6 all-terrain medium-weight military truck system able to carry 7-ton of cargo in support of combat units. Several versions of this truck system have been developed by Renault Trucks Defense. Equipped with either a long cab or a short cab, Sherpa 5 truck is suitable for: relief and supply mission; troop transport (up to 20 fully-equipped infantrymen on a flatbed); servicing : light repairs; mobility support : tipper, tanker and clearance blade versions; and shelter transport (10-15 feet). It is powered by a six-cylinder Euro 4 compliant 240-hp DXi 7 diesel engine which provides a maximum range of 850 km at a cruising speed of 60 kph. The Sherpa 5 tactical truck is air transportable.

Ground Specifications
Crew 2
Mobility Type Wheeled (6x6)
Max Speed 90.0 km/h
Range 850.0 km
Overview (Deagel)
Group Military Trucks
Status Active

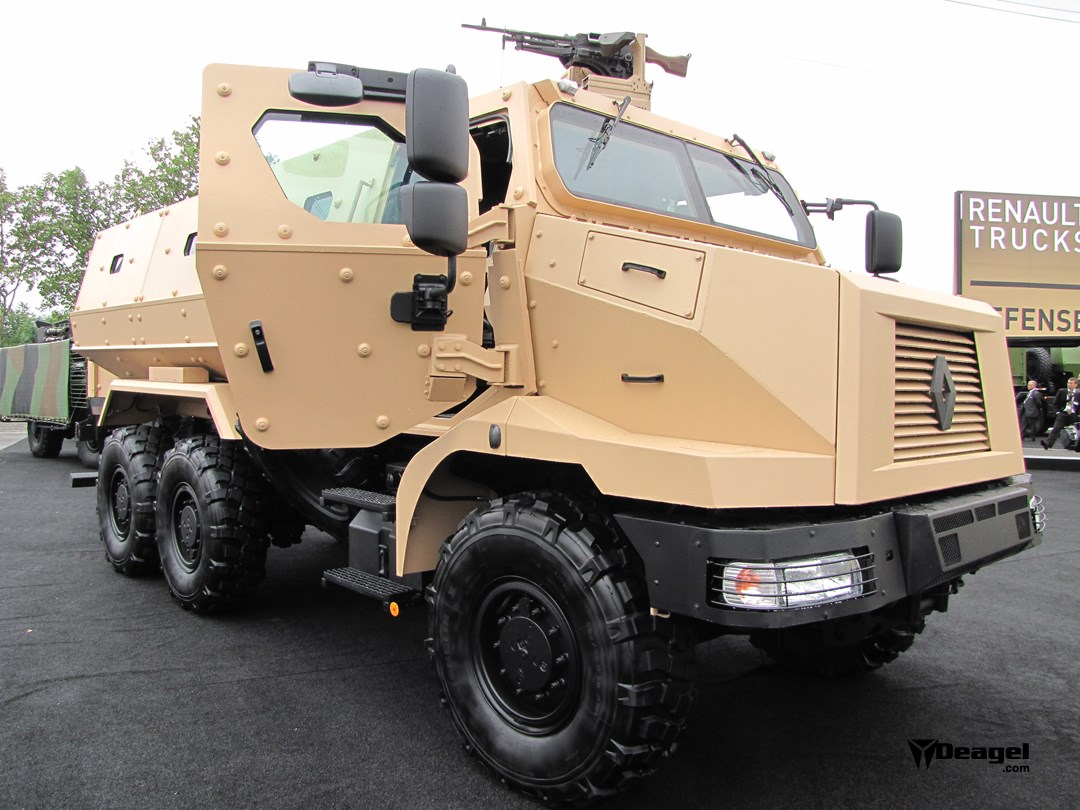

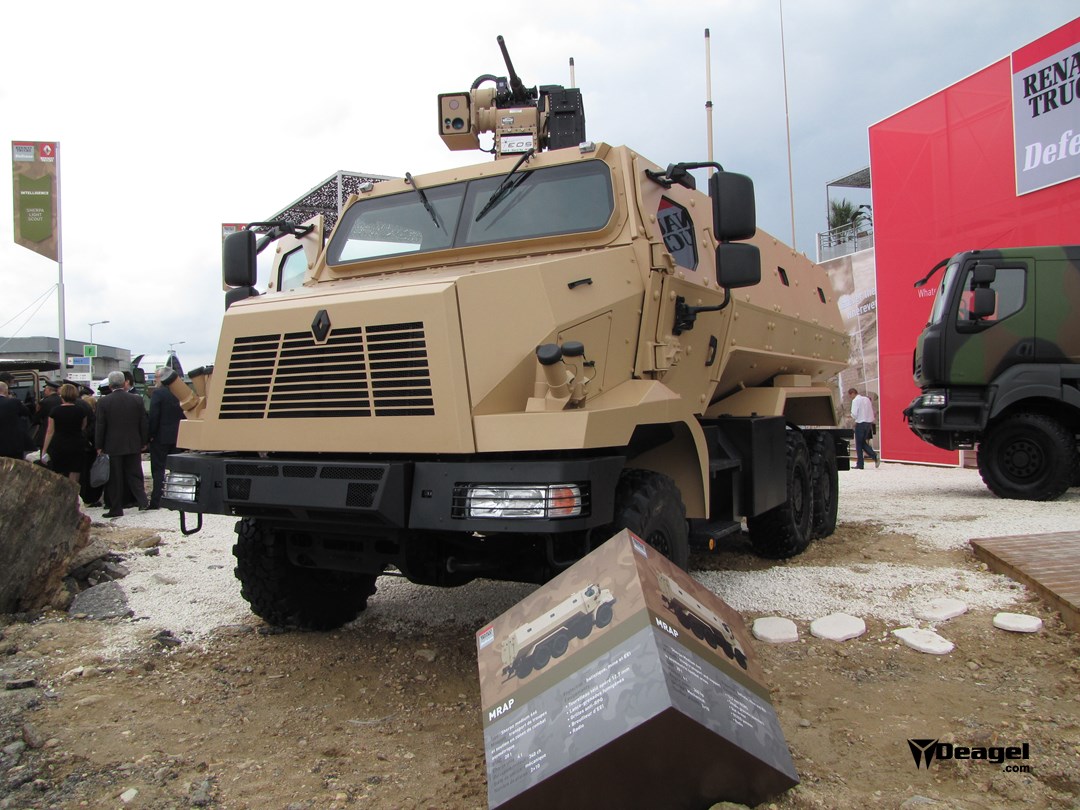

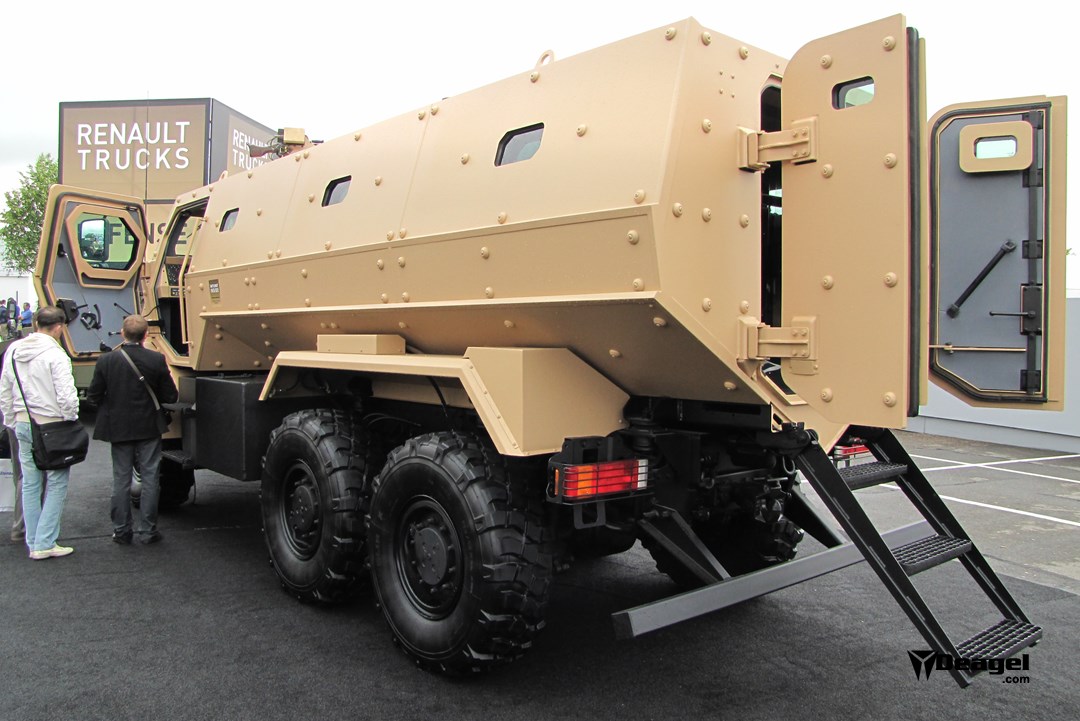

Also Known As Higuard (Sherpa Medium MRAP), Sherpa Medium MRAP
Origin France
Contractor Renault Trucks Defense
Total Production ?
Specifications (Deagel)
Crew 2
Troops 20
Wheel Drive 6
Wheels 6
Dimensions — Ground Clearance 397 millimeter
Dimensions — Height 3.0 meter
Dimensions — Length 7.3 meter
Dimensions — Width 2.3 meter
Mass — Cargo 7,000 kilogram
Mass — Empty Weight 14,200 kilogram
Mass — Max Weight 24,200 kilogram
Performance — Max Range 850 kilometer
Power — Power 240 hp
Speed — Economical Speed 60 kph
Speed — Top Speed 90 kph
Volume — Fuel Tank Capacity 200 liter
Variants
Variant 1 Sherpa 5
Variant 2 Sherpa 10
Details
Country of Origin France
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.3 m
Width
2.3 m
Height
3 m
Weight
24200 kg
