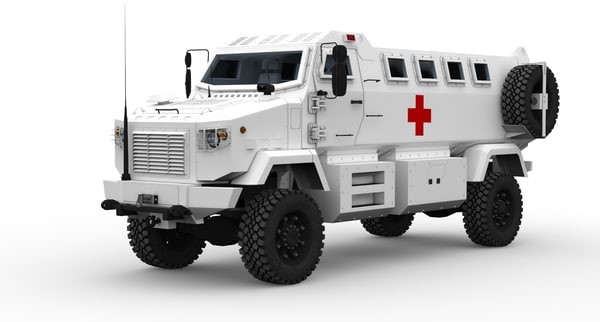

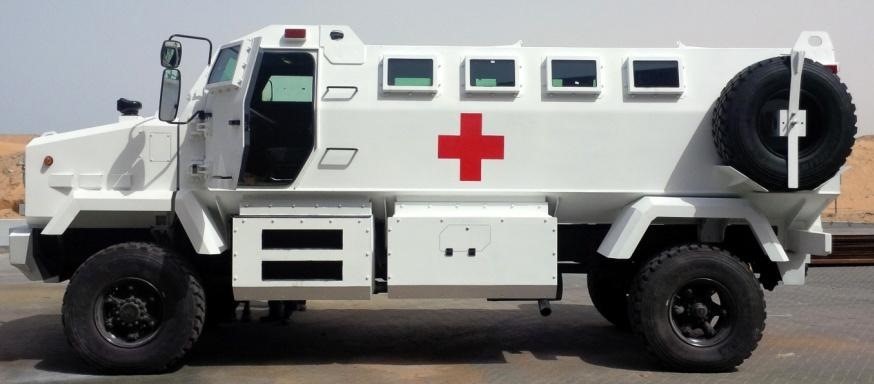

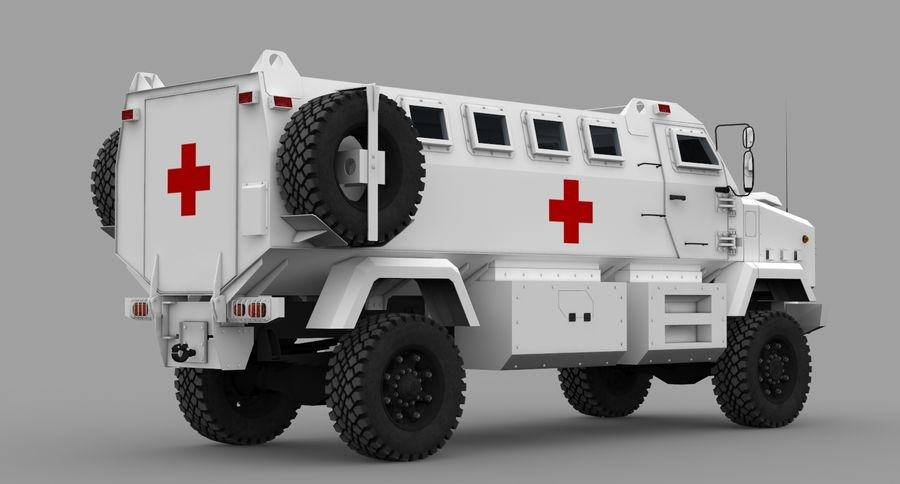

KrAZ MPV AMB (Shrek One AMB) Ukrainian 4x4 Armored Ambulance
KrAZ MPV AMB
CBRN Vehicle
Other
Basic Information
Name
KrAZ MPV AMB (Shrek One AMB) Ukrainian 4x4 Armored Ambulance
Designation
KrAZ MPV AMB
Alternate Designation
KrAZ MPV AMB; Shrek One AMB
Equipment Type
CBRN Vehicle
Manufacturer
It was developed by Streit Group of Canada in partnership with AutoKrAZ of Ukraine
Date of Introduction
2014
Description
The KrAZ Ambulance with underbelly mine protection is intended for operation in explosion hazardous areas.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Engine
Diesel (330 hp)
NBC Protection
Yes
Max Speed
80.0 km/h
Range
1000.0 km
Variants
KrAZ MPV TC (Shrek One)
The KrAZ MPV TC Ukrainian 4x4 Mine Resistant Ambush Protected (MRAP) was developed by Streit Group of Canada in partnership with AutoKrAZ of Ukraine. It is based on a KrAZ-5233 4x4 all-terrain military truck.
KrAZ MPV with IA
A specialized route clearance vehicle.
Feona
A 6x6 mine resistant ambush protected vehicle.
System
Alternative Designation
KrAZ MPV AMB; Shrek One AMB
Type
Armored Ambulance
Manufacturer
It was developed by Streit Group of Canada in partnership with AutoKrAZ of Ukraine.
Configuration
4x4
Crew
2 ea
Ablulance Equipment
4 stretchers with restraining straps;
“F” type oxygen cylinders, outlets at the head of stretchers to connect regulators; Ramp for patient loading, rear door opening hydraulic system; Headrest for patient safety; 3 electrical sockets on each side; 2 ALS bags.
Options
2 outside spare wheels; Heavy-duty air-conditioning system for tropical countries; Winch; VHF and HF radio system; 2 x 12 V power connectors in front of the vehicle and 4 x 12 V power connectors at the rear may be used for telephone, GPS and other devices power supply fitted with standard 12 V power adapters; AC-to-DC inverter 220 V to supply power for 4 computers / telephones or similar devices. Sockets are at the rear
Drawbar hitch is mounted in front and rear parts according to NATO standard.
Dimensions
Length
7.99 m
Width
3.15 m
Height
3.08 m
Weight, Combat
16 tons
Automotive
Engine Name
YaMZ-238D
Engine Type
Diesel
Engine Power
330 hp
Maximum Range
1,000 km
Maximum Speed
80 km/h
Amphibious
No
Gradient
60%
Side Slope
30%
Vertical Step
0.5 m
Trench
0.5 m
Fording
1.5 m
Protection
Ballistic Protection
B6+/STANAG 4569 Level 2.
Window Glass
Transparent multi-layer bulletproof glass. Polycarbonate inner layer
Underbelly mine protection
2 x TM57 landmines (14kg TNT) under any wheel
1 x TM 57 landmine (7kg TNT) directly under bottom
Underbelly design
V-shaped
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
No
Image Sources
Details
Country of Origin
Ukraine
Category
Medical Vehicles
Land > Combat Support Vehicles > Medical Vehicles
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.99 m
Width
3.15 m
Height
3.08 m
Weight
16000 kg
Operators (2)
Ukraine
Canada
