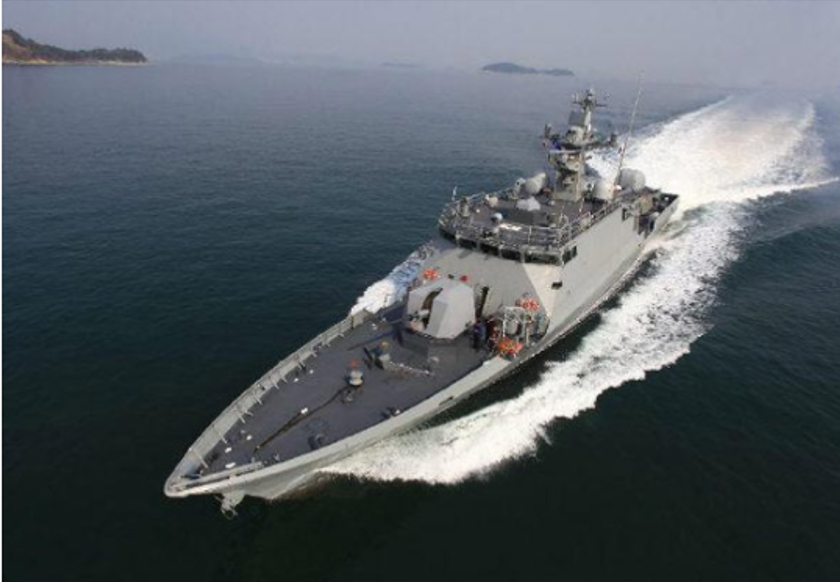

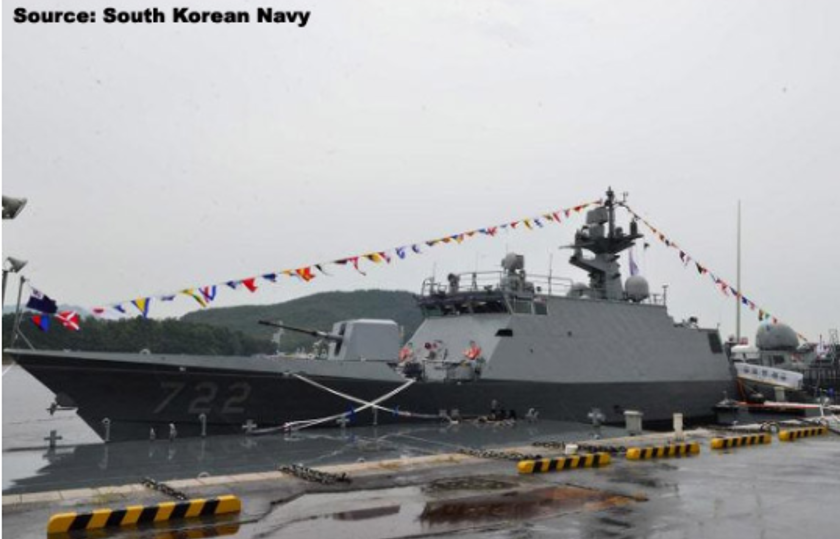

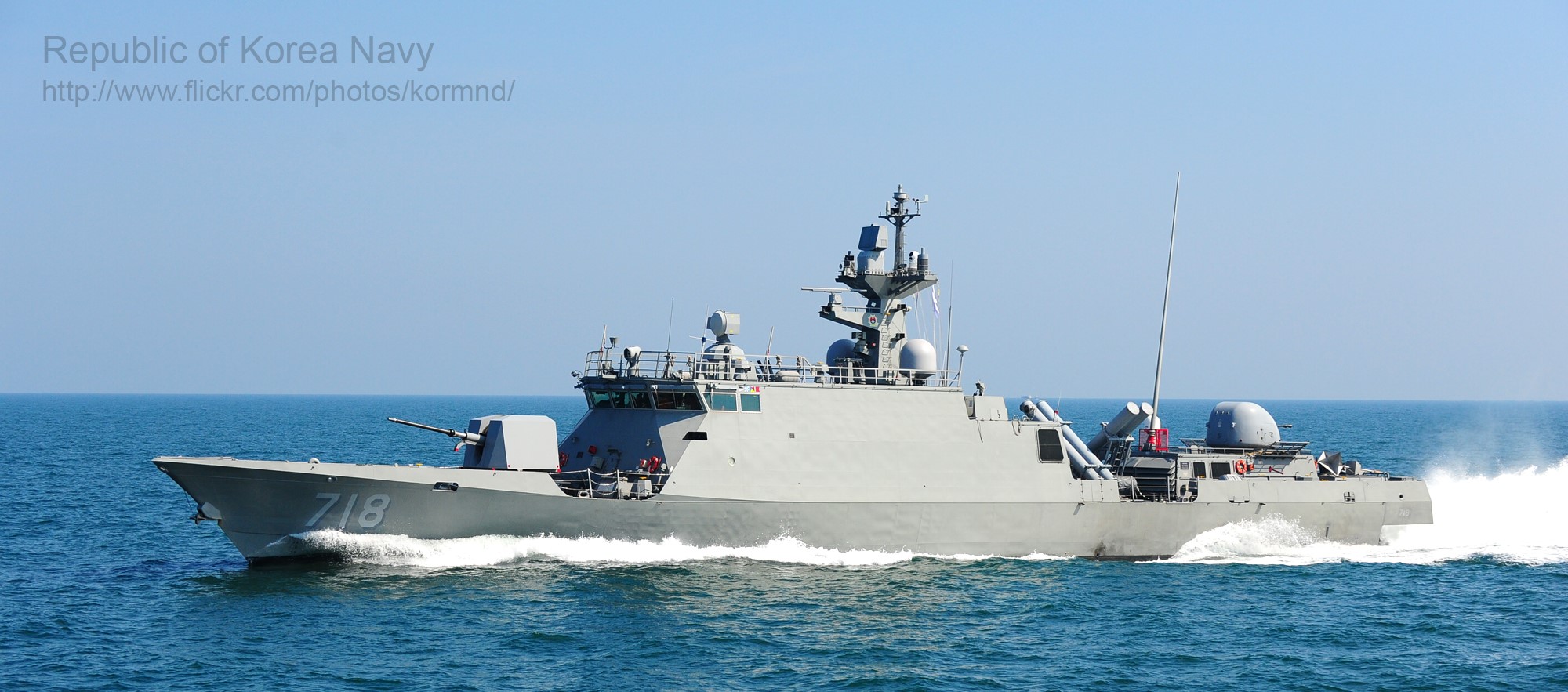

Gumdoksuri Class South Korean Guided Missile Patrol Boat
Gumdoksuri Class
Patrol Boat
Other
Basic Information
Name
Gumdoksuri Class South Korean Guided Missile Patrol Boat
Designation
Gumdoksuri Class
Alternate Designation
Gumdoksuri Class
Equipment Type
Patrol Boat
Manufacturer
Hanjin Heavy Industries and Construction
Date of Introduction
2008
Description
The GUMDOKSURI-class high-speed patrol boats are designed to replace South Korea's aging PAEK KU 52- and CHAMSURI-class patrol boats. It is being procured in two variants: the PKX-A, equipped with missile systems; and the PKX-B, armed only with guns (PKX stands for the Patrol Killer Experimental program).
Naval & Littoral Specifications
Crew
40
Beam
9.00 m
Draft
5.00 m
Variants
YOON YOUNG-HA
Commissioned: 2008
Status: Active
HAN SANG GUK
Commissioned: 2011
Status: Active
JO CHEON HYEONG
Commissioned: 2011
Status: Active
HWANG DOHYUN
Commissioned: 2012
Status: Active
SUH HOOWON
Commissioned: 2011
Status: Active
PARK DONGHYUK
Commissioned: 2011
Status: Active
HYUN SIHAK
Commissioned: 2011
Status: Active
JUNG GEUNGMO
Commissioned: 2011
Status: Active
JI DEOKCHIL
Commissioned: 2011
Status: Active
LIM BYEONGRAE
Commissioned: 2013
Status: Active
HONG SIUK
Commissioned: 2013
Status: Active
HONG DAESEON
Commissioned: 2013
Status: Active
HAN MUNSIK
Commissioned: 2014
Status: Active
KIM CHANG-HAK
Commissioned: 2014
Status: Active
PARK DONGJIN
Commissioned: 2014
Status: Active
System
Alternative Designation
Gumdoksuri Class
Type
Guided Missile Patrol Boat
Builder
PGM-711, -717, -718, -719, -721, -726, -727, -728: Hanjin Heavy Industries and Construction, Busan, South Korea
PGM-712, -713, -715, -716, -722, -723, -725: STX Jinhae, South Korea
Crew
40
Dimensions
Length
63.0 m
Beam
9.0 m
Draft
5.0 m
Displacement, Standard
450 tons
Displacement, Full Load
570 tons
Propulsion System
Gas Turbine Engine Name
2 x LM500
Diesel Engine Name
2 x MTU 16V1163TB93 diesels
Engine Type
Gas Turbine
Engine Power
Gas Turbine: 5,450 shp each; Diesel Engine: 5,600 hp each
Maximum Range
2,000 nm at 15/16 knots
Maximum Speed
74 km/h (40 Knots)
Gun Weapon Systems
Gun Weapon System #1
Name
1 x Hyundai Wia DP
Type
Naval Gun
Caliber
76 mm
Quantity
1 x Hyundai Wia DP 76mm Naval Gun
Rate of Fire
100 Rounds/min
Maximum Range
16.3 km
Elevation
-15˚~ +85˚
Traverse
360˚
Controller Type
Digital
Shield Type
Stealth
Gun Weapon Systems #1 Ammunition
Type
Rifle
Caliber
76 mm
Shell
INA
Basic Load
INA
Gun Weapon System #2
Name
1 x Twin Doosan DST No Bong
Type
Anti-Aircraft Gun
Caliber
40 mm
Maximum Firing Range
7,160 m
Gun Weapon Systems #2 Ammunition
Type
Rifle
Caliber
40 mm
Cartridge
INA
Basic Load
INA
Missile Weapon System
Missile #1
Name
2 x SSM-700K Haeseong (C-Star)
Type
Anti-Ship Cruise Missile
Manufacturer
LIG Nex1
Hanwha Techwin Samsung
Length
5.46 m
Width
0.34 m
Weight
718 kg (with launcher:1,016kg)
Warhead Weight
250 kg
Detonation Mechanism
Impact fuze
Engine
Samsung Techwin SS-760K turbofan (or a Daewoo or Hyundai alternative motor)
Operational Range
180 km ~ 200 km
Flight Altitude
Sea-skimming
Maximum Speed
1162.8 km/h (Mach 0.95)
Guidance System
Inertial guidance / terminal active radar homing
Fire Control Systems
FCS Name
1 x Samsung Thales electro-optical targeting system
Computerized FCS
Yes
Combat System
1 x South Korean version of Saab Ceros 200 combat management system
Radar Systems
Surface Search Radar
1 x STX RadarSys SPS-100K surface search
Surveillance Radar
1 x LIG Nex1 SPS-540K 3D surveillance
Navigation Radar
INA
Protection
Countermeasures
2 x EADS/Lacroix Dagaie Mk 2 chaff/flare launchers
NBC Water Washdown System
Yes
EW
1 x GoldStar Sonata active jammer
Details
Country of Origin
South Korea
Category
Naval
Naval
Filter Label
G
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
63 m
Width
9 m
Height
—
Weight
570000 kg
Operators (1)
South Korea
