DONAR German 155mm Self-Propelled Howitzer

DONAR

Self-Propelled Howitzer (SPH)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
DONAR German 155mm Self-Propelled Howitzer
Designation
DONAR
Alternate Designation
DONAR
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
KNDS
Date of Introduction
2008
Description

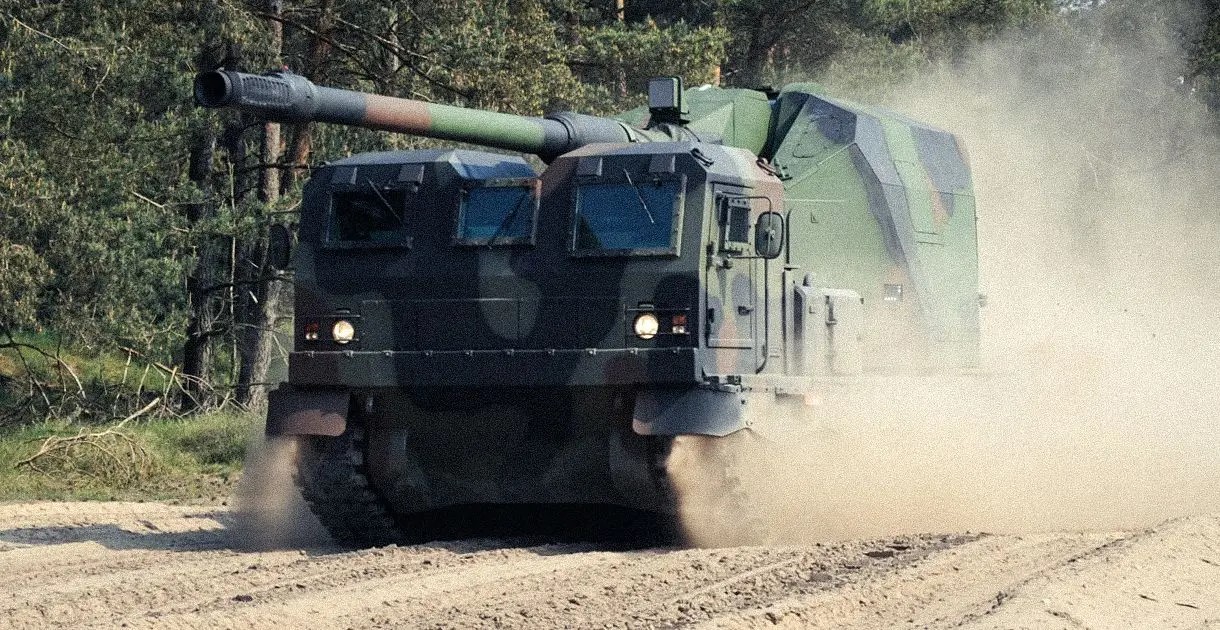

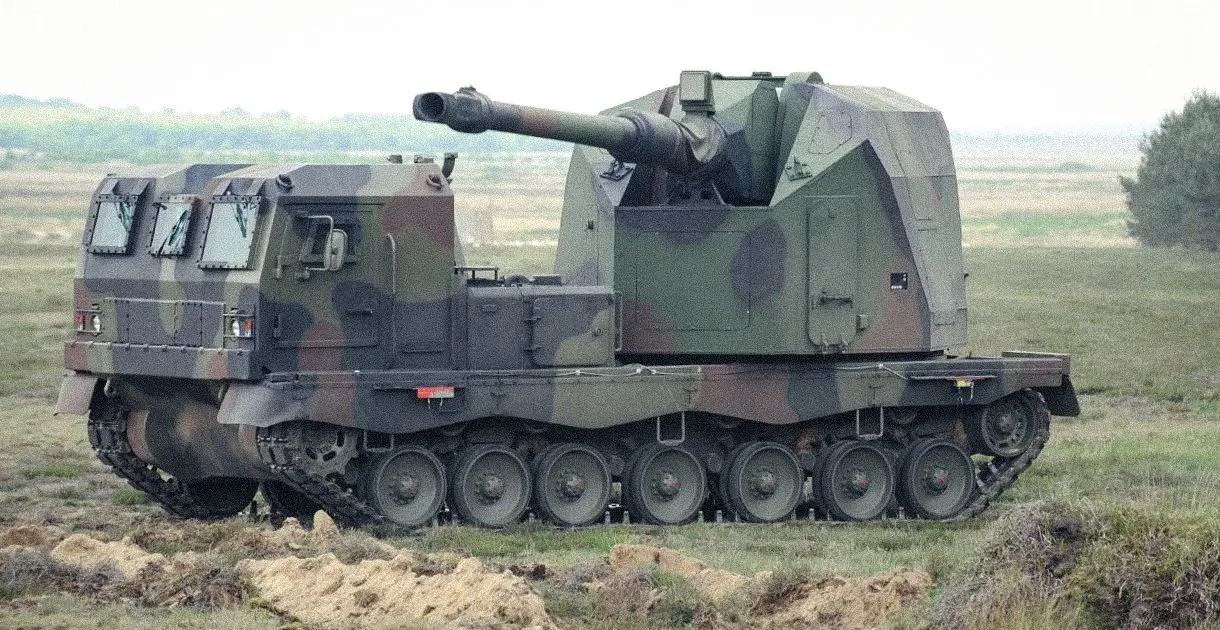

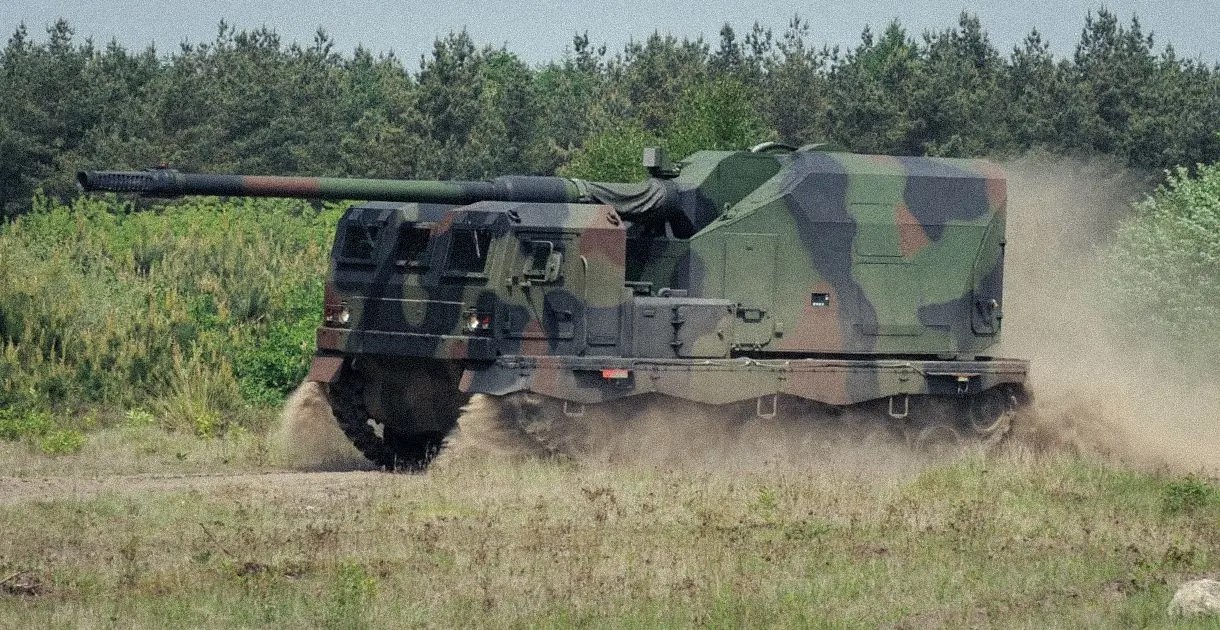

The DONAR German 155mm Self-Propelled Howitzer, also known as the Artillery Gun Module (AGM), is a state-of-the-art, air-deployable, autonomous, and remotely-operated artillery system designed to meet the increasing demand for precise indirect-fire capabilities. This system can augment or even replace close-air-support operations that have traditionally relied on expensive fixed- or rotary-wing aircraft. Krauss-Maffei Wegmann (KMW) and General Dynamics Land Systems, through their collaboration with SBS, have embarked on a joint initiative to develop and market this next-generation artillery system, which weighs less than 32 tons. In late 2004, KMW unveiled a prototype of the 155mm self-propelled howitzer built on the chassis of the US-developed Multiple Launch Rocket System (MLRS). This prototype is referred to as the Artillery Gun Module (AGM) and was developed as a private venture to satisfy the future operational needs of the German Army. The DONAR system transforms conventional artillery doctrine by reducing crew sizes and logistical footprints while enabling autonomous operations. It aims to replace legacy systems such as the M109, AS90, and K9 currently in use by modern armies. The mission spectrum of DONAR encompasses a range of tasks, from classic artillery fire support missions to active field protection. Its autonomous capabilities mark a significant advancement toward networked and centralized command and control.

Ground Specifications
Crew 2
Mobility Type Tracked
Main Weapon 155mm
Engine Diesel (720 hp)
NBC Protection Yes
Max Speed 60.0 km/h
Range 500.0 km
System
Alternative Designation DONAR
Type Self-Propelled Howitzer
Caliber 155mm
Manufacturer KNDS
Configuration Track
Crew 2 ea
Accessories The DONAR integrates seamlessly into a networked and centralized command and control system, supporting network-centric warfare. It is equipped with nuclear, biological, and chemical (NBC) protection as well as automatic fire suppression systems. Standard features include an inertial reference unit connected to GPS (Global Positioning System), along with a muzzle velocity measuring system that provides data to the onboard fire-control system. Krauss-Maffei Wegmann claims that the DONAR can engage both moving and stationary targets. Additionally, it comes with a vehicle-independent auxiliary power unit, allowing the entire system to operate while the main MLRS carrier engine is shut down. The DONAR is capable of being airlifted by the Airbus A400M, although it is too large for the current C-130 Hercules and C-160 aircraft.
Dimensions
Length 10.3 m
Width 2.8 m
Height 3.0 m
Weight, Combat 31,500 kg
Automotive
Engine Name MTU
Engine Type Diesel
Engine Power 720 hp
Maximum Range 500 km
Maximum Speed 60 km/h
Amphibious No
Main Weapon System

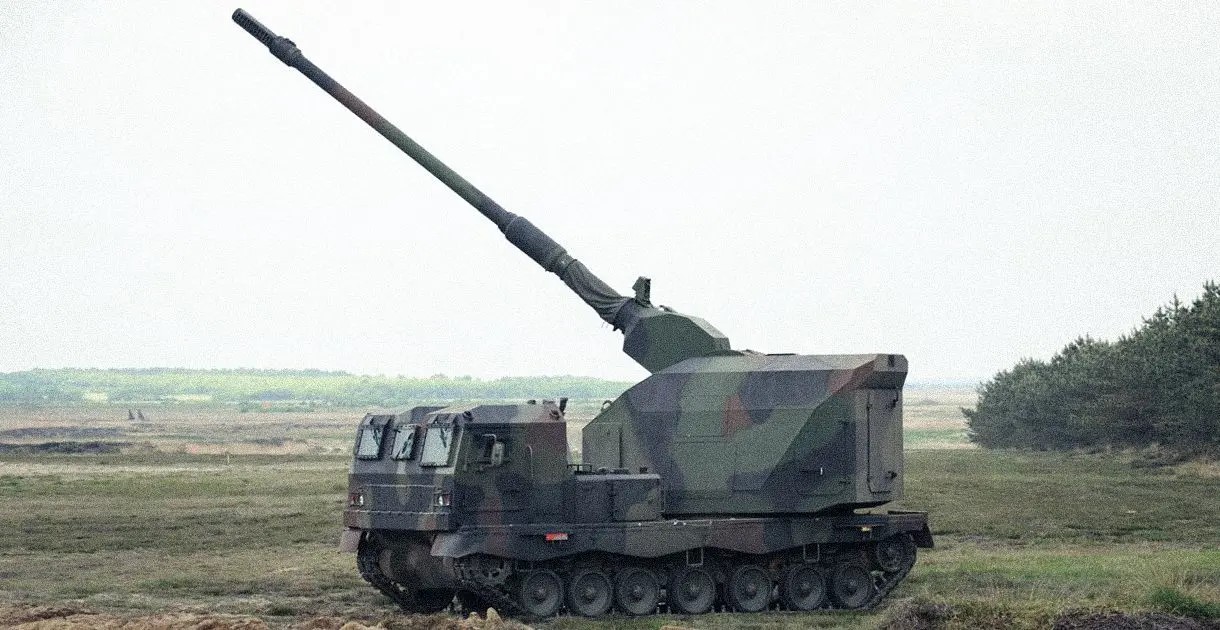

Note The DONAR, also known as the AGM, is equipped with a 155mm (52 caliber) cannon. It boasts a maximum range of over 56 kilometers. This artillery system features a fully automatic and independent firing module, along with an automated loading and laying system that includes a 30-shell magazine. Despite its reduced weight and size, the gun module operates without the need for additional stabilization and offers a 360-degree azimuth range. The maximum range of fire varies depending on the projectile and charge combination: it reaches 30 kilometers with standard projectiles, 40 kilometers with rocket-assisted projectiles, and up to 56 kilometers when using the South African VLAP projectile. The gun has a maximum firing rate of 6 rounds per minute, which may be increased to 8 rounds per minute in production systems. Notably, the DONAR gun is the same as that used in the self-propelled howitzer PzH2000.
Protection

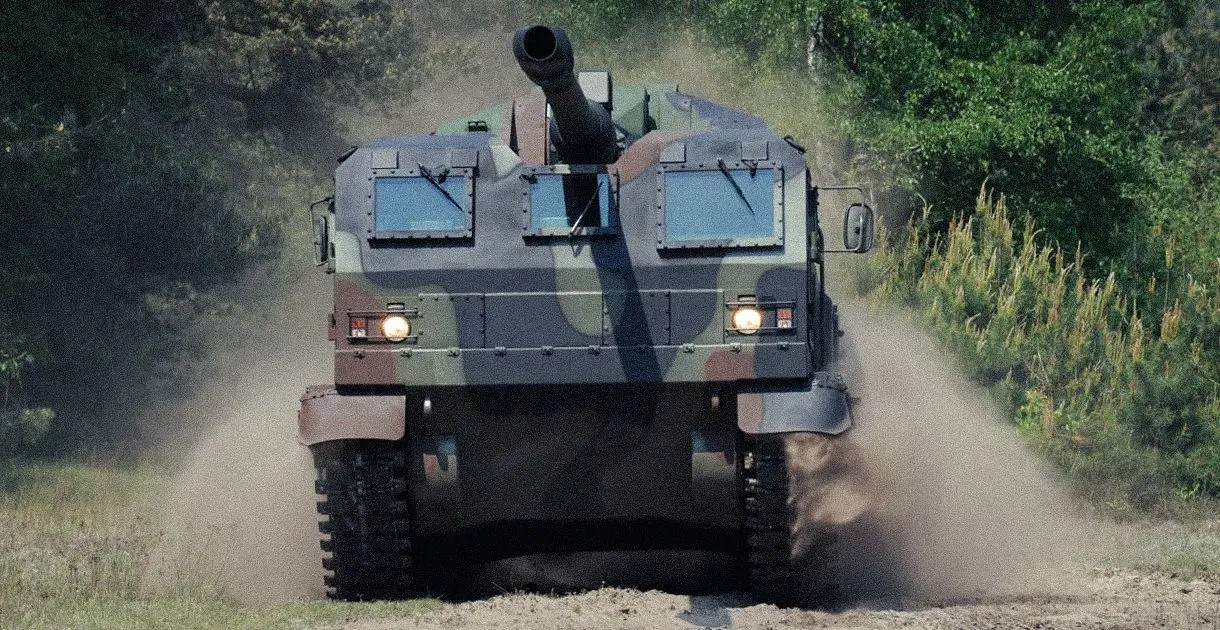

Armor The DONAR or AGM hull is made in all-welded steel armor that provides the occupants with protection from small arms fire and shell splinters. To the front of the crew position are three large bulletproof windows.
Applique Armor As an option mine protection system and armor kit can be fitted for a higher level of protection.
NBC Protection Yes
Smoke Equipment INA
Details
Country of Origin Germany
Category Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
D
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
10.3 m
Width
2.8 m
Height
3 m
Weight
31500 kg
Operators (1)
Germany
