Oplot

Oplot

Main Battle Tanks
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Oplot
Designation
Oplot
Alternate Designation
BM Oplot, Oplot-M, T-84, T-84-U
Equipment Type
Main Battle Tanks
Manufacturer
KMDB
Date of Introduction
1999
Description

The basic T-84, also known as Oplot within Ukraine since 2000, is divided into three compartments: front compartment for the driver, middle fighting module for the commander and gunner, and rear compartment homing the 1,200-hp 6TD-2 multi-fuel, liquid-cooled 6-cylinder diesel powerplant. The new ERA provides improved protection against both chemical energy and kinetic energy projectile attacks over the frontal section. Besides, the tank features enlarged side skirts to give additional protection for the hull sides and running gear components against attacks by short-range anti-tank missiles. The turret-mounted weapon package includes a 125mm KBA-3 main gun with 40 rounds of which 28 in the autoloader, one 12.7mm KT-12.7 anti-aircraft machine gun with 450 rounds, and a 7.62mm KT-7.62 coaxial machine gun with 1,250 rounds. The T-84 can be fitted with air conditioning and projectile muzzle velocity sensor as optional equipment. The 6TD-2 two-stroke, multi-fuel, liquid-cooled 6-cylinder diesel engine, fuel injected engine develops 1,200-hp at 2,600 rpm allowing a maximum speed on-road of 70 kph.

Ground Specifications
Crew 3
Mobility Type Tracked
Main Weapon 125mm KBA-3 main gun (125mm)
Max Speed 70.0 km/h
Range 450.0 km
Overview (Deagel)
Group Main Battle Tanks
Status Active
Also Known As BM Oplot, Oplot-M, T-84, T-84-U
Origin Ukraine
Contractor KMDB
Initial Operational Capability (IOC) 1999
Total Production ?
Specifications (Deagel)
Ammunition Load 40
Crew 3
Dimensions — Ground Clearance 515 millimeter
Dimensions — Height 2.8 meter
Dimensions — Length 9.7 meter
Dimensions — Main Gun Caliber 125 millimeter
Dimensions — Width 3.8 meter
Mass — Combat Weight 48 ton
Percentage — Gradient 63 %
Percentage — Side Slope 36 %
Performance — Ditch Crossing Ability 2.9 meter
Performance — Fording Depth 5 meter
Performance — Max Range 450 kilometer
Performance — Step Climbing Ability 1 meter
Power — Power 1,200 hp
Pressure — Ground Pressure 0.93 kg/cm2
Speed — Cross Country Speed 50 kph
Speed — Top Speed 70 kph
Volume — Fuel Tank Capacity 1,200 liter
Gear (Deagel)
Item 1 Anti-Tank Guided Missiles: Kombat
Variants

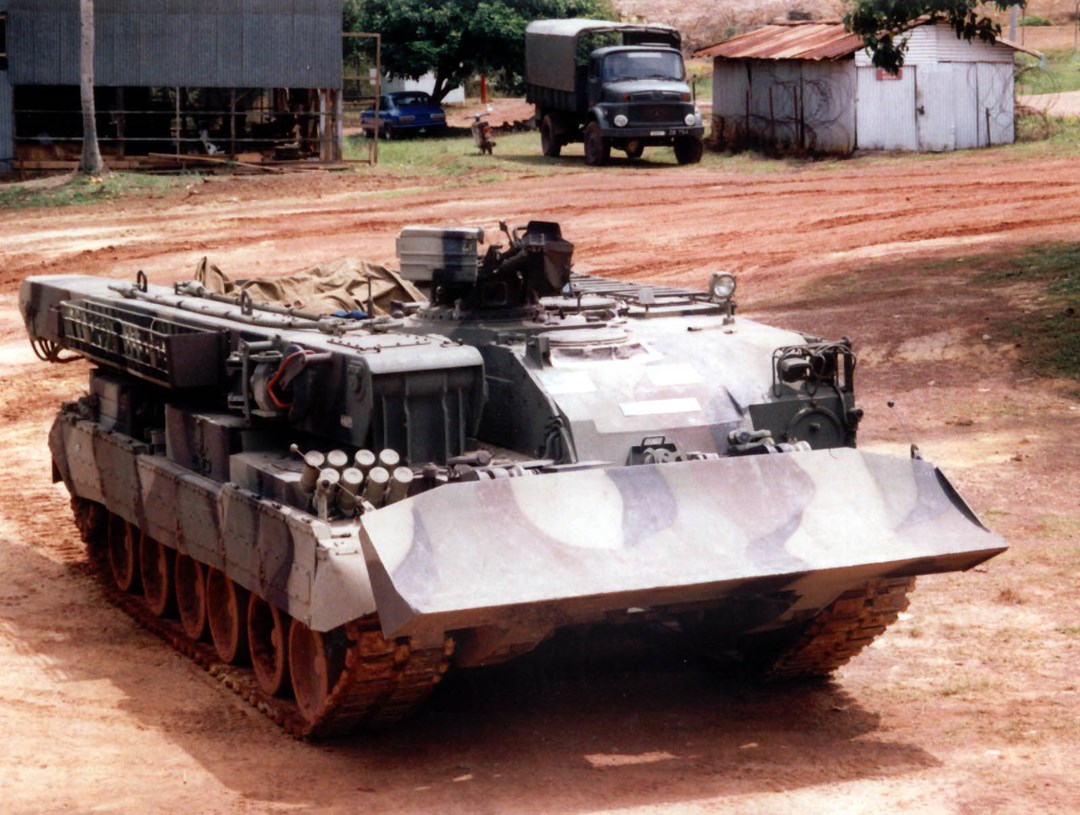

Variant 1 BREM-84
Variant 2 Oplot
Variant 3 Yatagan
Details
Country of Origin Ukraine
Category Tanks
Land > Tanks
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.7 m
Width
3.8 m
Height
2.8 m
Weight
48000 kg
Operators (2)
Ukraine
Thailand
