9M120F
9M120F
Anti-Tank Guided Missiles
Basic Information
Name
9M120F
Designation
9M120F
Alternate Designation
—
Equipment Type
Anti-Tank Guided Missiles
Manufacturer
Degtyarev, KBM
Date of Introduction
2005
Description

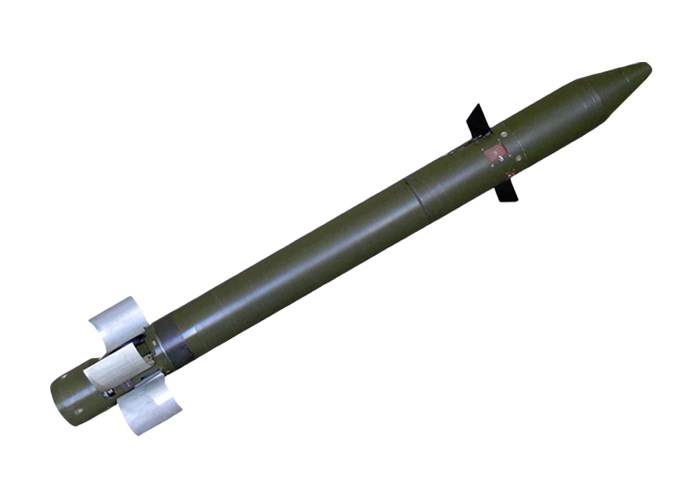

The 9M120F is a member of the Ataka missile family and is fitted with a high explosive (HE) fuel-air explosive warhead designed to suppress fire emplacements, bunkers, soft-skinned and lightly armored vehicles, aviation materiel, and sheltered personnel. The warhead has an explosive power similar to 9.5 kilograms of TNT. The 9M120F missile is intended to fire from Shturm-V systems deployed on Mi-24V, Mi-28NE and Mi-8AMTSh (Mi-171Sh) helicopters and from Shturm-S systems mounted on the 9P149 combat vehicle. Typically a land platform will be provided with 12 missiles, Mi-24V and Mi-8 helicopters with eight missiles and the Mi-28NE attack helicopter with 16 missiles.
Ground Specifications
Max Speed
1980.0 km/h
Range
5.8 km
Overview (Deagel)
Group
Anti-Tank Guided Missiles
Status
Active
Origin
Russia
Contractors
Degtyarev, KBM
Initial Operational Capability (IOC)
2005
Total Production
?
Specifications (Deagel)
Dimensions — Diameter
130 millimeter
Dimensions — Length
1,830 millimeter
Mass — Weight
49.5 kilogram
Performance — Max Launch Altitude
4,000 meter
Performance — Max Range
5,800 meter
Performance — Min Launch Altitude
0.000 meter
Performance — Min Range
1,000 meter
Speed — Top Speed
550 mps
Temperature — Max Operating Temperature
50 ° Celsius
Temperature — Min Operating Temperature
-50.00 ° Celsius
Variants
Variant 1
Ataka
Variant 2
9M120F
Variant 3
Ataka-VM
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a001006
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
49.5 kg
Operators (2)
Russia
India
