IF800 Tomcat American Unmanned Aerial Vehicle (UAV)

IF800 Tomcat

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
IF800 Tomcat American Unmanned Aerial Vehicle (UAV)
Other

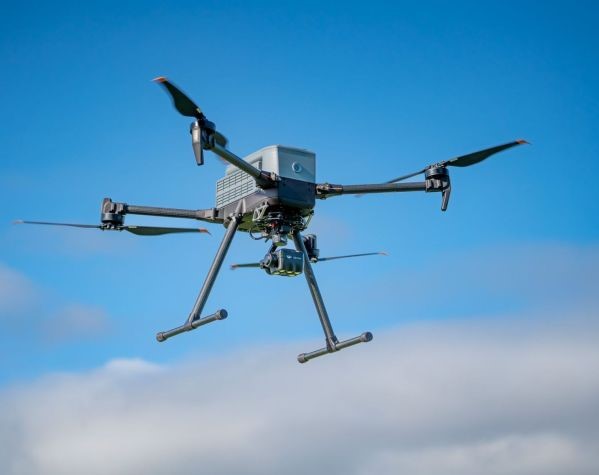

IF800 American Unmanned Aerial Vehicle (UAV) (B)TRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
IF800 Tomcat American Unmanned Aerial Vehicle (UAV)
Designation
IF800 Tomcat
Alternate Designation
IF800 Tomcat
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Inspired Flight
Date of Introduction
2023
Description

The IF800 Tomcat American Unmanned Aerial Vehicle (UAV) has an array of advanced features that cater to diverse professional applications, including high-resolution aerial photogrammetry, surveying, search and rescue, and infrastructure inspection, the IF800 Tomcat maximizes operational efficiency and productivity.

Air & Air Defense Specifications
Engine Battery
Max Speed 79.2 km/h
Endurance 54.00 hrs
Payload Capacity 3 kg
System
Alternate Designation IF800 Tomcat
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Inspired Flight
Payload Capacity 3.0 kg
Flight Modes Position Hold: Automatically holds altitude and position, manually change position; Loiter: Holds altitude and position, precision manual movements using GPS; Auto: Executes pre-defined waypoint mission; RTL: Auto returns to takeoff location and lands; Land: Auto land while maintaining horizontal position; Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost
Dimensions
Diagonal Size (propeller center to center) 905 mm
Unfolded Size (flight ready, WxLxH) 132 x 114 x 52 cm
Folded Size (stow, WxLxH) 36 x 44 x 20 cm
Empty Weight (w/o batteries) 4.2 kg
Weight w/ Batteries 8.5 kg
Max Gross Takeoff Weight 11.5 kg
Transport Case Size (WxLxH) 52.8 x 80.7 x 31.7 cm
Transport Case Weight (w/ aircraft) 18 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Max Ascent Speed 5 m/s
Max Descent Speed 3 m/s
Max Air Speed 22 m/s
Max Wind Resistance 10 m/s, 12 m/s gusts
Service Ceiling (with given payload) 0.9 km (12,800 ft) w/ 4kg, 2.2 km (7,200 ft) w/ 8.7 kg
Endurance 54 min
Image Sources
Notes https://sentera.com/resources/news/sentera-drone-and-sensor-business-segment-moving-to-new-internet-domain/; https://www.inspiredflight.com/if800.php; https://www.inspiredflight.com/if800.php;
Details
Country of Origin United States
Category UAVs
Air > UAVs
Filter Label
I
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
—
Width
1.32 m
Height
0.52 m
Weight
11.5 kg
Operators (1)
United States
