Basic Information
Name
BMD
Designation
BMD
Alternate Designation
Equipment Type
Self-Propelled Howitzers
Manufacturer
TsNIITochMash
Date of Introduction
Description

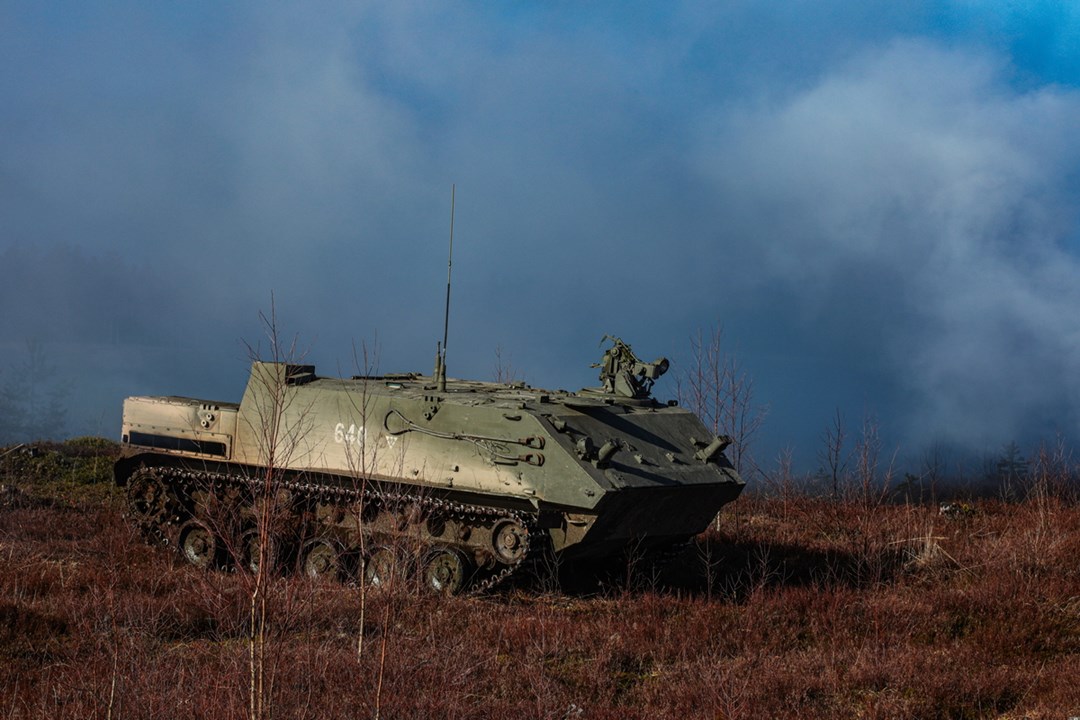

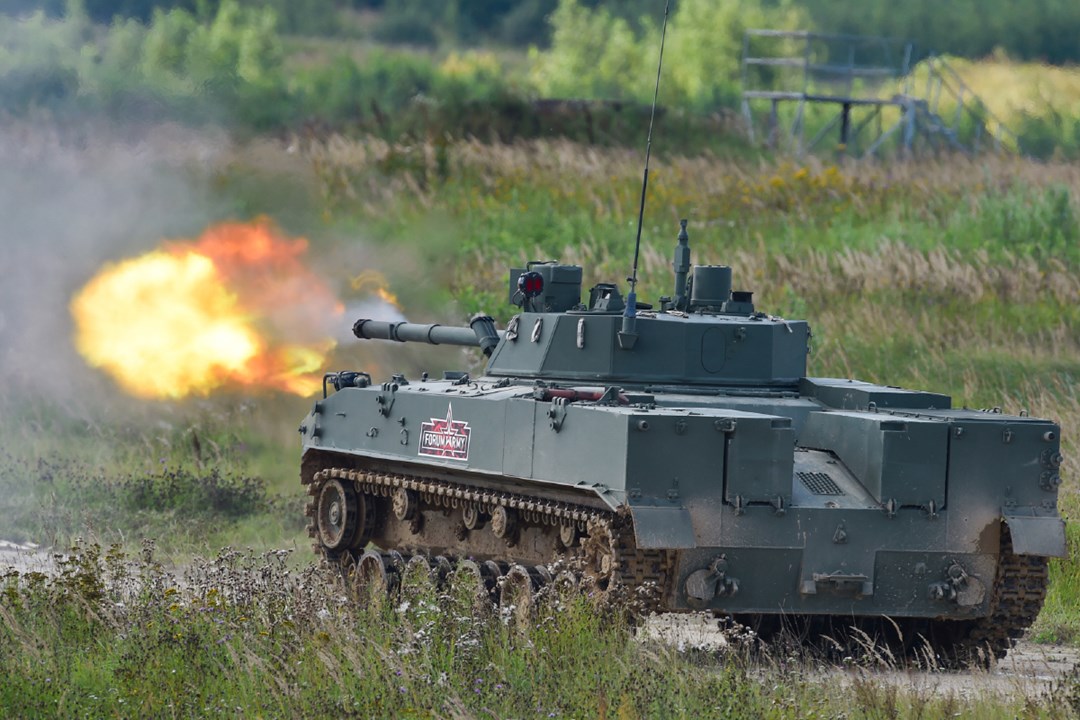

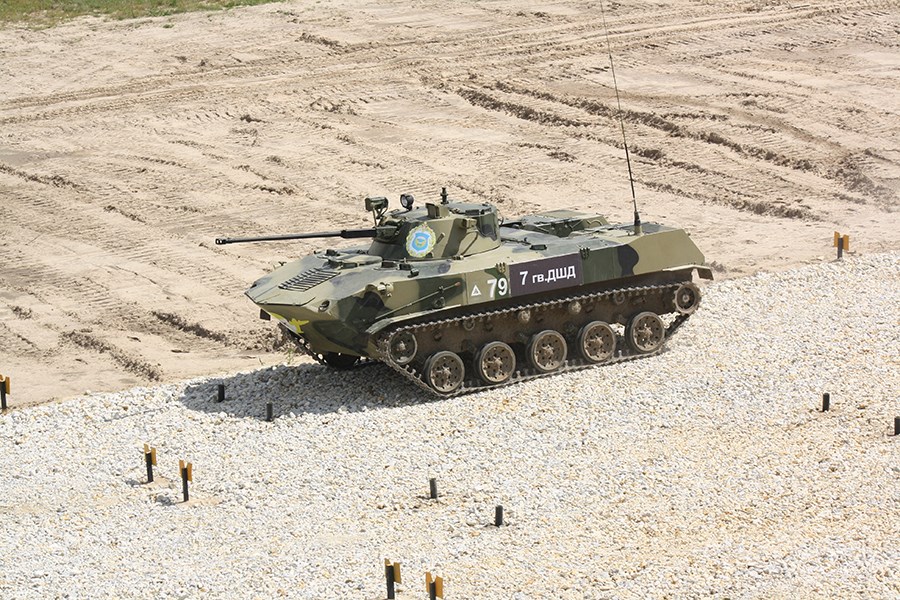

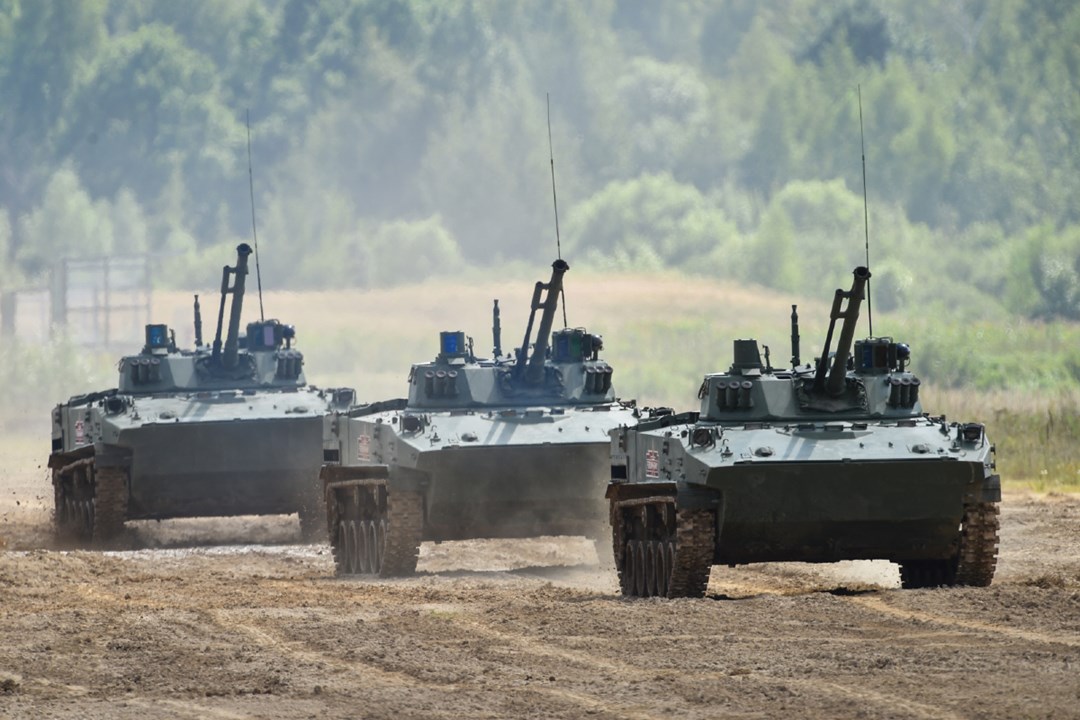

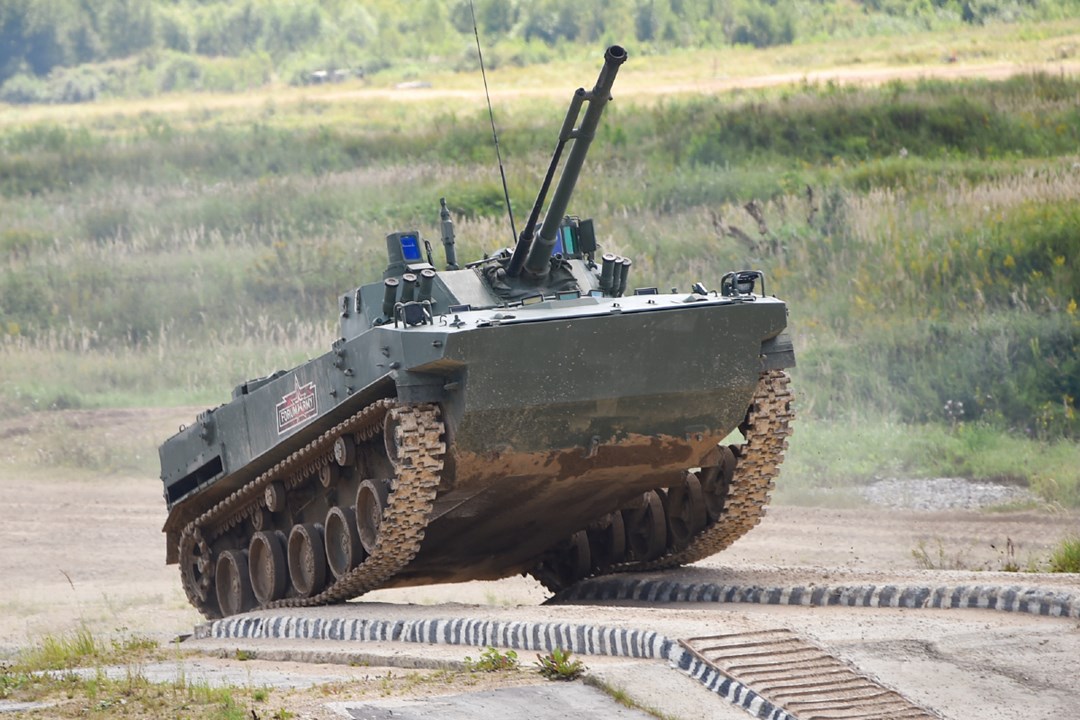

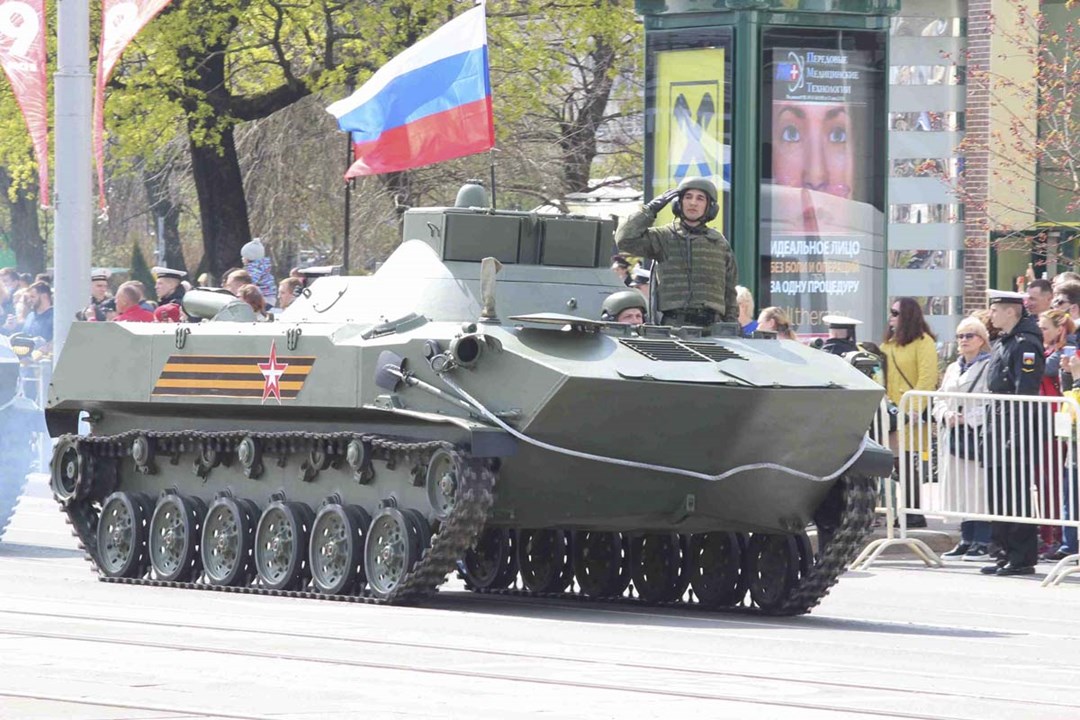

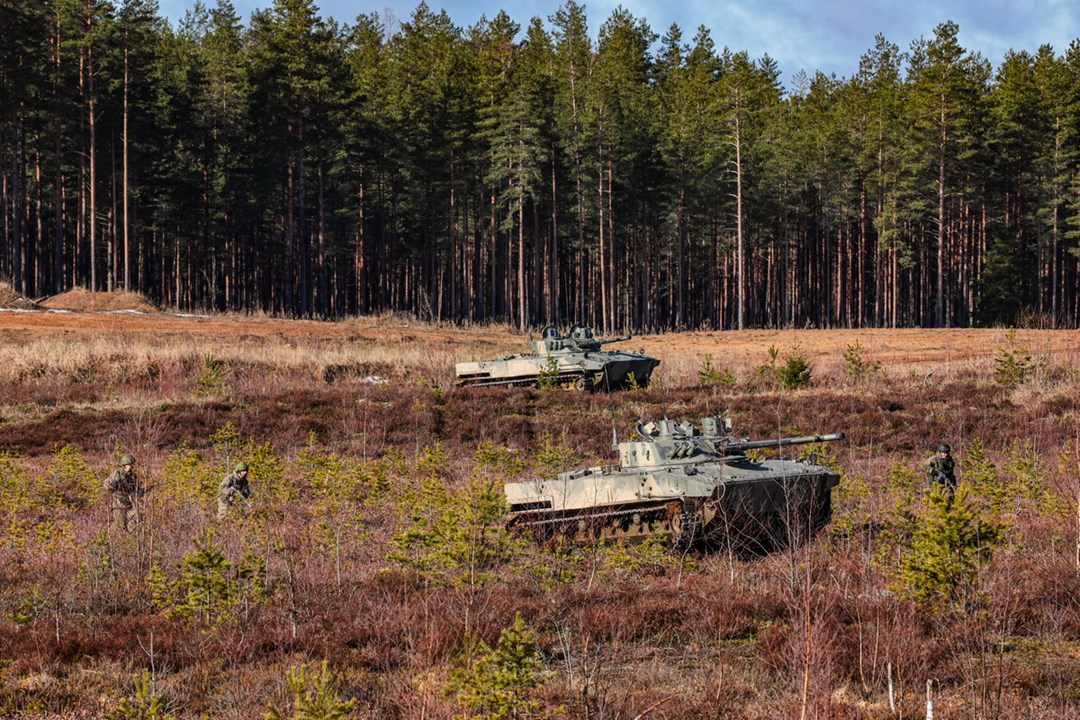

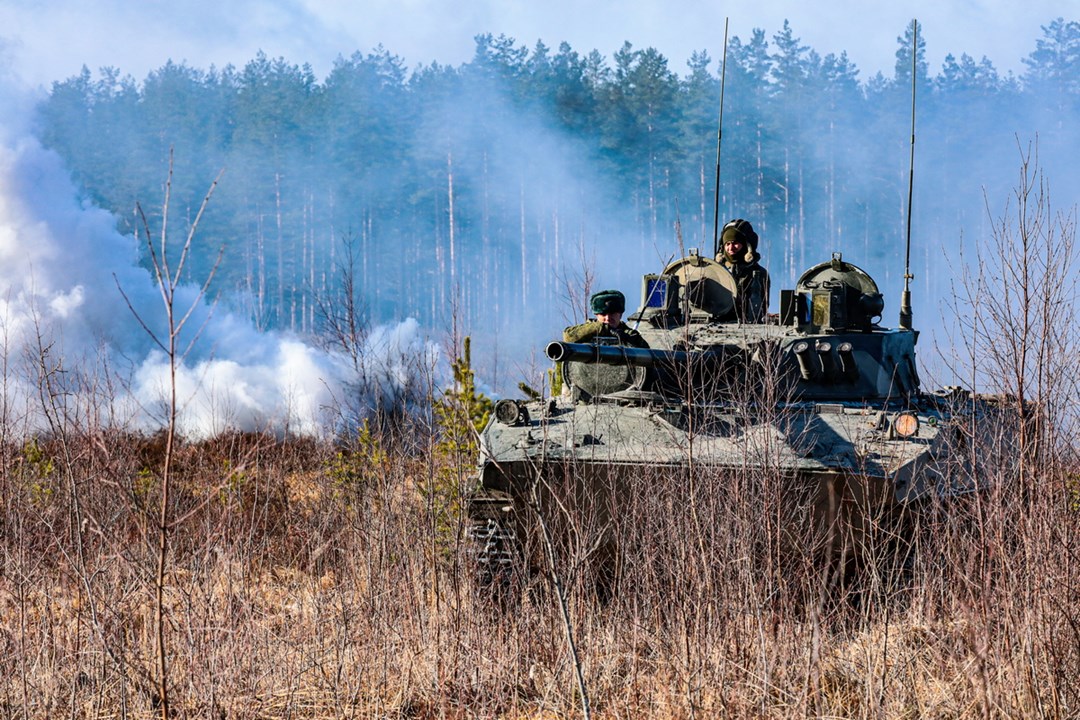

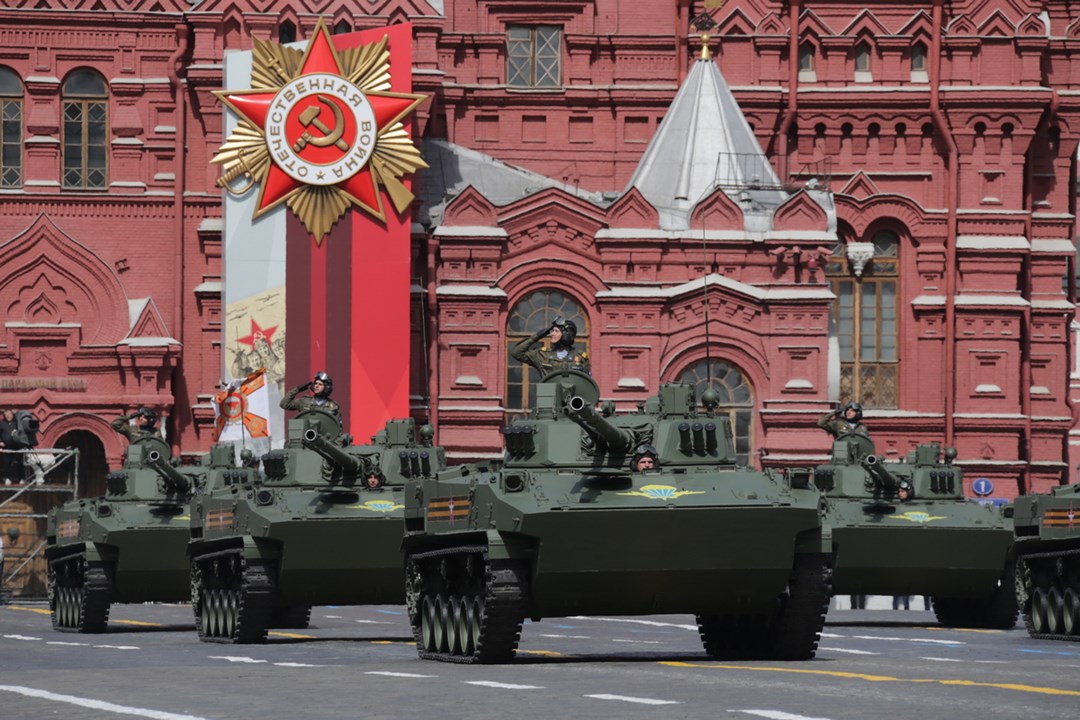

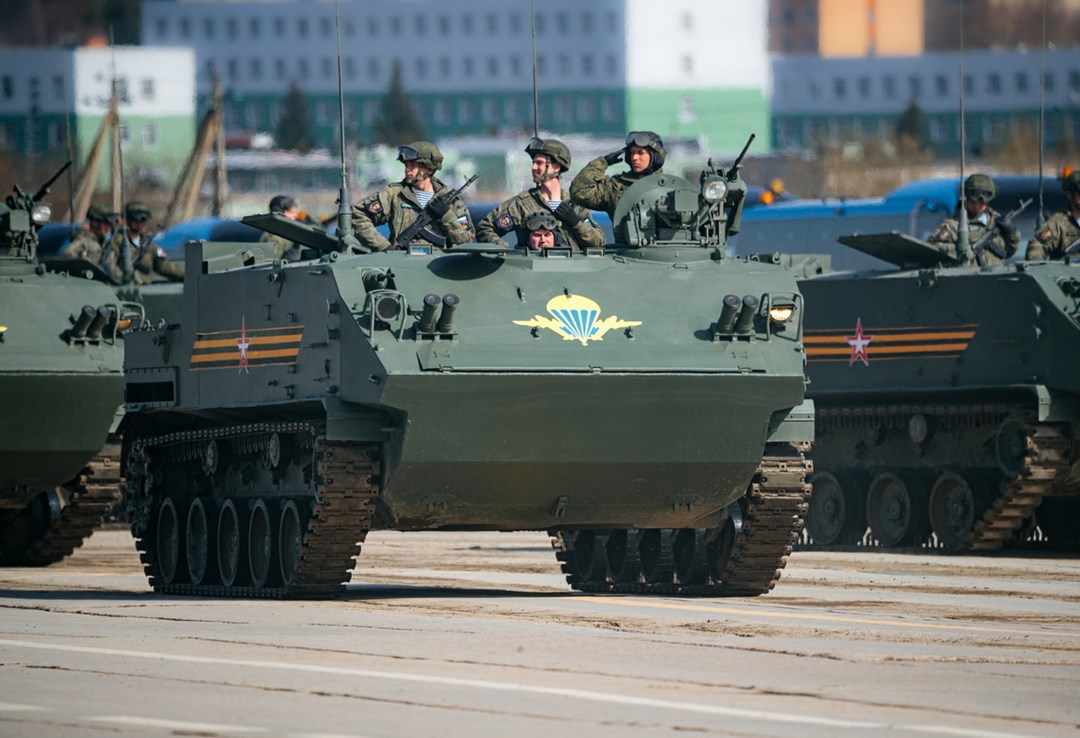

BMD is a family of light tracked armored vehicles designed to meet the requirements of Soviet airborne troops. These vehicles are amphibious and are equipped with NBC protection and night vision system as well as a turret-mounted gun and missile system. BMD vehicles provide fire support and mobility to airborne units. Its adjustable suspension system allows to change the vehicle's height thus cushion it better for airdrop. A single Il-76 transport aircraft is able to carry up to three BMDs. Based on the BMP-1 armored vehicle BMD-1 was fielded with the Soviet Army in 1970. BMD-1 was followed by BMD-2. The BMD-3 was the last development made in the former Soviet Union and fielded in 1992 by the Russian Army. The BMD-4 is the last member of the BMD family. BMDs saw combat for the first time during the Soviet invasion of Afghanistan in 1979. BMD infantry fighting vehicle chassis has been the basis for further developments such as command post and mortar carrier vehicle.

Ground Specifications
Crew 4
Mobility Type Tracked
Main Weapon 120 millimeter
Max Speed 60.0 km/h
Range 500.0 km
Overview (Deagel)
Group Self-Propelled Howitzers
Status Active
Also Known As 2S9-1, Anona, Nona-S
Origin Russia
Contractor TsNIITochMash
Initial Operational Capability (IOC) 1981
Total Production ?
Specifications (Deagel)
Ammunition Load 40
Crew 4
Rolling Rubber Wheels 6
Dimensions — Height 2.3 meter
Dimensions — Length 6 meter
Dimensions — Main Gun Caliber 120 millimeter
Dimensions — Width 2.6 meter
Mass — Combat Weight 8,700 kilogram
Performance — Main Gun Max Range 12,800 meter
Performance — Main Gun Min Range 1,700 meter
Performance — Max Range 500 kilometer
Power — Power 240 hp
Rate — Max Rate of Fire 10 roundperminute
Rate — Sustained Rate of Fire 4 roundperminute
Speed — Top Speed 60 kph
Variants
Variant 1 2S9

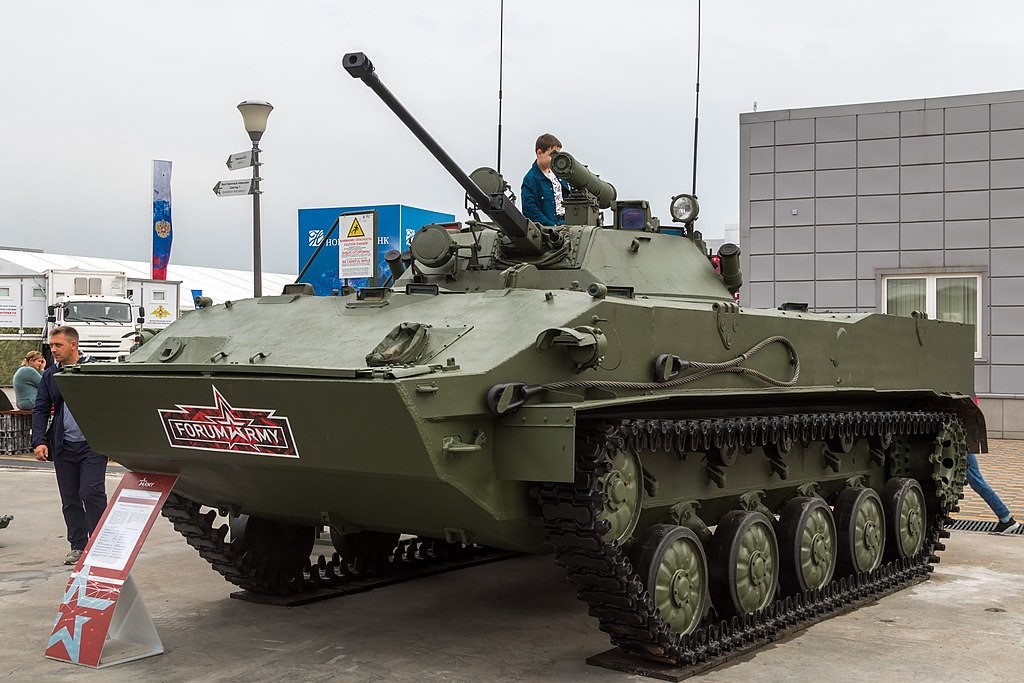

Variant 2 BMD-3

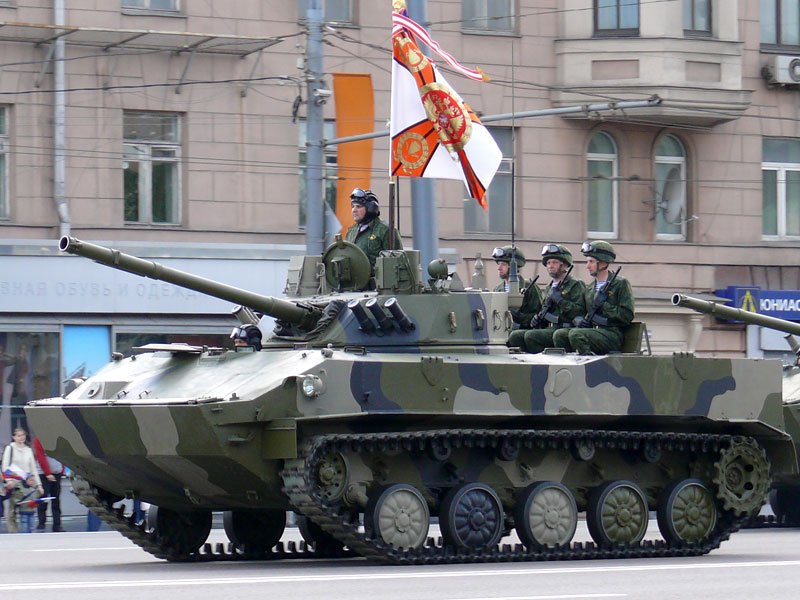

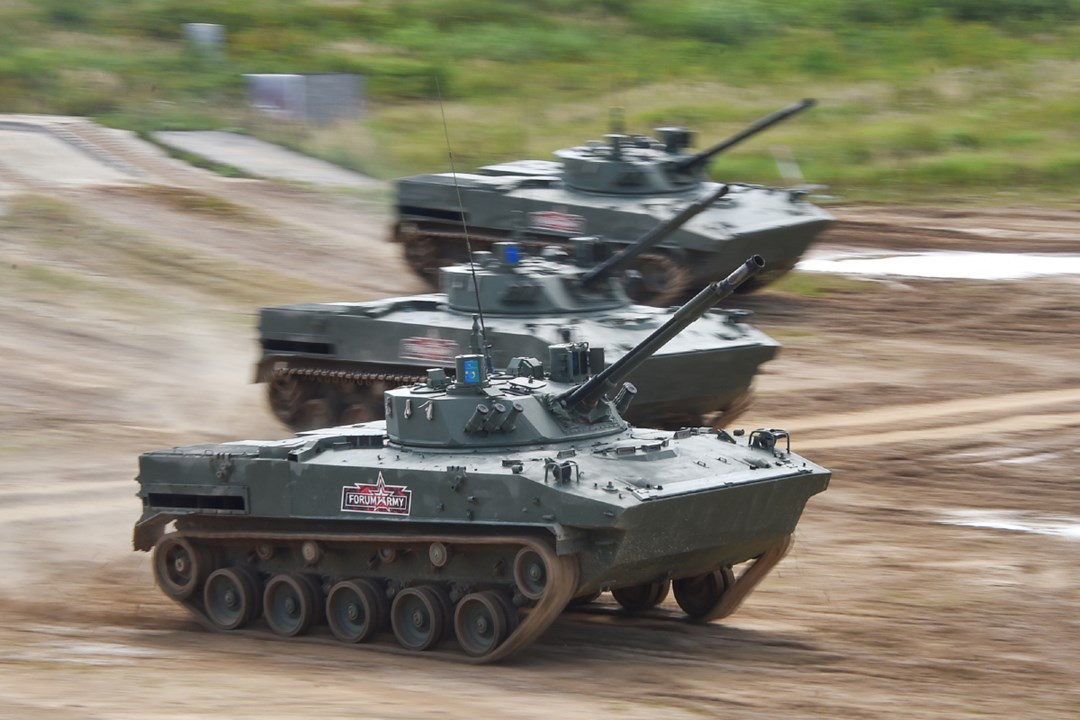

Variant 3 BMD-4

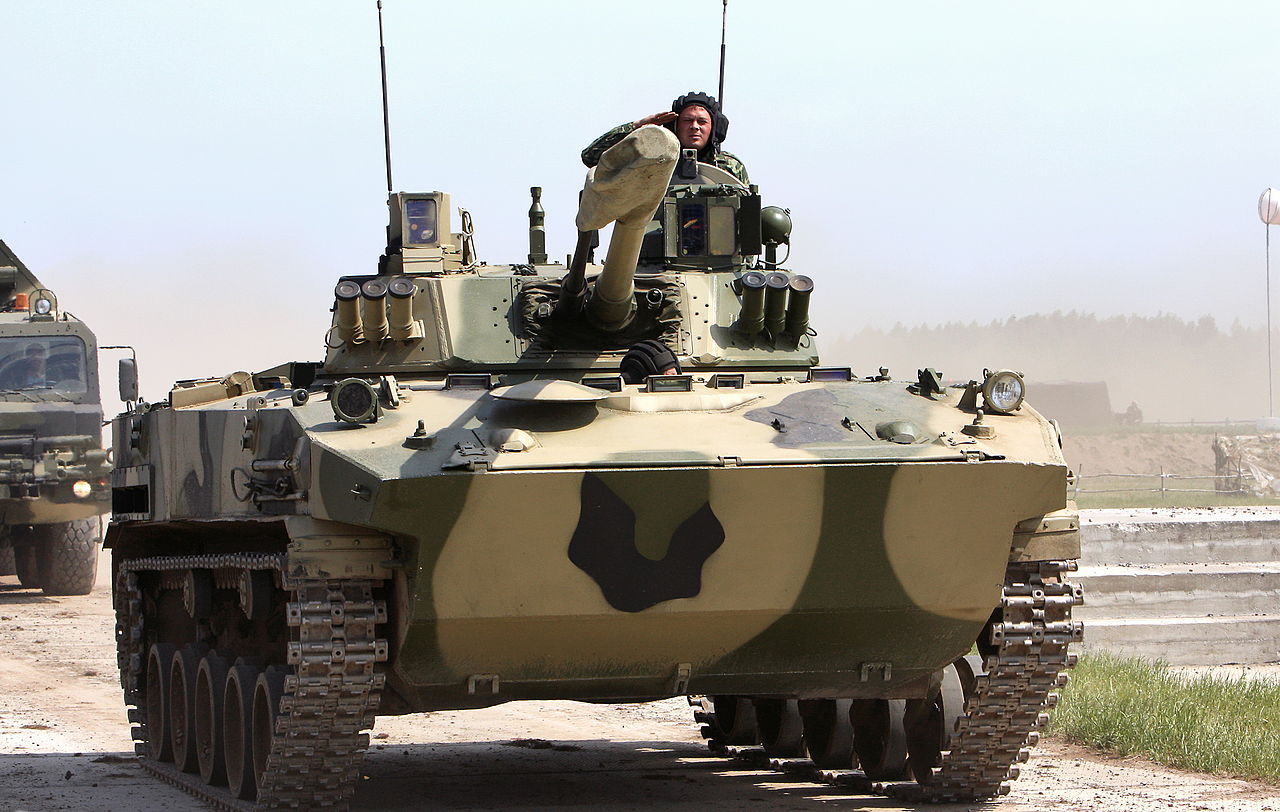

Variant 4 BMD-4M

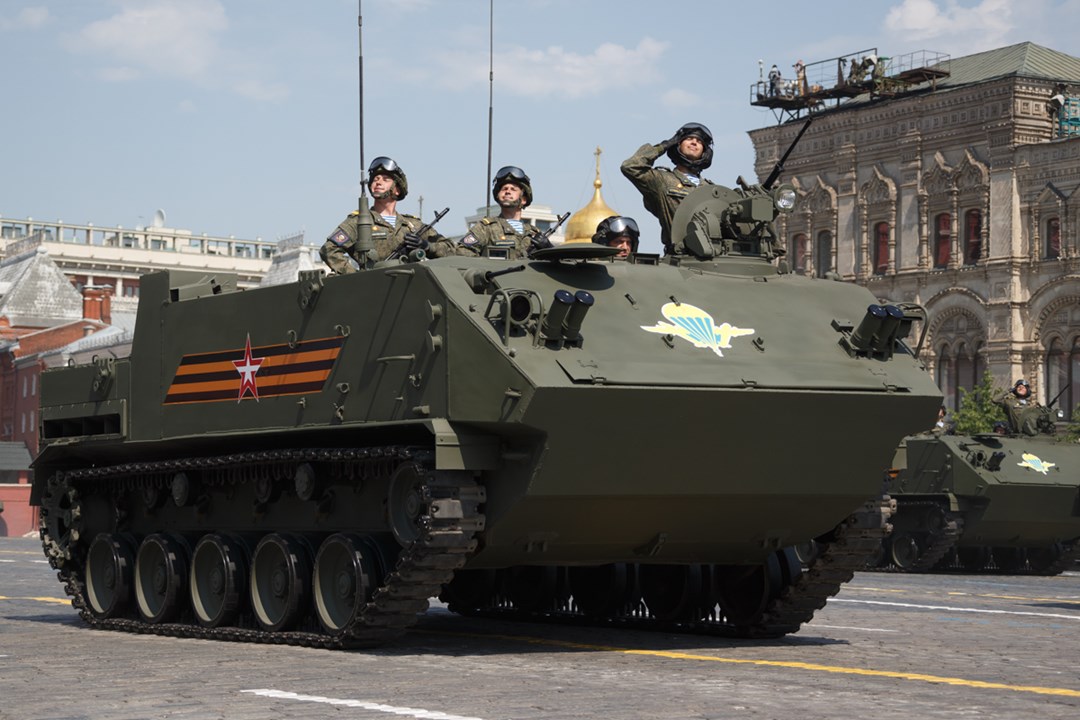

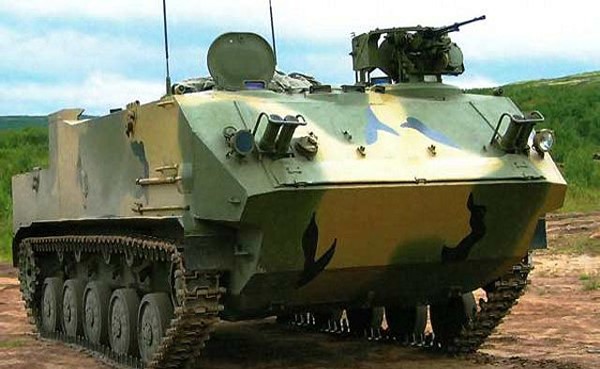

Variant 5 BTR-MD Rakushka
Variant 6 Ptitselov
Details
Country of Origin Russia
Category Artillery
Land > Artillery
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6 m
Width
2.6 m
Height
2.3 m
Weight
8700 kg
Operators (1)
Russia
