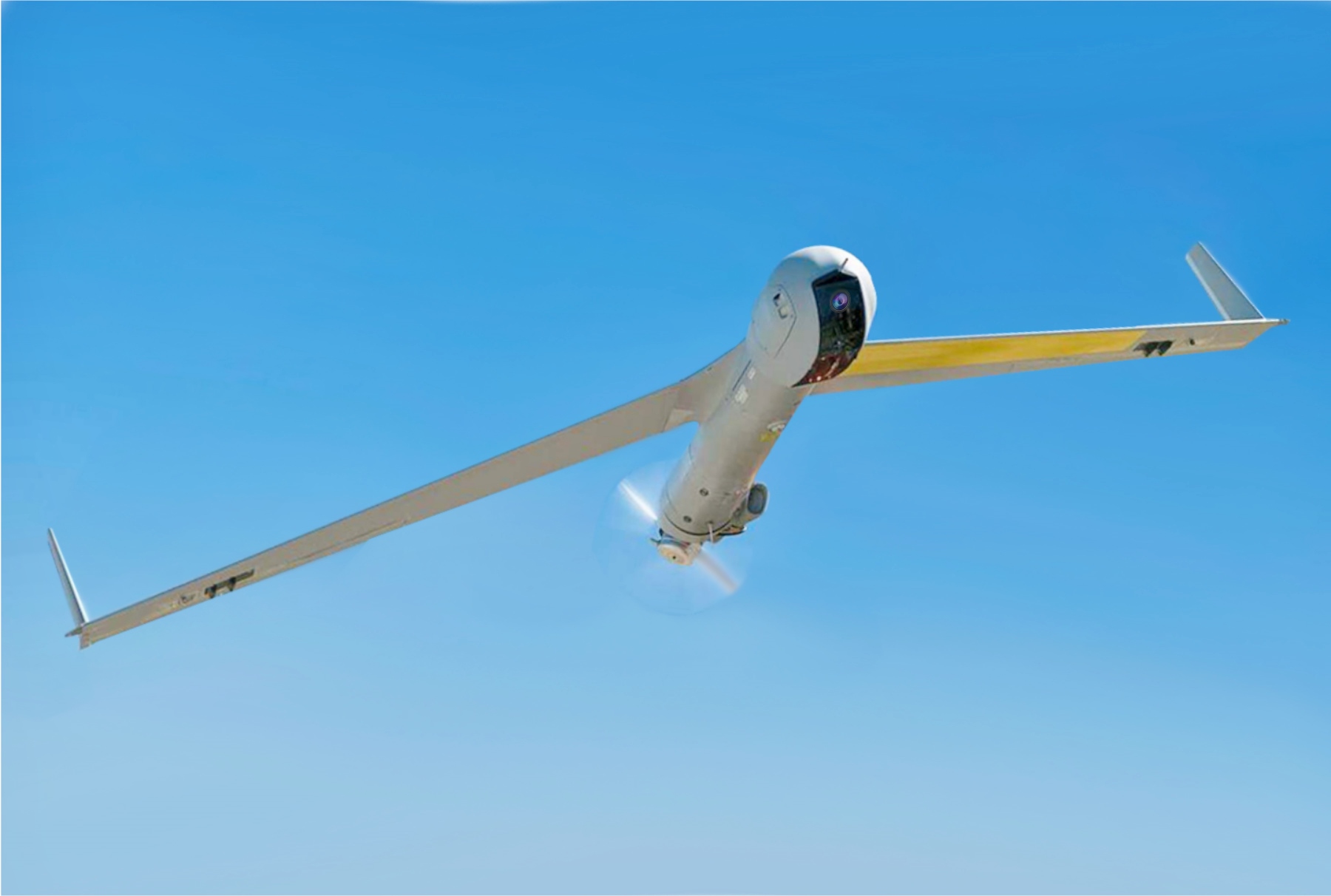

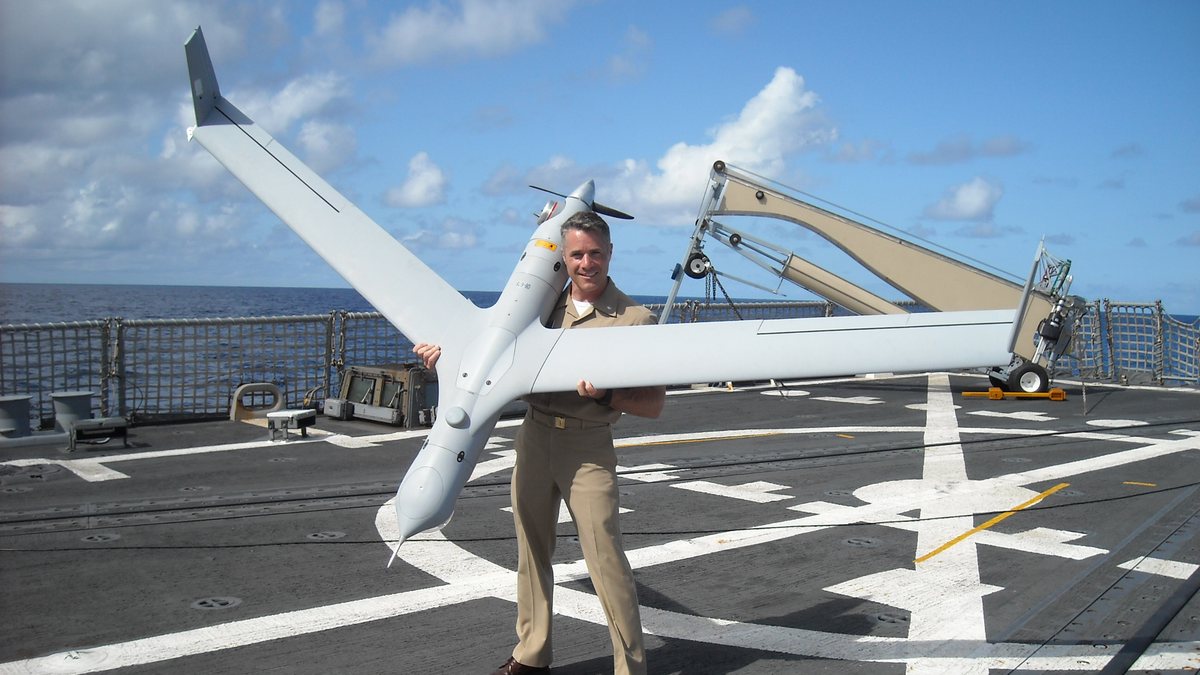

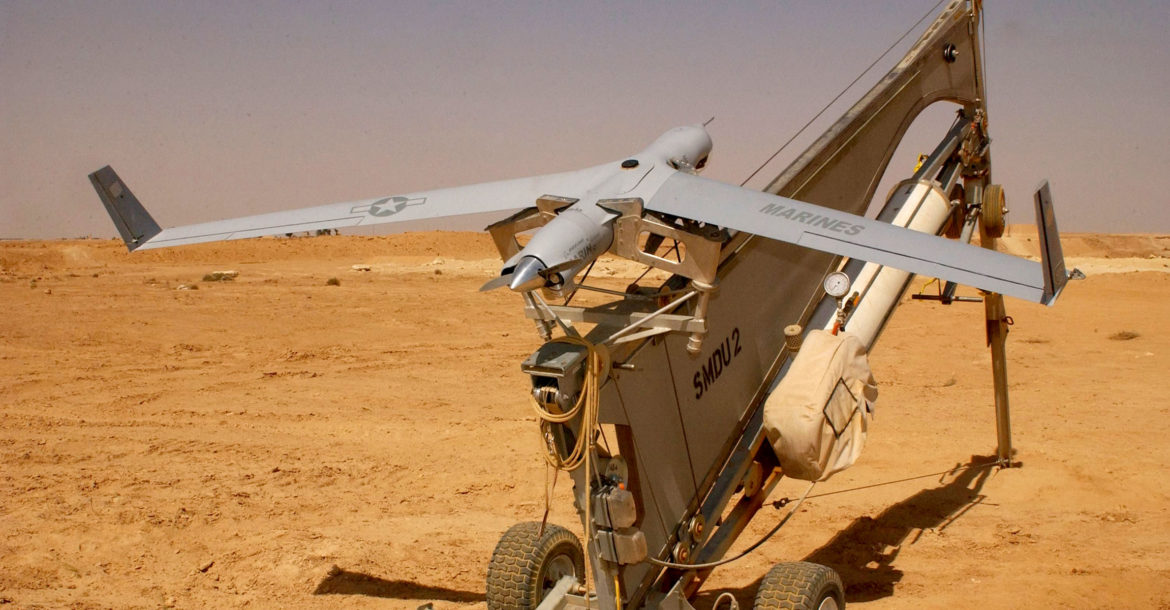

ScanEagle American Unmanned Aerial Vehicle (UAV)
ScanEagle
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
ScanEagle American Unmanned Aerial Vehicle (UAV)
Designation
ScanEagle
Alternate Designation
ScanEagle
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Insitu
Date of Introduction
2002
Description
ScanEagle provides persistent daytime and nighttime intelligence, surveillance and reconnaissance (ISR) in some of the most extreme environments in the world. Digital full motion video (FMV) provides the highest available ground resolution. As the industry-leading UAS that invented the agile ISR category, ScanEagle has redefined ISR services for Group 2, long-endurance UAS. ScanEagle provides superior operational capability and reliability, with advanced payload options and rapid payload integration.
Air & Air Defense Specifications
Engine
1 × 2-stroke 3W piston engine (1 hp)
Max Speed
148.0 km/h
Endurance
18.00 hrs
Service Ceiling
5950 m
Wingspan
3.10 m
System
Alternate Designation
ScanEagle
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Insitu
Maximum Payload
5 kg
Communication Security
ScanEagle’s air-to-ground systems deliver
stable communications up to 55 nm from
a ground control station. Encrypted digital
video and command and control data links
offer increased ISR security.
C2 Data Link
C2 data link: encrypted,
unencrypted
Video Data Link
Video data link: digital-encrypted
Telescope
EO telescope (high zoom day FMV)
VIDAR
ViDAR (maritime surface
Dimensions
Length
1.71 m
Wingspan
3.1 m
Maximum Takeoff Weight
26.5 kg
Automotive
Engine Name
INA
Engine Type
1 × 2-stroke 3W piston engine
Engine Power
1.5 hp (1.12 kW)
Maximum Speed
148 km/h
Cruising Speed
111 km/h
Service Ceiling
5,950 m
Endurance
18 hours
Details
Country of Origin
United States
Category
UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.71 m
Width
—
Height
—
Weight
26.5 kg
Operators (25)
United Kingdom
Japan
Poland
Iran
Pakistan
Brazil
Czech Republic
Spain
Afghanistan
Australia
Cameroon
Canada
Colombia
Indonesia
Iraq
Kenya
Lebanon
Lithuania
Malaysia
Netherlands
Philippines
Singapore
Tunisia
Vietnam
Yemen
