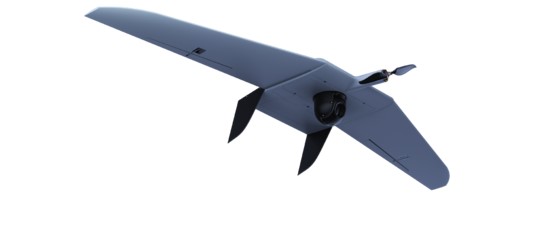

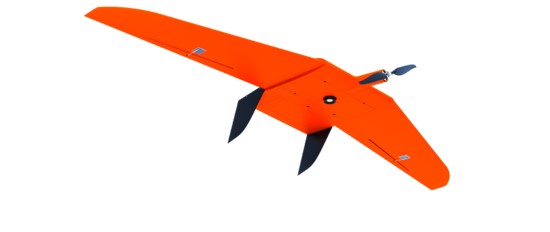

Supercam S250 Russian Unmanned Aerial Vehicle (UAV)

Supercam S250

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Supercam S250 Russian Unmanned Aerial Vehicle (UAV)
Designation
Supercam S250
Alternate Designation
Supercam S250
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Supercam Unmanned Systems Group
Date of Introduction
2020
Description

The Supercam S250 Russian Unmanned Aerial Vehicle (UAV) is one of the best UAVs in the class in terms of tactical and technical characteristics. The aircraft can fly up to 3 hours in adverse weather conditions and perform high-quality video monitoring, which significantly improves the operation quality, whether it is monitoring, mapping, or security of facilities and detection of unauthorized activity. A distinctive feature of Supercam S250 is its wide range of payloads with various combination capabilities. The payload is mounted in the lower part of the UAV center body and has a 360° rotation, thus providing maximum visibility, and forming high-precision control over the objects along with a high level of stabilization and an automatic target tracking module. Also, the UAV is characterized by its quick assembly and compactness. The patented system of automatic wing panel detachment not only prevents possible damage during landing but also facilitates transportation downsizing the UAV case. The modular design allows quickly and efficiently changing the UAV payloads and the aircraft equipment.

Air & Air Defense Specifications
Engine Battery
Max Speed 120.0 km/h
Endurance 3.00 hrs
Wingspan 2.55 m
System
Alternate Designation Supercam S250
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Supercam Unmanned Systems Group
Autonomy automatic or semi-automatic
Crew Unmanned
Radio Link Range up to 50 km
Video Transmission Range up to 25 km
Payload Options - 20/24/42/60 MP photo camera with the ability to be mounted on the azimuth stabilized platform - Gyro-stabilized thermal imaging camera and/or PAL or HD video camera with 10/30х optical zoom, that can be combined together, and optionally enhanced with a laser target marker - Multispectral camera - Airborne radiation sensor
Deployment Time 15 min
Launching System elastic catapult
Recovery System parachute with cords release system
Operational Temperature -40°С to +45°С
Accessories - Automatic target tracking module - Dual (triple) system, dual-frequency geodetic receiver - Video link for digital broadband transmission within a range of up to 25 km - Radio link of telemetry and control with the ability of FHSS operation
Dimensions
Length INA
Wingspan 2.55 m
Height INA
Maximum Takeoff Weight 9.5 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed 120 km/h
Cruising Speed INA
Operational Height 50 - 5000 m
Maximum Distance 180 km
Maximum Windspeed 15 m/s
Endurance 3 hours
Details
Country of Origin Russia
Category UAVs
Air > UAVs
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
9.5 kg
Operators (1)
Russia
