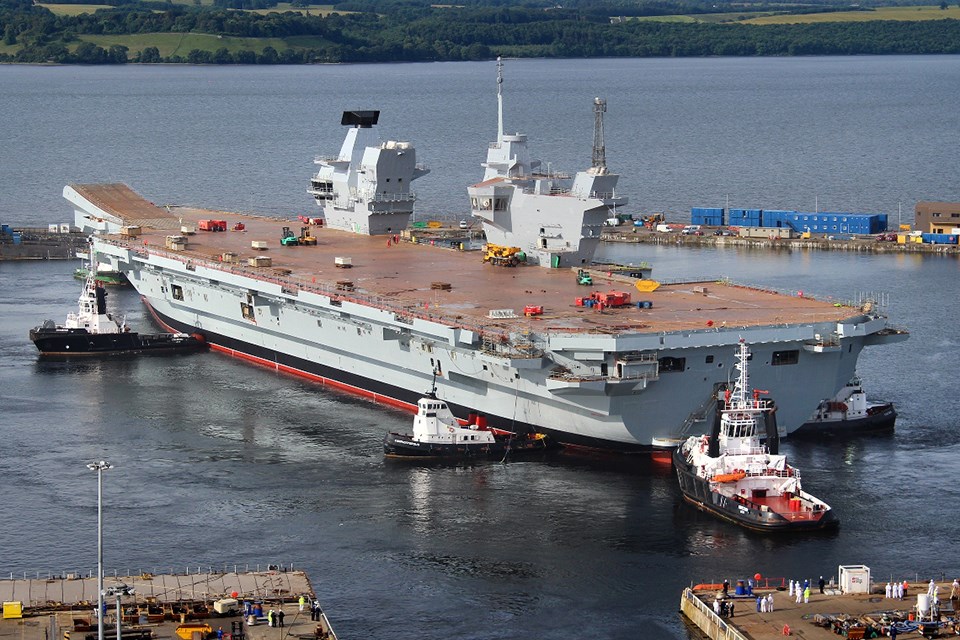

Queen Elizabeth

Queen Elizabeth

Aircraft Carriers
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Queen Elizabeth
Designation
Queen Elizabeth
Alternate Designation
CVF (Carrier, Vehicular, Future)
Equipment Type
Aircraft Carriers
Manufacturer
BAE Systems, Thales, Babcock Marine, BVT Surface Fleet, Edmund Nuttall Limited, Kellogg Brown & Root
Date of Introduction
2017
Description

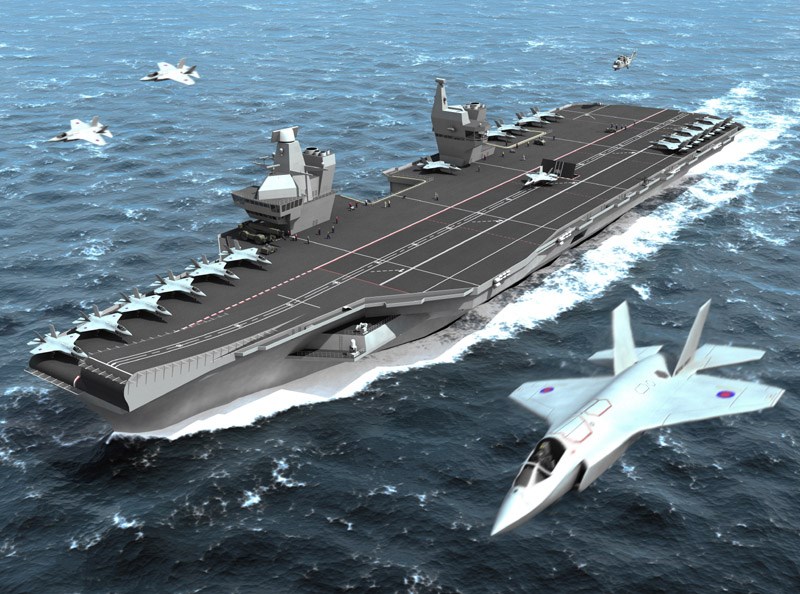

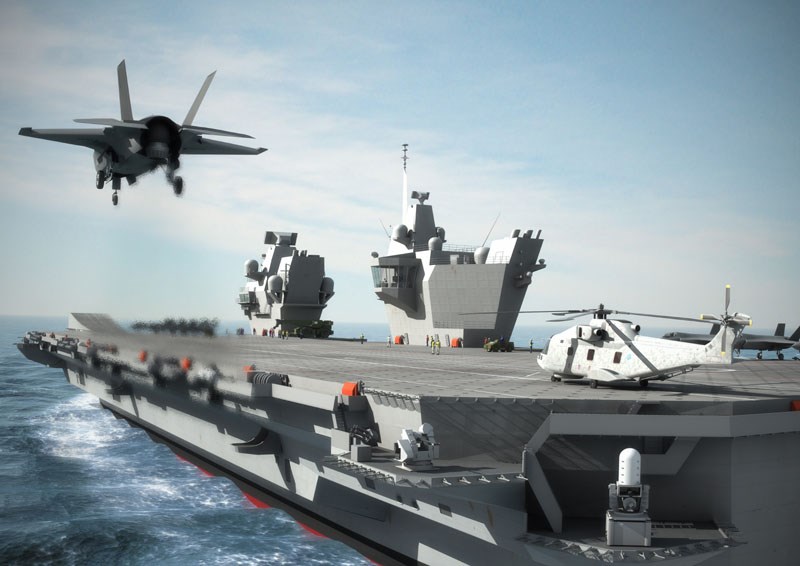

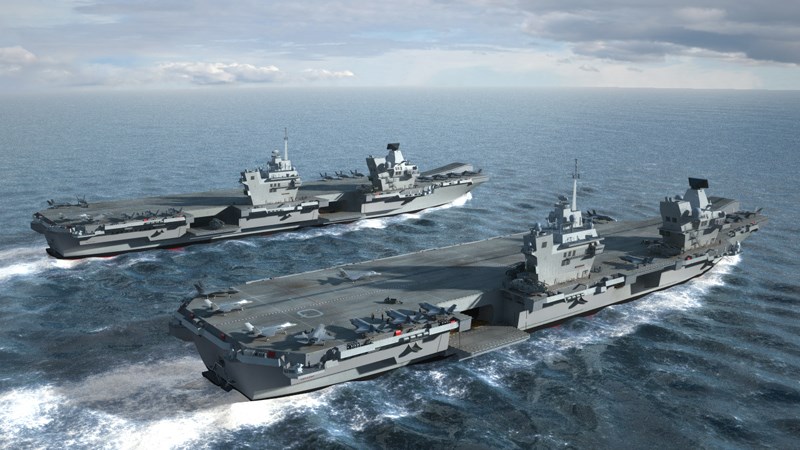

The Future Aircraft Carrier (CVF) program calls for a replacement for current Invincible-class aircraft carriers, also called all-deck cruisers, by 2012. Two larger more capable aircraft carrier will be constructed under CVF program with up to 46 aircraft onboard. The CVF carrier will be capable of operate both F-35B and V/STOL F-35C aircraft. The CVF will be able to accommodate future aircraft due to its planned long service life of about 50 years. The CVF carrier will no feature catapult and arresting recovery system but installation of these sub-systems will be possible in the future due to design flexibility. The Ministry of Defense of the United Kingdom estimates the production costs of 2 CVF-carriers approximately in £2.7 billion ($4 billion). The first CVF will achieve operational capability in 2014 and the second in 2016. On 11 February 2005, UK MoD selected Kellogg Brown & Root (UK) Ltd (KBR) to act as the preferred 'Physical Integrator' on the future aircraft carrier (CVF) project. After October 2010 budget cuts the program was delayed two years with the UK to operate only the second aircraft carrier after 2019. As of July 2014, the Royal Navy plans for the first ship sea trials in 2017 and flight trials with the F-35B in 2018.

Naval & Littoral Specifications
Crew 679
Displacement 65000.00 tonnes
Beam 73.00 m
Draft 11.00 m
Max Speed 25.0 knots
Overview (Deagel)
Group Aircraft Carriers
Status Active
Also Known As CVF (Carrier, Vehicular, Future)
Origin United Kingdom
Contractors BAE Systems*, Thales*, Babcock Marine, BVT Surface Fleet, Edmund Nuttall Limited, Kellogg Brown & Root
Initial Operational Capability (IOC) December 7, 2017
Total Production 2
Unitary Cost GBP £3.0 billion
Specifications (Deagel)
Crew 679
Number of Aircraft 28
Troops 1000
Dimensions — Beam 73 meter
Dimensions — Draft 11 meter
Dimensions — Length 284 meter
Dimensions — Ship's Height 56 meter
Mass — Full Displacement 65,000 ton
Speed — Top Speed 25 knot
Time — Days at Sea Over a Year 200 day
Time — Mission Endurance 45 day
Time — Service Life 50 year
Gear (Deagel)

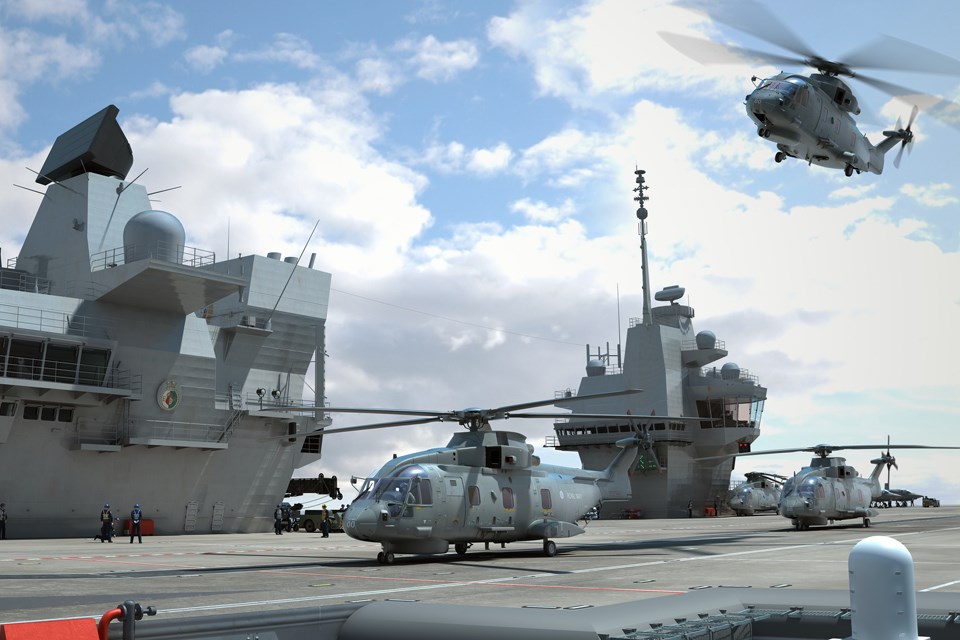

Item 1 ASW Helicopters: EH101 Merlin (4)
Item 2 Radar Systems: ARTISAN 3D (1)
Item 3 Radar Systems: S1850M (1)
Item 4 Ship Power Plants: MT30 (4)

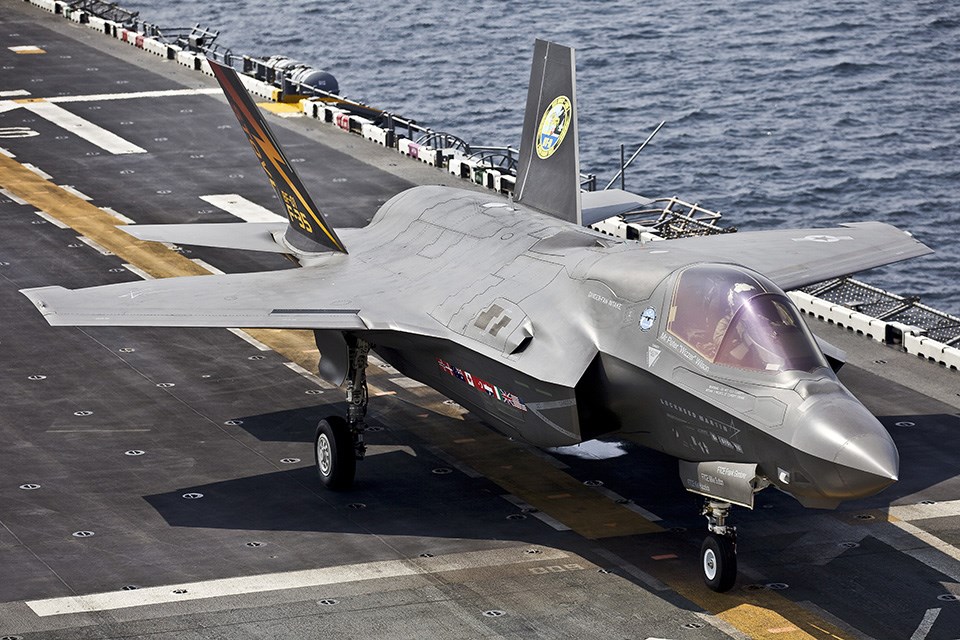

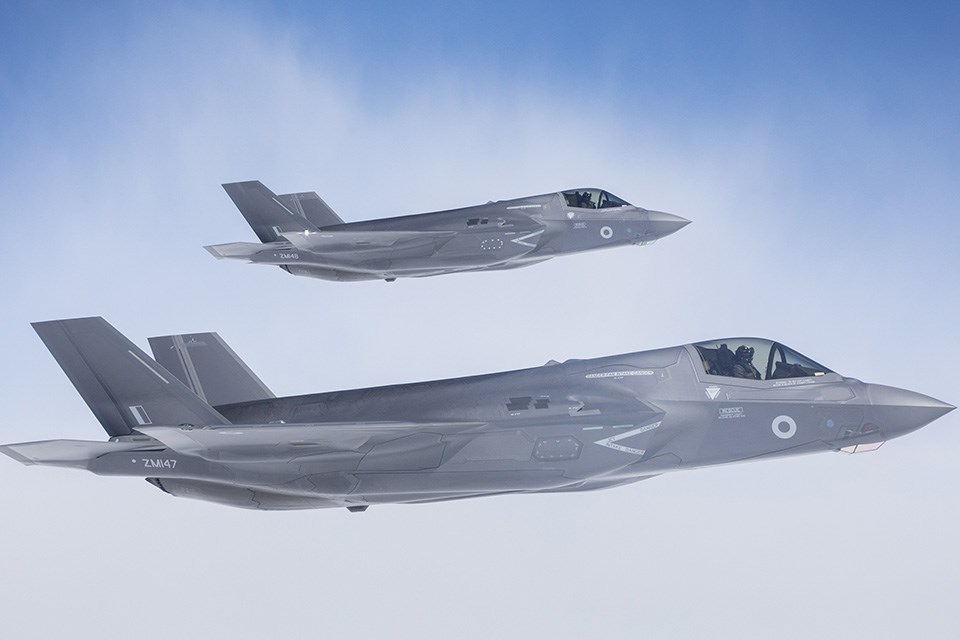

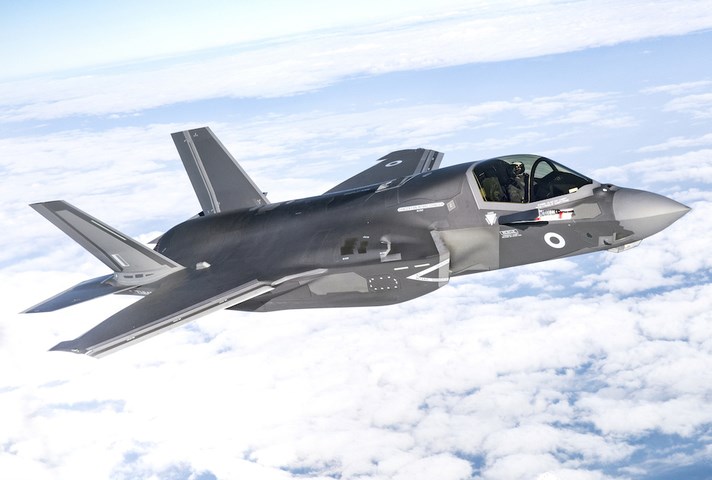

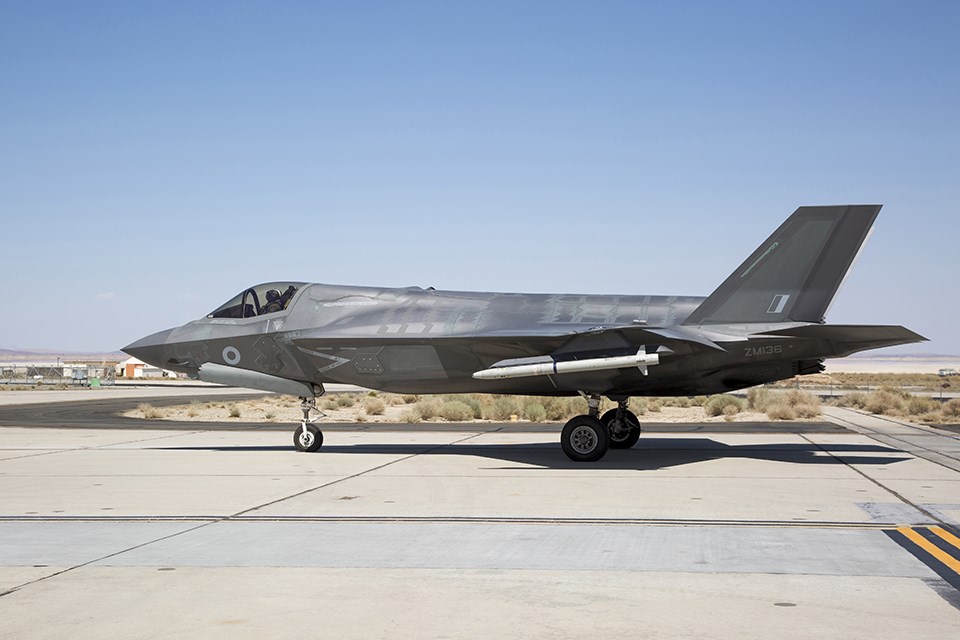

Item 5 STOVL Fighter Jets: F-35B Lightning II (24)
Details
Country of Origin United Kingdom
Category Aircraft Carriers
Naval > Aircraft Carriers
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
284 m
Width
73 m
Height
Weight
65000000 kg
Operators (1)
United Kingdom
