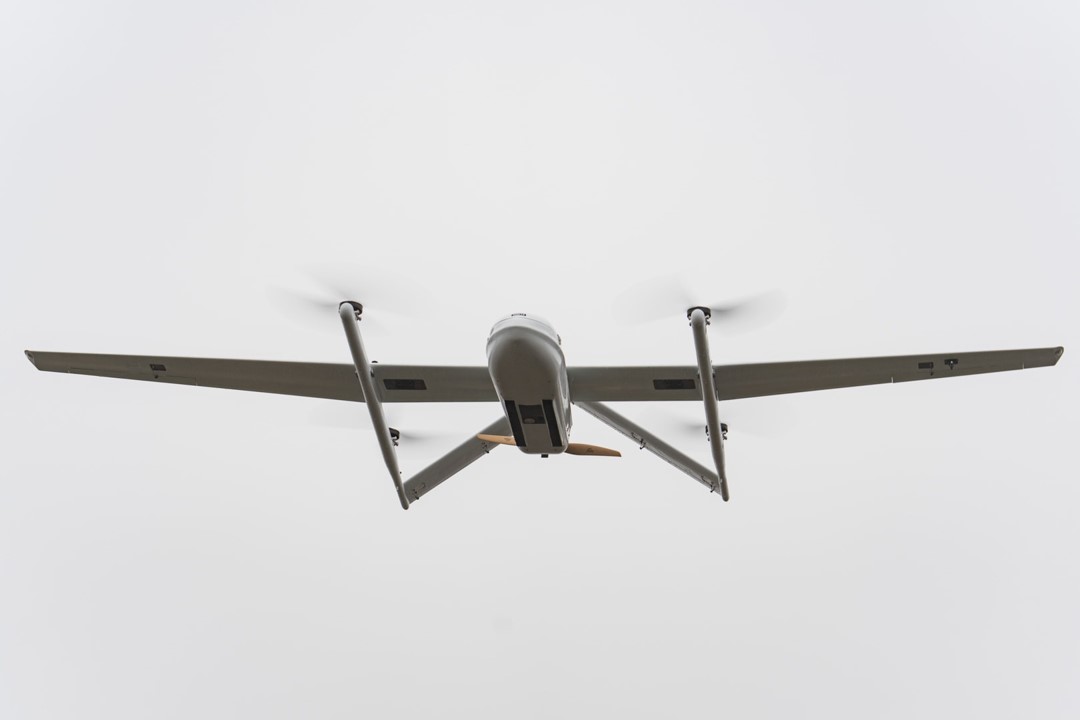

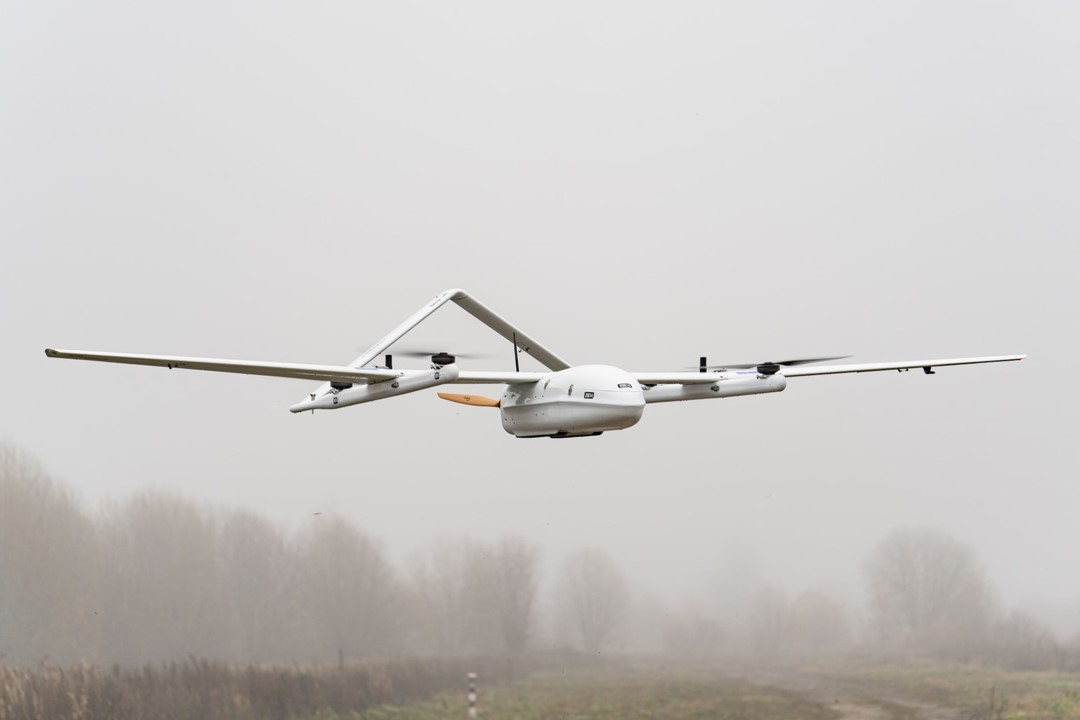

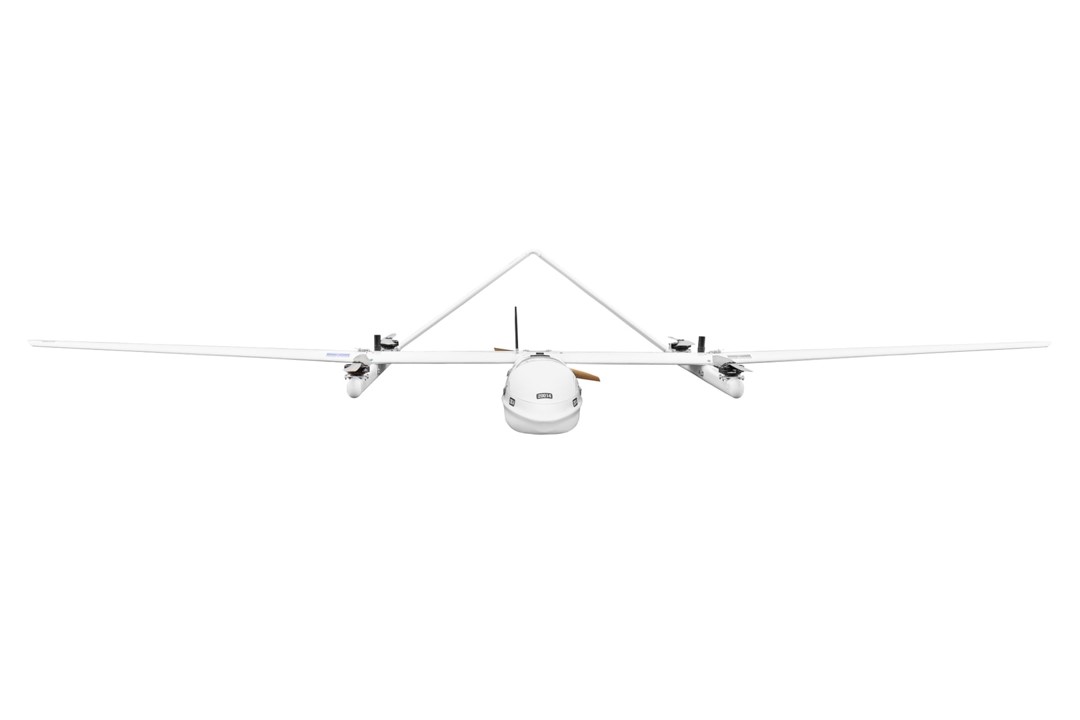

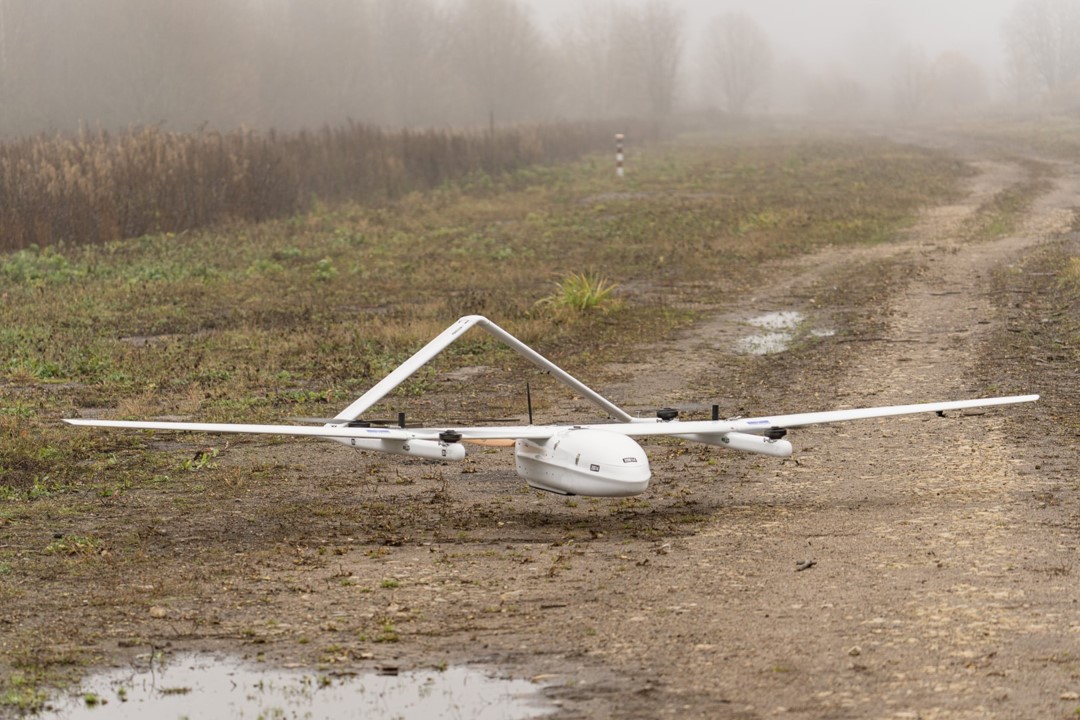

Legioner E29 Russian Unmanned Aerial Vehicle (UAV)
Legioner E29
Tactical Unmanned Aerial Vehicle (UAV)
Other




Basic Information
Name
Legioner E29 Russian Unmanned Aerial Vehicle (UAV)
Designation
Legioner E29
Alternate Designation
Legioner E29
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Kalashnikov Concern
Date of Introduction
2024
Description
The Legioner E29 Russian Unmanned Aerial Vehicle (UAV) is designed for aerial photography, aerial laser scanning, video monitoring, cargo carriage, fire patrolling, people search, and ice reconnaissance. The UAV features two types of engines: an electric motor and an internal combustion engine. It can be supplied as a basic set or with additional payloads. The service life of the UAV operated according to the technical condition is 2800 flight hours, provided the maintenance (hereinafter - the M) is performed every 100 flight hours during a service life of 5 years in accordance with the UAV maintenance schedule (the cost of each product includes one M after 100 flight hours).
Air & Air Defense Specifications
Crew
2
Engine
The UAV features two types of engines: an electric motor and an internal combustion engine.
Max Speed
120.0 km/h
Cruise Speed
85.0 km/h
Range
220.0 km
Endurance
5.50 hrs
Service Ceiling
3000 m
Wingspan
4010.00 m
Payload Capacity
3 kg
System
Alternate Designation
Legioner E29
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Kalashnikov Concern JSC
Crew
2 ea
Payload Capacity
3.0 kg
Frequency
Command telemetry 868 MHz, GSM standard frequencies
Take-off and Landing
Vertical
Dimensions
Length
2,100 mm
Height
635 mm
Wingspan
4,010 mm
Maximum Takeoff Weight
29.95 kg
Automotive
Engine Name
INA
Engine Type
The UAV features two types of engines: an electric motor and an internal combustion engine.
Engine Power
INA
Maximum Speed
120 km/h
Cruise Speed
85-90 km/h
Maximum Range
220 km
Service Ceiling
3,000 m
Endurance
5.5 hours
Wind Resistance
15 m/s
Details
Country of Origin
Russia
Category
UAVs
Air > UAVs
Filter Label
L
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.1 m
Width
4.01 m
Height
0.64 m
Weight
29.95 kg
Operators (1)
Russia
