TARES III 19TC1 Saudi 4x4 Mine Resistant Ambush Protected (MRAP)

TARES III 19TC1

Mine-Resistant Ambush Protected (MRAP)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
TARES III 19TC1 Saudi 4x4 Mine Resistant Ambush Protected (MRAP)
Designation
TARES III 19TC1
Alternate Designation
TARES III 19TC1
Equipment Type
Mine-Resistant Ambush Protected (MRAP)
Manufacturer
ERAF
Date of Introduction
2026
Description

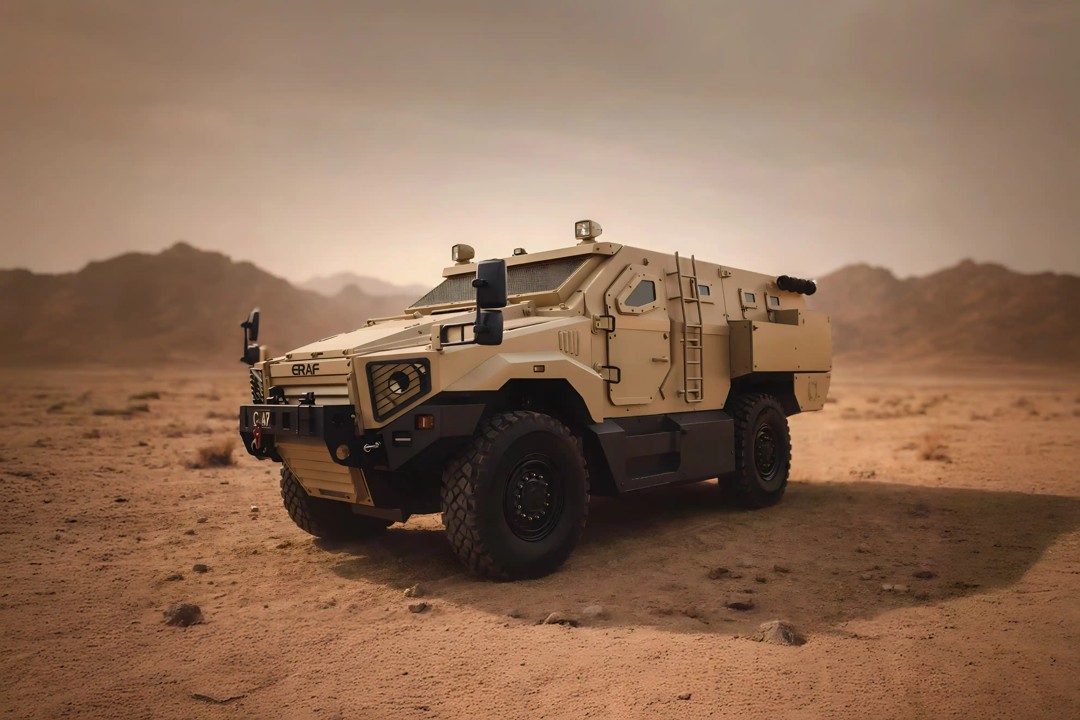

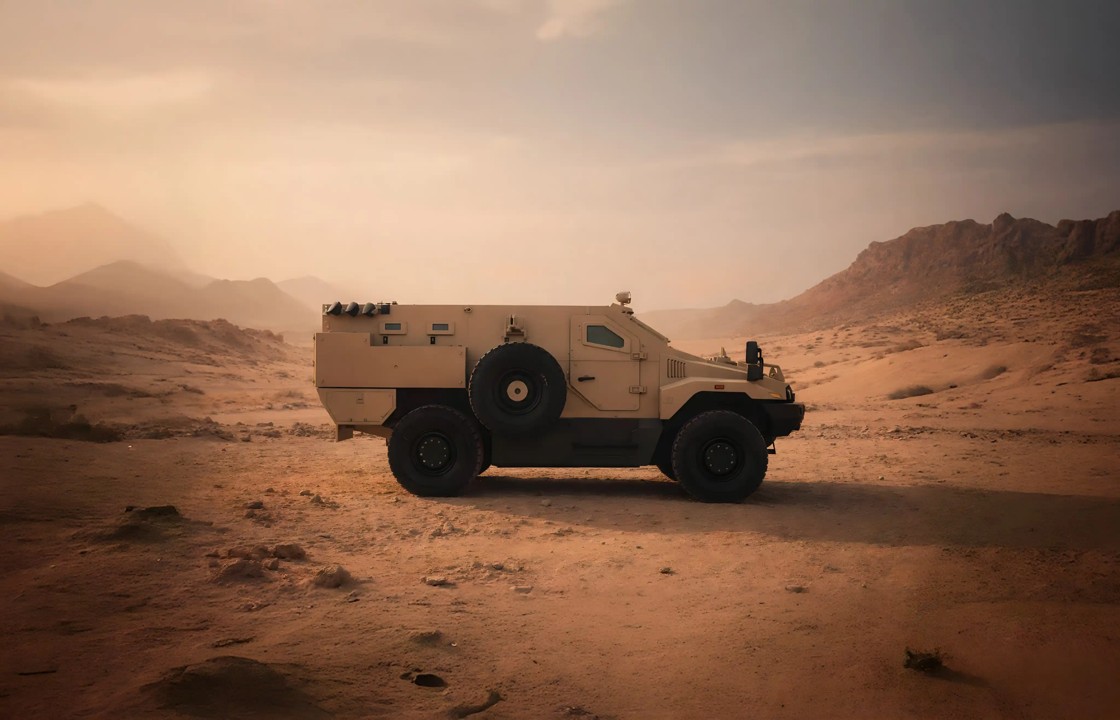

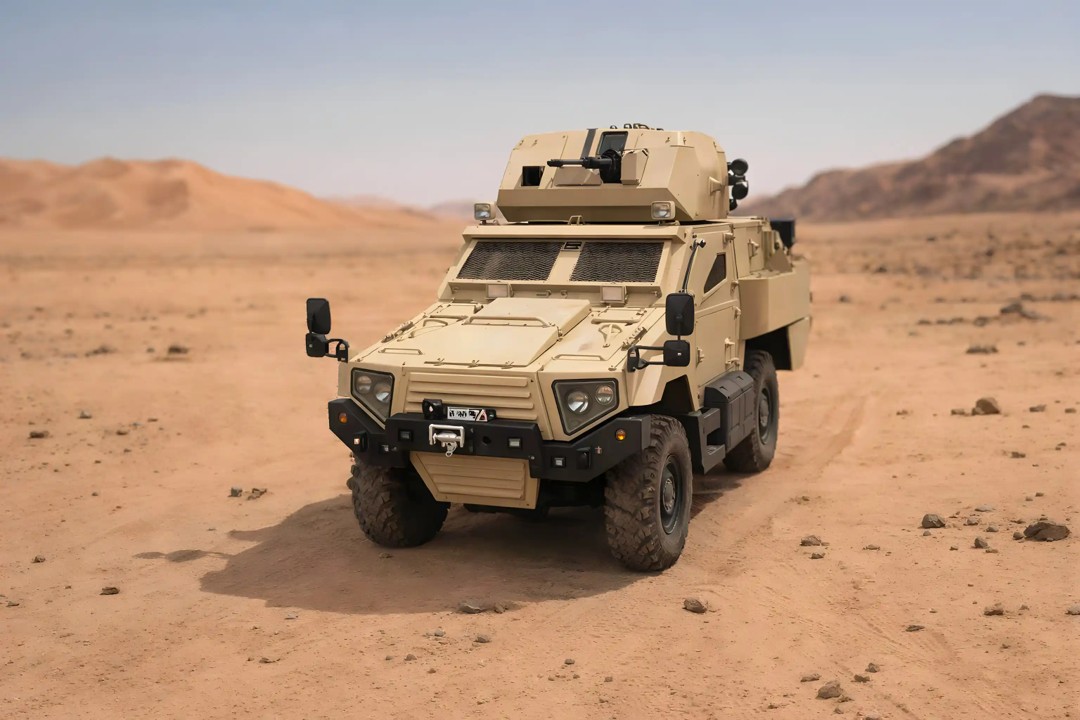

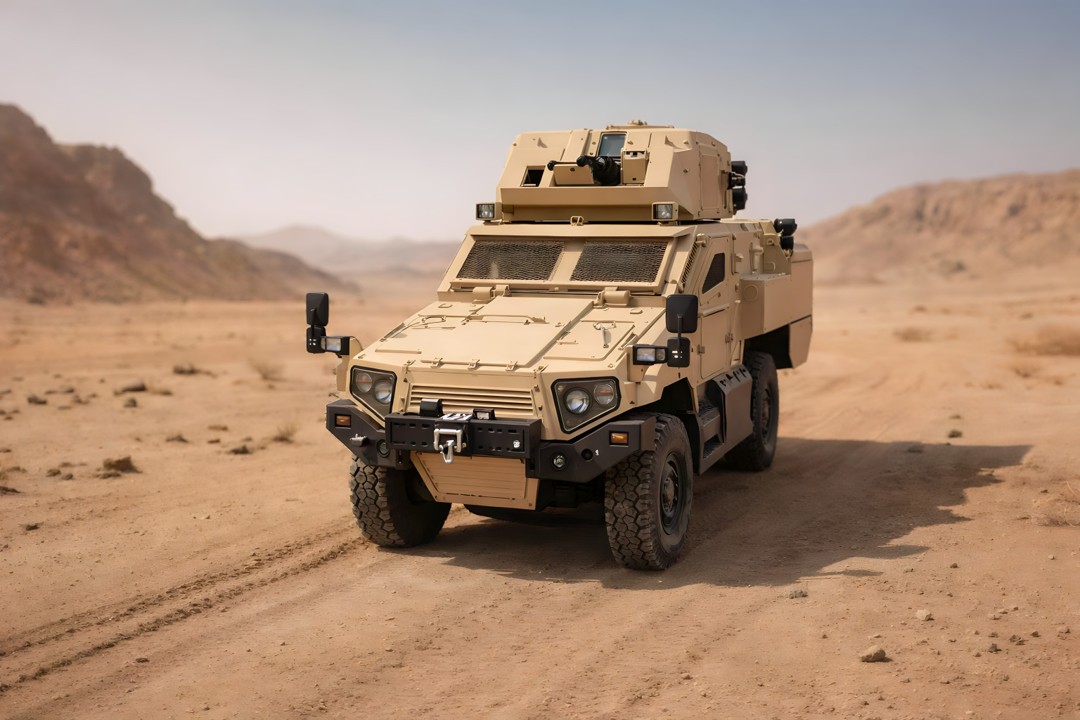

The TARES III 19TC1 Saudi 4x4 Mine-Resistant Ambush-Protected (MRAP) represents the pinnacle of MRAP design, delivering STANAG Level IV protection, independent suspension on both axles, and uncompromising off-road capabilities for the most demanding mission profiles. The Tares III-19TC1 employs a monocoque V-hull design, which is engineered for superior protection against mine blasts and IEDs. The V-shaped hull deflects and absorbs blast waves and fragmentation away from the crew compartment — a defining characteristic of MRAP-category vehicles. The Tares III-19TC1, with its STANAG Level 4 protection and 25 mm turret, represents a significant step up from earlier Tares variants and positions ERAF as a competitive player in the global MRAP market, aligned with Saudi Vision 2030 defense industrialization goals.

Ground Specifications
Crew 3
Mobility Type Wheeled (4x4)
Main Weapon 25 mm turret
Engine Turbo Intercooler Diesel (400 hp)
NBC Protection Yes
Range 700.0 km
System
Alternative Designation TARES III 19TC1
Type Mine Resistant Ambush Protected (MRAP)
Manufacturer ERAF
Configuration 4x4
Crew 3 ea
Passengers 8 ea
Payload Capacity 2,500 kg
Dimensions
Length 6,300 mm
Width INA
Height 2,700 mm
Wheelbase 3,800 mm
Weight, Combat 9,000 kg
Automotive
Engine Name Cummins ISLe-400 Euro 3
Engine Type Turbo Intercooler Diesel
Engine Power 400 hp
Max Torque 1500 Nm @ 1100–1400 rpm
Fuel Tank Capacity 300 liters
Transmission Allison fully automatic SP series
Maximum Speed Road 105 km/h
Maximum Range 700 km
Amphibious No
Gradient 60%
Side Slope 30%
Vertical Step INA
Trench INA
Approach Angle 45°
Departure Angle 45°
Fording 900 mm
Ground Clearance 413 mm
Main Weapon System
Note The prototype displayed at WDS 2026 was fitted with a 25 mm turret of South African origin, designed and produced by Comenius. ERAF is now producing this turret in Saudi Arabia following a transfer of technology agreement. This weapon station provides the vehicle with significant direct fire capability suitable for engaging light armored threats and providing infantry fire support.
Protection
Armor STANAG Level IV ballistic protection with monocoque V-hull design provides superior survivability against advanced threats and IED detonations.
Applique Armor INA
NBC Protection Yes
Smoke Equipment INA
Details
Country of Origin Saudi Arabia
Category Mine-Resistant Ambush Protected (MRAP)
Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.3 m
Width
Height
2.7 m
Weight
9000 kg
Operators (1)
Saudi Arabia
