Absalon

Absalon

Frigates
Spotted an error? Sign in to suggest an edit.
Absalon

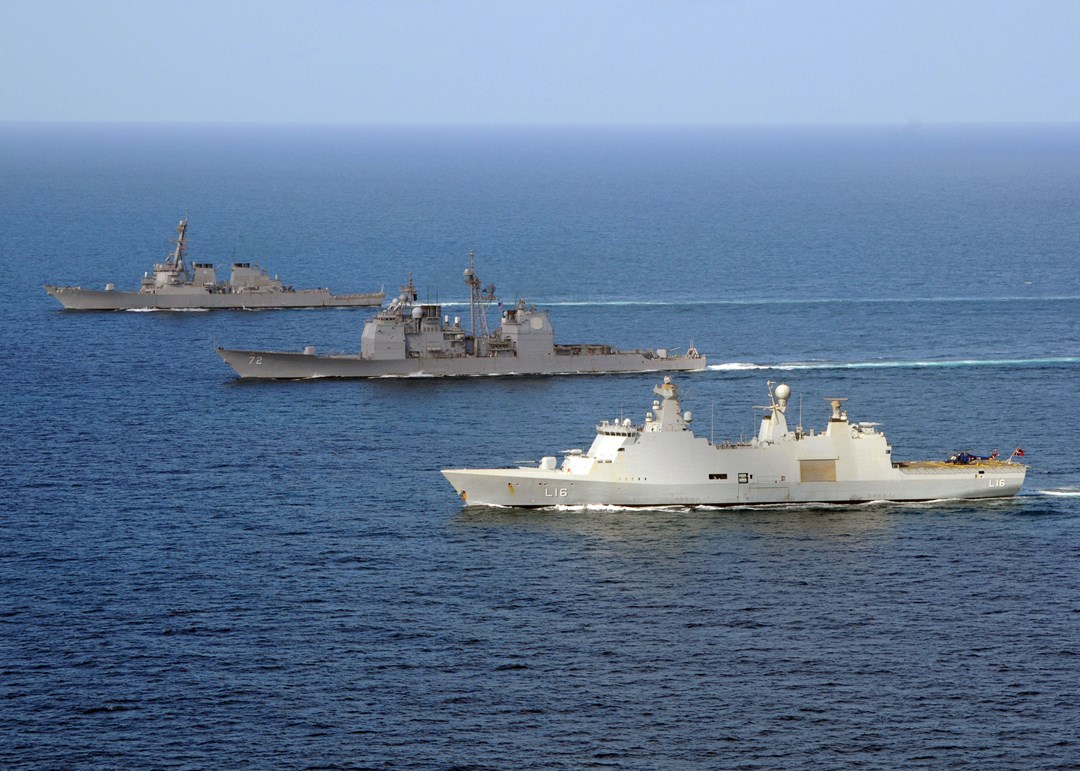

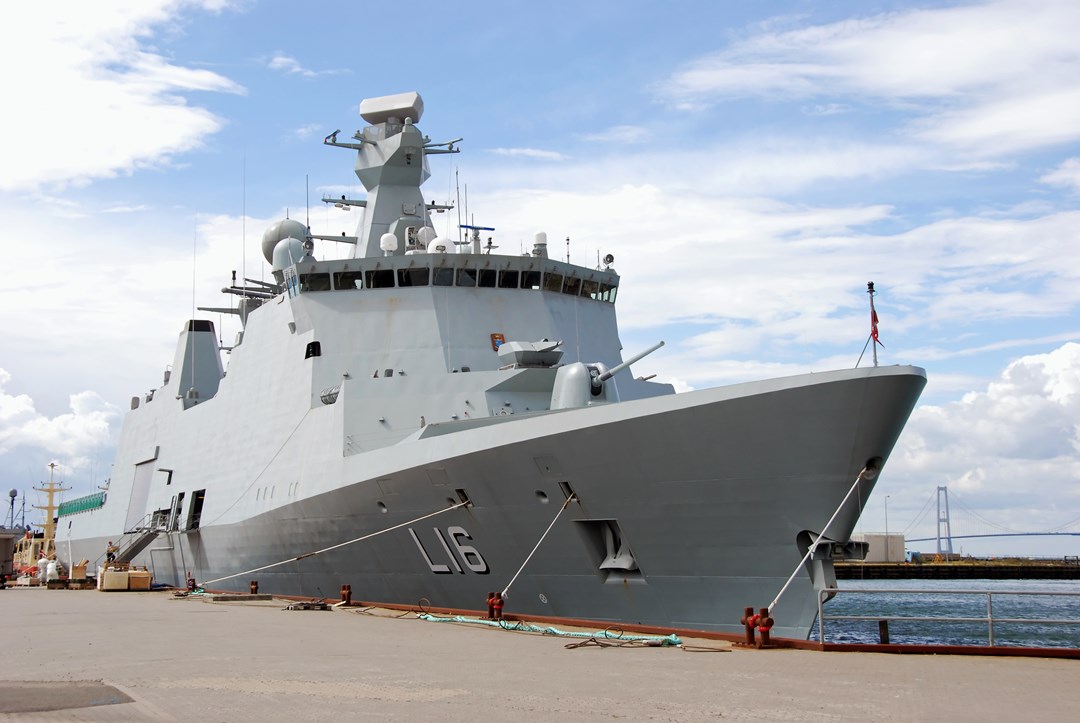

Operational Photo
deagel.com
Basic Information
Name
Absalon
Designation
Absalon
Alternate Designation
CSS, SF3000
Equipment Type
Frigates
Manufacturer
Odense Staalskibsvaerft
Date of Introduction
2003
Description

The Absalon-class Flexible Support Ships (FSSs) were built by Odense Steel Shipyards for the Royal Danish Navy between 2003 and 2004 to provide support to Danish expeditionary forces overseas. The class comprising two ships - HDMS Absalon and HDMS Esbern Snare - is based upon modular architecture to adapt to various roles, including command, surface combatant, mine countermeasures, humanitarian relief and amphibious ship. The Absalon-class equipment includes a naval gun, Sea Sparrow surface-to-air missiles and SMART-S Mk2 volume search radar. Stealth design provides enhanced survivability. The ship features side and stern vehicle ramps and a large flight deck capable of accommodating two EH101 helicopter. The SMART-S Mk2 radar systems have been scheduled for delivery beginning in 2007. The Royal Danish Navy has ordered the procurement of the F370-class frigates based on the Absalon-class hull.

Naval & Littoral Specifications
Crew 100
Displacement 6300.00 tonnes
Beam 19.50 m
Draft 6.30 m
Max Speed 23.0 knots
Overview (Deagel)
Group Frigates
Status Active
Also Known As CSS, SF3000
Origin Denmark
Contractor Odense Staalskibsvaerft
Initial Operational Capability (IOC) 2003
Total Production 2
Specifications (Deagel)
Crew 100
Number of Aircraft 2
Troops 200
Dimensions — Beam 19.5 meter
Dimensions — Draft 6.3 meter
Dimensions — Length 138 meter
Dimensions — Main Gun Caliber 127 millimeter
Mass — Full Displacement 6,300 ton
Performance — Max Range 9,000 nautical mile
Speed — Top Speed 23 knot
Gear (Deagel)
Item 1 Anti-Ship Missiles: RGM-84D Harpoon (8)
Item 2 Naval Gun Systems: Mk 45 mod 4 (1)
Item 3 Radar Systems: SMART-S Mk2 (1)
Item 4 Surface-to-Air Missiles: RIM-7P Sea Sparrow
Item 5 Torpedoes: MU90 Impact
Item 6 Utility & Transport Helicopters: EH101 (2)
Item 7 Weapon Stations: Millennium (2)
Details
Country of Origin Denmark
Category Frigates
Naval > Frigates
Sources

deagel.com: https://www.deagel.com/x/x/a001804

Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
138 m
Width
19.5 m
Height
—
Weight
6300000 kg
Operators (1)
Denmark
