Type 31

Type 31

Frigates
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Type 31
Designation
Type 31
Alternate Designation
Arrowhead 140, Inspiration, T31, Type 31e
Equipment Type
Frigates
Manufacturer
Babcock, Ferguson Marine Engineering, Thales
Date of Introduction
2027
Description

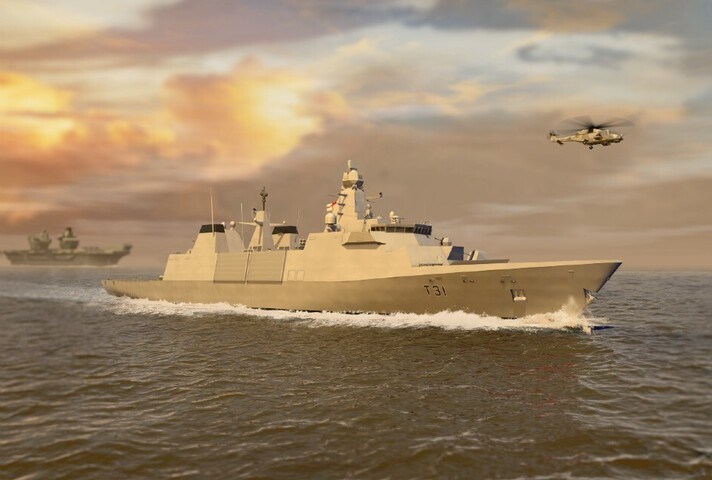

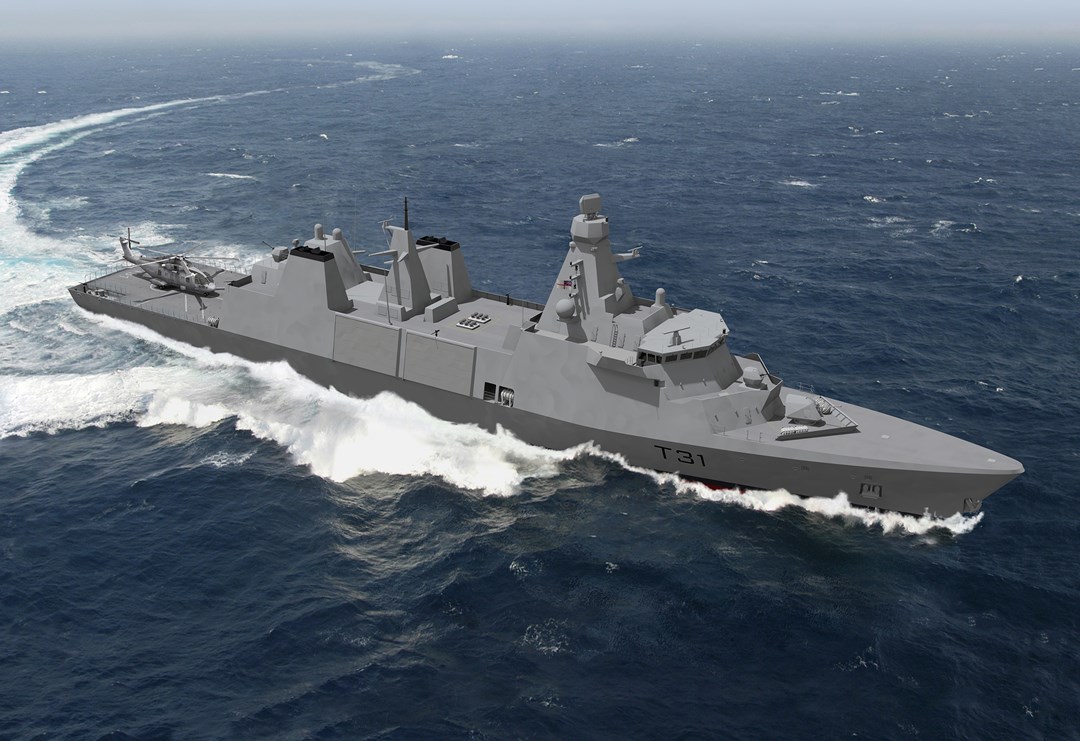

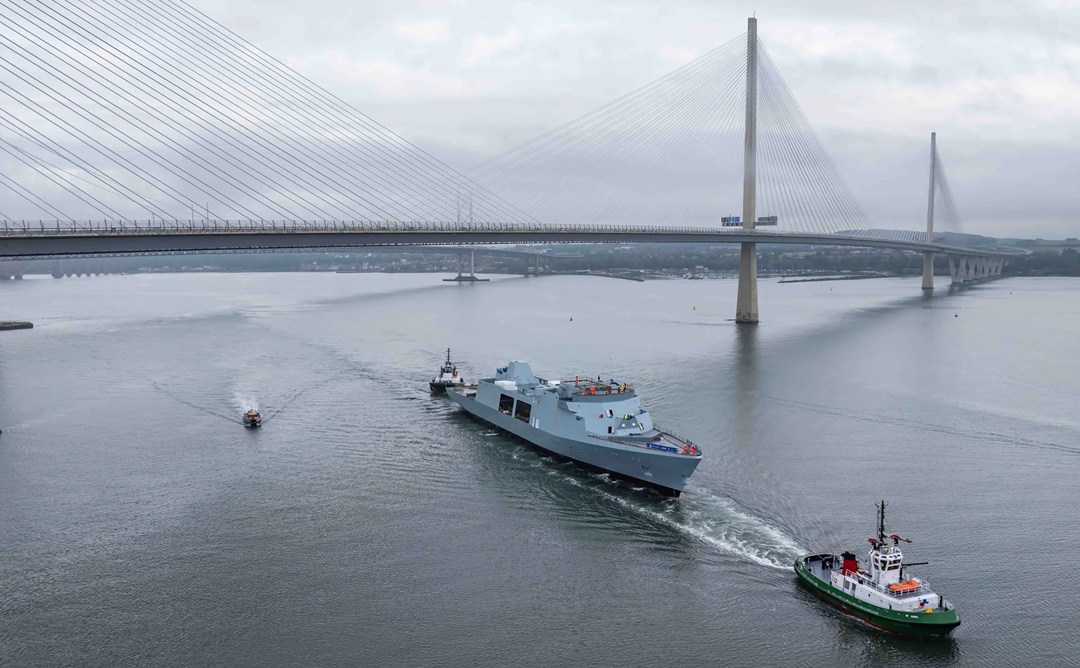

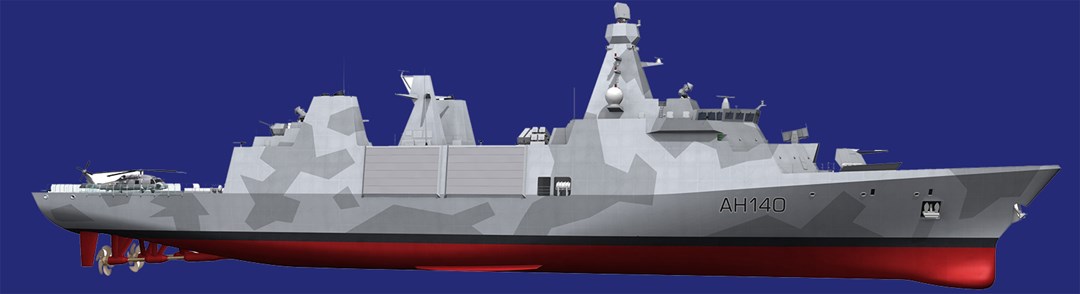

The Royal Navy Type 31e is a new class of inexpensive frigates being built to meet the requirements of the United Kingdom (UK) as well as the requirements of export customers. The lead ship is expected to be commissioned in 2023 following modular construction approach that will speed up construction while lowering procurement costs. Each multi-purpose ship will carry a price tag of £250 million. On September 12 2019, Babcock Arrowhead 140 design was selected for the Type 31 class frigate. The workload will be shared with Thales UK and Ferguson Marine Engineering with the construction to be carried out at Rosyth in Scotland. These ships will feature Thales TACTICOS combat management system. These frigates are especially well suited for warfare operations in the littoral environment. The UK Ministry of Defense (MoD) launched the Type 31e project on September 6, 2017. A first batch of five frigates is expected to be commissioned before 2030.

Naval & Littoral Specifications
Crew 110
Displacement 5700.00 tonnes
Max Speed 25.0 knots
Overview (Deagel)
Group Frigates
Status Under Development
Also Known As Arrowhead 140, Inspiration, T31, Type 31e
Origin United Kingdom
Contractors Babcock*, Ferguson Marine Engineering, Thales
Initial Operational Capability (IOC) 2027
Total Production 5
Unitary Cost GBP £350 million
Specifications (Deagel)
Crew 110
Dimensions — Length 139 meter
Dimensions — Main Gun Caliber 57 millimeter
Mass — Full Displacement 5,700 ton
Performance — Max Range 7,500 nautical mile
Speed — Top Speed 25 knot
Gear (Deagel)
Item 1 Combat Management Systems: TACTICOS
Item 2 Naval Gun Systems: 40mm Mk4 (2)

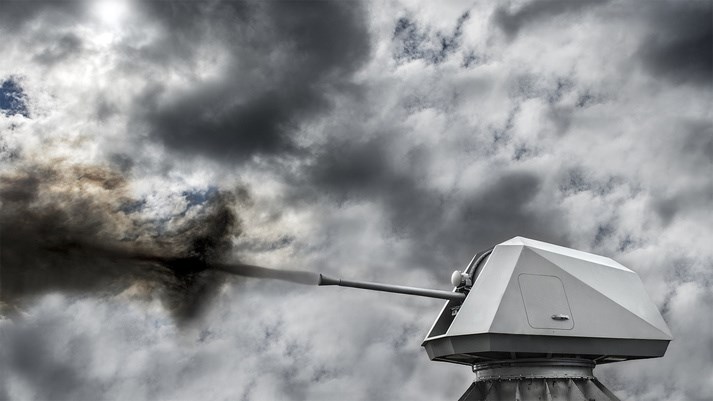

Item 3 Naval Gun Systems: 57mm Mk3 (1)
Item 4 Radar Systems: NS110 (1)

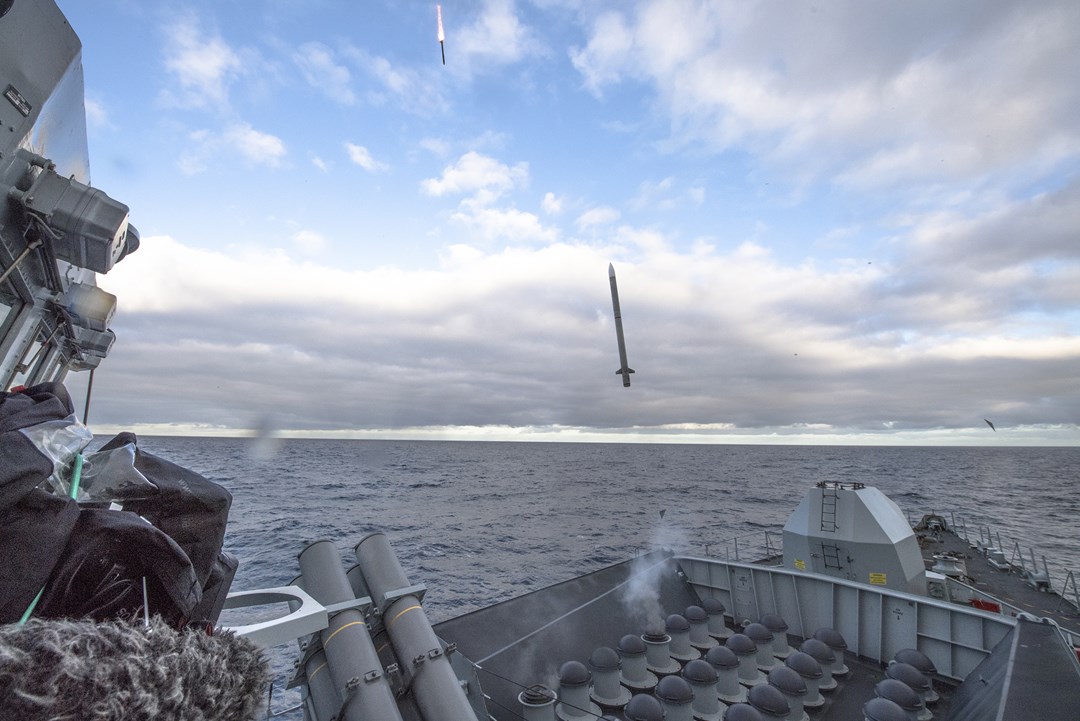

Item 5 Sea-Based Air Defense Systems: Sea Ceptor (1)
Item 6 Surface-to-Air Missiles: CAMM(M) (32)
Details
Country of Origin United Kingdom
Category Frigates
Naval > Frigates
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
139 m
Width
—
Height
—
Weight
5700000 kg
Operators (1)
United Kingdom
