R-168-5KNE Russian HF Manpack Radio
R-168-5KNE
HF Anti-Jamming Communication Radio
Other
Basic Information
Name
R-168-5KNE Russian HF Manpack Radio
Designation
R-168-5KNE
Alternate Designation
R-168-5KNE; "Akveduk"
Equipment Type
HF Anti-Jamming Communication Radio
Manufacturer
Joint Stock Company Concern Sozvezdie and Yaroslavl Radioworks Corp
Date of Introduction
2001
Description

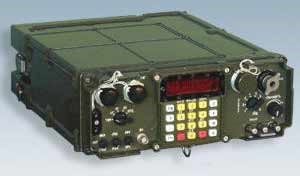

The R-168-5KNE HF manpack radio station provides clear and secure radio communications in tactical command level radio networks in a harsh ECM environment. The R-168-5KNE was developed to replace the obsolete radio stations R-163-10K and R-143.
Ground Specifications
Crew
1
System
Alternative Designation
R-168-5KNE; "Akveduk"
Type
HF Manpack Radio
Manufacturer
Joint Stock Company Concern Sozvezdie and Yaroslavl Radioworks Corp
Frequency Range
1.5–29.9999 MHz
Crew
1 ea
Components

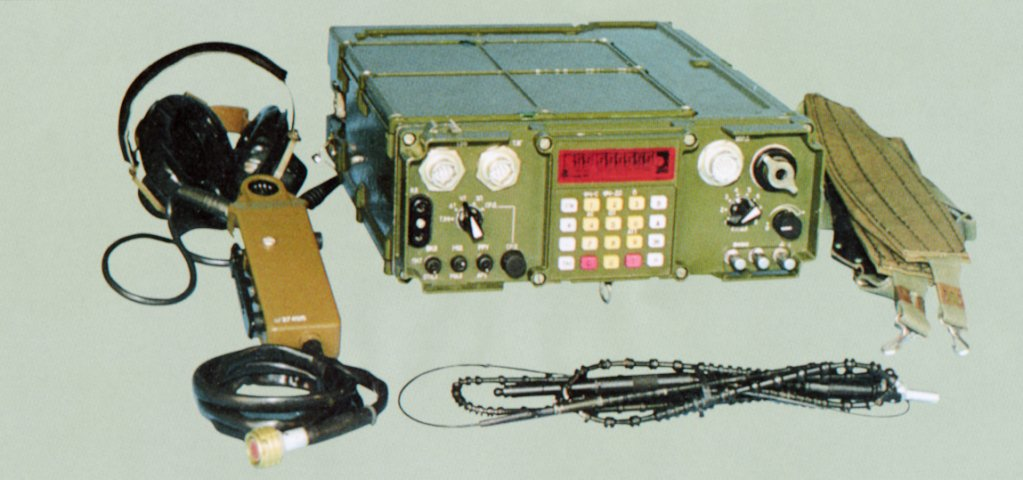

Transceiver and handset, telephone key, ASh-2.4 antenna, VNNL-5KN universal antenna "symmetric vibrator - inclined path" and a tower, 10NKGTs-4.5 type battery power supply, individual SPTA set, equipment elements, operating and technical documentation set.
Additionally, at consumer's request it is possible to deliver a charging unit and converter solar energy to electrical one.
Services
Single-sideband (SSB) modulation phone with upper sideband; Telephone with voice data security masking; Frequency and amplitude telegraph
Operating Modes
Single-frequency simplex; Double-frequency simplex; Frequency hopping (FH); Adaptive communication (AC); Listening
Antenna Type
ASh-2.4 antenna; VN/NL-5KN universal antenna – inclined path and symmetric vibrator antenna with mast appliances
Modulation
Single sideband (SSB) modulation; Amplitude Modulation (AM); Frequency Modulation (FM); Frequency Shift Keying (FSH)
Interface
RS-232C
Preset Channels
8 ea
Frequency Spacing, Fixed Frequency
100 Hz
Frequency Spacing, FH and AC Mode
1,000 Hz
Operational Range, Static Position and Motion (Ash-4 Antenna)
10–20 km
Operational Range, Static Position (VN/NL Antenna)
300/40 km
Continuous Operation
No less than 12 hours (1:1:8 time ratio)
Mean Time Between Failures (MTBF)
No less than 8,000 hours
Receiver Sensitivity, J3E Mode
1.5 µV
Receiver Sensitivity, F1B Mode
1 µV
Hot Speed, FH1
3 hops/s
Hot Speed, FH2
20 hops/s
Transmitter, Low Output Power
1 W
Transmitter, Full Output Power
8 W
Operating Temperature
-40° to 55° C
Battery
10NKGTs-6-2 type battery
Dimensions
Length
206 mm
Width
90 mm
Height
175 mm
Weight, Combat
3 kg
Image Sources
Details
Country of Origin
Russia
Category
Man-Portable HF Radios
Land > Communication Equipment > Man-Portable HF Radios
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.21 m
Width
0.09 m
Height
0.18 m
Weight
3 kg
