DF-100 (CH-SSC-13 Splinter) Chinese Supersonic Cruise Missile
DF-100
Cruise Missile
Other
Basic Information
Name
DF-100 (CH-SSC-13 Splinter) Chinese Supersonic Cruise Missile
Designation
DF-100
Alternate Designation
DF-100; NATO: CH-SSC-13 Splinter; Changjan 100; CJ-100
Equipment Type
Cruise Missile
Manufacturer
—
Date of Introduction
2019
Description
The DF-100 (CH-SSC-13 Splinter) Chinese Supersonic Cruise Missile is a Chinese strategic, long range high-supersonic land-attack cruise missile. The missile system is reportedly capable of engaging land-based facilities, reinforced targets, underground bunkers and large warships.
Air & Air Defense Specifications
Engine
Solid-Fuel Rocket
Max Speed
4.0 km/h
Range
2500.0 km
System
Alternative Designation
DF-100; NATO: CH-SSC-13 Splinter; Changjan 100; CJ-100
Type
Supersonic Cruise Missile
Manufacturer
INA
Crew
INA
Launch Vehicle

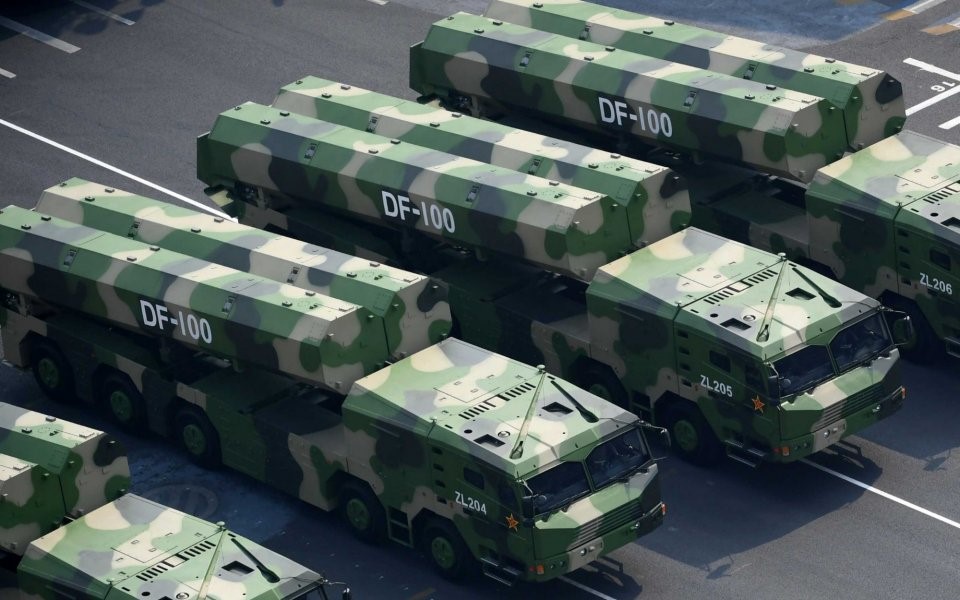

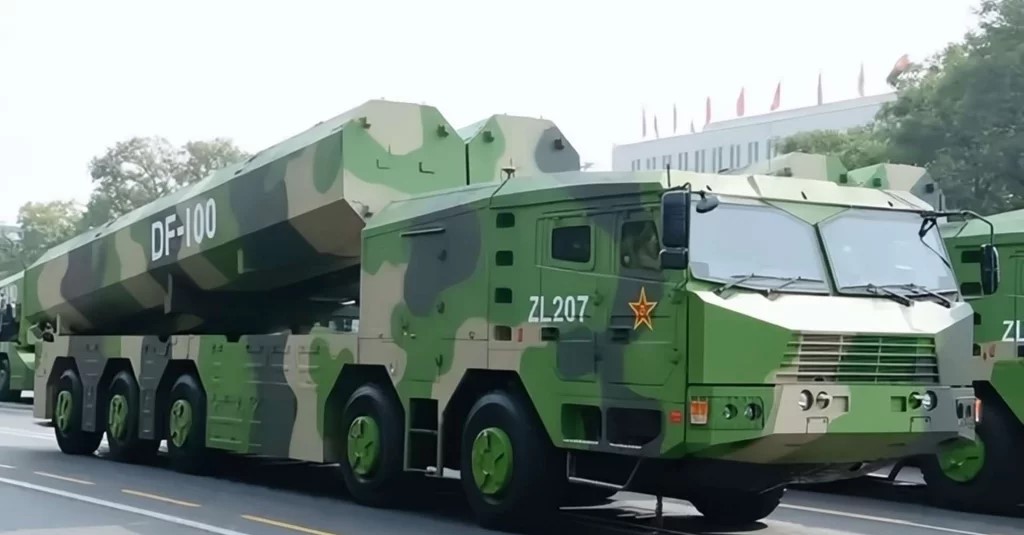

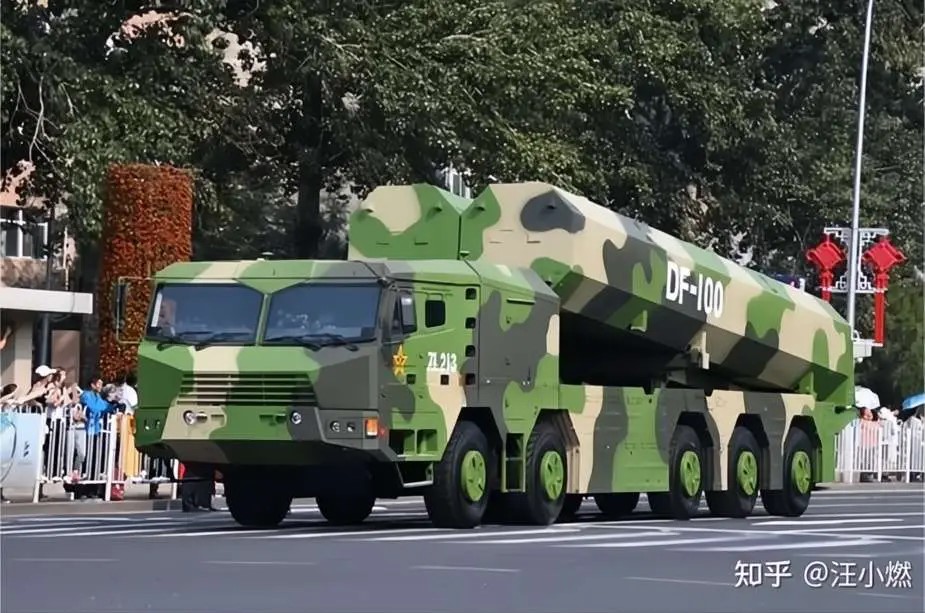

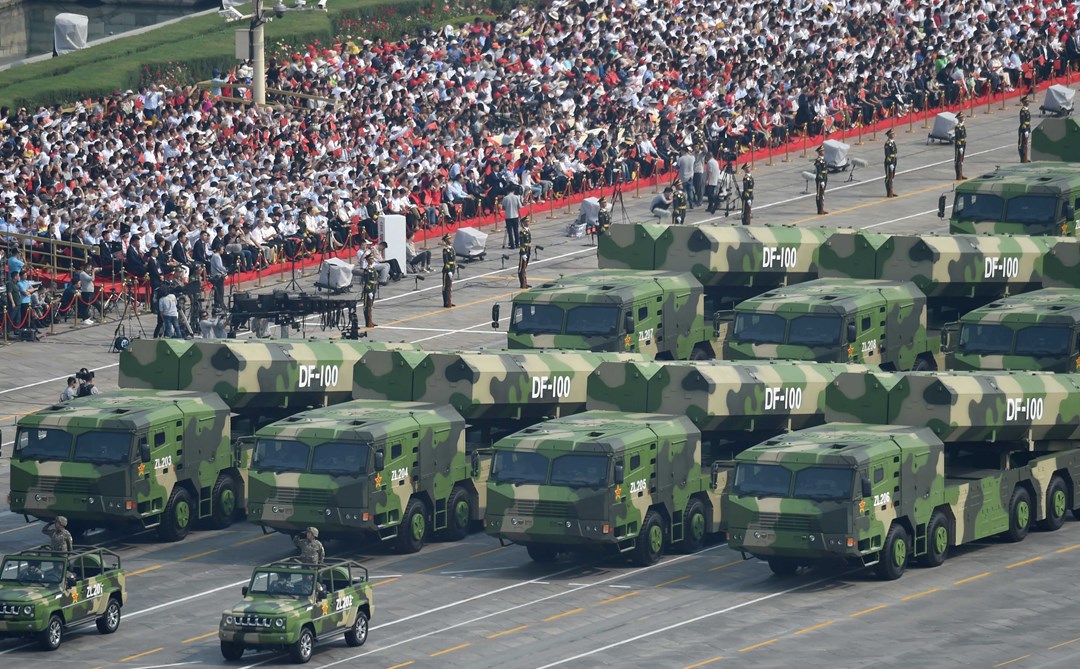

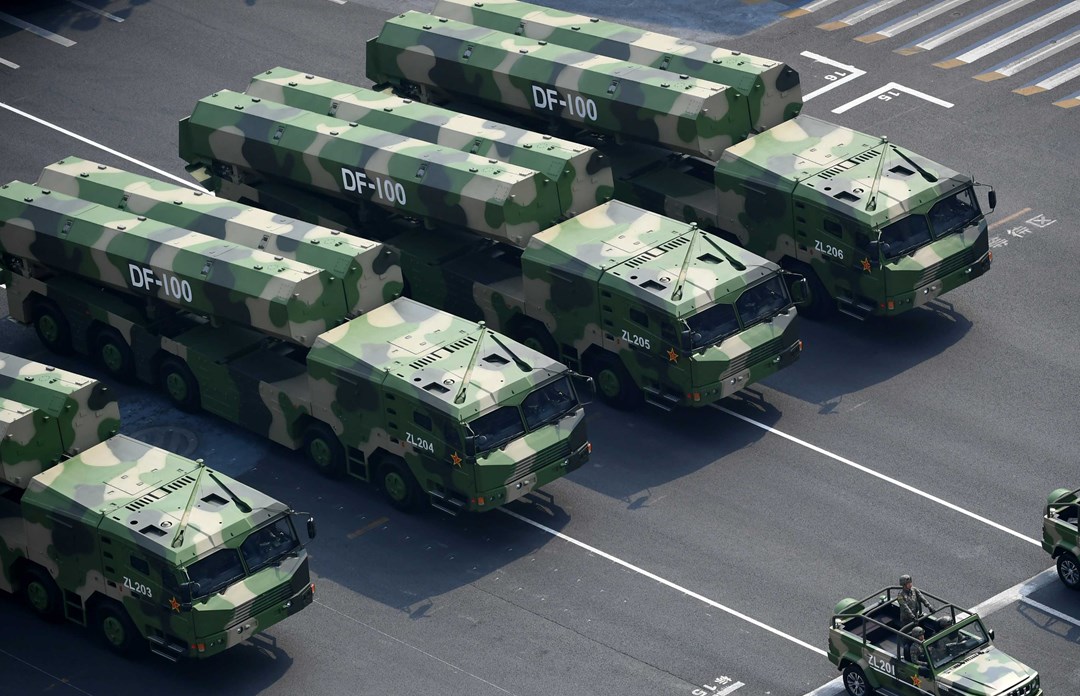

Road-mobile Transporter erector launcher
Guidance System
Its guidance system offers various modes, including infrared imagery, satellite navigation, and inertia, which enhance its precision and accuracy. The DF-100 missile's flight characteristics make it unique with its dual-speed, dual-trajectory, three-stage design, setting it apart from conventional cruise missiles.
Flight Modes
The DF-100 operates in a three-stage flight mode: the initial phase, or boost stage, employs a solid rocket motor booster for rapid ascent, reaching an altitude of around 30 km before discarding the booster.
The second stage, or cruise phase, involves high-trajectory level flight in near space at altitudes of 30 to 40 km. The missile reaches speeds of Mach 3 to 4 during this phase.
The third and final stage, or glide phase, consists of high-speed gliding flight. The DF-100's terminal speed of about Mach 5 allows it to reach a quasi-hypersonic speed, coupled with air rudders for maneuverability, enhancing its penetration capabilities and its ability to engage moving targets, making it a concern for air defense systems.
Warhead
Conventional or nuclear warhead
Warhead Weight
500 kg
Accuracy
1.0 m
Dimensions
Length
9.0 m
Diameter
0.7 m - 1.0 m
Weight
INA
Automotive
Engine Name
INA
Engine Type
Ram Jet Engine
Engine Power
INA
Maximum Range
2,500 km - 3,000 km
Maximum Speed
Mach 4 (4,900–6,100 km/h)
Flight Altitude
The DF-100's flight path takes it to altitudes above 30 km during the cruise phase, allowing it to avoid much of the dense atmosphere and penetrate enemy air defenses effectively.
Details
Country of Origin
China
Category
Long-Range Cruise Missiles (LRCM) (More than 1,000 km)
Air > Long-Range Cruise Missiles (LRCM) (More than 1,000 km)
Filter Label
D
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
9 m
Width
0.7 m
Height
—
Weight
—
Operators (1)
China
