Trace American Unmanned Aerial Vehicle (UAV)
Trace
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Trace American Unmanned Aerial Vehicle (UAV)
Designation
Trace
Alternate Designation
Trace
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Vantage Robotics
Date of Introduction
2023
Description
The Trace American Unmanned Aerial Vehicle (UAV) provides field operators with a trusted and affordable American-made nano UAV. Trace delivers exceptional sensor capabilities and unmatched stealth and flight endurance. This pocket sized drone meets the complex demands of aerial surveillance, overwatch and data dissemination.
Air & Air Defense Specifications
Engine
Battery
Max Speed
52.0 km/h
Range
2.0 km
Endurance
30.00 hrs
System
Alternate Designation
Trace
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Vantage Robotics
Payload Capacity
INA
Deployment Time
Deployable in 30 sec
LOS Range
2 km
NLOS Range
500 m (30dBi attenuation)
Frequencies Available
2.36 GHz Mil and 2.4 GHz ISM radio frequency alternatives
Channels
Automatic channel hopping ensures robust link
Connection Standards
MAVLink and RAS-A Compliant
GCS Software Compatibility
QGC, ATAK, WMI, and RAC2 compatible
Controller Compatibility
Compatible with Vantage Vision 2, Kutta KTAC, S20 TE, & Tomahawk Mimic or Grip GCS
Dimensions
Length

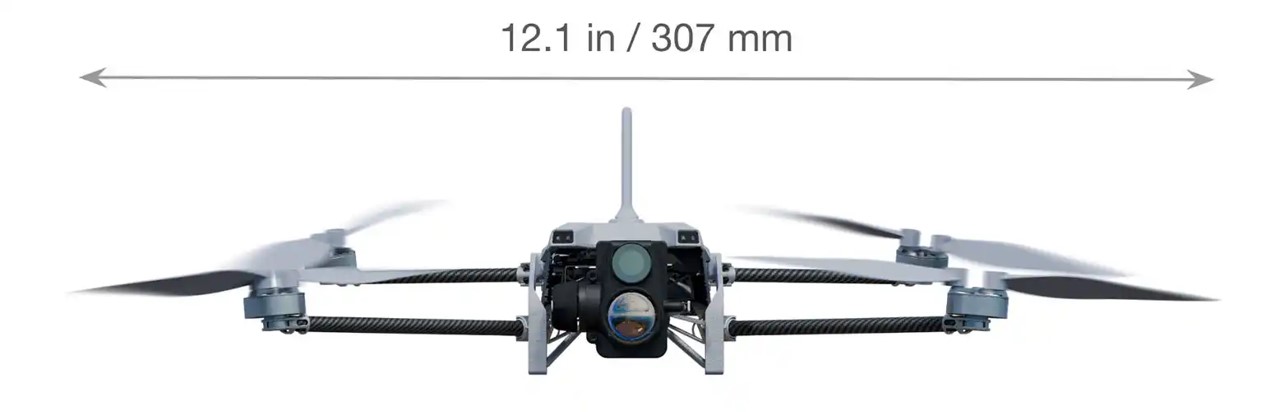

307 mm
Width
64 mm
Height

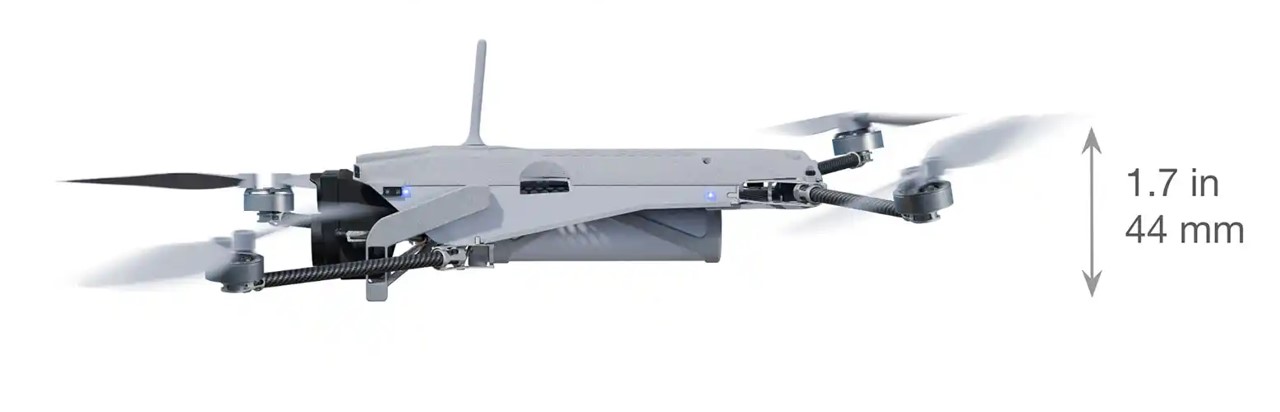

44 mm
Weight
1,000 g
Automotive
Engine Name
INA
Engine Type
Battery
Maximum Speed
52 km/h
Endurance
30 min
Image Sources
Details
Country of Origin
United States
Category
UAVs
Air > UAVs
Filter Label
T
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.31 m
Width
0.06 m
Height
0.04 m
Weight
1 kg
Operators (1)
United States
