Canterbury

Canterbury

Amphibious Assault Ships
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Canterbury
Designation
Canterbury
Alternate Designation
MRV (Multi Role Vessel)
Equipment Type
Amphibious Assault Ships
Manufacturer
Tenix, Merwede Shipyard
Date of Introduction
2007
Description

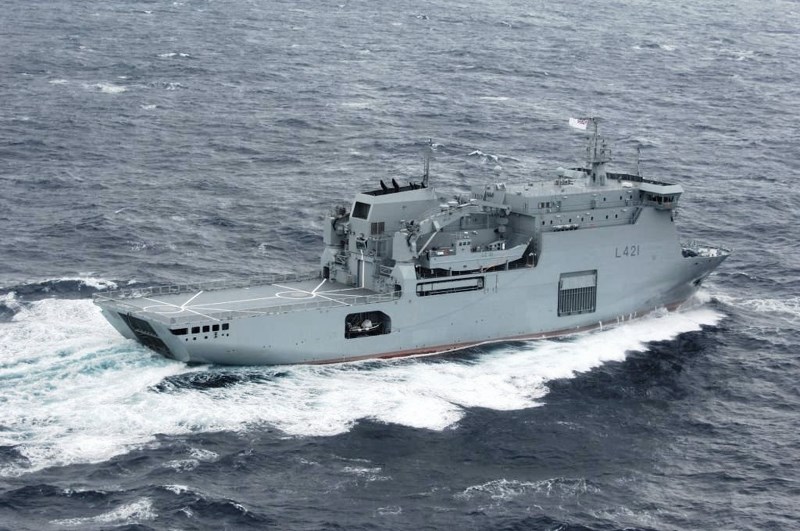

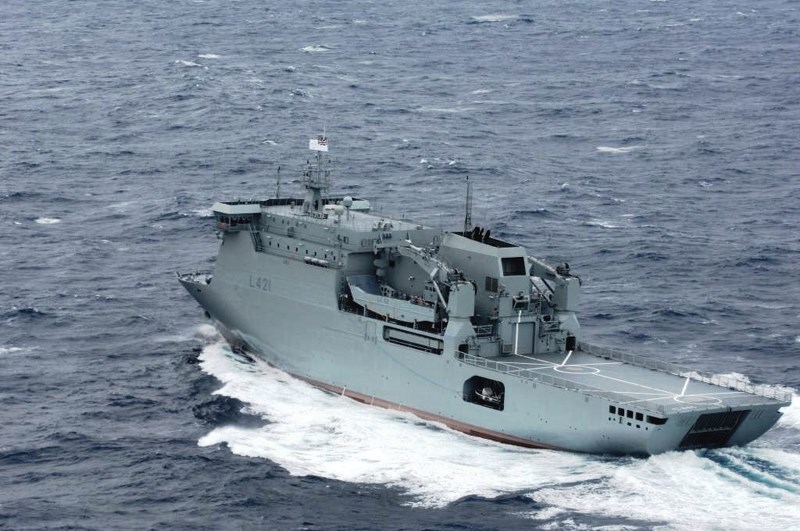

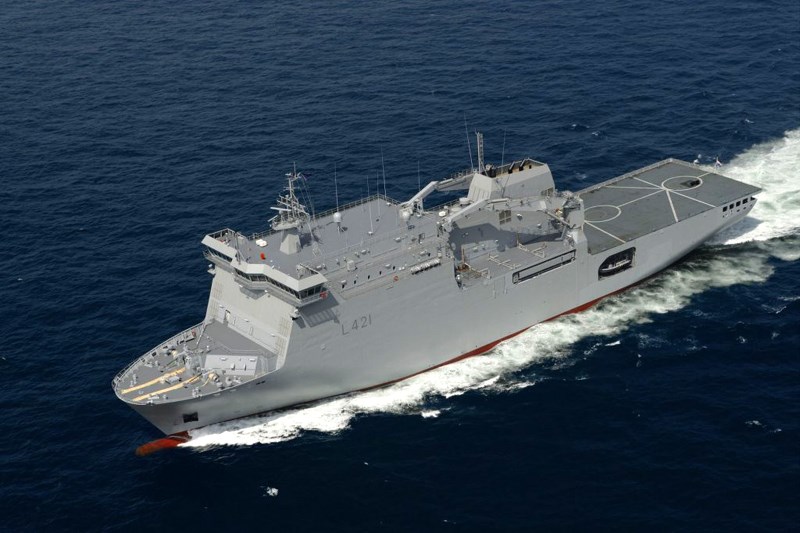

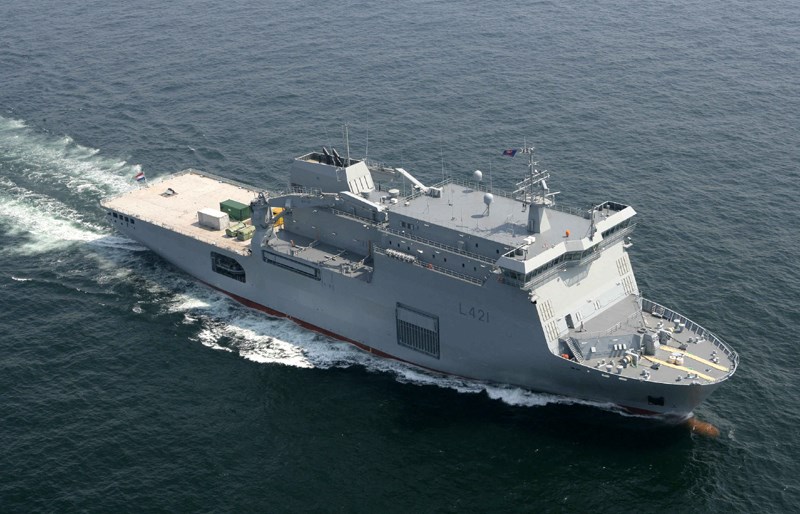

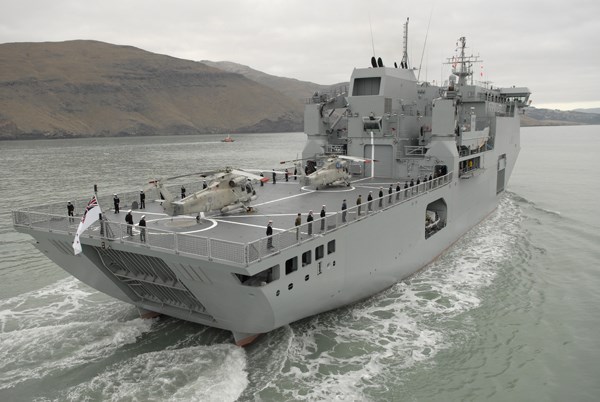

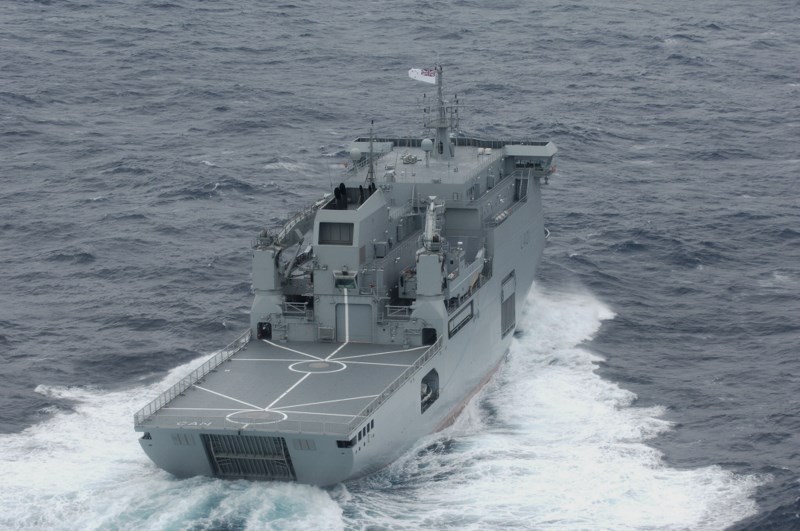

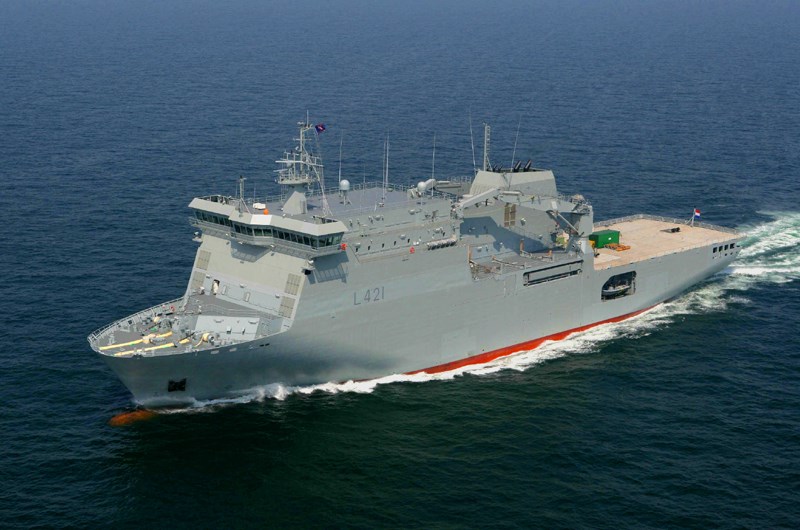

The HMNZS Canterbury is one of seven ships commissioned by the Royal New Zealand Navy (RNZN) under Project Protector awarded to Tenix (New Zealand) in April 2004. Canterbury is a Multi Role Vessel (MRV) based on a commercial RO-RO ship, Ben-My-Chree in operation in the Irish Sea, design. The ship is suitable for out of area operations, EEZ protection, law enforcement at sea, helicopter platform, Mine Counter-Measures (MCM), evacuation and disaster relief operations. It was build by Merwede Shipyard under a contract issued by Tenix and RNZN commissioned her on June 12, 2007. The Combined Diesel and Diesel Electric (CODADE) propulsion system allows a top speed of 19.6 knots. The aft flight deck allows simultaneous operation of two NH90 or SH-2G helicopters or a single Chinook helicopter. The rear door/ramp allows rapid onload/offload of personnel, cargo and vehicles including two 59t class LCM landing crafts capable of carrying 50 tones at 9 knots with a range of 250 nautical miles (nm). The armament includes one 25mm naval gun and two .50 caliber machine guns.

Naval & Littoral Specifications
Crew 78
Displacement 9000.00 tonnes
Beam 23.40 m
Draft 5.60 m
Max Speed 19.6 knots
Overview (Deagel)
Group Amphibious Assault Ships
Status Active
Also Known As MRV (Multi Role Vessel)
Origin Netherlands
Contractors Tenix*, Merwede Shipyard
Initial Operational Capability (IOC) June 12, 2007
Total Production 1
Specifications (Deagel)
Crew 78
Number of Aircraft 5
Troops 288
Dimensions — Beam 23.4 meter
Dimensions — Draft 5.6 meter
Dimensions — Length 131 meter
Dimensions — Main Gun Caliber 25 millimeter
Mass — Full Displacement 9,000 ton
Power — Total Combined Power 12,210 kW
Speed — Cruise Speed 16 knot
Speed — Economical Speed 8 knot
Speed — Top Speed 19.6 knot
Gear (Deagel)
Item 1 ASW Helicopters: SH-2G Super Seasprite (5)
Item 2 Landing Crafts: LCM (2)
Item 3 Utility & Transport Helicopters: CH-47D Chinook (1)
Item 4 Utility & Transport Helicopters: NH90 TTH (4)
Details
Country of Origin Netherlands
Category Landing Ships and Amphibious Assault Ships
Naval > Landing Ships and Amphibious Assault Ships
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
131 m
Width
23.4 m
Height
Weight
9000000 kg
Operators (1)
New Zealand
