Kaya

Tactical Vehicles

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Kaya

Designation

Kaya

Alternate Designation

—

Equipment Type

Tactical Vehicles

Manufacturer

Otokar

Date of Introduction

2009

Description

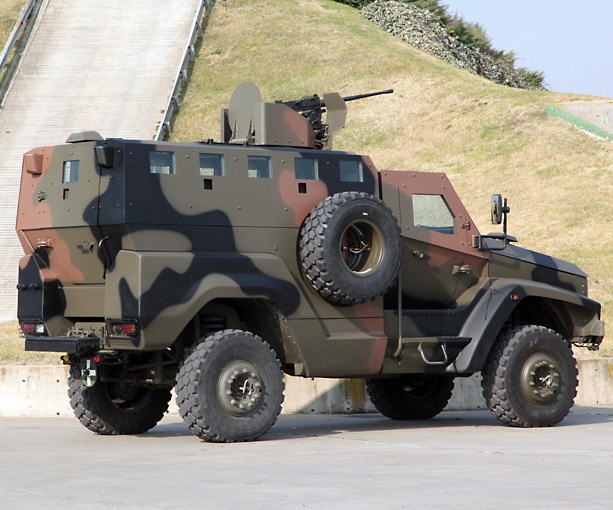

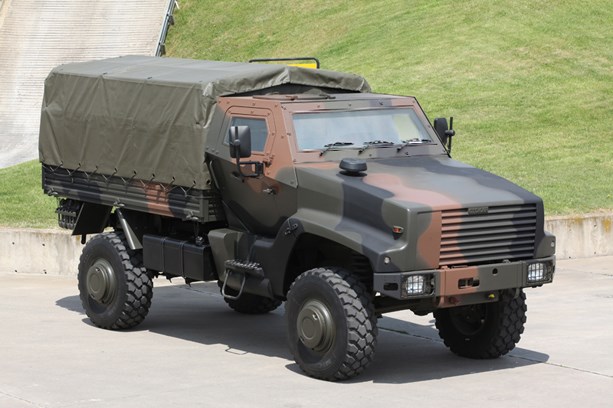

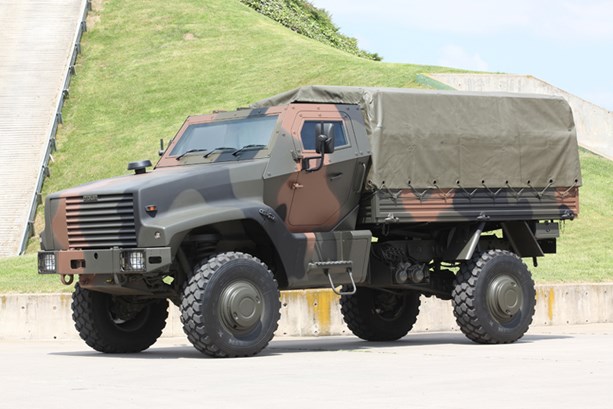

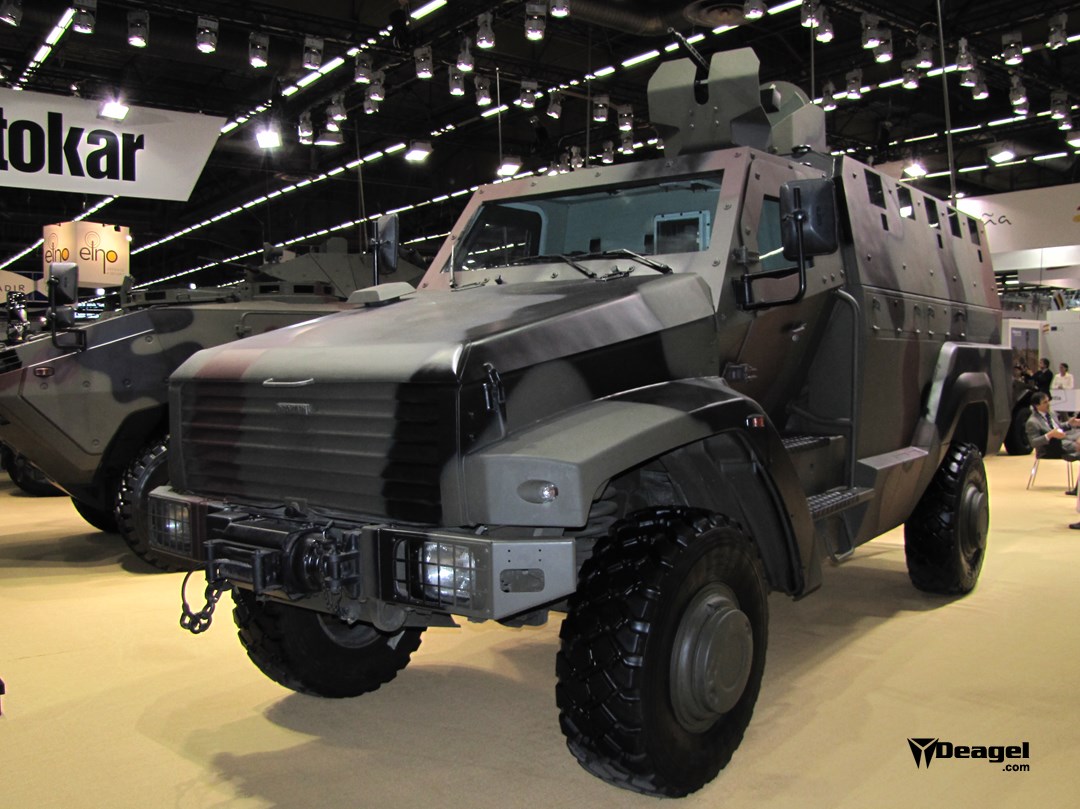

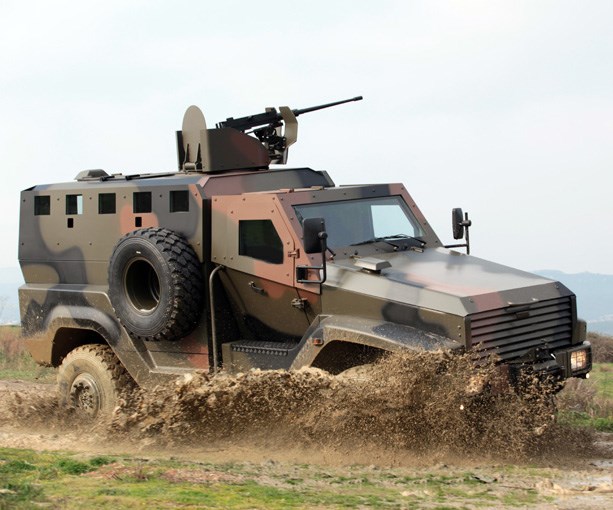

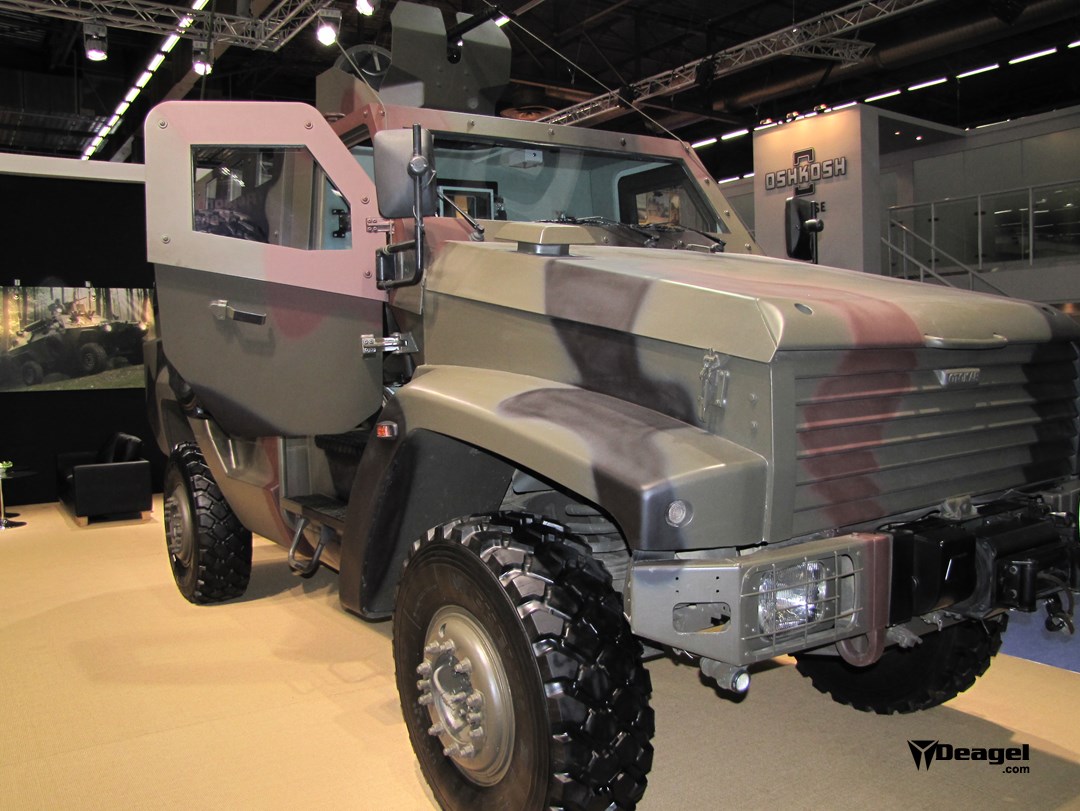

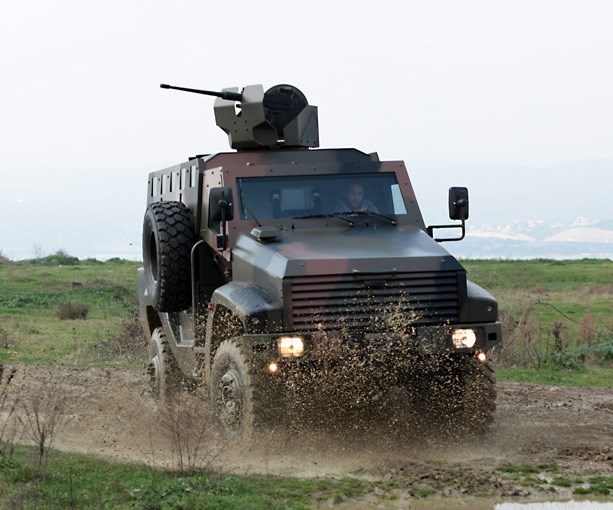

The Kaya is a 4x4 all-terrain, mine protected armored personnel carrier developed by Otokar based upon the Daimler Chrysler Unimog 5000 running chassis. Besides, Kaya offers ballistic protection, high mobility and outstanding crew comfort. The two-man Armored Cab and 10-men Crew Compartment are designed as two separate units to utilize and maintain the Unimog 5000's ultimate cross country capability. The Kaya 4x4 can easily be configured for different missions. It is powered by a OM 924 LA diesel engine developing 218-hp and a top speed of 96 kph. A roof-mounted weapon cupola provides self-protection against hostile fire. It is available in two versions: armored personnel carrier and tactical truck system. Otokar displayed the Kaya for the first time in early 2009.

Ground Specifications

Crew 2

Troop Capacity 10

Mobility Type Wheeled (4x4)

Max Speed 96.0 km/h

Range 800.0 km

Overview (Deagel)

Group Tactical Vehicles

Status Active

Origin Turkiye

Contractor Otokar

Initial Operational Capability (IOC) 2009

Total Production ?

Specifications (Deagel)

Crew 2

Troops 10

Wheel Drive 4

Wheels 4

Dimensions — Ground Clearance 522 millimeter

Dimensions — Height 2.9 meter

Dimensions — Length 6.5 meter

Dimensions — Wheelbase 3.9 meter

Dimensions — Width 2.5 meter

Energy — Max Torque 810 Nm

Mass — Max Weight 12,500 kilogram

Percentage — Gradient 60 %

Percentage — Side Slope 30 %

Performance — Fording Depth 1.2 meter

Performance — Max Range 800 kilometer

Performance — Step Climbing Ability 0.48 meter

Power — Power 218 hp

Speed — Top Speed 96 kph

Details

Sources

deagel.com: https://www.deagel.com/x/x/a002511

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

6.5 m

Width

2.5 m

Height

2.9 m

Weight

12500 kg
