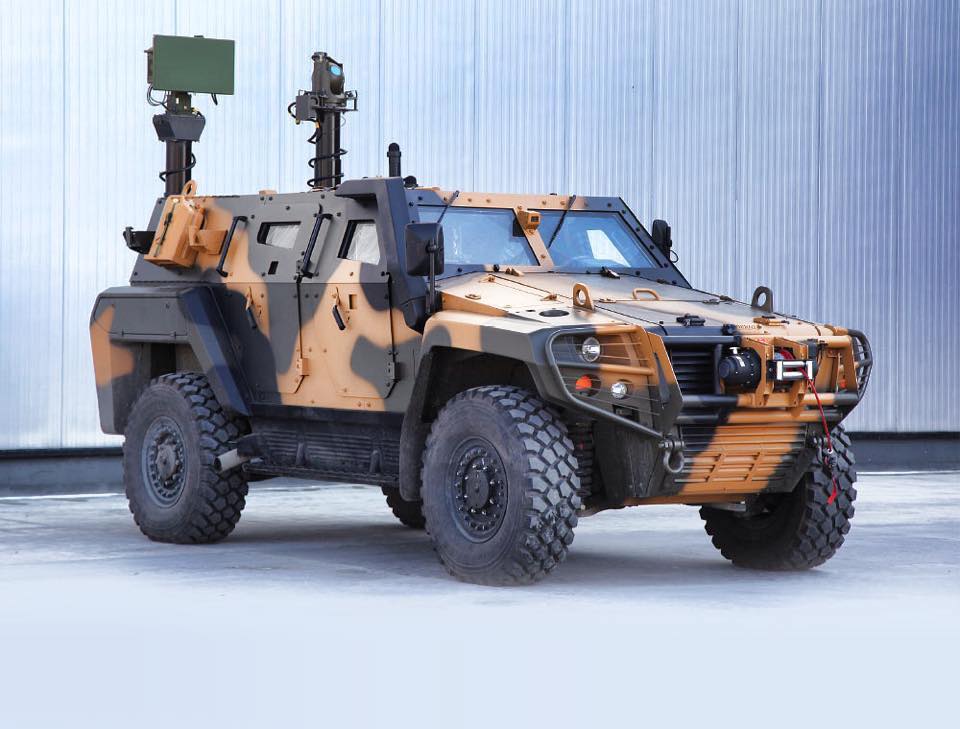

Cobra II Turkish 4x4 Amphibious Armored Personnel Carrier (APC)

Cobra II

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Cobra II Turkish 4x4 Amphibious Armored Personnel Carrier (APC)
Designation
Cobra II
Alternate Designation
Cobra II; Otokar Cobra II
Equipment Type
Manufacturer
Otokar
Date of Introduction
2013
Description

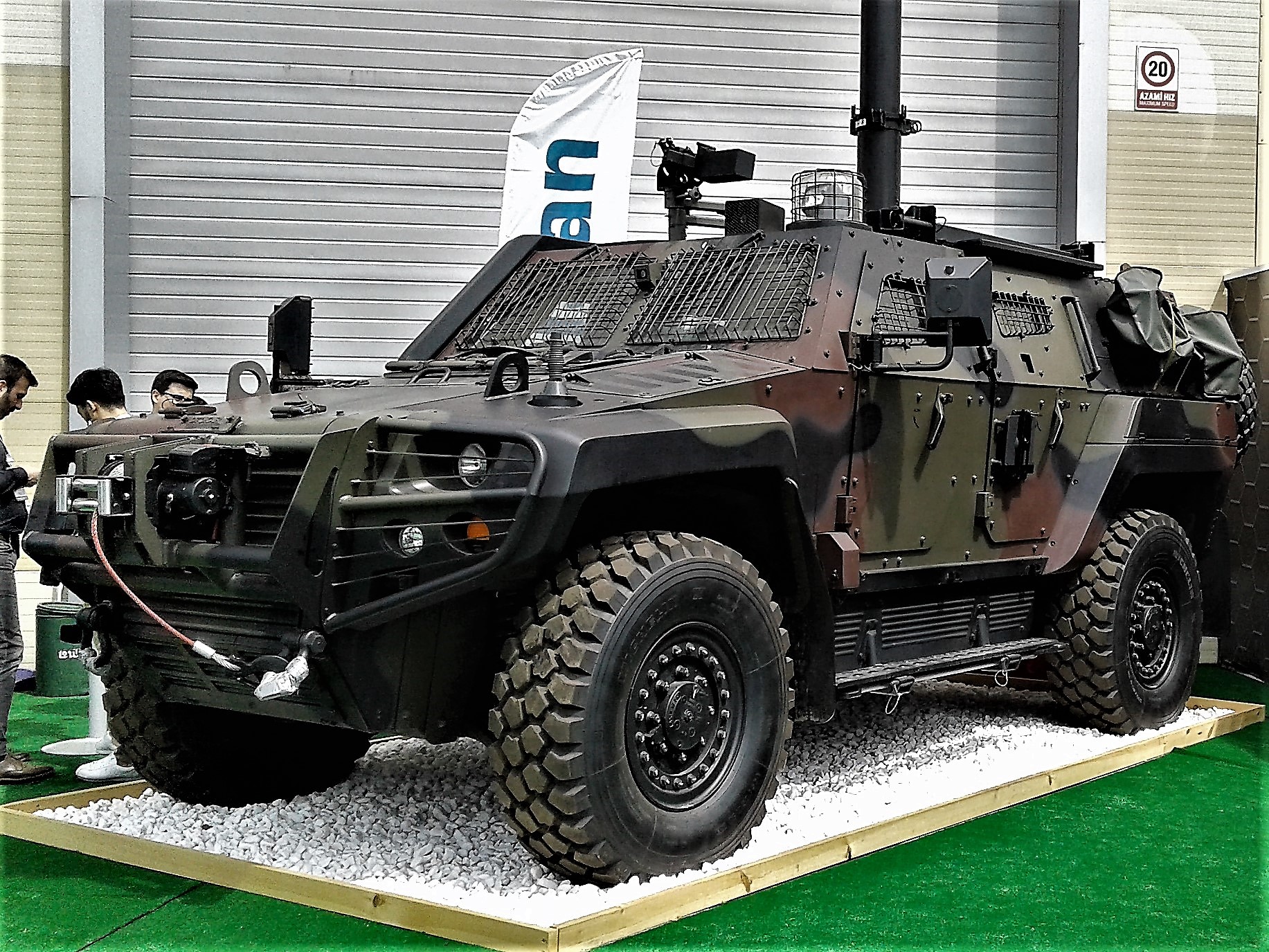

First unveiled at IDEF 2013, the Cobra II is a more heavily armored successor to the Cobra. The Cobra II has a combat weight that is roughly double that of its predecessor and is slightly wider, longer, and taller. Standard equipment includes a rearview camera, thermal front camera, air conditioning system, blackout lighting system, multi-point seat belts, radio provisions, and a towing eye. It can be optionally equipped with a self-recovery winch, nuclear, biological, and chemical filtration kit, an automation fire extinguishing system, an intercom system, a navigation system, and an auxiliary power unit. In an APC configuration, the vehicle can carry nine personnel and can be armed with a number of different weapons, including crew-operated machine guns and remote weapon stations armed with short-range surface-to-air missiles and grenade launchers. Powered by a 6.7 L, six-cylinder, water-cooled, turbocharged, common rail diesel engine that produces 281 hp, its maximum road speed is 110 km/h on roads and has a maximum cruising range of 700 km with an operating temperature from -10 up to 45 degrees C. Otokar has received orders for the Cobra II both from an undisclosed customer and from the Turkish Armed Forces. In late 2015, the Turkish Armed Forces ordered 82 Cobra II vehicles plus related systems, maintenance, and support worth $52 million. In June 2016, the Turkish Armed Forces ordered an undisclosed number of Cobra II vehicles plus related systems, maintenance, and support worth $120.8 million. Assuming the same value-to-vehicle ratio as the 2015 order, this would imply an order of about 180 vehicles. Cobra II amphibious There is an amphibious and slightly larger variant of the Cobra II with a more powerful 6.7 L, 360Hp, V6 turbocharged engine that is capable of crossing lakes and smaller bodies of water

Ground Specifications
Crew 2
Mobility Type Wheeled (4x4)
Main Weapon 25 mm machine gun
Engine Turbocharged Diesel (281 hp)
Armor Welded Steel
Active Protection None
Max Speed 110.0 km/h
Range 700.0 km
Variants
APC Basic variant; carries 8-12 troops & 12.7-mm MG; open or turret-mounted 40-mm AGL, 25-mm cannon, or 30-mm cannon.
Armored Reconnaissance Vehicle Crew of 4 in vehicle with a 25mm cannon and FLIR.
Armored C2 Vehicle Command and control vehicle with a crew of 6 armed 7.62mm machine guns.
Armored Ambulance Evacuates 4 litter or 6 ambulatory patients and medical gear.
TOW Missile Carrier Crew of 5 with a TOW ATGM with a range of 3750m or Rafael overhead weapons system with Spike AT missiles.
Cobra EOD Vehicle Designed for explosive ordnance disposal with controlled blade on front of vehicle operated by driver.
Cobra Reconnaissance / Surveillance Vehicle Target acquisition for higher unit commands.
Cobra Twin-Turret Rotating turret with 40mm AGL and 12.7mm machine gun.
Cobra Amphibious Vehicle Allows vehicle to enter water without any preparation.
NBC Reconnaissance Vehicle Equipped with NBC sensors.
Cobra II First unveiled at IDEF 2013, the Cobra II is a more heavily armoured successor to the Cobra. The Cobra II has a combat weight that is roughly double that of its predecessor and is slightly wider, longer and taller.
Cobra II amphibious There is an amphibious and slightly larger variant of the Cobra II with a more powerful 6.7 L, 360Hp, V6 turbocharged engine that is capable of crossing lakes and smaller bodies of water
System
Alternative Designation Cobra II; Otokar Cobra II
Description 4x4 light; 10 troops besides the crew; 4 side doors, rear door, and 2 roof hatches; 3 firing ports on each side of vehicle and 1 in rear door.
Function Its various functions are security and peacekeeping operations and border protection
Manufacturer Otokar
Crew 2 ea
Passengers 7 ea
Rear View Camera Yes
Therma Front Camera Yes
Air Conditioning System Yes
Black Out Lighting System Yes
Towing Eye Yes
Recovery Winch Avaialble
Navigation System Yes
Auxilary Power Unit Yes
Dimensions
Length 5.6 m
Width 2.5 m
Height 2.2 m
Wheelbase 3.30 m
Ground Clearance 0.33 m
Weight 12,000 kg
Automotive
Engine Name 1 x 6.7L, six-cylinder, water cooled, turbo charged, common rail, diesel engine
Engine Type Turbo Diesel
Power-to-Weight Ratio 30 hp/metric ton
Engine Power 281 hp
Range, Cruising 700 km
Speed, Maximum Road 110 km/h
Speed, Maximum Swim 8 km/h
Speed, Average Cross INA
Speed, Maximum Off INA
Fuel 155 liters, compatible with F-34 and F-54 fuel
Transmision Automatic, six forward and one reverse
Suspension fully independent suspension is fitted with spring and shock absorber
Gradient 70 deg
Side Slope 40 deg
Vertical Step 0.32 m
Tench 900 m
Fording Depth Amphibious
Acceleration 0-60 km/h in 14 seconds
Turning Radius 7.86 m
Angle of Departure 48 deg
Angle of Approach 60 deg
Brakes air-over hydraulic service brakes are equipped with anti-locking brake system (ABS)
Central Tire Inflation System (CTIS) Yes
Tires Run Flat
Electrical System onboard power is provided by 24V electrical system integrating 400A alternator and 120Ah batteries
Communications
Radio Radio varies on customer needs
Intercom Yes
Main Weapon System

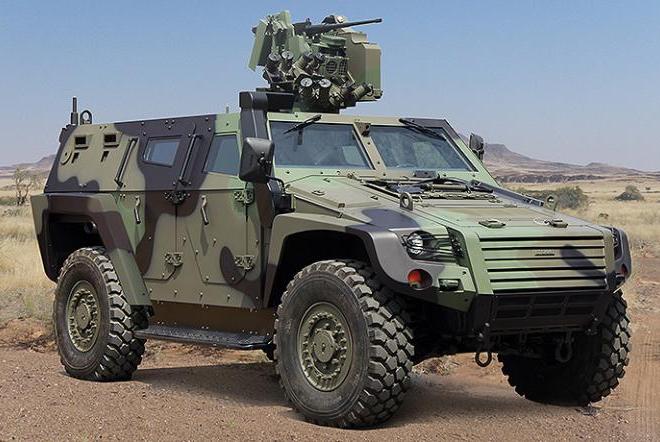

Note The Cobra II can be optionally equipped with a remote controlled weapon system (RCWS) of 25 mm machine gun or with a low altitude air defense missile system of HISAR-A and with a grenade launcher.
System
Name M2 Browning
Type Heavy Machine Gun
Manufacturer Current: General Dynamics, Fabrique Nationale (FNH / FNA / FNH UK), Ohio Ordnance Works Inc.
In Service 1918-Present
Length 1,654 mm
Barrel Length 1,143 mm
Weight, Gun Only 38 kg
Weight, Gun with Tripod and T&E 58 kg
Action Short recoil-operated
Rate of Fire 450–600 rounds/min
Effective Firing Range 1,800 m
Maximum Firing Range 7,400 m
Feed System Belt-fed (M2 or M9 links)
Ammunition
Type Rifle
Caliber 12.7 mm
Cartridge .50 BMG (12.7×99mm NATO)
Muzzle Velocity 890 m/s
Basic Load 1,000 ea
Fire Control
Fire Control System No
Main Gun Stabilization INA
Night Vision INA
Protection
Armor Type All-welded steel hull
Armor, Applique Available
Armor, Turret Front The armoured hull of Cobra II offers protection against 7.62mm rounds and artillery shell splinters
Armor, Explosive Reactive Available
Active Protection System No
NBC Protection A CBRN defense filtration kit is optional
Self-Entrenching Blade No
Smoke Equipment Yes
Survivability Equipment Electrical self-recovery winch; fire suppression system.
Automation Fire Extinguishing System Yes
Note The bottom of the crew compartment is fitted with a removable parabolic-shaped plate for deflection of blast
Details
Country of Origin Turkey
Category Land
Land
Filter Label
C
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.6 m
Width
2.5 m
Height
2.2 m
Weight
12000 kg
Operators (19)
Turkey
Pakistan
Algeria
Azerbaijan
Bahrain
Bangladesh
Burkina Faso
Georgia
Ghana
Iraq
Kazakhstan
Maldives
Mauritania
Nigeria
Rwanda
Saudi Arabia
Slovenia
Tunisia
United Arab Emirates
