Yabhon-H
Yabhon-H
Tactical Unmanned Air Vehicles

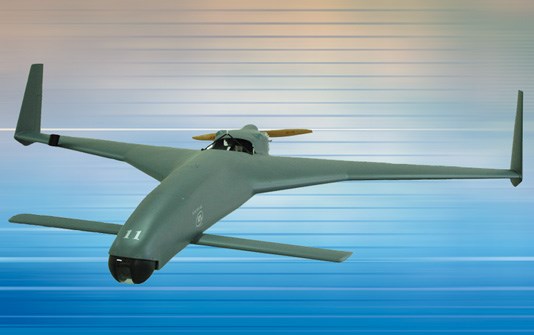

Operational Photo
Basic Information
Name
Yabhon-H
Designation
Yabhon-H
Alternate Designation
—
Equipment Type
Tactical Unmanned Air Vehicles
Manufacturer
ADCOM Systems
Date of Introduction
2014
Description
The ADCOM Systems Yabhon-H is a tactical unmanned air vehicle (TUAV) intended to stay airborne for up to five hours at altitudes of up to 5,500 meters. The Yabhon-H uses the very latest aerodynamic technology, high aspect-ratio double delta wing with laminar airfoils optimized for efficient cruise. The aircraft has responsive ailerons, good turbulence resistance, excellent hands off stability and docile stall. It is able to achieve a cruise speed of 107 kph and a top speed of 176 kph. The 80-kg air vehicle can be launched from ships and ground platforms using launching ramp and recovered using a parachute. The sensor package is mounted at the very nose of the air vehicle.
Air & Air Defense Specifications
Max Speed
176.0 km/h
Service Ceiling
5500 m
Wingspan
3.30 m
Overview (Deagel)
Group
Tactical Unmanned Air Vehicles
Status
Under Development
Origin
United Arab Emirates
Contractor
ADCOM Systems
Initial Operational Capability (IOC)
2014
Total Production
?
Specifications (Deagel)
Crew
0
Number of Engines
1
Propeller Blades
2
Area — Wing Area
2 square meter
Dimensions — Height
1.1 meter
Dimensions — Length
2.5 meter
Dimensions — Wingspan
3.3 meter
Mass — Empty Weight
35 kilogram
Mass — Max Takeoff Weight
80 kilogram
Mass — Payload
5 kilogram
Performance — Ceiling
5,500 meter
Speed — Climb Rate
10 mps
Speed — Cruise Speed
107 kph
Speed — Stall Speed
65 kph
Speed — Top Speed at High Altitude
176 kph
Time — Flight Endurance
5 hour
Volume — Fuel Tank Capacity
40 liter
Gear (Deagel)
Item 1
Optronic Systems: ADFLIR GSP (1)
Details
Country of Origin
United Arab Emirates
Sources
deagel.com: https://www.deagel.com/x/x/a002913
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.5 m
Width
3.3 m
Height
1.1 m
Weight
80 kg
Operators (1)
United Arab Emirates
