R-168-5KVE Russian Vehicle-Mounted HF Radio Set
R-168-5KVE
Vehicle-Mounted HF Radio Set
Other
Basic Information
Name
R-168-5KVE Russian Vehicle-Mounted HF Radio Set
Designation
R-168-5KVE
Alternate Designation
—
Equipment Type
Vehicle-Mounted HF Radio Set
Manufacturer
Sarapul Radioplant OJSC
Date of Introduction
2000
Description

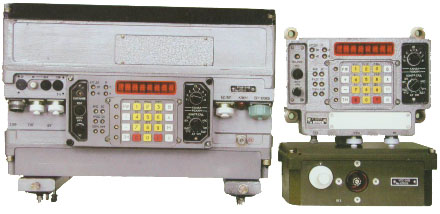

R-1685-KVE Russian Vehicle-Mounted HF Radio Set is a tactical vehicular HF radio set, providing non-secure and secure (by the voice data masking device or using external CAC (for versions 2 and 3)) radio communication between mobile and stationary platforms.
Variants
Note
The R-1685-KVE Russian Vehicle-Mounted HF Radio Set is offered in three versions – version 1, 2, and 3.
System
Name
R-168-5KVE
Type
Vehicle-Mounted HF Radio Set
Manufacturer
Sarapul Radioplant OJSC
Antenna Type
ASh-4 antenna; Dipole antenna; NVIS loop antenna
Frequency Range
1.5…29.999 MHz
Frequency Spacing
100 Hz
Operating Modes
Fixed single-frequency simplex; Fixed double-frequency simplex
Operational Range, Static Position and Motion (Ash-4 Antenna) Version 1
15–35 km
Operational Range, Static Position and Motion (Ash-4 Antenna) Version 2
25–60 km
Operational Range, Static Position (Dipole Antenna on Mast) Version 1
300 km
Operational Range, Static Position (Dipole Antenna on Mast) Version 2
350 km
Operational Range, Static Position and Motion (NVIS Loop Antenna)
350 Km (only for version 2)
Present Channels
8 ea
Data Rate, Version 1
1.2, 2.4 Kbps (using R-168 UPS-2 modem)
Data Rate, Version 2
1.2, 2.4, 4.8 Kbps (using built-in modem)
Data Rate, Version 2 and 3
10 Mbps (via Ethernet between radio station & ICSCE)
Interface
RS-232; Ethernet
Modulation
Single sideband (SSB) modulation; Amplitude Modulation (AM); Frequency Modulation (FM)
Control
Through built-in control panel; Through remote control panel (for version 1); From external computer via RS-232 interface and via Ethernet through LAN interface from inter-communications, switching and control equipment (ICSCE) (for version 1 – using R-168 UPS-2 modem only via RS-232)
Mean TIme Between Failures (MTBF)
no less than 3,000 hours
Operating Temperature
-50° to 60° C
Dimensions
Length
410 mm
Width
300 mm
Height
285 mm
Weight
33.3 kg
Image Sources
Details
Country of Origin
Russia
Category
Vehicle-Mounted HF Radios
Land > Communication Equipment > Vehicle-Mounted HF Radios
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.41 m
Width
0.3 m
Height
0.29 m
Weight
33.3 kg
Operators (1)
Russia
