Type 96

Type 96

Wheeled Armored Vehicles
Spotted an error? Sign in to suggest an edit.
Type 96

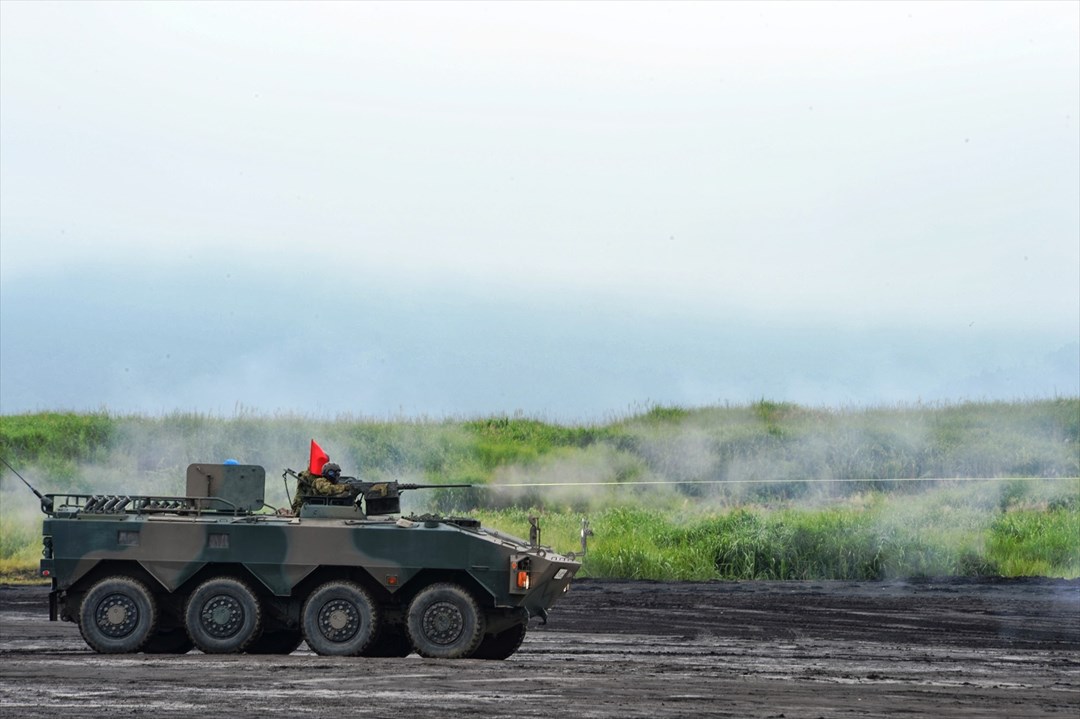

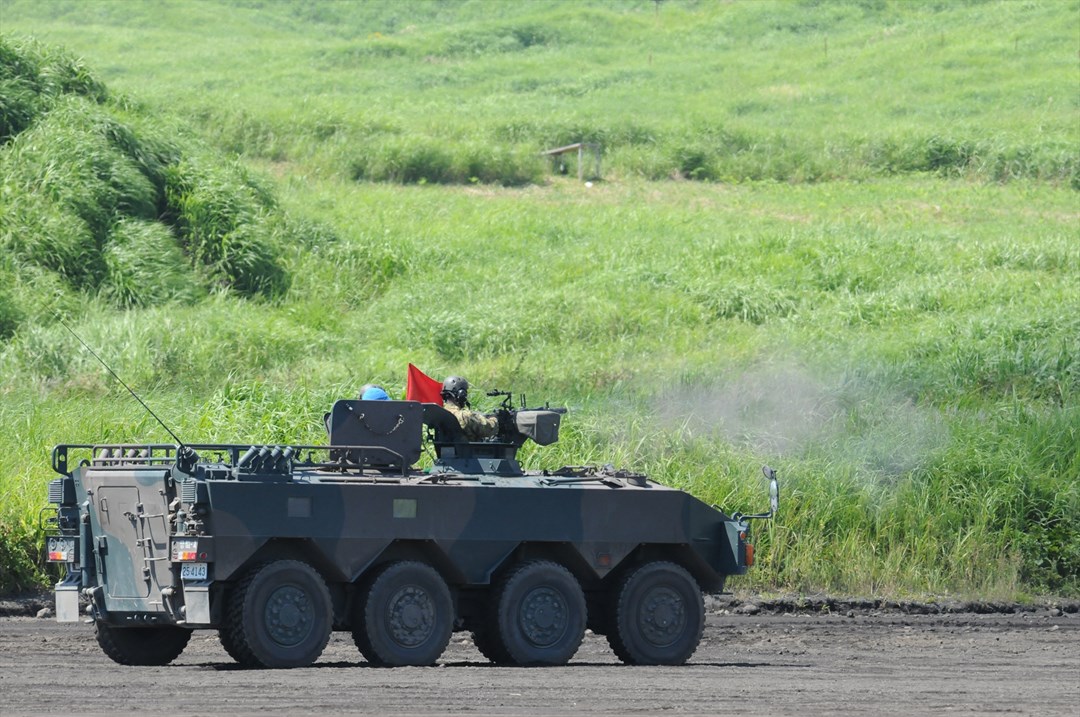

Operational Photo
deagel.com
Basic Information
Name
Type 96
Designation
Type 96
Alternate Designation
Cougar
Equipment Type
Wheeled Armored Vehicles
Manufacturer
Komatsu
Date of Introduction
1996
Description

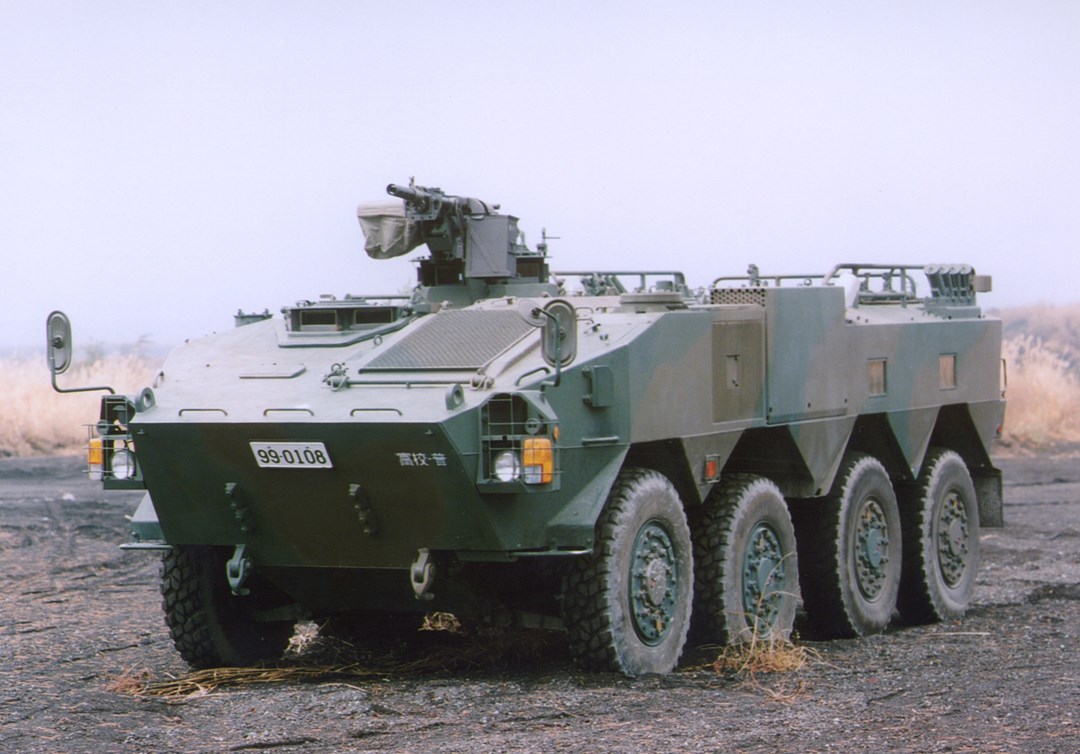

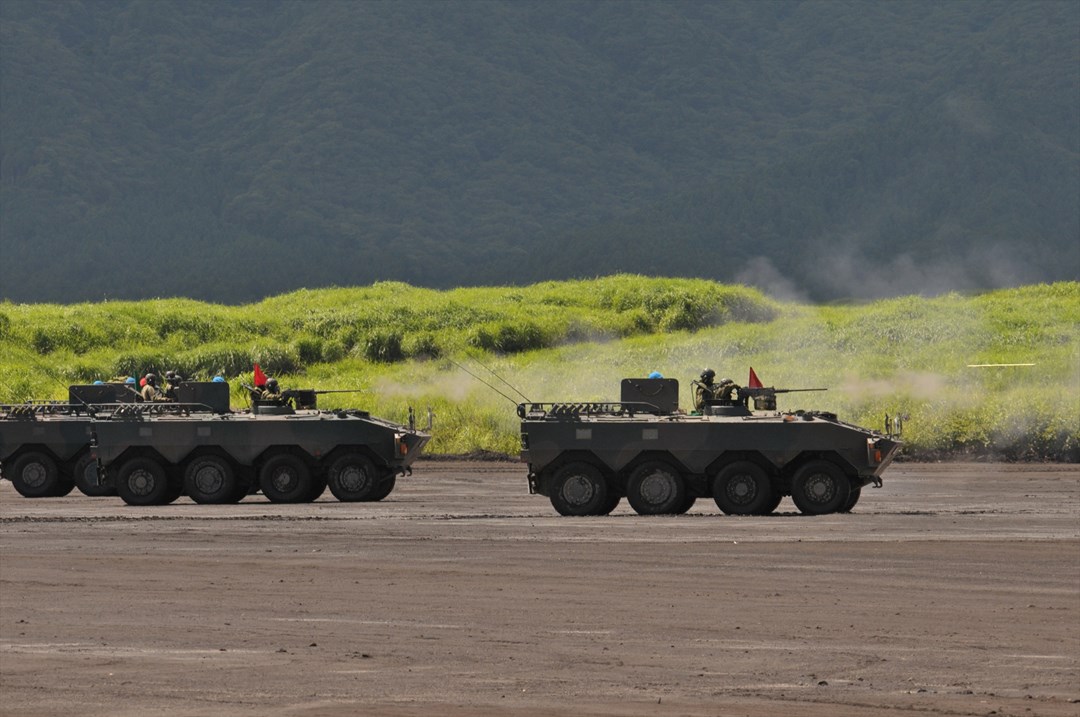

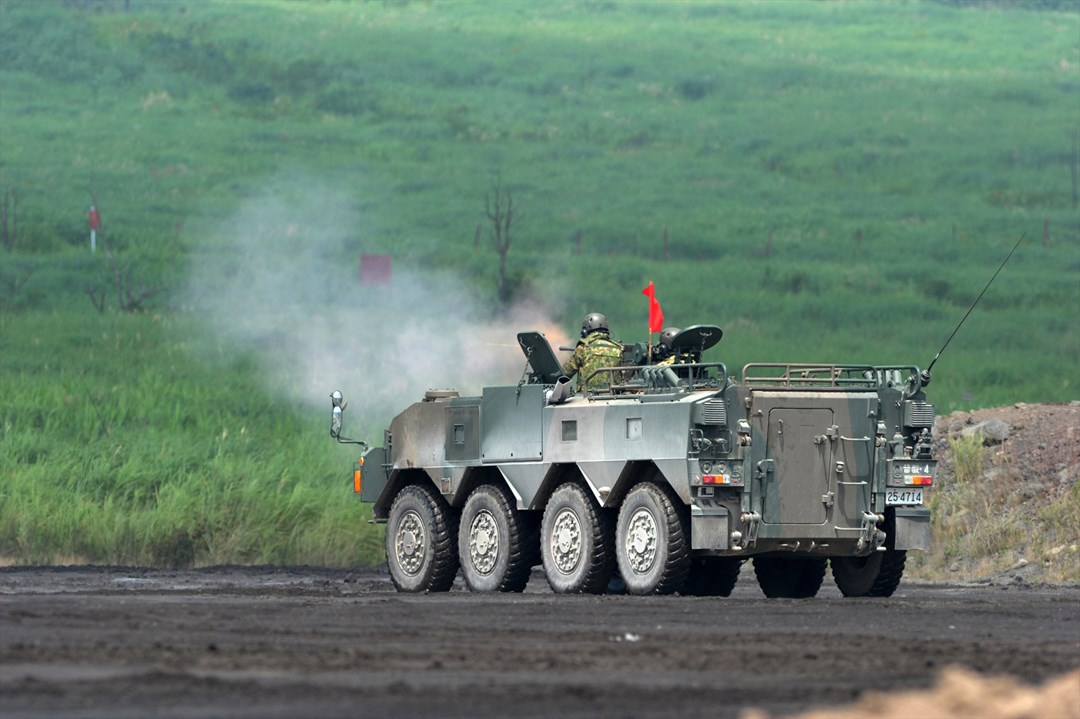

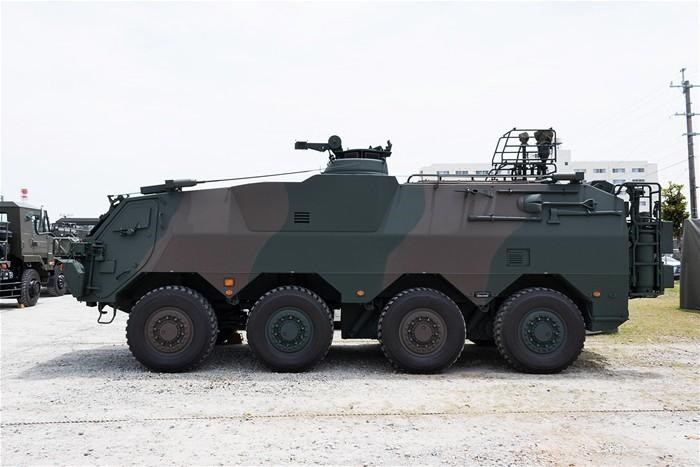

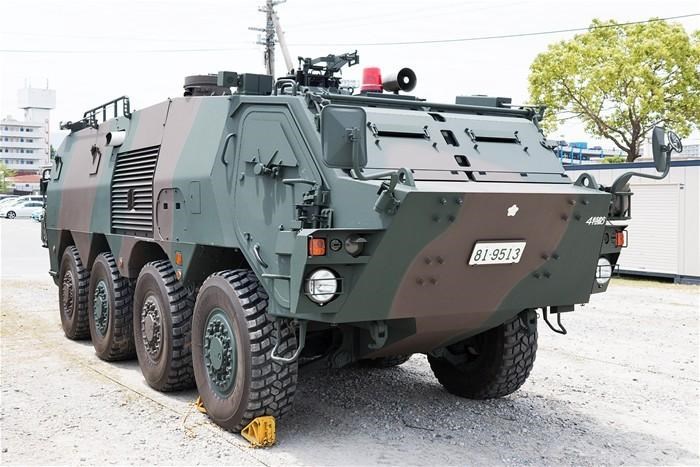

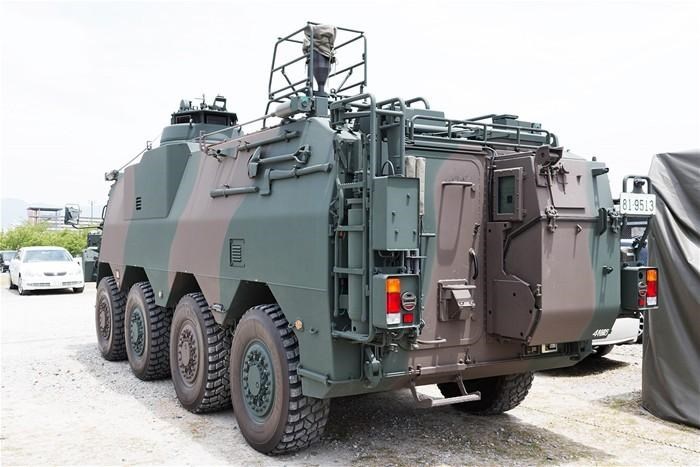

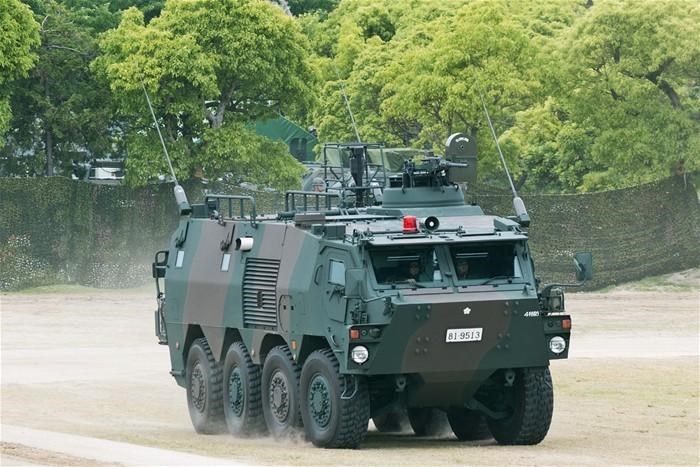

The Type 96, also known as Cougar, is an 8x8 high mobility, wheeled armored personnel carrier (APC) capable of carrying up to eight fully equipped infantrymen as well as the driver and the gunner. For self-defense purposes, it can be equipped with either a roof-mounted 40mm grenade launcher or an M2 12.7mm machine gun. It is powered by a six-cylinder water-cooled four-cycle diesel engine rated at 360-hp and allowing a top speed of 100 kph on road. So far, Komatsu has produced 270 Type 96 APCs for the Japan Ground Self-Defense Force (JGSDF). The Type 96 armored vehicles will be replaced by the AMVXP from Patria beginning in 2025.

Ground Specifications
Crew 2
Troop Capacity 8
Max Speed 100.0 km/h
Range 300.0 km
Overview (Deagel)
Group Wheeled Armored Vehicles
Status Active
Also Known As Cougar
Origin Japan
Contractor Komatsu
Initial Operational Capability (IOC) 1996
Total Production 380
Specifications (Deagel)
Crew 2
Troops 8
Wheel Drive 8
Wheels 8
Dimensions — Grenade Launcher Caliber 40 millimeter
Dimensions — Ground Clearance 450 millimeter
Dimensions — Height 1,850 millimeter
Dimensions — Length 6.8 meter
Dimensions — Main Gun Caliber 12.7 millimeter
Dimensions — Width 2.5 meter
Mass — Combat Weight 14,500 kilogram
Percentage — Gradient 60 %
Power — Power 360 hp
Speed — Top Speed 100 kph
Variants
Variant 1 Type 96

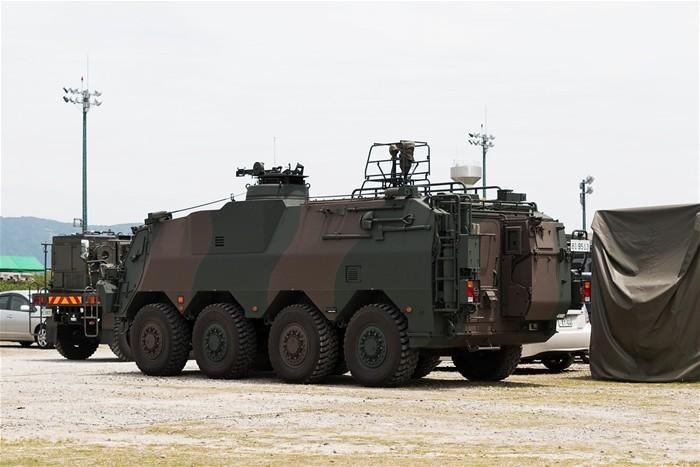

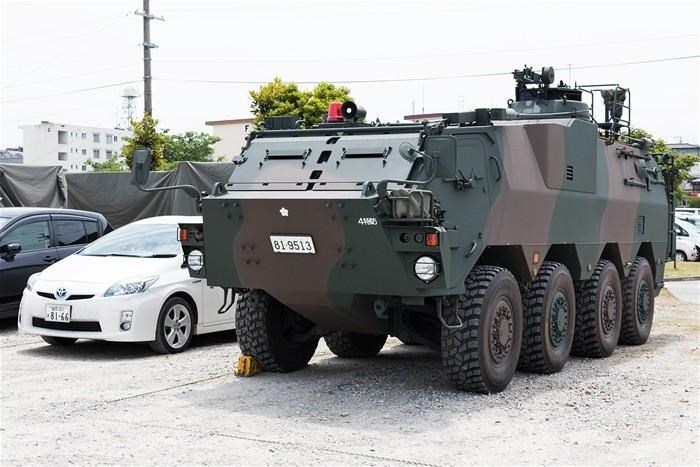

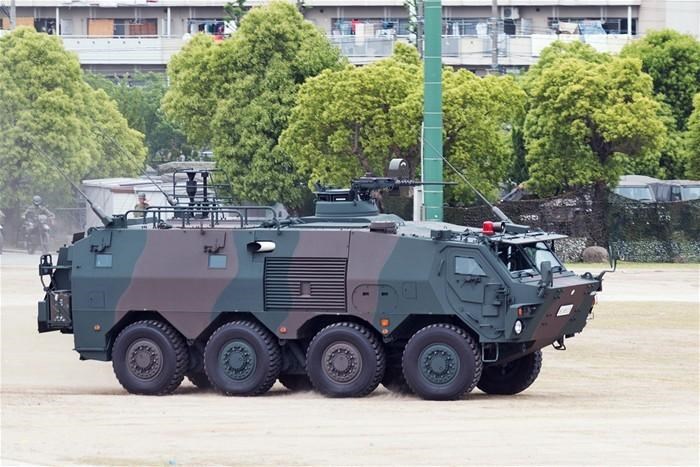

Variant 2 Type 96 NBCRV
Details
Country of Origin Japan
Sources

deagel.com: https://www.deagel.com/x/x/a000156 deagel.com: https://www.deagel.com/x/x/a000159 deagel.com: https://www.deagel.com/x/x/a000149

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.8 m
Width
2.5 m
Height
3 m
Weight
14500 kg
Operators (1)
Japan
