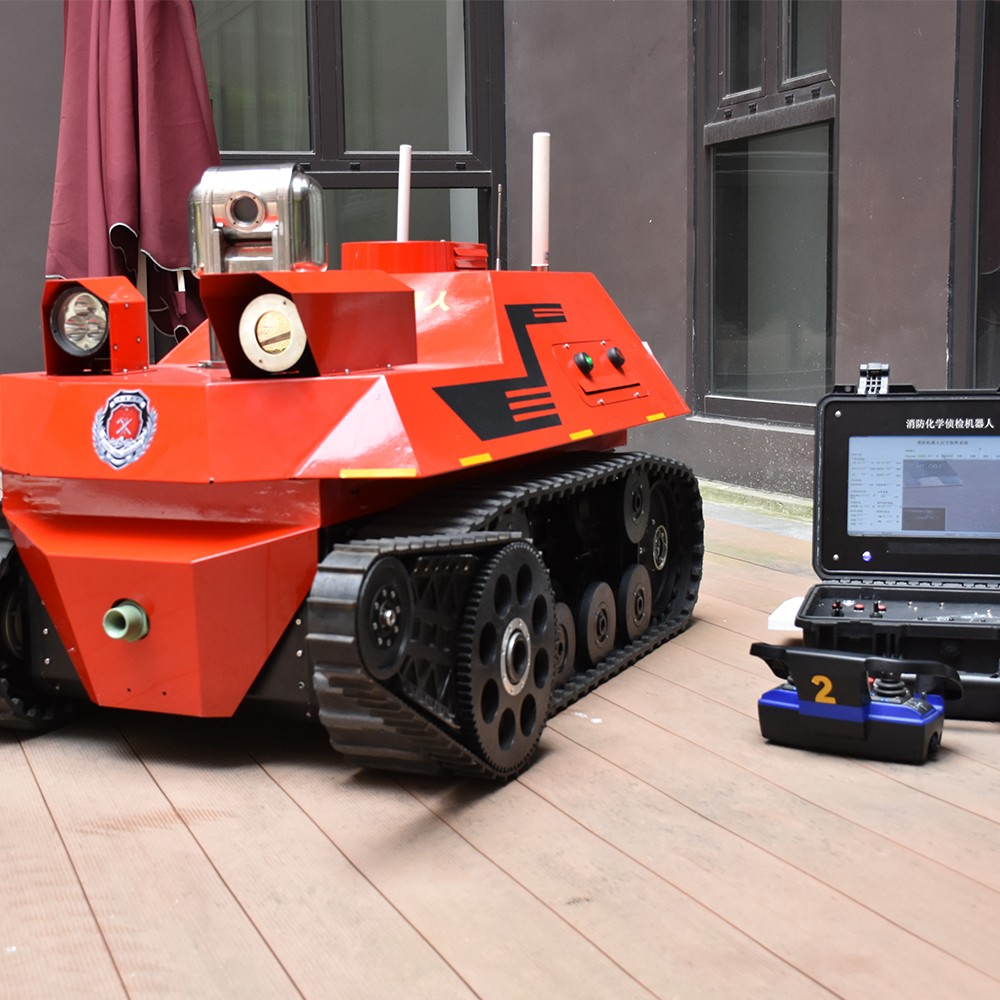

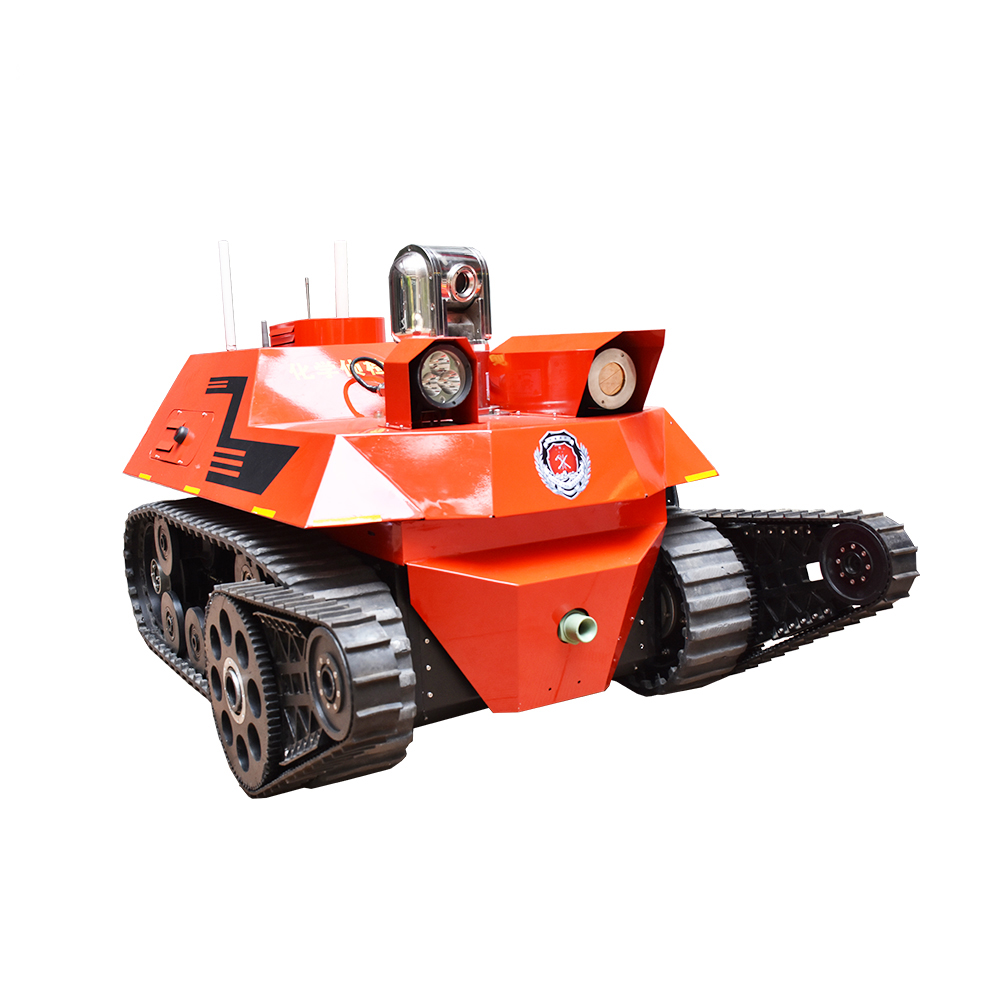

UBot FMR C16 Chinese Tracked Unmanned Ground Vehicle (UGV)
UBot FMR C-16
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
UBot FMR C16 Chinese Tracked Unmanned Ground Vehicle (UGV)
Designation
UBot FMR C-16
Alternate Designation
UBot FMR C-16
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
HRSTEK
Date of Introduction
2018
Description
The UBot FMR C-16 Chinese Tracked Unmanned Ground Vehicle (UGV) is a firefighting and chemical detection robot.
Ground Specifications
Engine
Battery
Max Speed
3.6 km/h
Range
500.0 km
System
Alternative Designation
UBot FMR C-16
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
HRSTEK
Mission
The UBot FMR C-16 Chinese Tracked Unmanned Ground Vehicle (UGV) is a firefighting and chemical detection robot. The UBot FMR C-16 Chinese Tracked Unmanned Ground Vehicle (UGV) can carry out on-site detection, reconnaissance, and retrieve information such as images, audio, video, and other data.
Configuration
Tracked
Crew
Unmanned
Control
The operator control unit (OCU) is a portable, suitcase style, ruggedised screen that is water- and dust-proof with a graphical keypad for the controls and thumb joysticks.
Software
INA
Operating Temperature
–20 to +80°C
Cameras
4 x cameras are mounted for 360° situational awareness.
Sensors
The unit is capable of detecting up to six different types of chemicals gasses.
Payload Capacity
INA
Environmental
IP65
Dimensions
Length
1.4 m
Width
0.97 m
Height
0.10 m
Weight
450 kg
Automotive
Engine Name
INA
Engine Type
Battery
Engine Power
INA
Range
500 m (wireless)
Maximum Speed
3.6 km/h
Maximum Incline
30°
Turning Radius
0°
Vertical Obstacle Avoidance
250 mm
Endurance
1 hour and 30 min
Communications
Note
Data, such as images, audio, and video is processed in real time and transmitted to the operator control unit (OCU).
Protection
Armor
The company states that the robot has explosion-proof certification ‘ExdeibmbIIBT4Gbʼ.
Applique Armor
No
Details
Country of Origin
China
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
U
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.4 m
Width
0.97 m
Height
0.1 m
Weight
450 kg
Operators (1)
China
