Enoshima

Enoshima

Mine CounterMeasures Vessels
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Enoshima
Designation
Enoshima
Alternate Designation
MSC604
Equipment Type
Mine CounterMeasures Vessels
Manufacturer
Date of Introduction
2012
Description

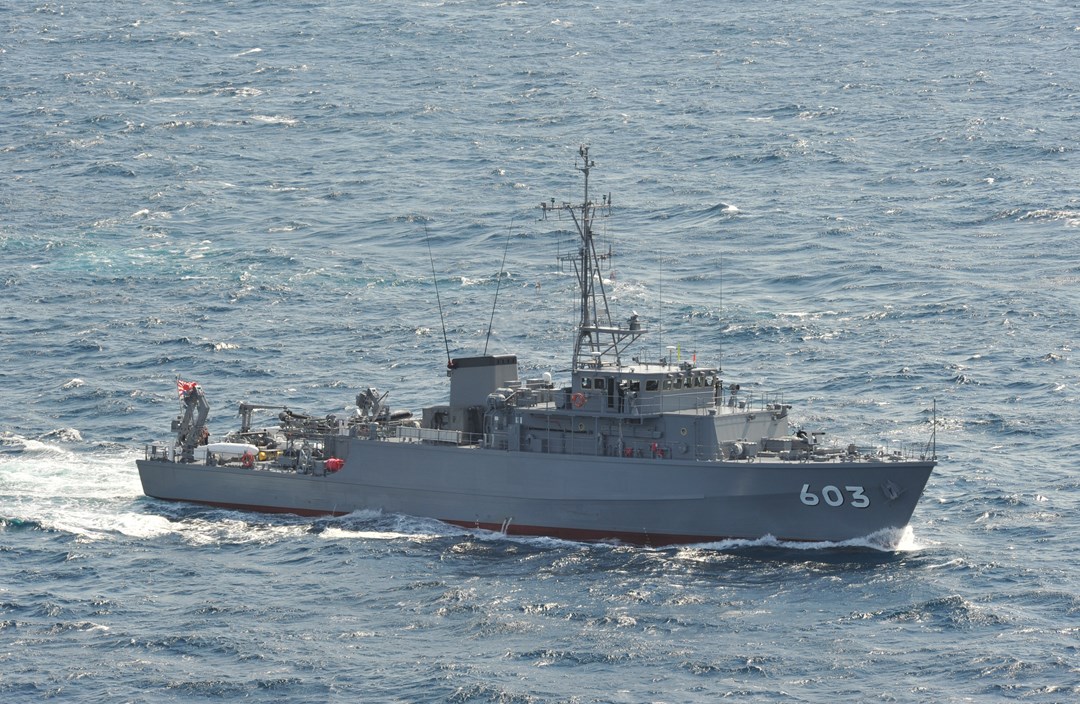

The Japan Marine Self Defense Force (JMSDF) Enoshima-class of coastal minesweepers is a variant of the Hirashima-class minesweeper optimized for operations in shallow water. The vessel's hull is longer and wider but features a shorter draft compared with Hirashima thus making it suitable for shallow water environments. This minesweeper has been designed to clean waterways of mines in support of naval forces operating in the open sea or in the littoral environment. The 570-ton vessel is fitted with a propulsion system allowing a top speed of 14 knots. The propulsion system consists of two diesel engines developing 2,200-shp. The vessel is equipped with a 20mm gun and minesweeping equipment. The JMSDF commissioned the first vessel of this class in 2012 with a few more ships expected to follow.

Naval & Littoral Specifications
Crew 45
Displacement 570.00 tonnes
Beam 10.10 m
Draft 2.40 m
Max Speed 14.0 knots
Overview (Deagel)
Group Mine CounterMeasures Vessels
Status Active
Also Known As MSC604
Origin Japan
Initial Operational Capability (IOC) March 21, 2012
Total Production 3
Specifications (Deagel)
Crew 45
Dimensions — Beam 10.1 meter
Dimensions — Draft 2.4 meter
Dimensions — Length 60 meter
Dimensions — Main Gun Caliber 20 millimeter
Mass — Full Displacement 570 ton
Power — Total Combined Power 2,200 bhp
Speed — Top Speed 14 knot
Variants
Variant 1 Hirashima
Variant 2 Enoshima
Details
Country of Origin Japan
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
60 m
Width
10.1 m
Height
Weight
570000 kg
Operators (1)
Japan
