Krasuha Russian Mobile Electronic Warfare Jamming System
Krasuha
Multi-Functional Electronic Warfare (EW) Weapon System
Other
Basic Information
Name
Krasuha Russian Mobile Electronic Warfare Jamming System
Designation
Krasuha
Alternate Designation
Krasuha
Equipment Type
Multi-Functional Electronic Warfare (EW) Weapon System
Manufacturer
Bryansk Electromechanical Plant (manufacturer) , Bryansk KRET (Concern Radio-Electronic Technologies) (promoter) , Moscow
Date of Introduction
2011
Description
The Krasuha EW complex is a family of ground-based radar jamming systems meant for installation onboard light tactical vehicles. The systems comprise the 1L265E reconnaissance system, 1L266E command-and-control post, the 1L269E high-power noise jammer, and the 1RL257E broadband multifunctional jammer.
Ground Specifications
Crew
4
Mobility Type
Wheeled
System
Alternative Designation
Krasuha
Type
Mobile Electronic Warfare Jamming System
Manufacturer
Bryansk Electromechanical Plant (manufacturer) , Bryansk
KRET (Concern Radio-Electronic Technologies) (promoter) , Moscow
Components
The systems comprise the 1L265E reconnaissance system, 1L266E command-and-control post, the 1L269E high-power noise jammer, and the 1RL257E broadband multifunctional jammer.
1L265E Reconnaissance System
Chassis
Kamaz-6350 trucks
Components
The 1L265E Reconnaissance System has two main components, the MU Control Module and the MA Apparatus Module.
Crew
4 ea
Omnidirectional Antenna
200 Hz to 2.0 GHz band (Band 1)
Non-Rotating Electronically Scanned Antenna
8.0 to 17.5 GHz band (Band 2.2)
Azimuth Coverage
360°
Elevation Coverage
0° to 30°
Emplacement Time
less than 45 min
Displacement Time
less than 45 min
1L266E Command-and-Control Post
Chassis
2 x Kamaz-6350 trucks
Crew
INA
Operation
The 1L266E can control six stand-alone jammers or two other 1L266Es.
Tracking System
simultaneously track up to 80 targets and process emissions from 60 airborne sources.
Communication Maximum Range
The 1L266E Command-and-Control Post can link with jammer units or other command posts with a maximum range of 20 km.

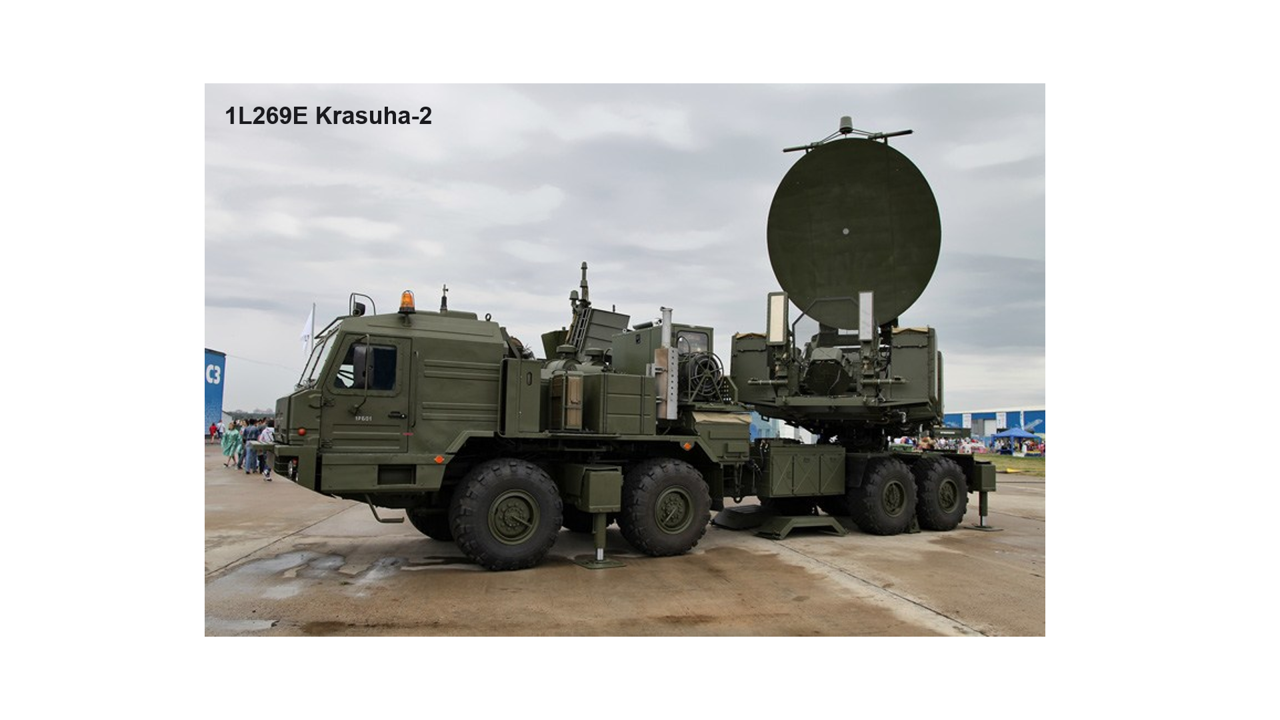

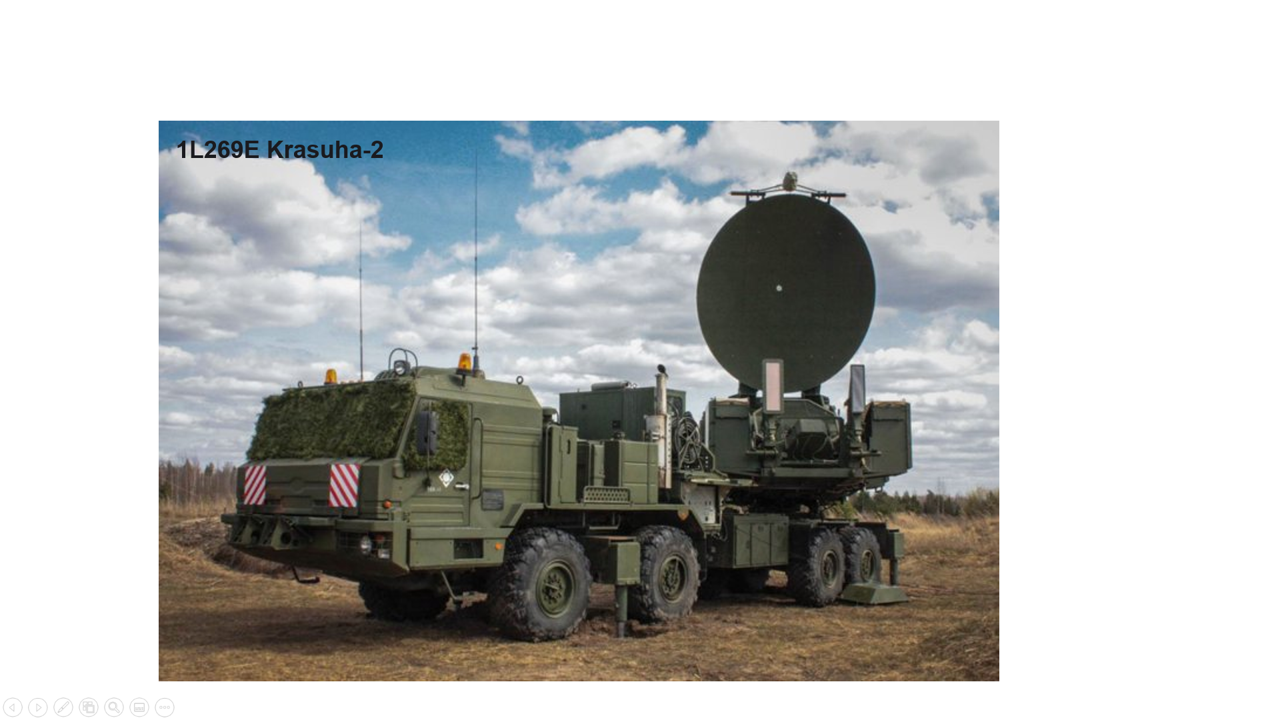

1L269E High-Power Noise Jammer
Chassis
BAZ-6910-022 vehicle
Crew
INA
Mission
The Krasukha-2 is used to protect mobile surface to surface missile systems such as the 9K720 Iskander SRBM.
AWACS Jamming Range
Up to 250 km
Note
Once the missile is jammed, the 1L269E High-Power Noise Jammer provides a false target away from the original.

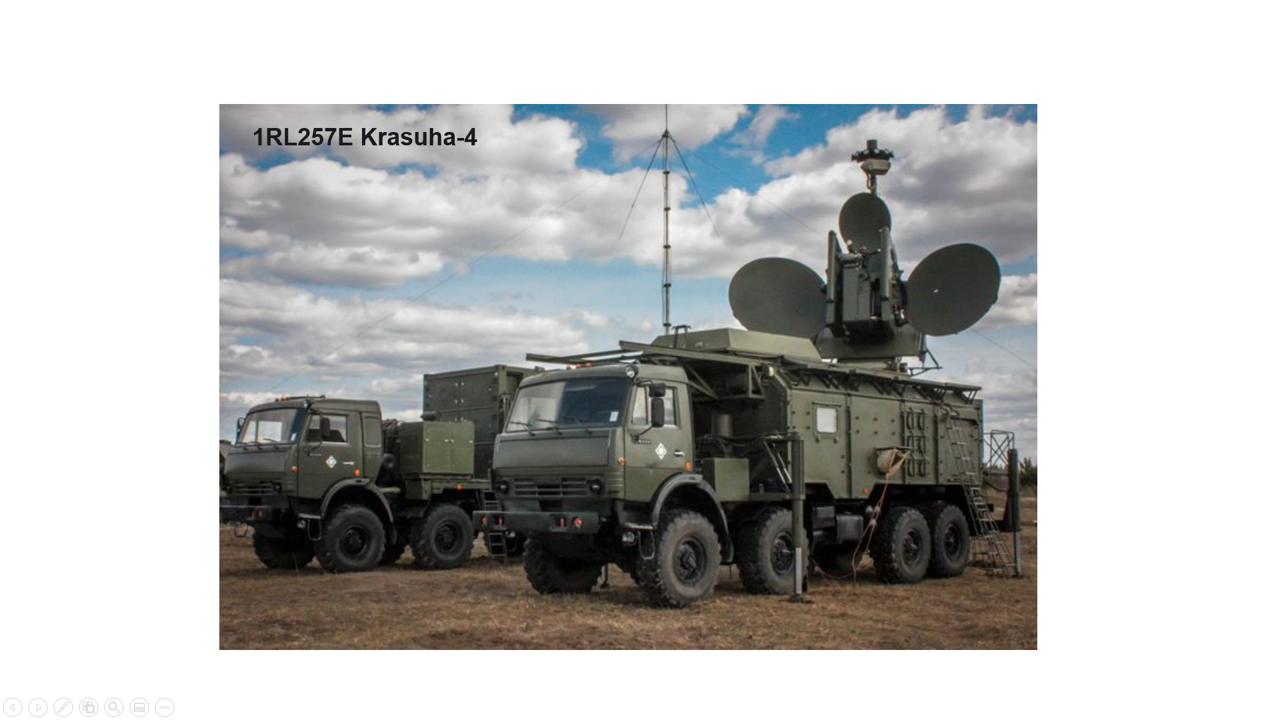

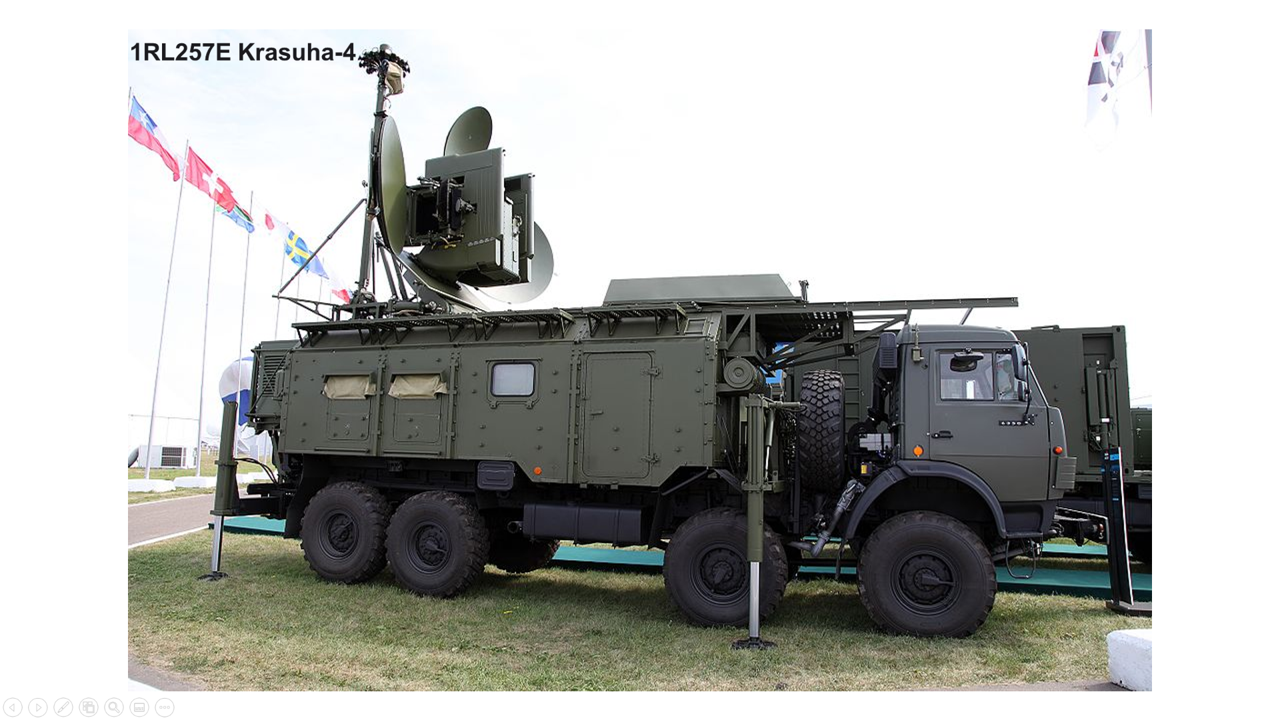

1RL257E Broadband Multifunctional Jammer
System
Chassis
The Krasuha-4 EW equipment is mounted on two KAMAZ-6350 vehicles.
Mission
The Krasuha-4 is a broadband multifunctional jamming system designed to neutralise LEO spy satellites such as the US Lacrosse/Onyx series, satellites, ground-based radars, airborne surveillance radars, and radar-guided ordinance at ranges between 150–300 km, and may also cause damage to enemy radar electronic warfare and communications systems.
Crew
INA
Computer
Baguette-23B computer
Operating Frequency
8 kHz to 18 GHz
Maximum Range
300 km
Continuous Operation
24 hours
Azimuth
360°
Elevation
1° to 60°
Output Power
24 dBW (8 GHz); 23 dBW (13 GHz); 21 dBW (18 GHz)
Power Consumption
30 kW
Operation Temperature
-50° to +50° C
Emplacement Time
less than 20 min
Displacement Time
less than 20 min
Dimensions
Length
9.86 m
Width
2.78 m
Height
4 m (antenna retracted)
Weight
39,000 kg
Details
Country of Origin
Russia
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
2.78 m
Height
4 m
Weight
39000 kg
Operators (1)
Russia
