IMR-3MA
IMR-3MA
Engineering Vehicles

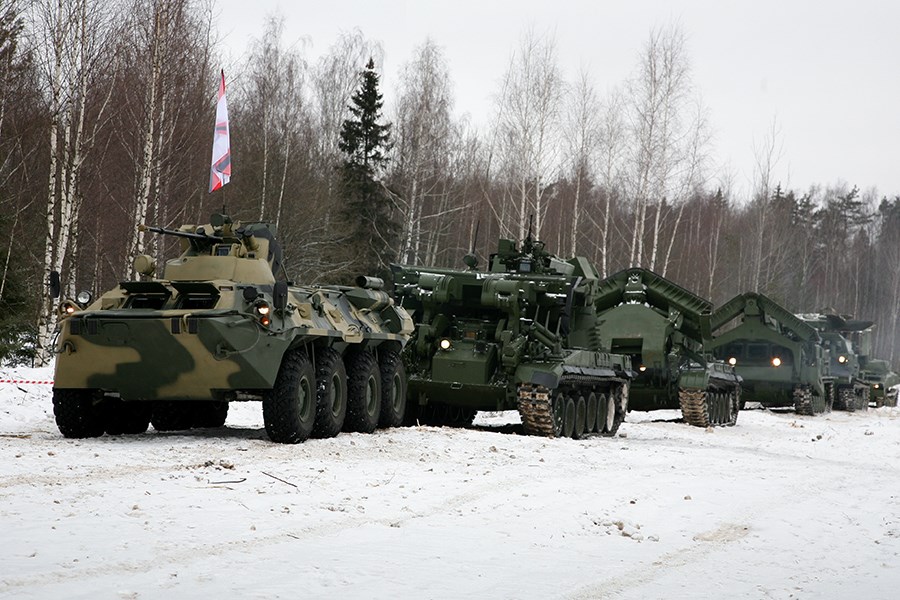

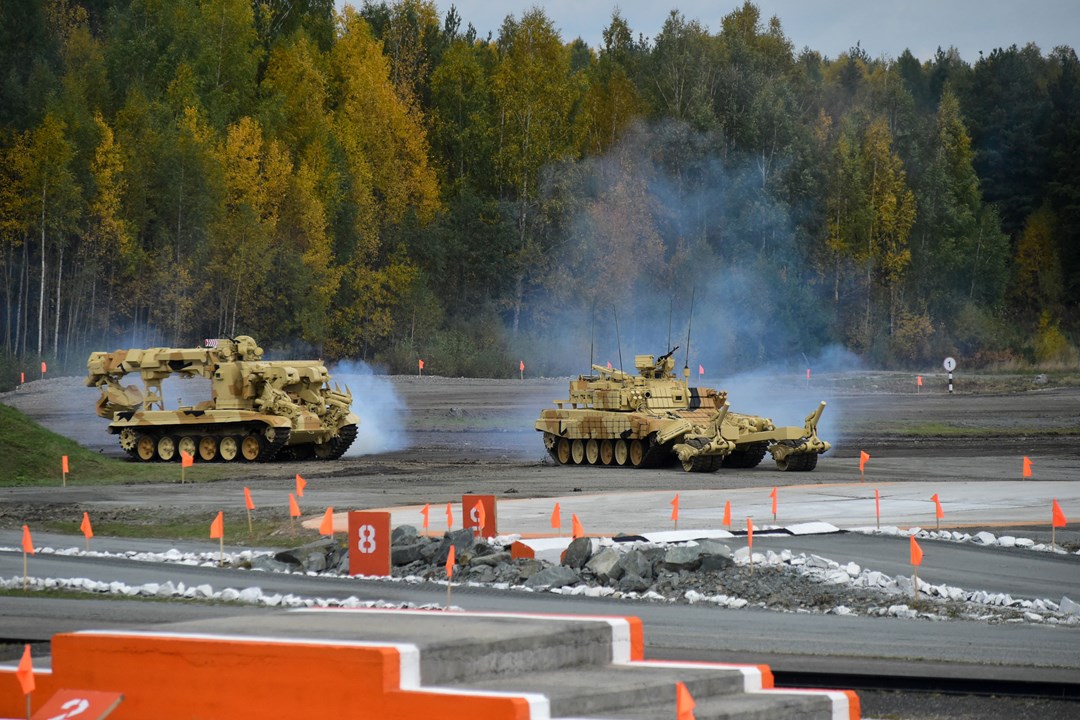

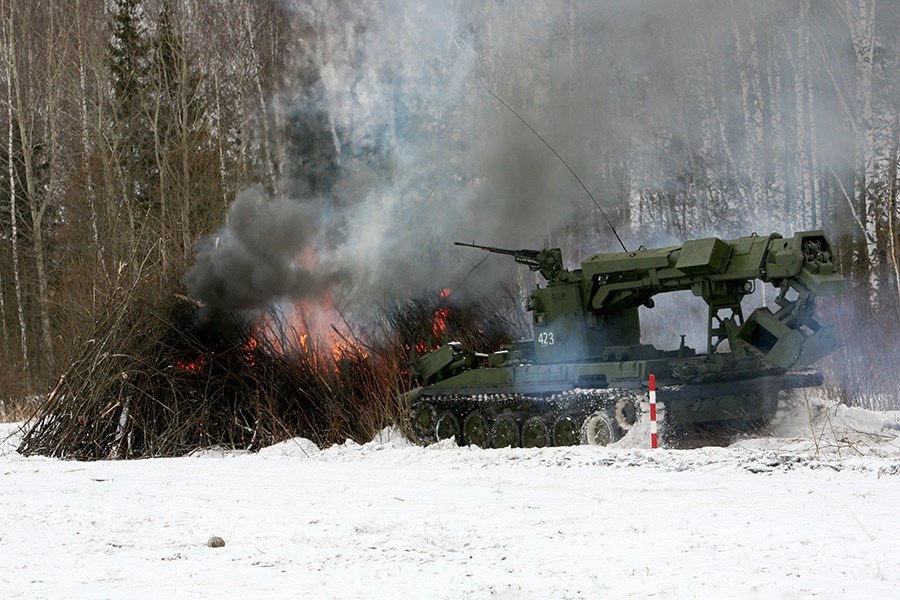

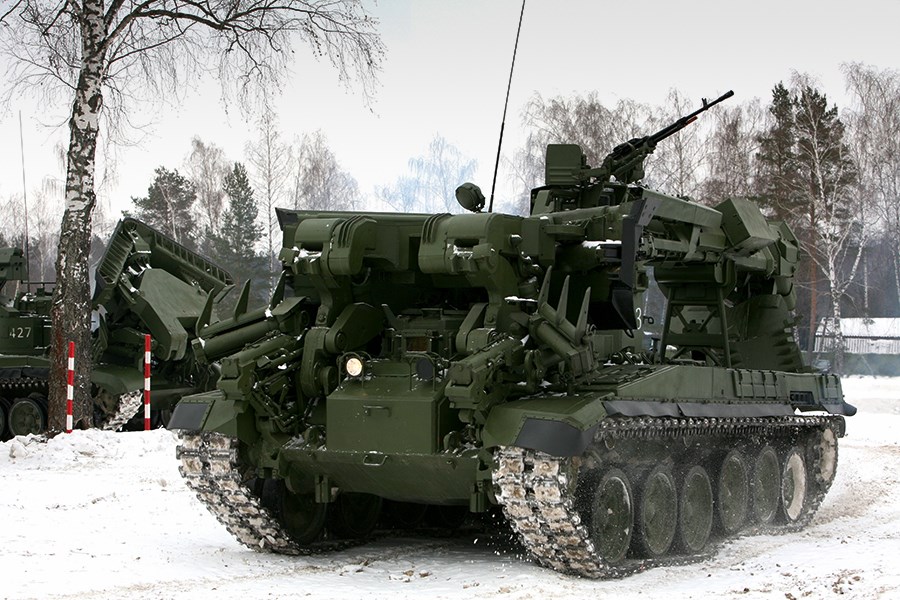

Operational Photo
Basic Information
Name
IMR-3MA
Designation
IMR-3MA
Alternate Designation
—
Equipment Type
Engineering Vehicles
Manufacturer
Uralvagonzavod production association
Date of Introduction
1999
Description

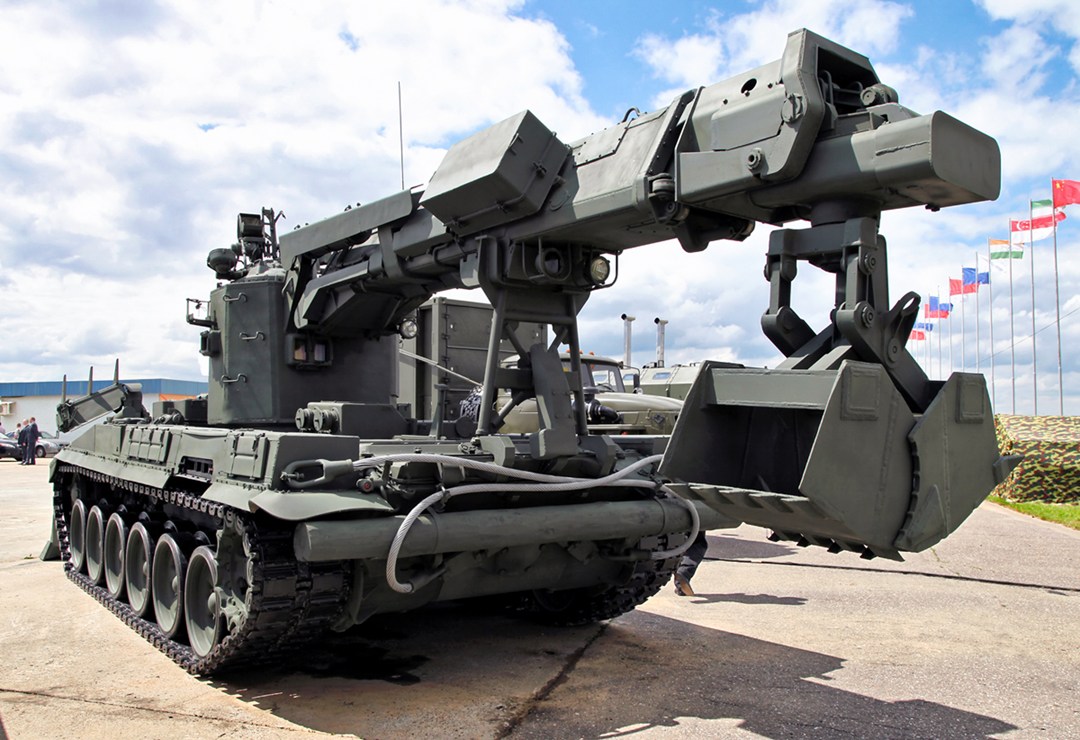

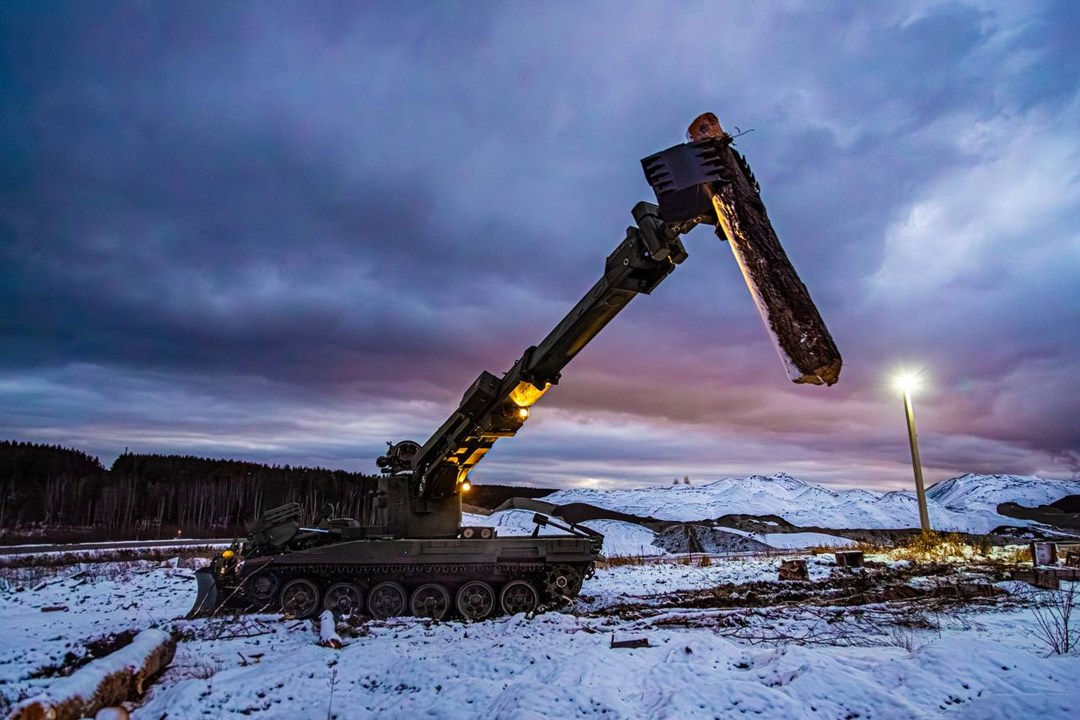

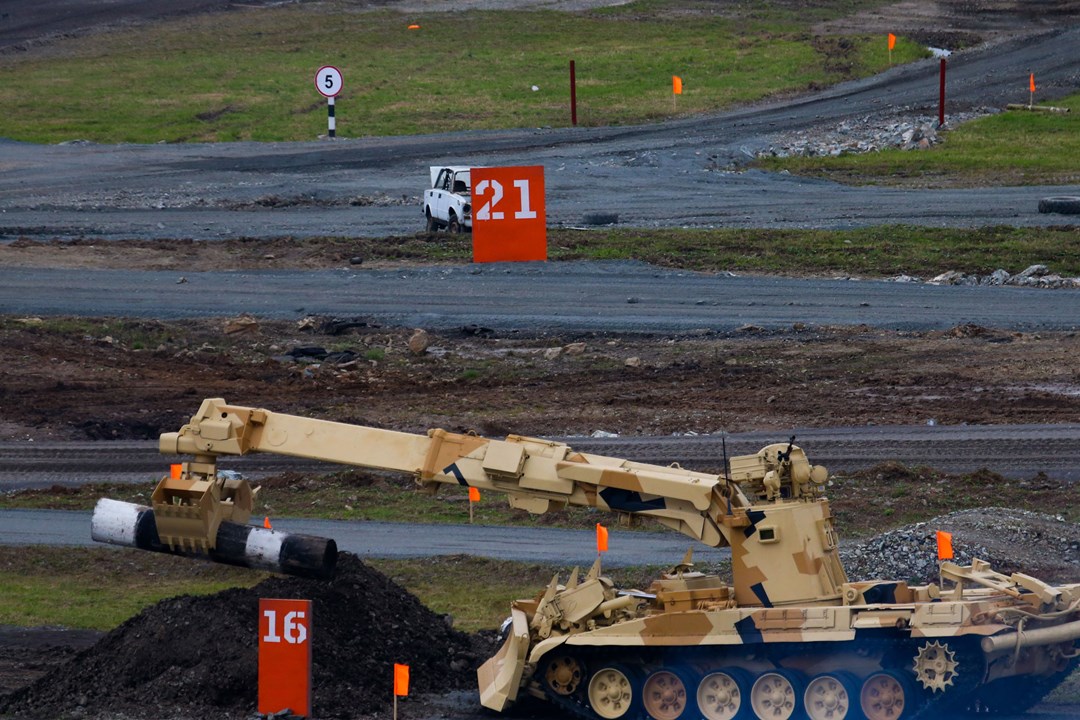

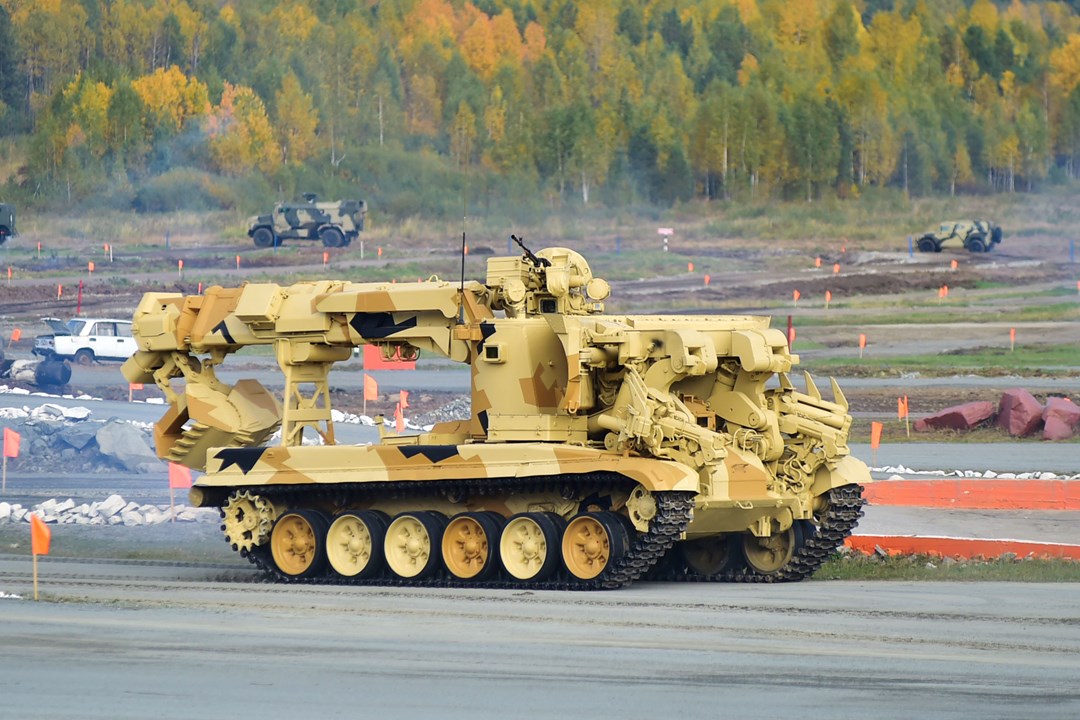

The IMR-3MA or IMR-2MA is an obstacle remover armored vehicle evolved from the T-90 Main Battle Tank (MBT) chassis. It has been designed to clear paths for the armored units. It features a multipurpose dozer blade, crane, and mine clearance plough. It is powered by a four-stroke multi-fuel diesel V-84MS liquid-cooled engine developing 840-hp and a top speed of 62 kph on-road. The whole vehicle can be operate under armor by a crew of two-man, a 12.7mm anti-aircraft machine gun has been provided for self-defense purposes. The IMR-3MA entered service with the Russian Army in the 1990s.
Ground Specifications
Crew
2
Mobility Type
Tracked
Main Weapon
12.7mm anti-aircraft machine gun (13mm)
Max Speed
62.0 km/h
Range
500.0 km
Overview (Deagel)
Group
Engineering Vehicles
Status
Active
Origin
Russia
Contractor
Uralvagonzavod production association
Initial Operational Capability (IOC)
1999
Total Production
?
Specifications (Deagel)
Crew
2
Rolling Rubber Wheels
6
Dimensions — Ground Clearance
426 millimeter
Dimensions — Height
3.4 meter
Dimensions — Length
9.3 meter
Dimensions — Main Gun Caliber
12.7 millimeter
Dimensions — Width
3.5 meter
Energy — Max Torque
3,334 Nm
Mass — Lifting Capability
2 ton
Mass — Max Weight
50,000 kilogram
Percentage — Gradient
58 %
Percentage — Side Slope
47 %
Performance — Fording Depth
1.2 meter
Performance — Max Range
500 kilometer
Power — Power
840 hp
Speed — Top Speed
62 kph
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a000352
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.3 m
Width
3.5 m
Height
3.4 m
Weight
50000 kg
Operators (1)
Russia
