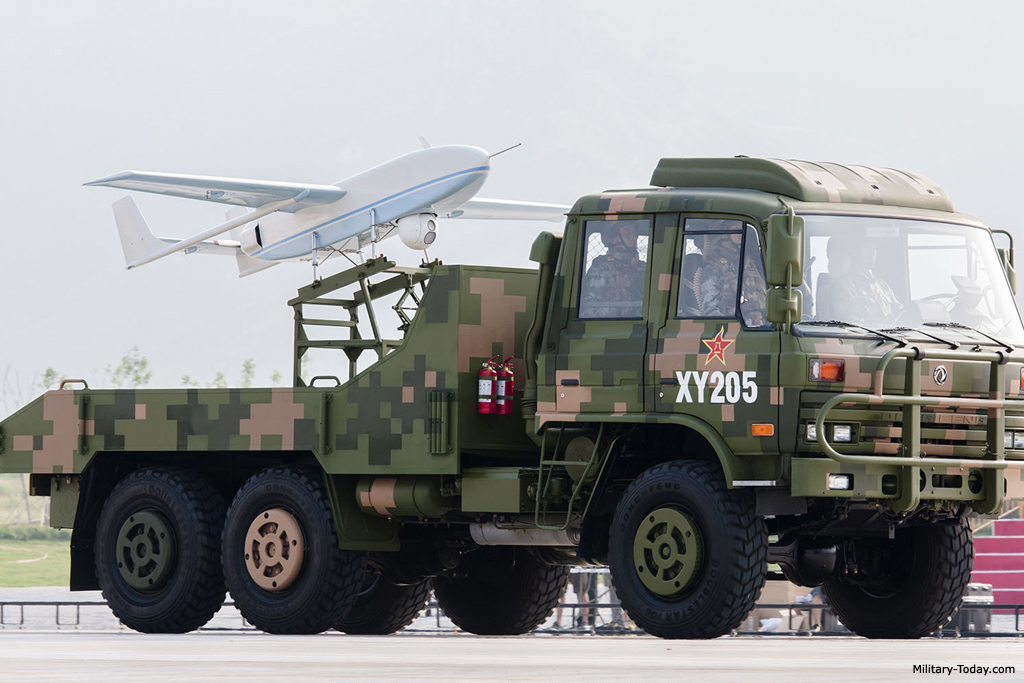

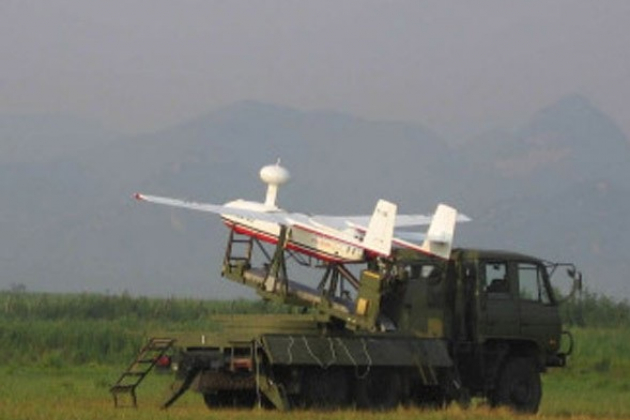

EQ2102 Chinese 6x6 Transportation Vehicle for the UAV ASN-207
EQ2102
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
EQ2102 Chinese 6x6 Transportation Vehicle for the UAV ASN-207
Designation
EQ2102
Alternate Designation
EQ2102
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Dongfeng
Date of Introduction
1990
Description
The EQ2102 is a Chinese military truck with a 6x6 configuration. It is a Chinese militarized version of the Nissan Diesel Condor commercial vehicle.
Ground Specifications
Crew
5
Mobility Type
Wheeled (6x6)
Engine
Diesel (160 hp)
Max Speed
90.0 km/h
Range
550.0 km
System
Alternative Designation
EQ2102
Type
Transportation Vehicle for the UAV ASN-207
Configuration
6x6
Manufacturer
Dongfeng
Cab Passenger Capacity
1 + 4
Bed Passenger Capacity
N/A when used as UAV transporter
Payload Capacity
5,000 kg on hard surface roads and 3,500 kg off-road
Dimensions
Length
7.49 m
Width
2.47 m
Height
3.24 m
Weight, Combat
6.92 - 7.12 tons
Ground clearance
305 mm
Automotive
Engine Name
Dongfeng Diesel
Engine Type
Diesel
Engine Power
160 hp
Cruising Range
550 km
Speed, Maximum Road
90 km/h
Gradient
60 %
Side Slope
30 %
Vertical Step
0.4 m
Trench
0.4 m
Fording Depth
1.0 m
Main Weapon System
Note
There are no crew-served weapons mounted on the EQ2102 Chinese 6x6 Transportation Vehicle for the UAV ASN-207
Protection
Hull Armor
None
Applique Armor
INA
NBC Equipment
INA
Smoke Equipment
INA
Details
Country of Origin
China
Category
Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
E
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.49 m
Width
2.47 m
Height
3.24 m
Weight
6920 kg
Operators (1)
China
