R-330P Piramida-I Russian Amphibious Armored Electronic Warfare System
R-330P Piramida-I
Amphibious Armored Electronic Warfare System
Other
Basic Information
Name
R-330P Piramida-I Russian Amphibious Armored Electronic Warfare System
Designation
R-330P Piramida-I
Alternate Designation
R-330P Piramida-I
Equipment Type
Amphibious Armored Electronic Warfare System
Manufacturer
Kharkiv Tractor Plant
Date of Introduction
2014
Description

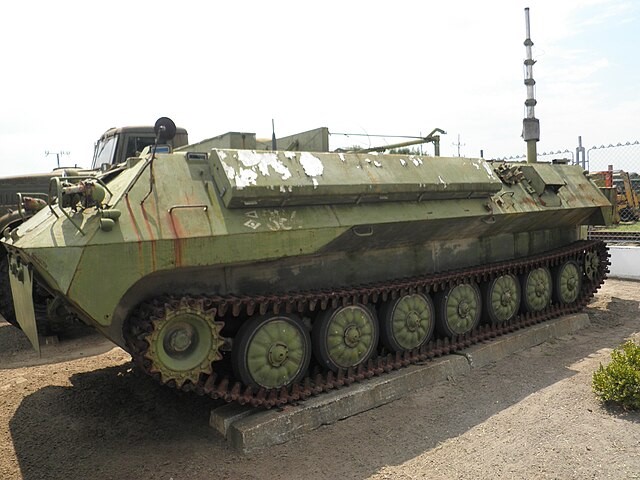

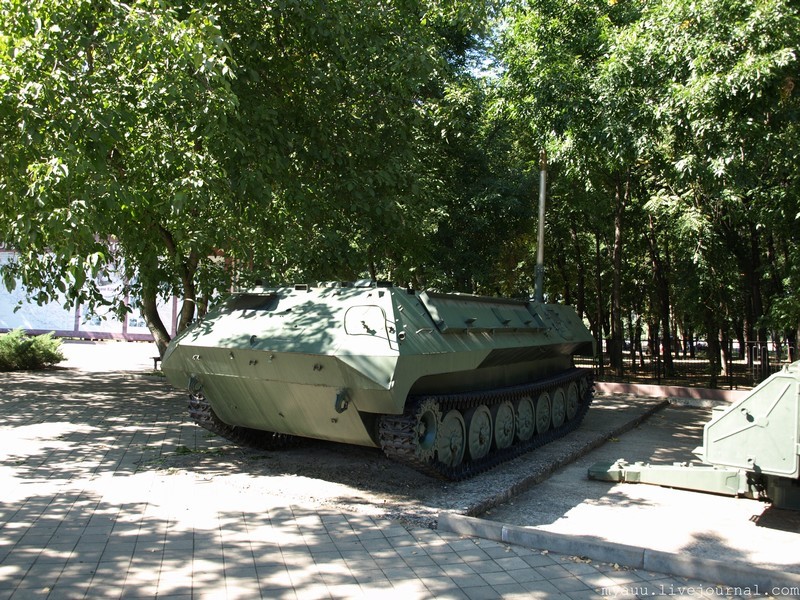

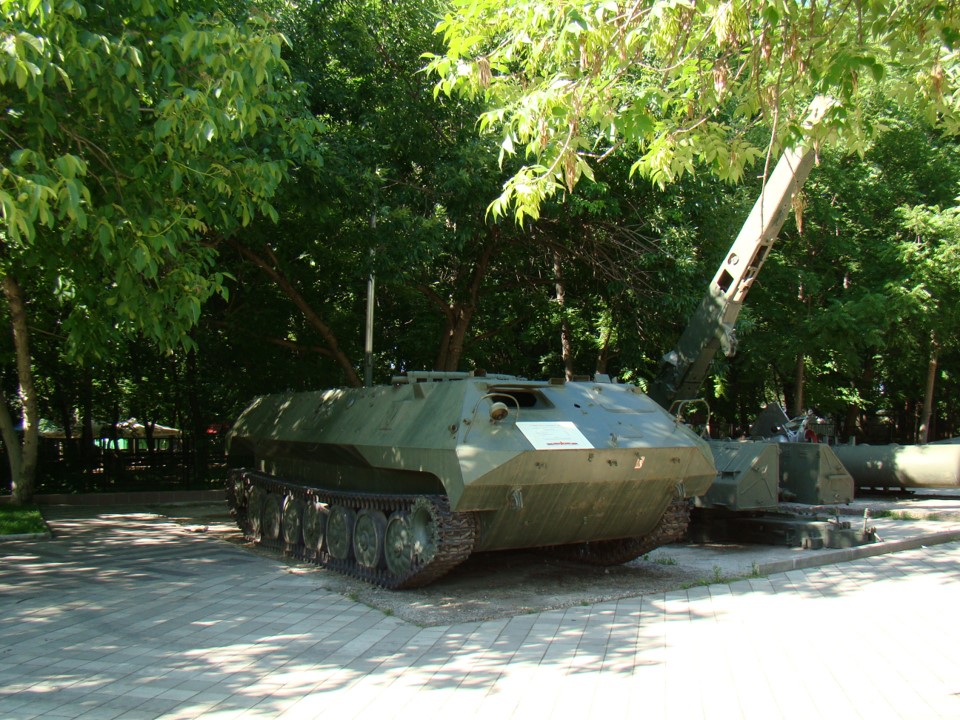

The R-330P Piramida-I Russian Amphibious Armored Electronic Warfare System s an electronic warfare (EW) system deployed on a tracked platform (MT-LB) and intended to neutralize unmanned aerial vehicles and communications. It is fitted with a VHF jammer with a maximum range of up to 25 kilometers.
Ground Specifications
Mobility Type
Tracked
Main Weapon
7.62 mm PKT Machine Gun
Engine
V-8 Diesel (300 hp)
Active Protection
None
NBC Protection
Yes
Max Speed
61.5 km/h
Range
500.0 km
System
Alternative Designation
R-330P Piramida-I
Type
Amphibious Armored Electronic Warfare System
Manufacturer
Kharkiv Tractor Plant
Chassis
MT-LBu
Crew
INA
Payload Capacity
2,000 kg
Tow Capacity
6,500 kg
Dimensions
Length
7.21 m
Width
2.85 m
Height
1.905 m
Track Length
INA
Track Width
350 mm
Weight, Standard
9,700 kg
Weight, Combat
11,900 kg
Automotive
Engine Name
YaMZ-238N
Engine Type
V-8, diesel
Engine Power
300 hp at 2,100 rpm
Power-to-Weight Ratio
INA
Fuel Capacity
450 liters
Gearbox
Manual, Fwd: 6, Rev: 1
Electrical System
24 V
Steering
clutch and brake
Suspension
torsion bar
Maximum Land Speed
61.5 km/h
Maximum Water Speed
4.5 km/h
Range
500 km
Gradient
60%
Side Slope
30%
Vertical Obstacle
0.61 m
Trench
2.41 m
Electronic Warfare System
Note
The R-330P Piramida-I Russian Amphibious Armored Electronic Warfare System is fitted with a VHF jammer system with an output between 20 and 100 MHz and with a range of 25 km.
Main Weapon System
System
Name
1 × 7.62 mm PKT Machine Gun
Type
General-Purpose Machine Gun
Caliber
7.62 mm
Length
1,098 mm
Barrel Length
772 mm
Weight
7.5 kg
Action
Gas-operated, open bolt
Rate of Fire
700–800 rounds/min
Muzzle Velocity
825 m/s
Maximum Firing Range
4,000 m
Effective Firing Range
1,500 m
Feed System
Non-disintegrating metal 50 round belts in 100 and 200/250 round ammunition boxes
Sights
Iron Sights
Ammunition
Type
Rifle
Caliber
7.62 mm
Cartridge
7.62×54mmR
Basic Load
2,000 Rounds
Protection
Hull Armor
The vehicle is lightly armored against small arms and shell splinters with a thickness of 3 to 10 mm of steel.
Applique Armor
Available
Explosive Reactive Armor
No
Active Protection System
No
Mine Clearing
No
Self-Entrenching Blade
Optional
NBC Protection
Yes
Smoke Equipment
INA
Details
Country of Origin
Russia
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.21 m
Width
2.85 m
Height
1.91 m
Weight
11900 kg
Operators (2)
Russia
Armenia
