DF-11 (Dongfeng 11, 东风-11) Close-Range Ballistic Missile

Dong-Feng 11

Close-Range Ballistic Missile

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

DF-11 (Dongfeng 11, 东风-11) Close-Range Ballistic Missile

Designation

Dong-Feng 11

Alternate Designation

Dong Feng 11; NATO: CSS-7; DF-11

Equipment Type

Close-Range Ballistic Missile

Manufacturer

Prime contractor: Sanjiang Space Group, China Chinese Academy of Launch Vehicle Technology (CALT), Beijing, China

Date of Introduction

1992

Description

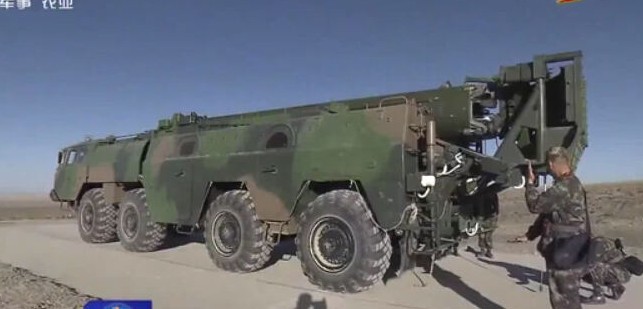

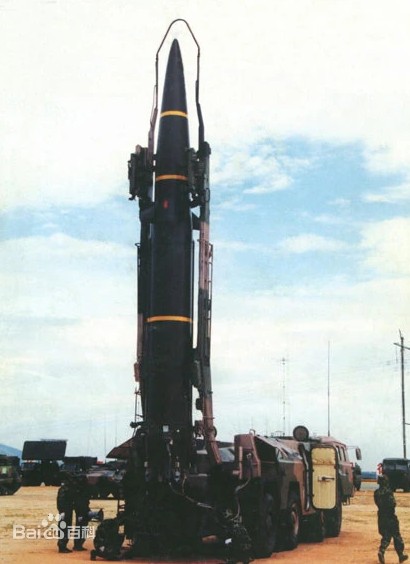

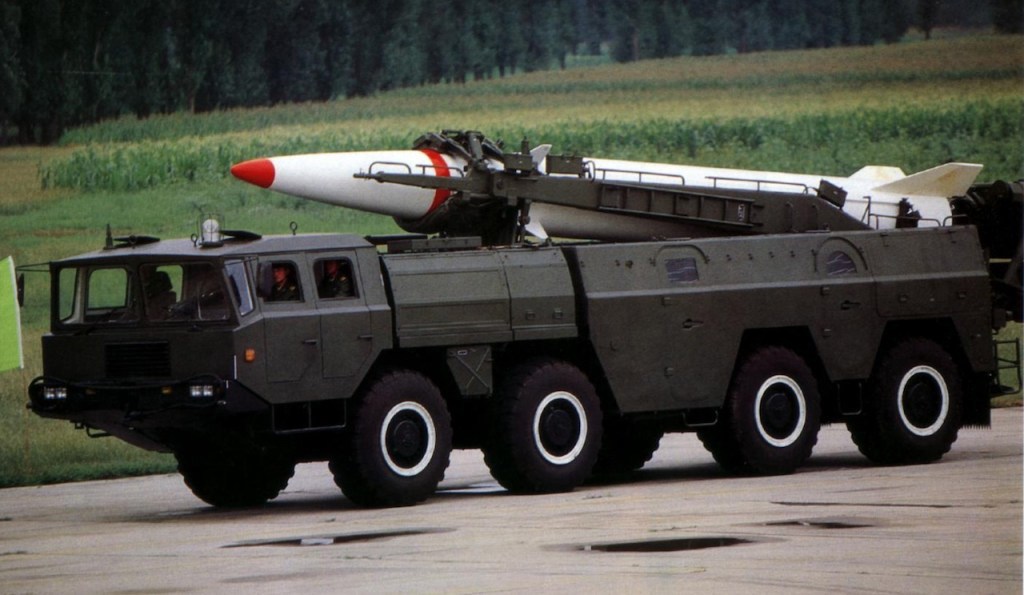

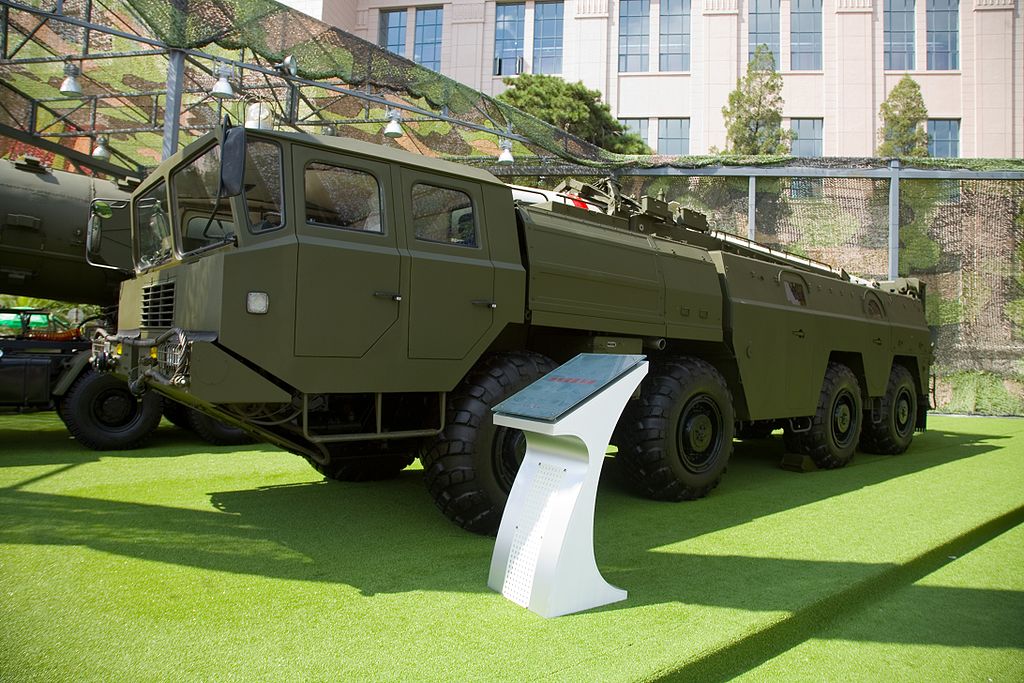

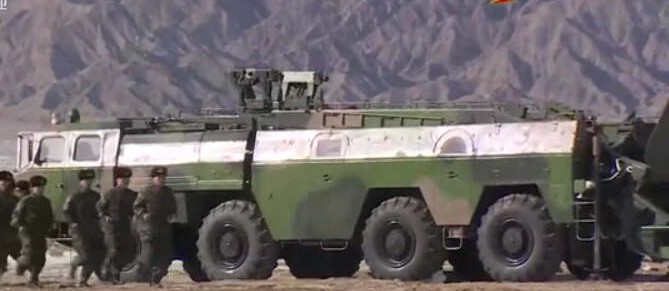

The Dong Feng-11 (DF-11) is a road-mobile, nuclear-capable, close-range ballistic missile developed by the People’s Republic of China (PRC). A solid-fuel SRBM launched from a transporter erector launcher (TEL), the DF-11 can be launched with roughly 30 minutes of preparation and can reach ranges up to 300km. While the DF-11 has an estimated accuracy of 200m CEP, the PRC is reportedly working to increase its accuracy to 30m CEP through the addition of the Global Positioning System (GPS) and laser guidance systems. The missile relies heavily on the Wanshan WS-2400 TEL for its road-mobile survivability. Manufactured by Wanshan Special Vehicle, the WS-2400 is an indigenous 8x8 heavy high-mobility tactical truck directly derived from the Soviet MAZ-543 chassis. Measuring approximately 11.4 meters in length, this heavy-duty chassis gives the DF-11 system excellent cross-country and off-road capabilities. This high mobility allows the launch unit to traverse rugged terrain, launch its payload, and rapidly relocate to evade enemy counter-battery fire or satellite detection.

Variants

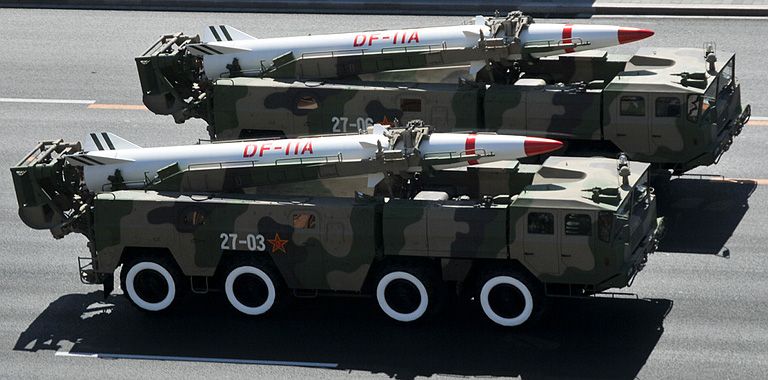

DF-11A (CSS-7 Mod 2) A lengthened, improved variant of the DF-11, the DF-11A offers an increased range, larger payload, and improved accuracy. Development began in 1993, and its existence was first reported in 1998. The DF-11A measures 8.5 m long and weighs approximately 4,200 kg. It can carry a 500 kg payload over a reported range of 500 – 600 km. The missile features an inertial navigation/satellite guidance system and can reach accuracies of 150-200 m CEP. Unconfirmed reports suggest that an optical correlation terminal guidance system was later fitted, which could further improve accuracy to 20-30 m CEP. China first flight tested the DF-11A in 1997, and the missile entered service with the China People’s Liberation Army (PLA) Second Artillery Corps in 1999.

System

Alternate Designation Dong Feng 11; NATO: CSS-7; DF-11

Type Close-Range Ballistic Missile

Manufacturer Prime contractor: Sanjiang Space Group, China Chinese Academy of Launch Vehicle Technology (CALT), Beijing, China

Configuration Tapered, pointed cylinder with 4 stabilizing delta-shaped fins at mid-body

Deployment Mobile

Engine single-stage solid-propellant rocket

Guidance System Inertial

Maximum Range 300 km

Launch Preparation Time 30-45 min

Warhead, Nuclear 90 kilo tons

Warhead, Conventional 800 kg high explosive

CEP 600 m

Dimensions

Length 7.5 m

Diameter 0.8 m

Launch Weight 3,800 kg

Warhead Weight 800 kg

DF-11 missile length 7.5 m

DF-11A missile length 8.5 m

Image Sources

Notes https://www.ausairpower.net/APA-PLA-Ballistic-Missiles.html; https://en.wikipedia.org/wiki/DF-11; https://missilethreat.csis.org/missile/dong-feng-11/;

Details

Country of Origin China

Category Ground-Launched Ballistic Missiles (GLBM) (50 km - 300 km)

Air > Ground-Launched Ballistic Missiles (GLBM) (50 km - 300 km)

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

11.44 m

Width

3.05 m

Height

—

Weight

3800 kg

Operators (3)

China

Pakistan

Myanmar
