PGZ-09 (Type 07) Chinese 35mm Self-Propelled Anti-Aircraft Gun
Type 07, PGZ-09, Type 09
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
PGZ-09 (Type 07) Chinese 35mm Self-Propelled Anti-Aircraft Gun
Designation
Type 07, PGZ-09, Type 09
Alternate Designation
Type 07, PGZ-09, Type 09; PGZ-07
Equipment Type
—
Manufacturer
—
Date of Introduction
2009
Description

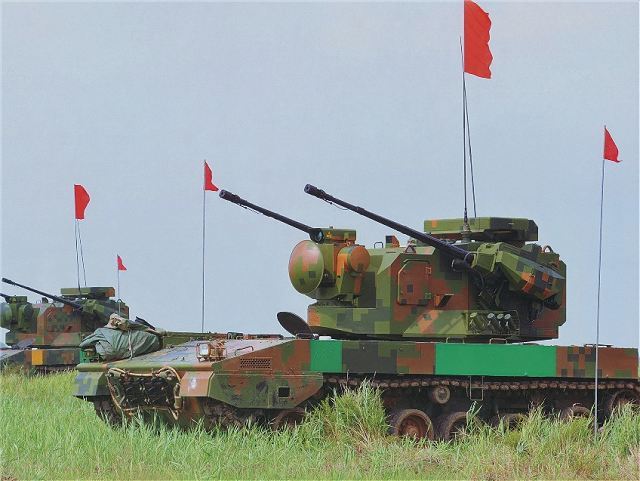

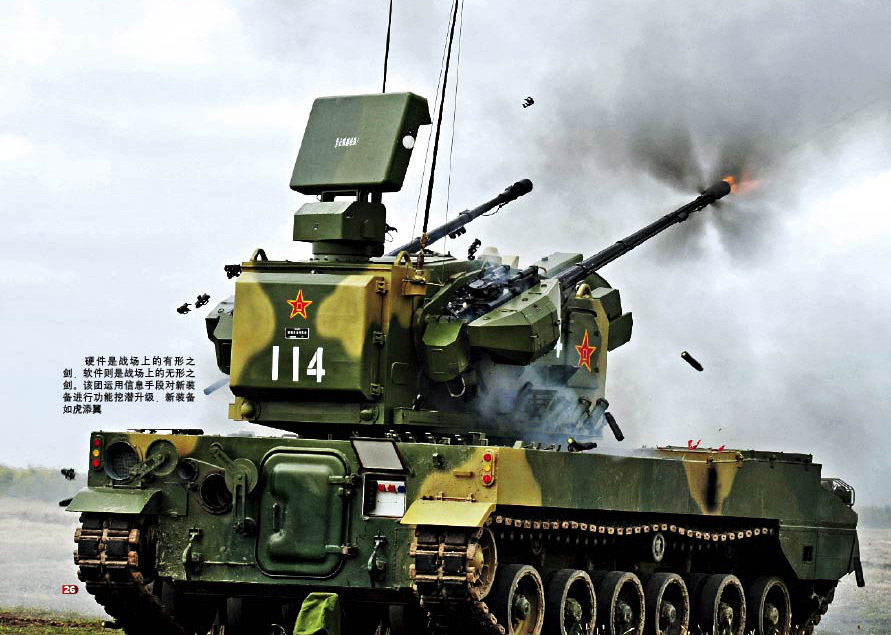

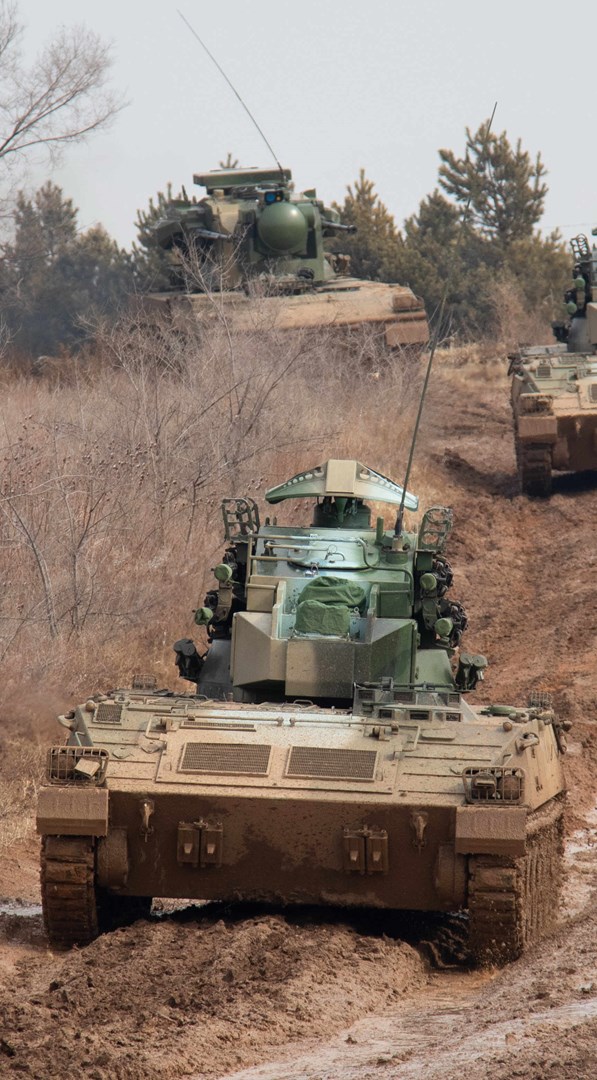

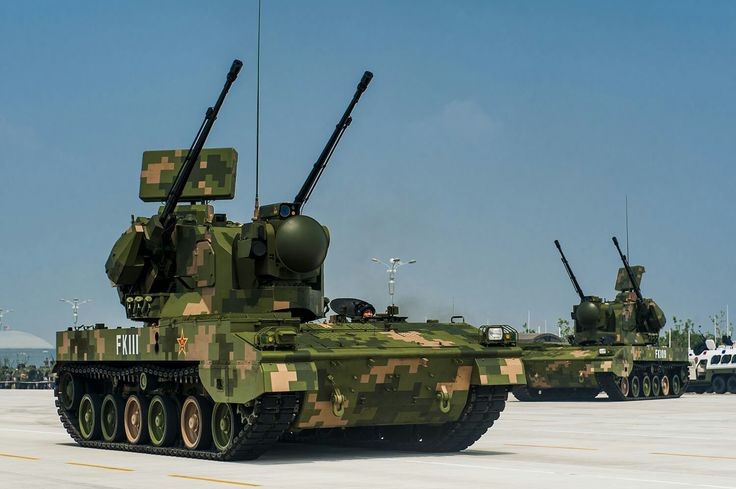

The PGZ-09 (Type 07) Chinese 35mm Self-Propelled Anti-Aircraft Gun is a Chinese-made 35mm self-propelled anti-aircraft gun.
Ground Specifications
Crew
3
Mobility Type
Tracked
Engine
diesel (800 hp)
Max Speed
55.0 km/h
System
Alternative Designation
Type 07, PGZ-09, Type 09; PGZ-07
Chassis
PLZ-05 self propelled artillery
Crew
3 ea
Target
Low to medium altitude, fixed wing, rotary wing, UAS, and cruise missiles
Night Vision
Yes
Range
50 - 5,000 m
Laser Range Finder
Yes
All Weather / IR Sighting
Yes
Basic Load
2,380 rounds. 560 per gun loaded and 630 per gun at the ready.
Dimensions
Length
6.7 m
Width
3.2 m
Height
4.82 m with radar up; 3.4 m with radar down
Weight
35 tons
Radar #1 (Tracking)
Name
INA
Location
Front of Turret
Type
INA
Range of Traverse
0 degrees, must traverse with turret
Range of Elevation
INA
Radar #2 (Searching)
Name
INA
Location
Above Turret
Type
Doppler
Range of Traverse
360 degrees
Range of Elevation
INA
Range of Radar
Approximately 20 km
Automotive
Engine Name
8V150
Engine Type
diesel
Engine Power
800 hp
Fording Depth
INA
Range, Cruising
450 km
Speed, Max on Road
55 kph
Communications
VHF Radio
R-168-100U (Standard VHF)
Data
Note
System can connect via data-link to communicate with other systems.
Main Weapon System
Weapon #1
Name
2 x GDF-002, PG99
Type
Anti-Aircraft Gun similar if not the Oerlikon 35mm KDA autocannon used on the German Gepard.
Caliber
35 mm
Length
INA
Diameter
INA
Action
Gas Operated
Fire on Move
No
Maximum Range
4,000 m
Rate of Fire
1,100 rds/min
Reload Time
7.5 sec
Note
The gun mount is electrically powered with an off carriage power supply unit and manual controls are provided for emergency use.
Ammunition
Name
INA
Caliber
35 mm
Ammunition Types
The 35 mm twin-gun can fire four types of lethal and versatile ammunitions, HEI (High Explosive Incendiary), HEI-T (High Explosive Incendiary Tracer), SAPHEI-T (Semi-armor-piercing high-explosive incendiary Tracer) and TP-T (Target Practice Tracer ) cartridges
Muzzle Velocity
1,175 m/s
Basic Load
2,380 rounds. 560 per gun loaded and 630 per gun at the ready.
Fire Control System
FCS Name
INA
Computerized FCS
Yes
IFF
Yes
Laser Range Finder
Yes
Infrared Goniometer
Yes
Thermal Image Tracker
Yes
Doppler Radar
Yes
Optical / Day Sight
Yes
Protection
Armor, Hull
Protection from small arms fire and projectile splinters
NBC Protection
Yes, optional
Armor
Light armor protects against small arms and shrapnel. Steel front slope also protects against small arms fire.
Smoke Generation
Yes, 8 x Smoke Grenade Launchers
Image Sources
Notes
https://chinesemilitaryreview.blogspot.com/2011/10/chinese-pgz-07-twin-35mm-tracked-spaag.html; http://en.people.cn/90786/8128497.html; https://armyrecognition.com/china_artillery_vehicles_and_weapon_systems_uk/pgz-07_twin_35mm_self-propelled_anti-aircraft_gun_data_sheet_specifications_description_pictures.html;
Details
Country of Origin
China
Category
Self-Propelled Anti-Aircraft Guns
Land > Air Defense > Self-Propelled Anti-Aircraft Guns
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.7 m
Width
3.2 m
Height
3.4 m
Weight
35000 kg
Operators (1)
China
