Type 071

Type 071

Amphibious Assault Ships
Spotted an error? Sign in to suggest an edit.
Type 071

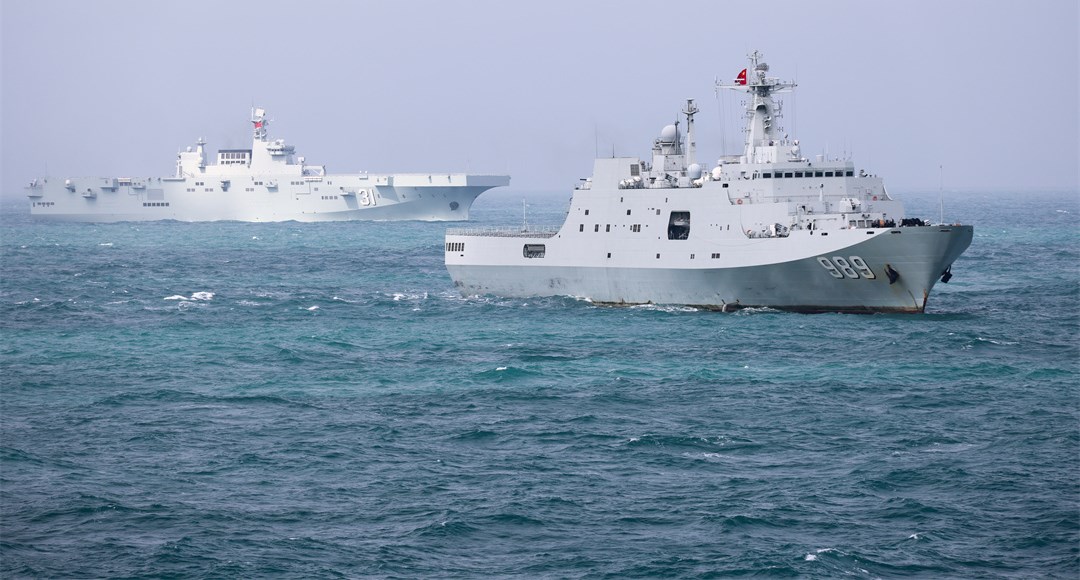

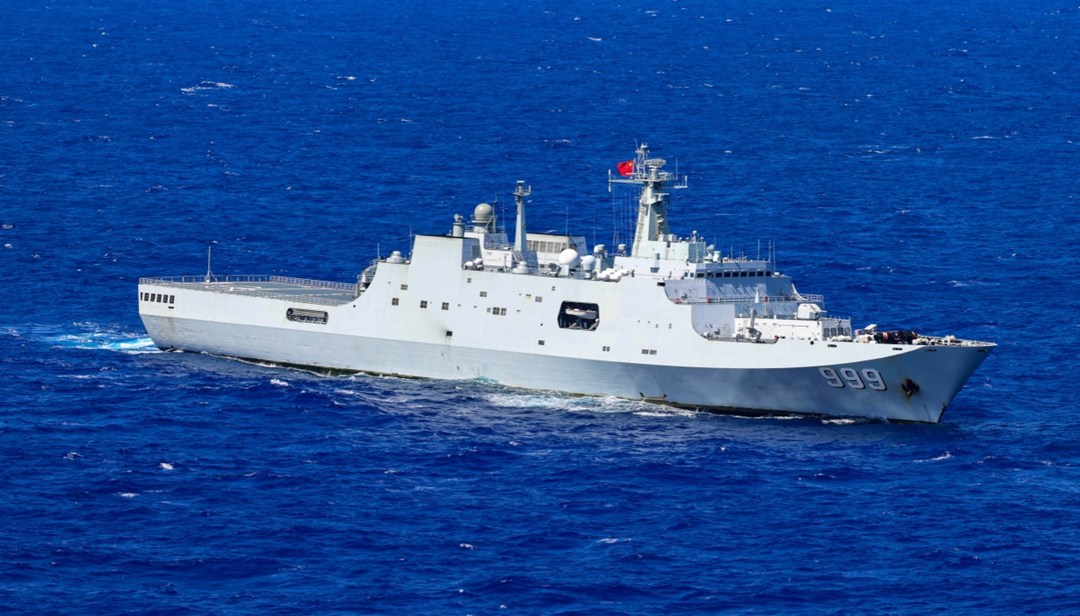

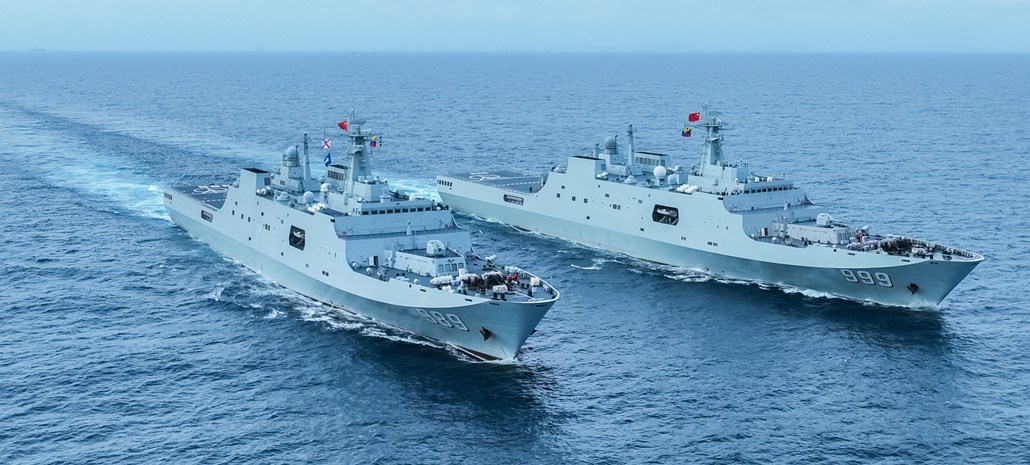

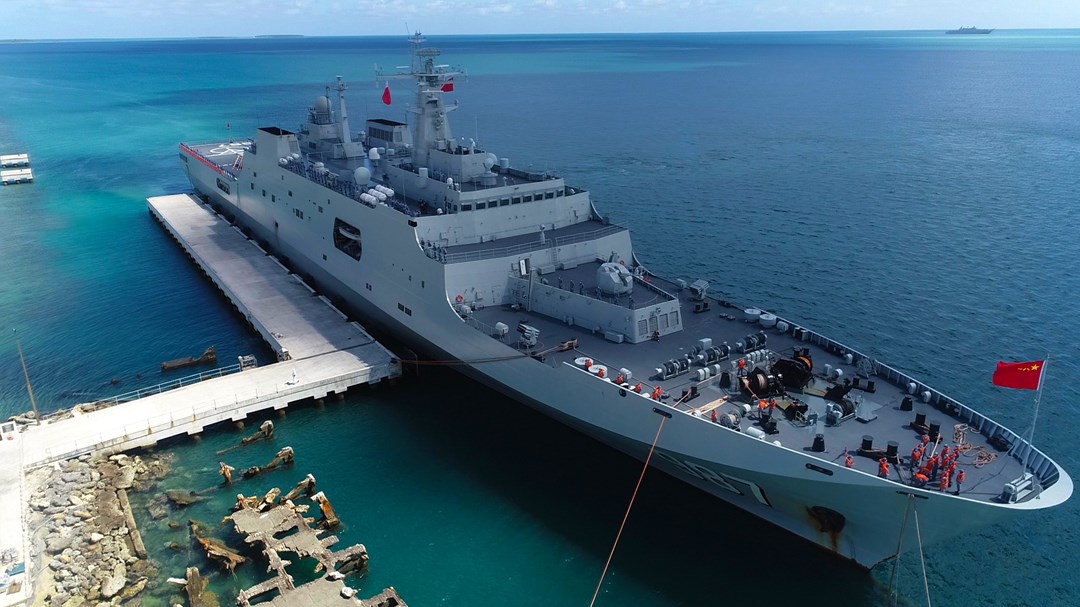

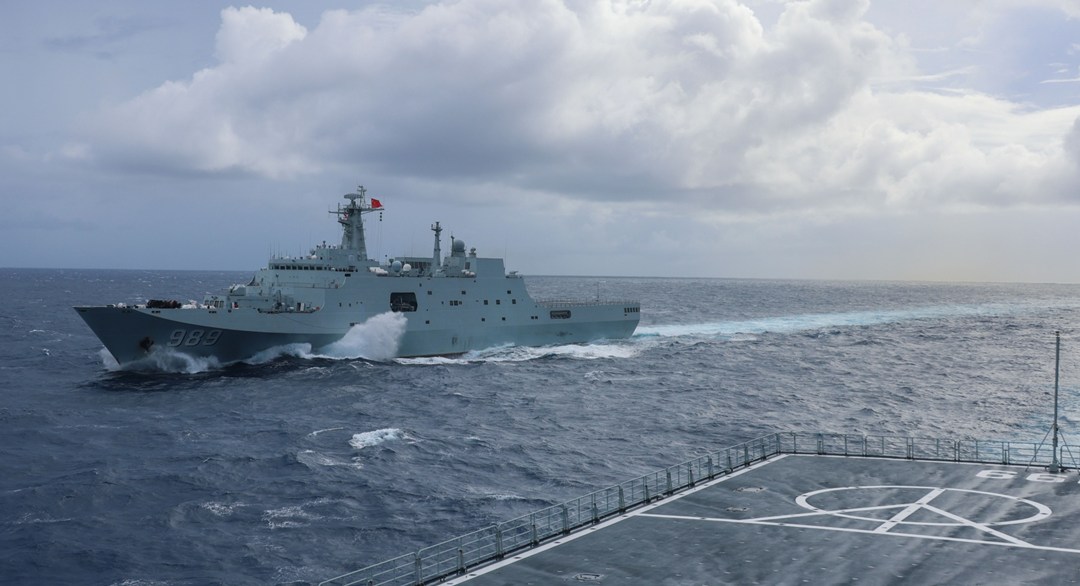

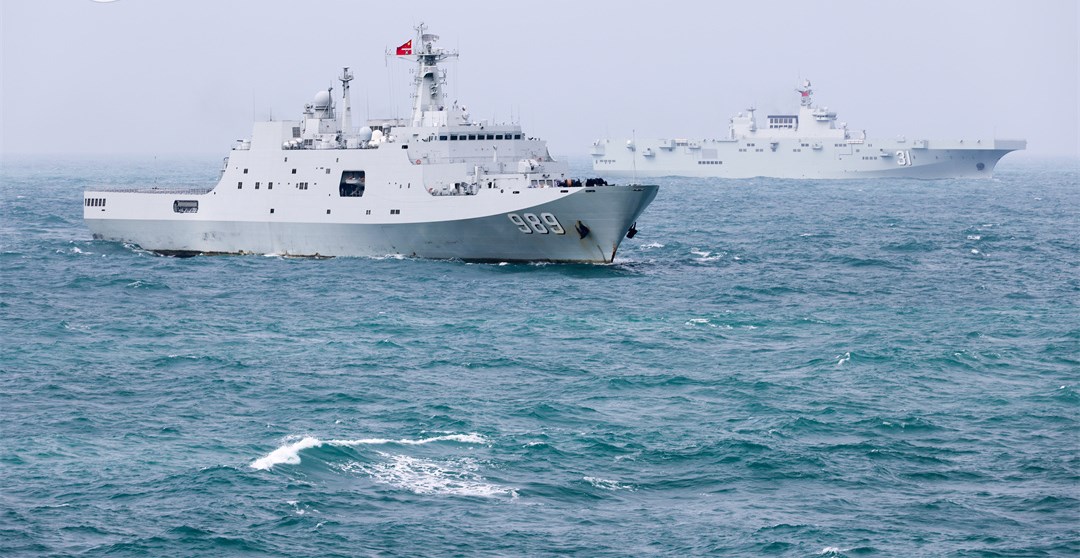

Operational Photo
deagel.com
Basic Information
Name
Type 071
Designation
Type 071
Alternate Designation
Kunlunshan, Type 071E, Yuzhao
Equipment Type
Amphibious Assault Ships
Manufacturer
Hudong-Zhonghua Shipbuilding
Date of Introduction
2007
Description

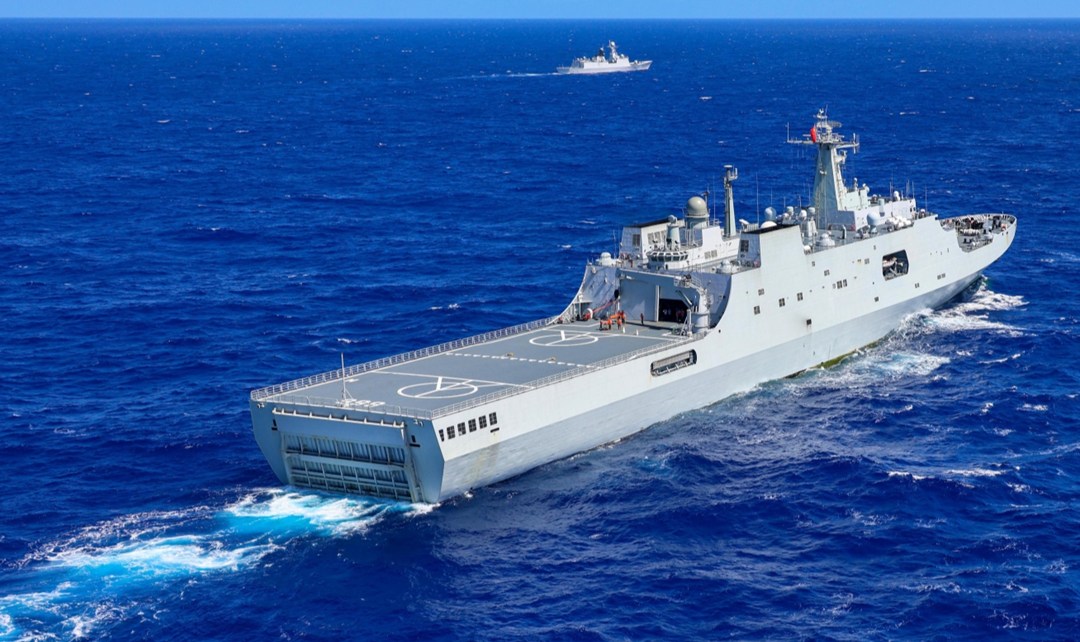

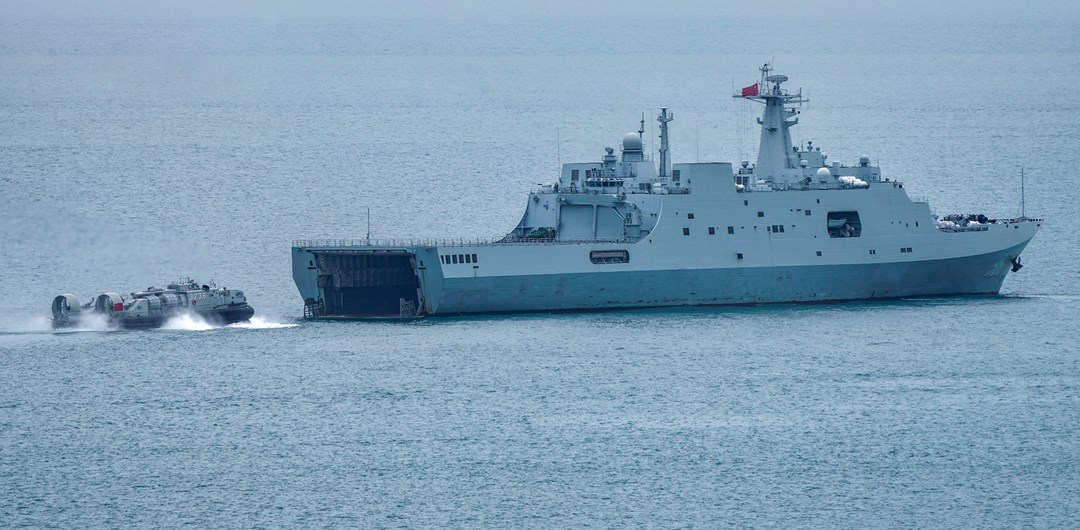

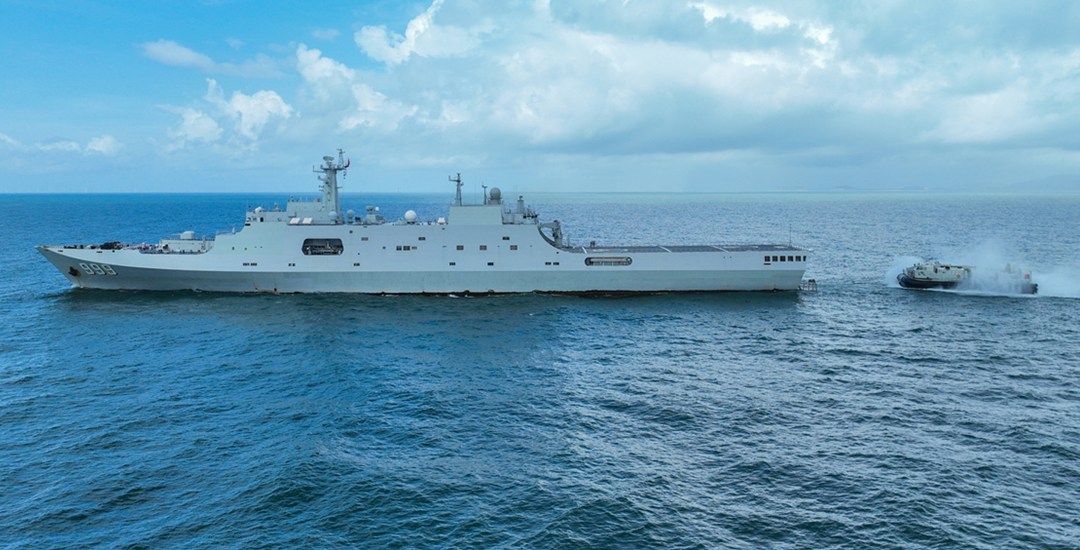

The Type 071 is a 17,000-ton class amphibious assault ships being built by Jiangnan Shipyard for the People's Liberation Army Navy (PLAN). This ship will be the first large amphibious assault ship deployed by the PLAN. Type 071 will be capable of carrying four hovercrafts with several helicopters operating from its large flight deck at the stern. The ship's weapon system includes HQ-7/Crotale surface-to-air missiles, Type 730 close-in weapon systems (CIWS) and a 100mm naval gun. Moreover, the ship features stealth design focusing on reduced radar cross section for enhanced survivability. All in, Type 071 ships will provide the PLAN with greater force projection capabilities compared to its current Type 072 4,000-ton class landing ships. At least one Type 071 class ship was under construction at Jiangnan Shipyard in late 2006. In 2019 Thailand ordered a Type 071E amphibious assault ship.

Naval & Littoral Specifications
Crew 120
Displacement 18500.00 tonnes
Beam 28.00 m
Draft 7.00 m
Max Speed 25.0 knots
Overview (Deagel)
Group Amphibious Assault Ships
Status Active
Also Known As Kunlunshan, Type 071E, Yuzhao
Origin China
Contractor Hudong-Zhonghua Shipbuilding
Initial Operational Capability (IOC) November 30, 2007
Total Production 4
Specifications (Deagel)
Crew 120
Number of Aircraft 4
Number of Landing Crafts 4
Number of Vehicles 15
Troops 500
Dimensions — Beam 28 meter
Dimensions — Draft 7 meter
Dimensions — Length 210 meter
Dimensions — Main Gun Caliber 100 millimeter
Mass — Full Displacement 18,500 ton
Speed — Cruise Speed 18 knot
Speed — Top Speed 25 knot
Gear (Deagel)
Item 1 ASW Helicopters: Z-9 (4)
Item 2 Engineering Vehicles: ZBD05 EV (15)
Item 3 Landing Crafts: Type 726 (2)
Item 4 Main Battle Tanks: Type 63A (15)
Item 5 Naval Gun Systems: PJ87 (1)
Item 6 Recovery & Repair Vehicles: ZBD05 ARV (15)
Item 7 Sea-Based Air Defense Systems: Type 1130 (4)
Item 8 Sea-Based Air Defense Systems: Type 730 (4)
Item 9 Self-Propelled Howitzers: PLZ-07B (15)
Item 10 Surface-to-Air Missiles: HQ-7
Item 11 Tracked Armored Vehicles: ZBD05 IFV (15)
Item 12 Tracked Armored Vehicles: ZTD-05 (15)
Variants
Variant 1 Type 071
Variant 2 Type 071A
Details
Country of Origin China
Category Landing Ships and Amphibious Assault Ships
Naval > Landing Ships and Amphibious Assault Ships
Sources

deagel.com: https://www.deagel.com/x/x/a001846

Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
210 m
Width
28 m
Height
—
Weight
18500000 kg
Operators (2)
China
Thailand
