A45 Chinese Autonomous Surface Vehicle (ASV)

A45

Autonomous Surface Vehicle (ASV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
A45 Chinese Autonomous Surface Vehicle (ASV)
Designation
A45
Alternate Designation
A45
Equipment Type
Autonomous Surface Vehicle (ASV)
Manufacturer
Poly Defense
Date of Introduction
2023
Description

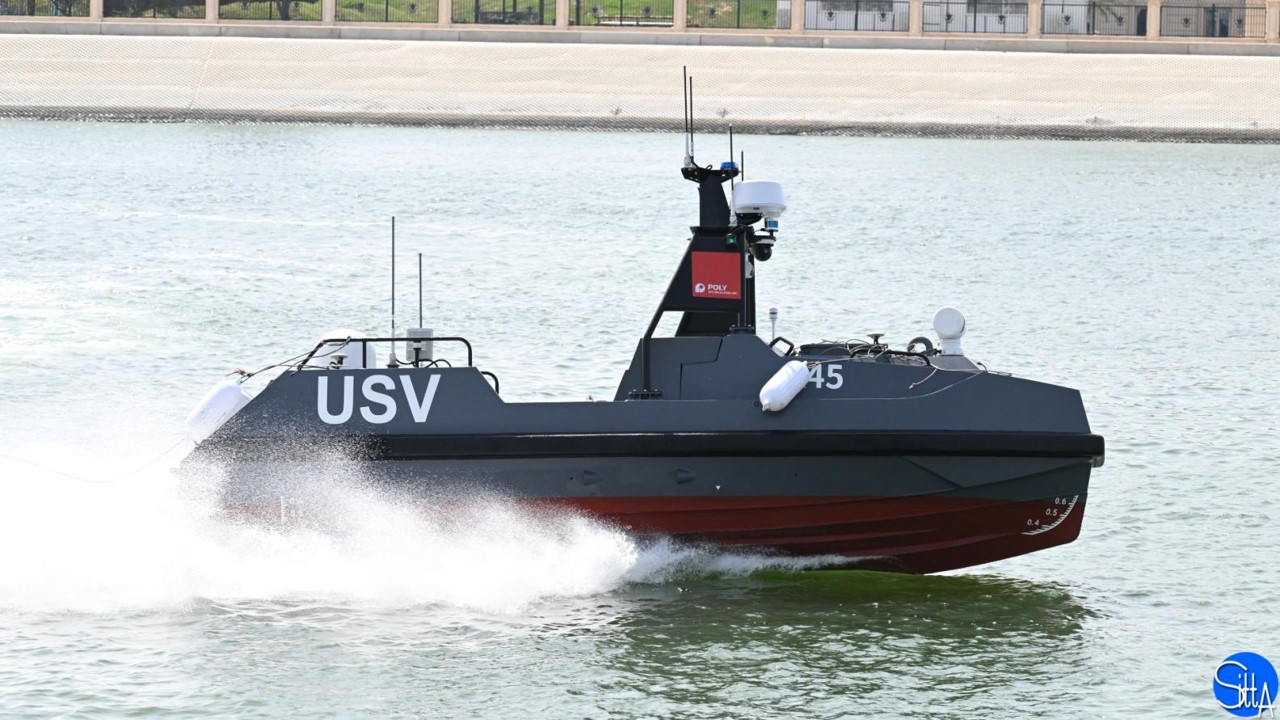

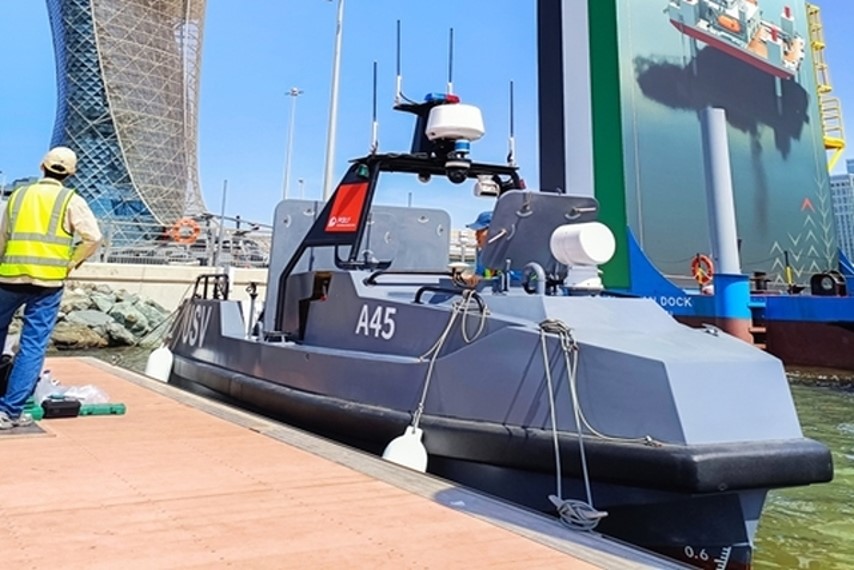

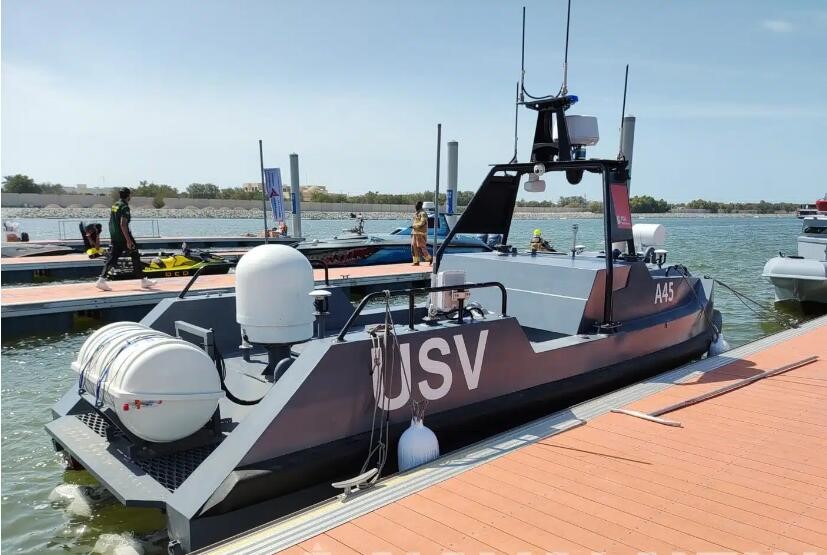

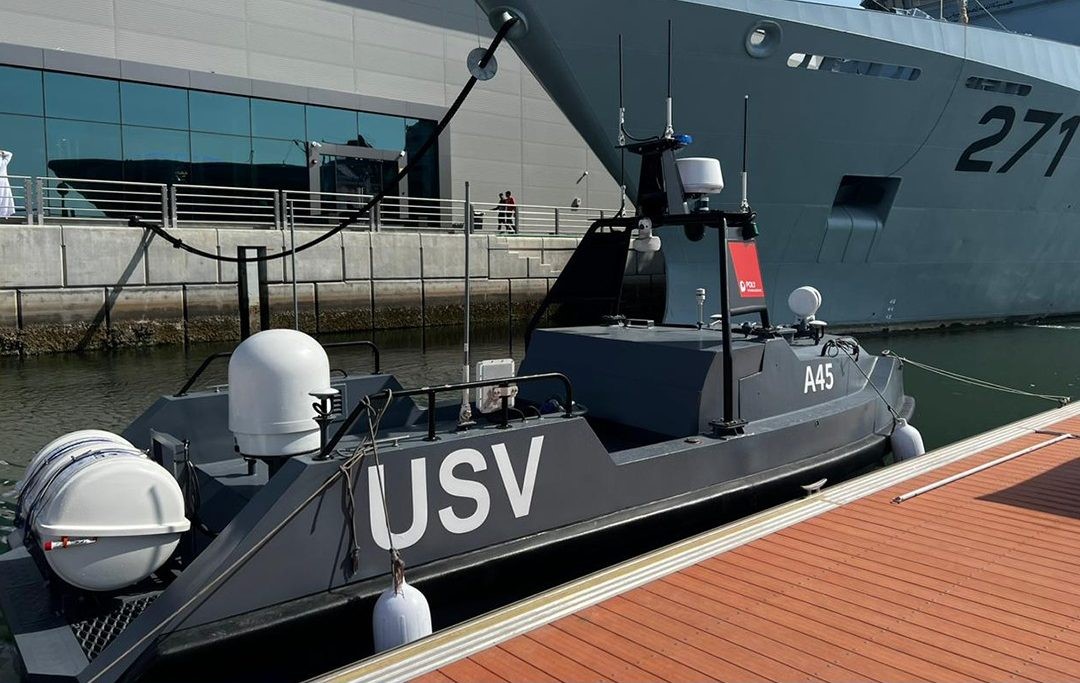

A45 Chinese Autonomous Surface Vehicle (ASV) is a tactical unmanned surface vessel (USV) developed and unveiled by Poly Defense, a subsidiary of Poly Technologies (China), at the NAVDEX 2023 exhibition in Abu Dhabi in February 2023. The platform is classified as a reconnaissance and attack unmanned surface vessel, marketed for both military and quasi-military maritime operations including patrol, surveillance, anti-piracy, anti-drug, and anti-weapons trafficking missions. The A45 represents a mature tactical USV concept reflecting Chinese naval modernization priorities. Its key strengths include operational agility, autonomous capability, modular design, and swarm-cooperative architecture. However, the platform's modest armament (12.7mm gun), limited sensor sophistication compared to larger systems, and dependence on external command and control links for beyond-line-of-sight operations represent tactical constraints. The vessel's utility appears optimized for regional maritime patrol, anti-access deterrence through numerical proliferation, and lower-intensity maritime security operations rather than high-end naval combat against advanced air defense systems.

Naval & Littoral Specifications
Beam 2.60 m
Draft 0.60 m
System
Alternative Designation A45
Type Autonomous Surface Vehicle (ASV)
Builder Poly Technologies
Crew Unmanned
Autonomous and Control Capabilities The A45 incorporates advanced autonomous functionality that distinguishes it from purely remotely-piloted systems. The vessel features autonomous obstacle avoidance, pre-programmed mission execution, and notably, swarm capabilities enabling coordinated multi-vessel operations. Three control modes are available: direct remote control with a 2-kilometer range, private network operation extending to 20 kilometers, and satellite communications providing unlimited global range. Operators employ either a dedicated 1.8m × 0.81m control console or standard laptop computer to plan routes, assign tasks, and issue instructions. The autonomous navigation system allows the vessel to sail along predetermined routes while dynamically avoiding obstacles, reducing the operational burden on human personnel.
Sensor Systems Sensor systems include navigation radar and an electro-optical/infrared (EO/IR) package, providing surveillance and targeting capability across daylight and low-light conditions. The aluminum alloy hull combined with stealth-optimized hull geometry produces a low radar cross-section, with Poly Technologies claiming the platform's radar signature is difficult to detect beyond approximately 5 kilometers.
Dimensions
Length 7.5 m
Height INA
Beam 2.6 m
Draft 0.6 m
Displacement, Full Load 4.6 tons
Propulsion System
Engine Name Steyr
Engine Type 2 x 205 kW Steyr diesel engines coupled to two jet pump systems.
Engine Power 205 kW
Maximum Range 519 km
Maximum Speed 40 knots
Endurance 11 hours
Sea State Level 5
Main Weapon System
Armament The A45 carries a single 12.7mm machine gun with an effective range of 1,500 meters as its primary armament. The platform features a photoelectric turret integrated with the weapon system, enabling operator control from the remote station. Poly Technologies explicitly states the USV can be configured to attack surface targets, positioning the platform within China's emerging armed USV doctrine.
Protection
Hull Steel
Countermeasures No
NBC Water Washdown System No
Details
Country of Origin China
Category Naval
Naval
Filter Label
A
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
7.5 m
Width
Height
Weight
Operators (1)
China
