SH-1 Chinese 155mm Self-Propelled Howitzer (SPH)

PCL-09 or CS/SH1 (Chinese export name)

122mm Self-Propelled Howitzer (SPH)

Spotted an error? Sign in to suggest an edit.

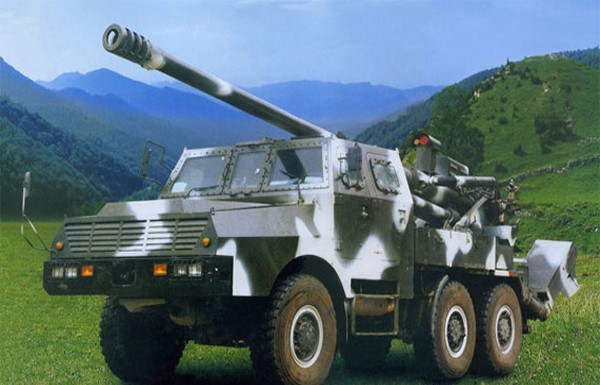

SH-1 Chinese 155mm Self-Propelled Howitzer (SPH) — SH-1Artiler(D).jpgTRADOC ODIN WEG

Basic Information

Name

SH-1 Chinese 155mm Self-Propelled Howitzer (SPH)

Designation

PCL-09 or CS/SH1 (Chinese export name)

Alternate Designation

PCL-09 or CS/SH1 (Chinese export name)

Equipment Type

122mm Self-Propelled Howitzer (SPH)

Manufacturer

NORINCO

Date of Introduction

2007

Description

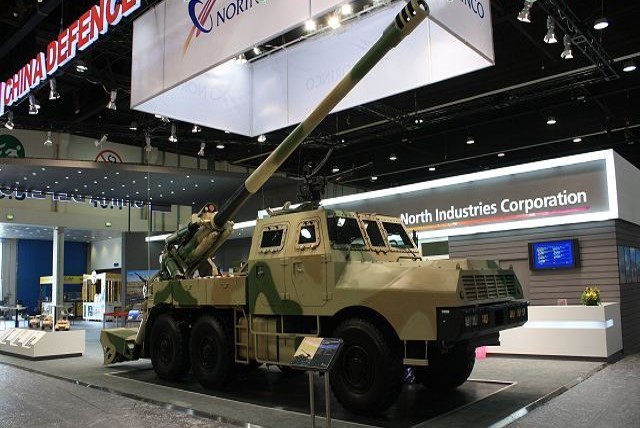

The SH1 is a wheeled, self-propelled, 155mm howitzer designed and manufactured by the Chinese Defense Company, Norinco. Compared with other similar artillery systems, the SH1 has advantages such as a high mobility, greater fire-power, fast hit capability, modular design, and cost-effectiveness. The SH1 was presented for the first time to the public at the Defense Exhibition in Dubai, IDEX 2010.

Ground Specifications

Crew 6

Engine Turbocharged Diesel (315 hp)

Active Protection None

NBC Protection Yes

Variants

SH2 The SH2 is a wheeled self-propelled howitzer designed and manufactured by the Chinese Defence Company Norinco. The SH2 artillery system was first unveiled at the Abu Dhabi International Defence Exhibition in 2007 (IDEX 2007) held between 18 and 22 February, and is being actively prompted to the export market. The lightweight and high-mobility features of this artillery system may be of special appeal to the PLA airborne force and marine corps. The SH2 has demonstrated superior performance under all weather conditions and a wide range of altitude, and it can be equipped with special gear as per mission requirement. It is equipped with a digitised information system, which includes a gunner's terminal and digitised tactical radio so the system can be seamlessly integrated into a C4ISR system. It also has an autonomous navigation and orientation system, digital command-and-control, and FCS. There are a number of other recent Chinese SP artillery systems, tracked and wheeled, that have the same SH designator: SH2 - 122 mm (6 × 6) SP artillery system. SH3 - 122 mm full tracked SP artillery system. The PLA have introduced the 122 mm full tracked SP howitzer called the PLZ-07.This is very similar to the first system but had a different hull and suspension. SH5 - 105 mm (6 × 6) SP artillery system.

SH3 122 mm full tracked SP artillery system. The PLA have introduced the 122 mm full tracked SP howitzer called the PLZ-07.This is very similar to the first system but had a different hull and suspension.

SH5 05 mm (6 × 6) SP artillery system.

System

Alternative Designation PCL-09 or CS/SH1 (Chinese export name)

Manufacturer NORINCO

Type 155mm Self Propelled Howitzer (SPH)

Family SH Series

Crew 6 ea

Chassis 6x6 truck, with the SH1 built on the rear of the WS5252 (6 × 6) cross-country truck chassis

Displacement Time 50 min

Emplacement Time 1 min

Cruising Range (Road) 600 km

Maximum Effective Range (Howitzer) 53,000 m

Add on Parts Yes, Navigation, positioning and targeting systems.

Dimensions

Length 9.6 m

Width 2.6 m

Height 3.5 m

Weight, Combat 22.5 mt

Ground Pressure INA kg/m

Automotive

Engine Name WD615.44

Engine Type Water-cooled, Supercharged Diesel

Engine Power 315 hp

Transmission Automatic

Cruising Range 600 km

Speed, Maximum Road 90 km/h

Speed, Average Cross 75 km/h

Ground Clearance 400 mm

Speed Maximum Swim Not Amphibious

Fording Depth (Without Preperation) 1.2 m

Central Tire Pressure System Yes

Wheelbase 3.45 + 1.45 m

Track 2.056 m

Angle of Approach 32 deg

Angle of Departure 36 deg

Gradient 58 deg

Side Slope 40 deg

Verttical Obstacle (Fowards) 0.4 m

Trench 0.7 m

Turning Radius 11 m

Power Steering Yes

Communications

TBR-142

VHF FM Transceiver Yes, TBR-142(I)

VHF Range 1 to 50 km

Megahertz 40.000 to 59.975 MHz

Output Power 1 to 0.3 Watts

Power 12V Ni-Ca Rechargeable Battery or external 12V DC power source

Dimensions 217x135x58 mm

Weight 2.7 kg

Antennas 3 Total: a 1.3m whip antenna, a 0.3m short antenna, and a 10m wire antenna

Proliferated Widely with Artillery/Gun/Missile/Reconnaissance/C2 Units

Control Device TBR-142(II)

Multi-function Field Phone TBR-142(IIID)

Anti-Aircraft Control Unit TBR-142(IIIG)

ZXY88-200 C2 Capable Yes

Messaging Limited Capability

Amplifier Available

Physical Conditions Limitations Terrain and Weather favorable

Main Gun

System

Name PLZ-05 or the Type 05

Type 155mm Self Propelled Howitzer (SPH)

Breech Type American Style

Length, Barrel 52 calibers

Loader Type All standard 155mm NATO Projectiles

Max Rate of Fire 4-6 rds/min

Sustain Rate of Fire 4 rds/min

Time the Max Rate of Fire can be Sustained 1 min

Muzzle Brake Type Yes

Powered Elevation Yes

Max Elevation +70 deg

Min Elevation -3 deg

Powered Traverse Yes

Traverse Left 20 deg

Traverse Right 20 deg

Range Finder Type Laser

Flick Rammer Yes

Charge Zone 10

Precision-Guided Munitions Capable to Fire

Note SH1 can fire all NATO-standard 155mm artillery projectiles and charges.

Ammunition

Type 155 mm HE ERFB RA/BB very long range artillery projectile (VLAP-Rocket Assistance/Base Bleed)

Caliber 155 mm

Muzzle Velocity 925 m/s

Fuse Type INA

Basic Load 20 total in combination of projectiles

Effective Range 53 (with Rocket Assisted V-LAP) km

Maximum Range 56 km

Armor Penetration INA

Rocket Motor Total Impulse of 6,500 Ns

Rocket Motor Propellant Charge Weight: 3 kg

Rocket Motor Specific Impulse 2,170 Ns/kg

Projectile Total Weight 48 kg

Warhead Weight 30 kg

Ammunition Variants

HE ERFB Available

HE ERFB-BB Available

ERFB-BB cargo Available

ERFB Illuminating Available

ERFB Smoke Base Ejection Available

ERFB White Phosphorous Available

Coaxial Weapon System

System

Name QJZ-89 or Type 89

Type 12.7mm Heavy Machine Gun

Manufacturer NORINCO

Cartridge 12.7x108 mm

Length, Total 2,119 mm

Length, Barrel 1,003 mm

Weight (Gun Only) 17.5 kg

Weight, (Tripod Only) 8.5 kg

Max Rate of Fire 600 rds/min

Sustain Rate of Fire 450-600 rds/min

Time the Max Rate of Fire can be Sustained INA

Range Finder Type Iron/Optical

Action Gas/Recoil

Feed System Belt

Sights Iron/Optical

Ammunition

Type Heavy Machine Gun

Caliber 12.7 mm

Muzzle Velocity 850 m/s

Basic Load INA

Max Effective Range 1,600 m

Armor Penetration Yes

Fire Control

Name INA

Computerized FCS Yes, Gunner, aimer and loader are all provided with their own flat panel displays (FPD) displays.

Thermal Sight Vehicle Commander Yes

Thermal Sight Gunner Yes

Main Gun Stabilization large spade lowered to the ground to provide a stable firing position

Range, Day Sight INA

Range, Thermal Sight INA

Laser Observation Post Yes

Direct Fire Yes

Indirect Fire Yes

Protection

Hull Armor Protection against small arms fire and artillery shell splinters

Turret Armor Protection against small arms fire and artillery shell splinters

Applique Armor No

Explosive Reactive Armor No

Active Protection System No

Mine Clearing No

Self-Entrenching Blade No

NBC Protection Yes

Smoke Equipment Available

Image Sources

Notes https://en.topwar.ru/63103-appetity-kolesnyh-samohodnyh-artilleriyskih-sistem.html; https://armyrecognition.com/military-products/army/artillery-vehicles-and-weapons/self-propelled-howitzers/sh1-china-uk;

Details

Country of Origin China

Category Self-Propelled Gun/Howitzer Artillery Systems

Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

9.6 m

Width

2.6 m

Height

3.5 m

Weight

22500 kg

Operators (3)

China

Pakistan

Myanmar
