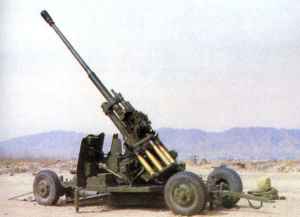

Type 59 Chinese 100mm Towed Anti-Aircraft Gun

The Type 59 is a Chinese version of the Russian KS-19 100mm Towed Anti-aircraft gun 100 mm air defense gun KS-19 was a Soviet anti-aircraft gun. Initially deployed aboard ships as the B-34 during the Second World War, a ground-mounted version was introduced into service after the war as the KS-19. The KS-19 is a heavy towed anti aircraft gun that has largely disappeared from front line arsenals due to increased use of more effective surface-to-air missiles. Being a towed weapon an external form of mobility was required, usually an AT-S Medium or AT-T Heavy tracked artillery tractor. The 15 man crew were carried on the tractor along with ready use ammunition for the gun. Ammunition was loaded as a single round into the loading tray and a well trained crew could fire 15 rounds maximum per minute. Anti Aircraft ammunition includes high explosive, high explosive fragmentation and fragmentation types. The KS-19's onboard sights can be used to engage air targets; however increased accuracy was achieved if used in conjunction with a fire control radar such as the SON 9 (NATO Reporting name 'Fire Can') and PUAZO-6/19 director. As the KS-19 is a heavy caliber Anti-Aircraft gun it also has some utility in the ground role especially against armored targets. As a result of this two armor piecing rounds were produced: the AP-T (Armour Piercing-Tracer) and APC-T (Armour Piercing Capped-Tracer) with the AP-T round reportedly able to penetrate 185 mm of armor at 1000 m. The KS-19 was used in action by communist forces in both Korea and Vietnam.
