RK-3 Corsar Ukrainian Anti-Tank Guided Missile (ATGM)
RK-3 Corsar
Anti-Tank Guided Missile (ATGM)
Other
Basic Information
Name
RK-3 Corsar Ukrainian Anti-Tank Guided Missile (ATGM)
Designation
RK-3 Corsar
Alternate Designation
RK-3 Corsar; Korsar; Corsar
Equipment Type
Anti-Tank Guided Missile (ATGM)
Manufacturer
Luch State Kyiv Design Bureau
Date of Introduction
2017
Description

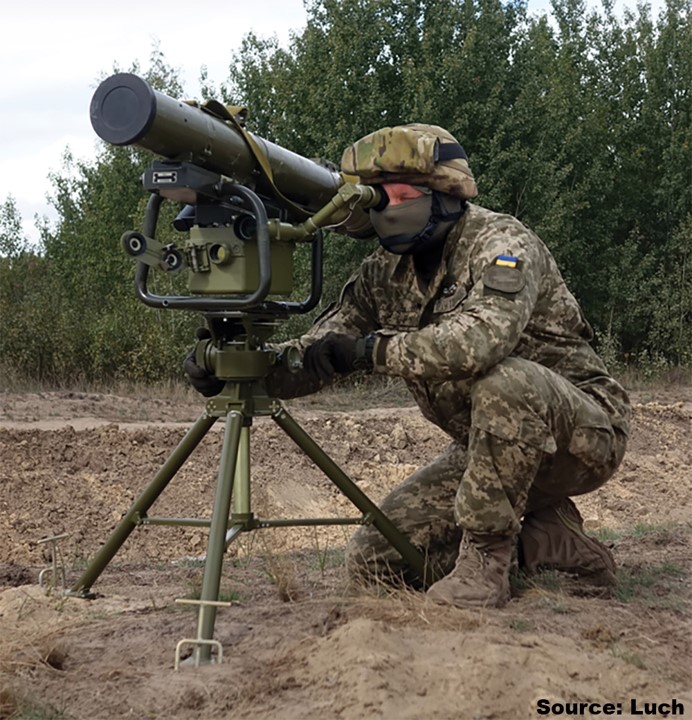

The RK-3 Corsar Ukrainian Anti-Tank Guided Missile (ATGM) is a light portable anti-tank missile system developed by the Luch Design Bureau of Ukraine. It was primarily developed for use in the dismounted role, but could also be fitted to various armored fighting vehicles (AFVs).
Ground Specifications
Main Weapon
RK-3 Corsar Ukrainian Anti-Tank Guided Missile (ATGM)
Range
2.5 km
System
Alternative Designation
RK-3 Corsar; Korsar; Corsar
Type
Anti-Tank Guided Missile (ATGM)
Manufacturer
Luch State Kyiv Design Bureau
Propulsion
The R-3 series missiles used by the Korsar system are powered by a solid-propellant rocket motor with two side-ducting nozzles. These are mounted behind the four stabilising fins, but forward of the control surfaces. Two folding control surfaces are used to manoeuvre the missile in flight. All fins are deployed on missile exit by spring pressure. The missiles have a maximum stated range of 2,500 m (8,202.1 ft) with time of flight to this range being stated as 12 seconds.
Warhead

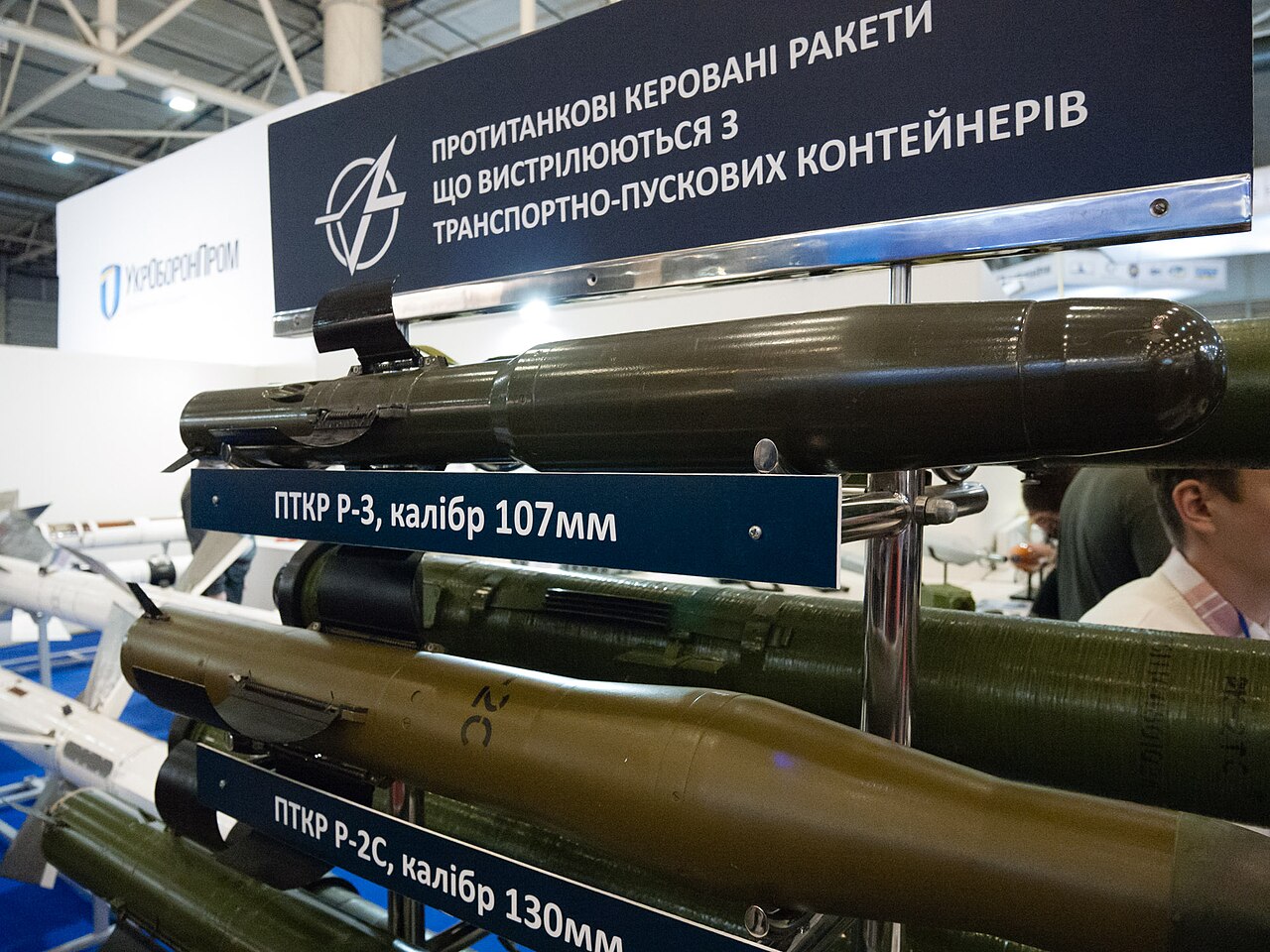

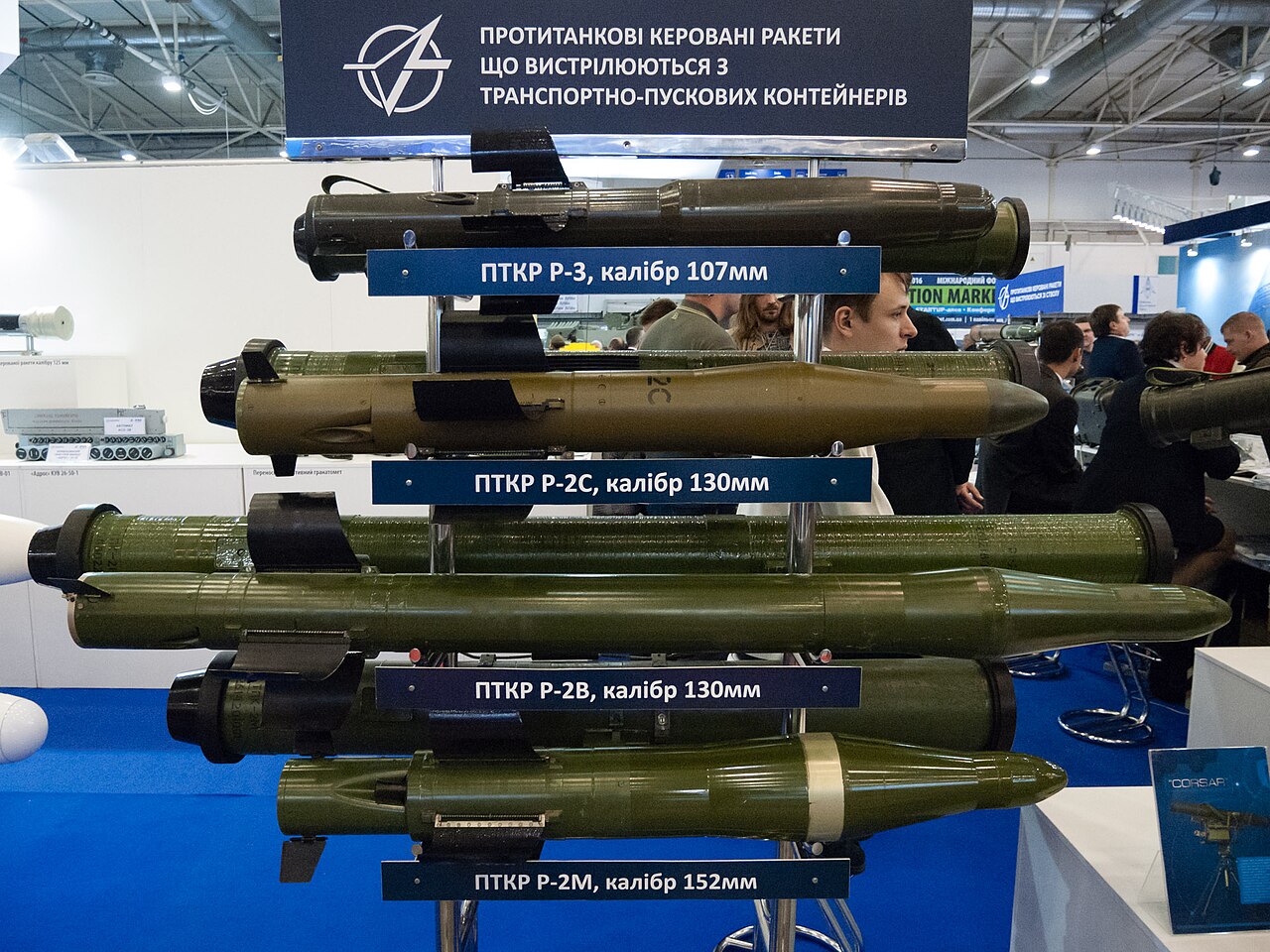

The R-3 series of missiles are 107 mm in diameter, and are available with a tandem-HEAT warhead (designated as RK-3K) or HE-FRAG warhead (designated as RK-3OF). The tandem-HEAT warhead has a claimed penetration of 550 mm (21.7 in) of RHA equivalent (RHAe) protected by explosive reactive armour (ERA). The HE-FRAG warhead reportedly contains an explosively formed penetrator (EFP) element, capable of penetrating at least 50 mm of RHAe. The warhead section normally contains the nose-mounted impact switch, two shaped charges, and their respective safety and arming devices (SADs). A practice missile with an inert warhead designated as the RK-3I is also available for training purposes.
Guidance System

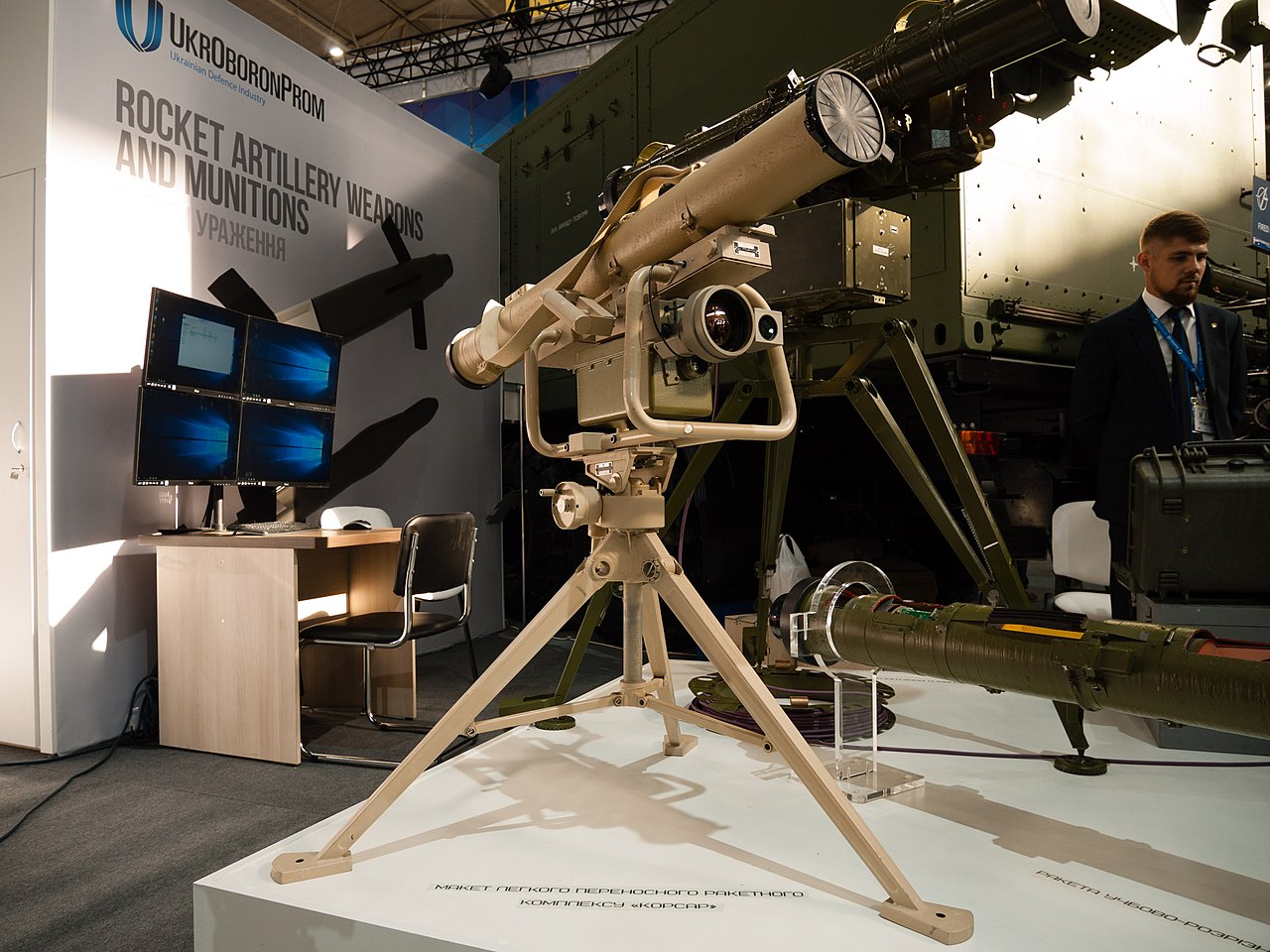

The missile is guided to the target using a semi-automatic command to line-of-sight (SACLOS) system, based on a laser-beam command link. The Korsar uses the PN-K1 firing and guidance unit for surveillance, target acquisition, and to control the missile's flightpath. The dimensions of the PN-K1 guidance unit are 300 mm (11.8 in) × 220 mm (8.7 in) × 216 mm (8.5 in), excluding shoulder-rest interface board.

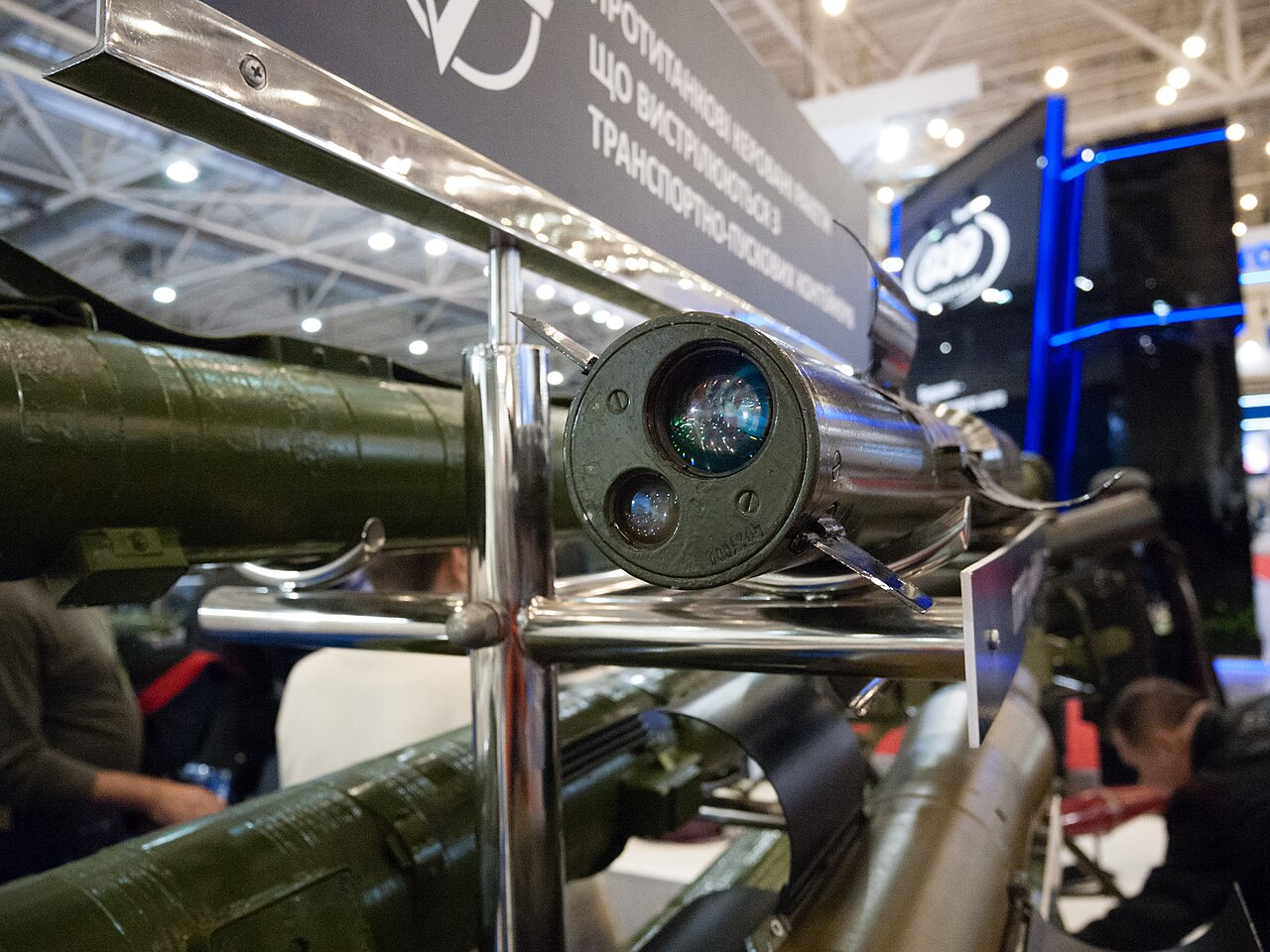

The PN-K1 uses a television surveillance and sighting system, with built-in field-of-view stabilisation, or an uncooled LWIR thermal imager to acquire a target. The day sight has 8× optical zoom, while the LWIR thermal sight can detect targets out to 1.8 km at night. A horizontal axis alignment system ensures the missile tube, sighting system, and guidance system are all aligned on the same plane. A laser guidance system is used to determine the missile's position in flight relative to the line-of-sight to the target, with a laser receiver located on the rear of the missile. Signals from the missile are received by the control unit, with command signals then sent to the missile via laser in order to correct the missile's course. As such, the operator keeps the cross hairs of the sight laid onto the target, with the missile and control system determining the required adjustments to ensure a hit on target.
Maximum Range
2,500 m
Minimum Range
100 m
Flight Time
12 s (to 2,500 m)
Penetration
550 mm (21.7 in) of RHAe behind ERA
Operating Temperature
–45 to +60°C
Dimensions
Length, Container
1,180 mm
Length, Missile
910 mm
Diameter, Container
113 mm
Diameter, Missile
107 mm
Weight, System
26.0 kg
Weight, Containerized Missile
15.3 kg
Weight, Missile
10.5 kg
Weight, Launcher
9.2 kg
Weight, Tripod Mount
6.3 kg
Weight, Guidance Unit
4.9 kg
Weight, Tandem-HEAT Warhead
4.3 kg
Weight, HE-FRAG Warhead
3.5 kg
Details
Country of Origin
Ukraine
Category
Land
Land
Filter Label
R
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
0.11 m
Height
—
Weight
26 kg
Operators (4)
Ukraine
Bangladesh
Morocco
Saudi Arabia
