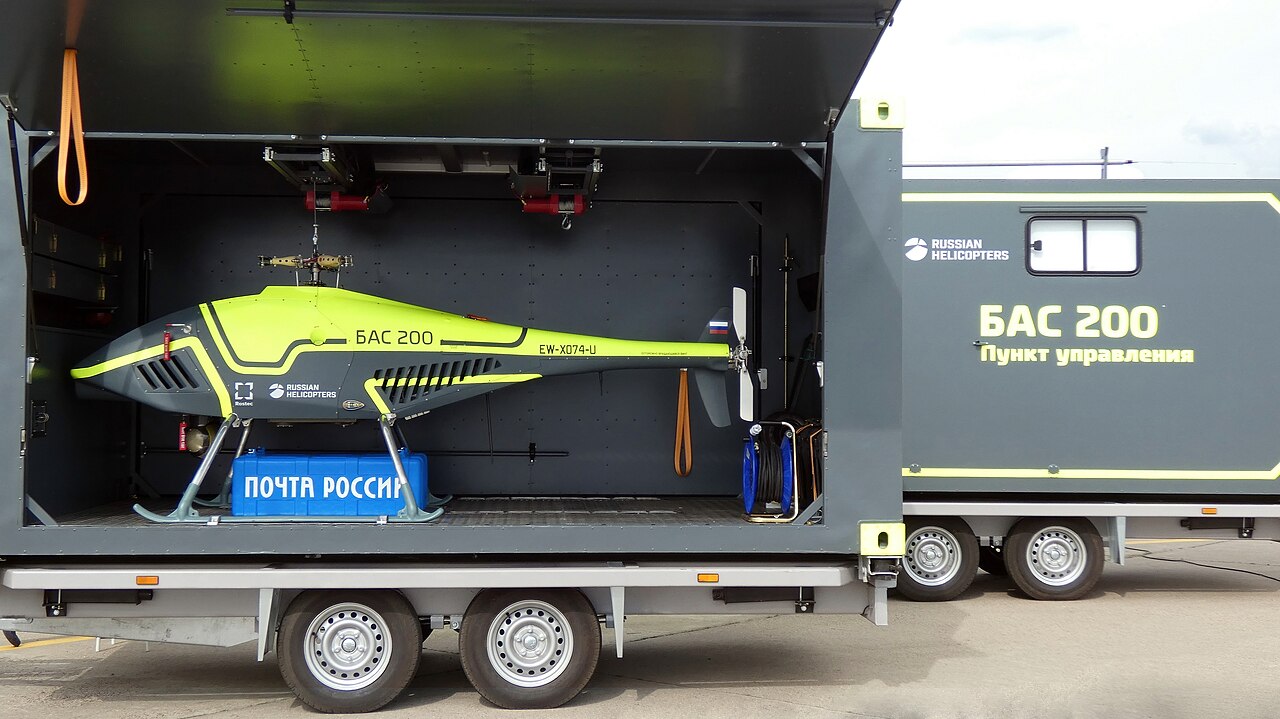

BAS-200 Russian Unmanned Aerial Vehicle (UAV)

BAS-200

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
BAS-200 Russian Unmanned Aerial Vehicle (UAV)
Designation
BAS-200
Alternate Designation
BAS-200
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Russian Helicopters, a subsidiary of Rostec State Corporation
Date of Introduction
2022
Description

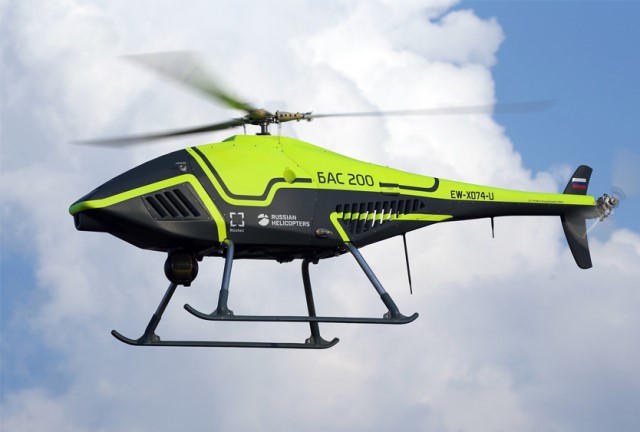

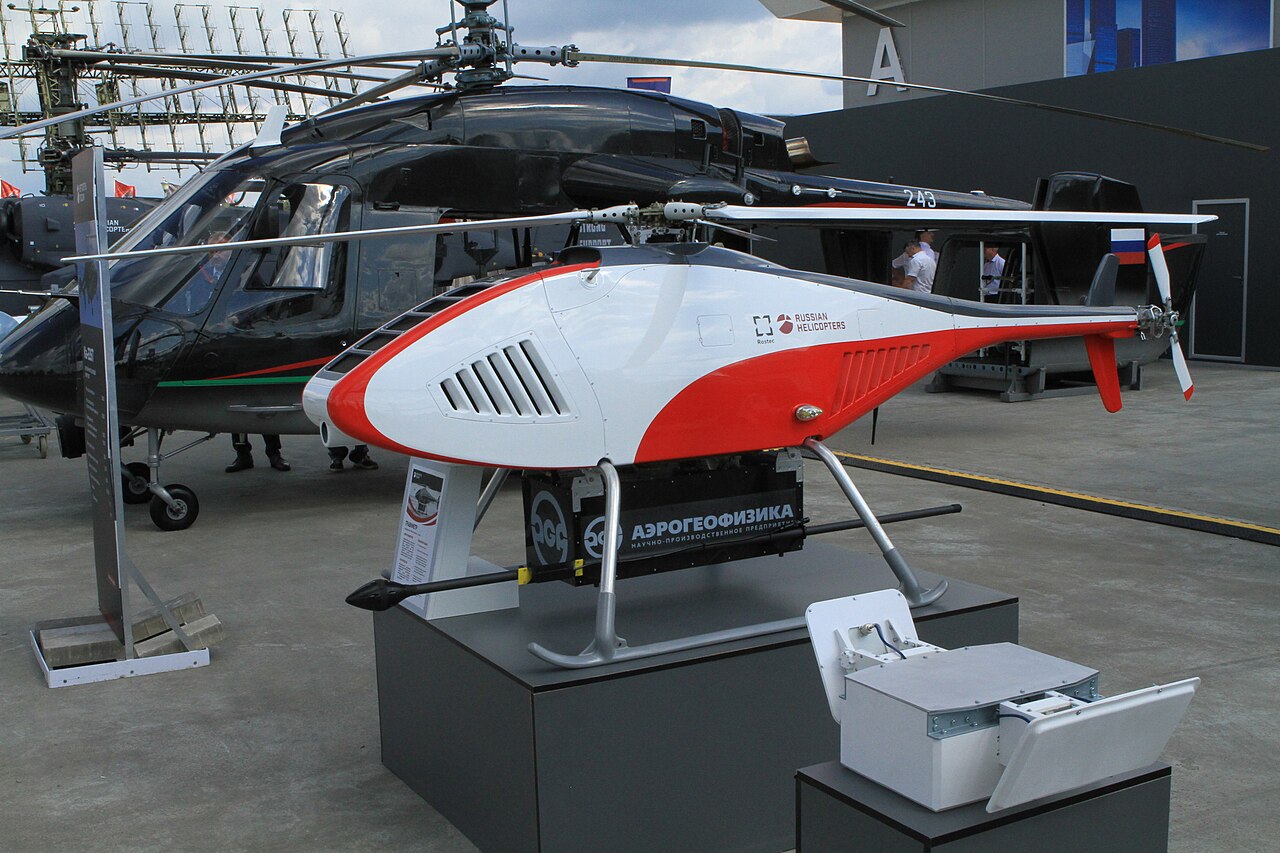

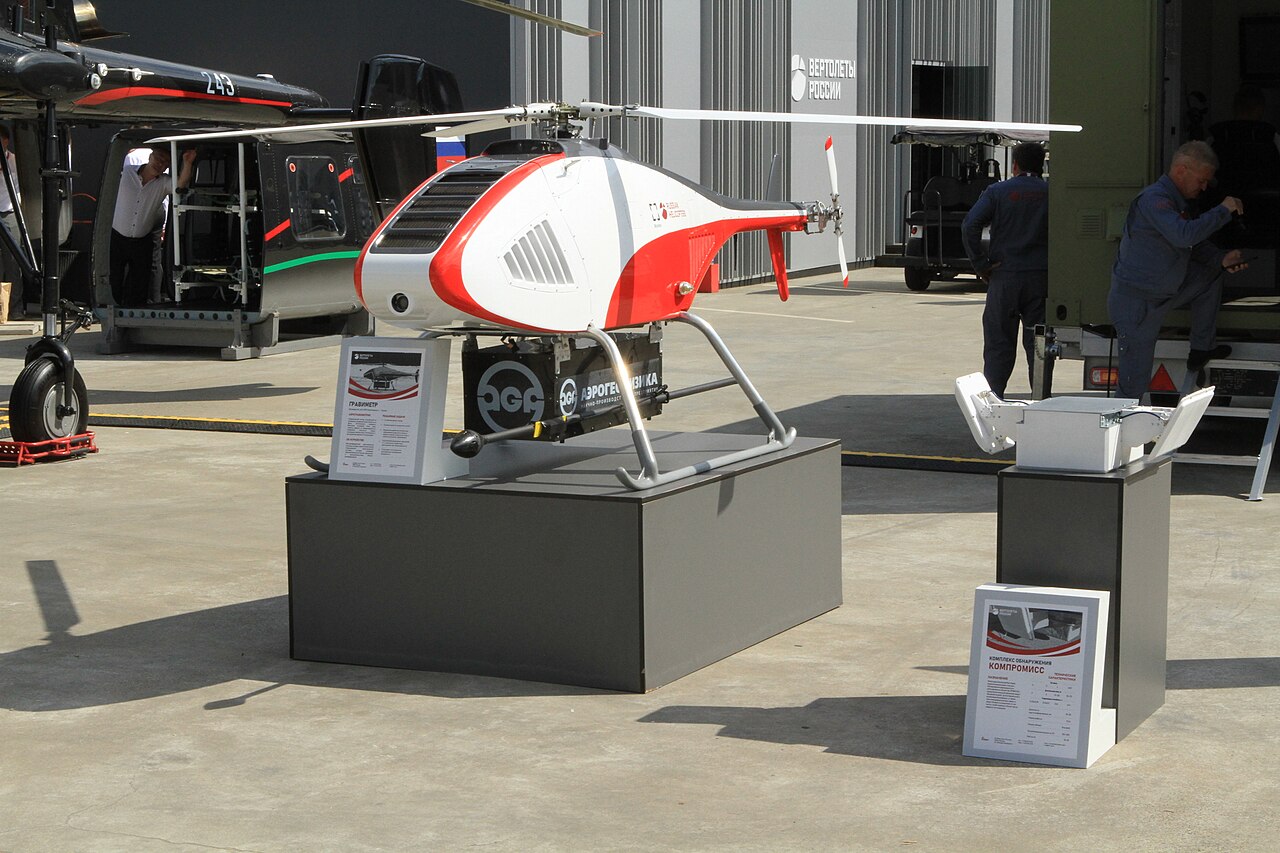

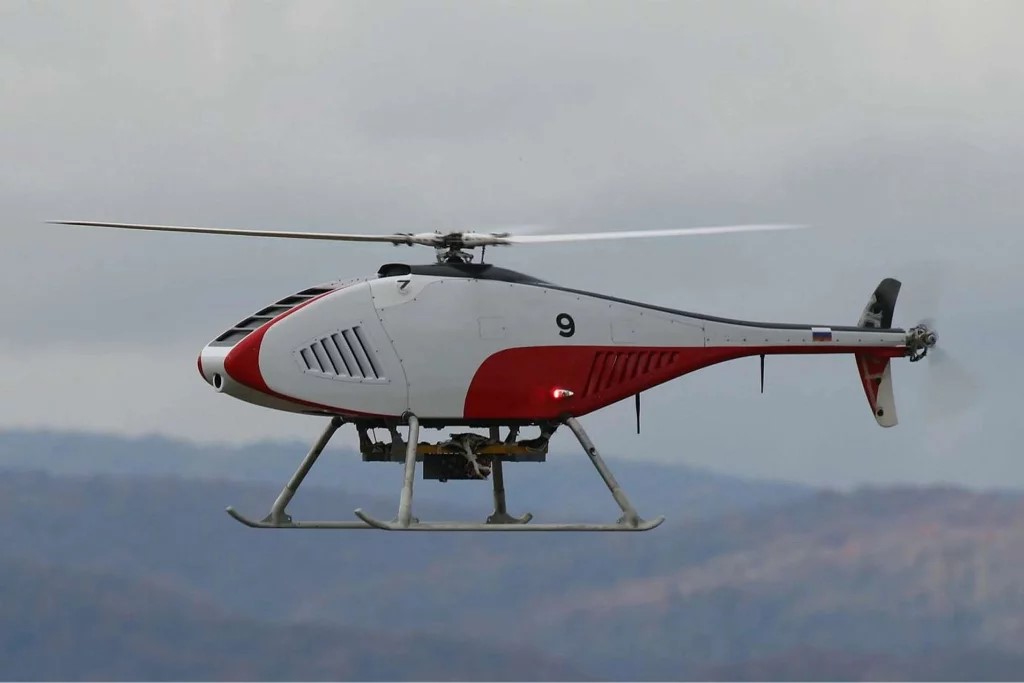

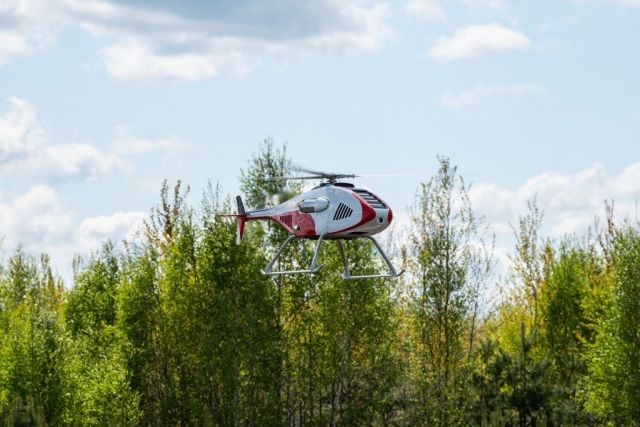

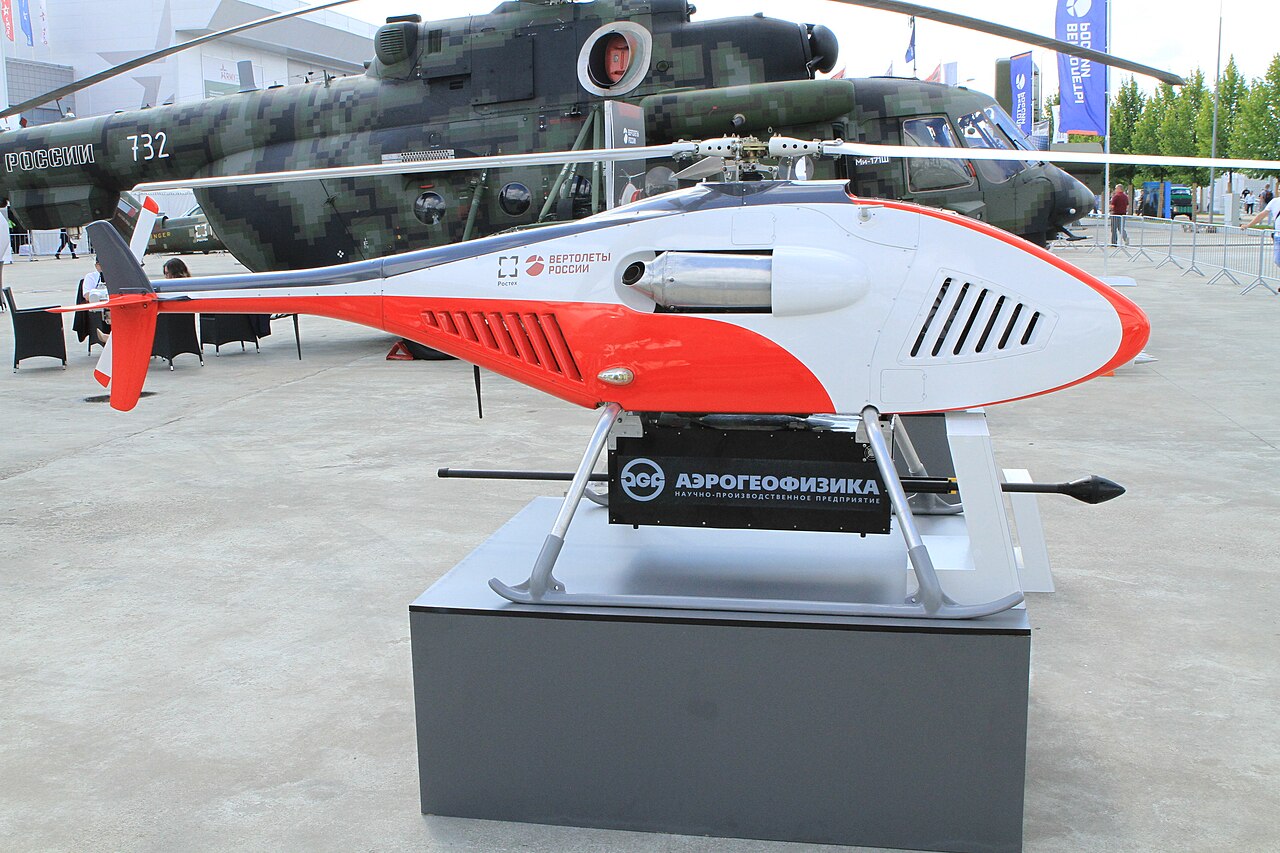

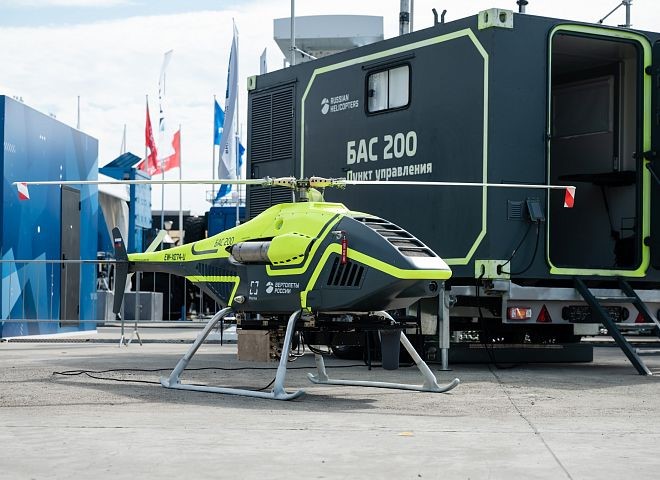

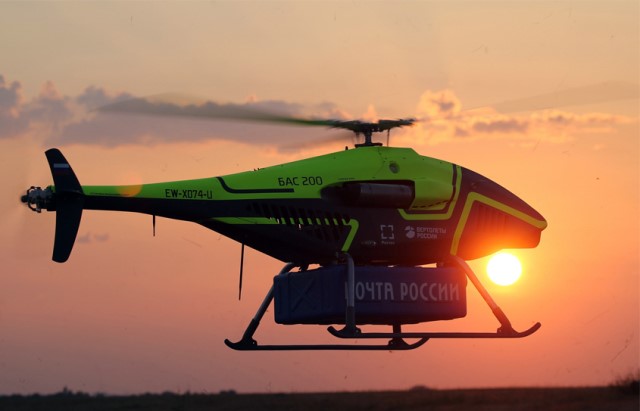

The BAS-200 Russian Unmanned Aerial Vehicle (UAV) possesses a conventional single-rotor configuration complemented by an antitorque propeller. This UAV is equipped with a rotary piston engine, enabling it to operate in automatic mode for up to four hours while supporting a payload capacity of 50 kilograms. The system is designed to conduct flight missions both during daylight and nighttime hours, utilizing both manual and automatic modes without requiring remote pilot intervention. Additionally, it accommodates a variety of payloads, thereby enabling the execution of a broad spectrum of operational missions.

Air & Air Defense Specifications
Engine Rotary Engine (54 hp)
Max Speed 160.0 km/h
Range 100.0 km
Endurance 4.00 hrs
Service Ceiling 3500 m
Payload Capacity 50 kg
System
Alternate Designation BAS-200
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Russian Helicopters, a subsidiary of Rostec State Corporation
Payload Capacity 50 kg
Dimensions
Length 3.9 m
Width INA
Height 1.2 m
Maximum Takeoff Weight 200 kg
Automotive
Engine Name INA
Engine Type Rotary Piston Engine
Engine Power 54 hp
Fuel Capacity 57 liters
Maximum Speed 160 km/h
Maximum Range 100 km
Service Ceiling 3,500 m
Endurance 4 hours
Details
Country of Origin Russia
Category UAVs
Air > UAVs
Filter Label
B
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
3.9 m
Width
Height
1.2 m
Weight
200 kg
Operators (1)
Russia
