Hyuga

Hyuga

Aircraft Carriers
Spotted an error? Sign in to suggest an edit.
Hyuga

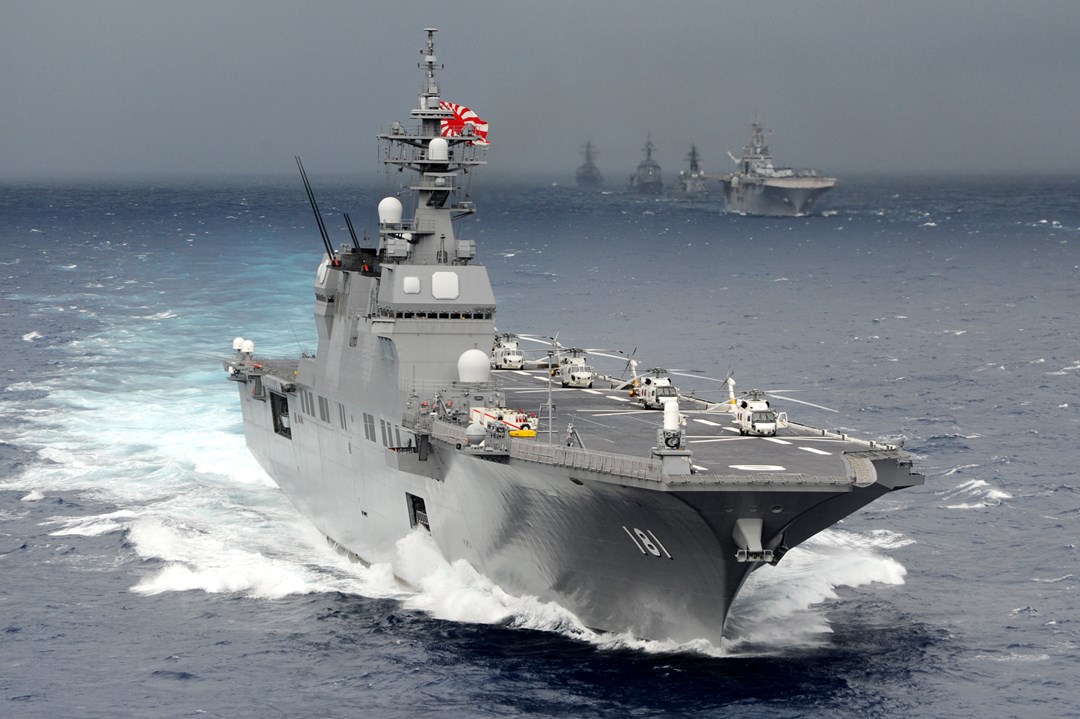

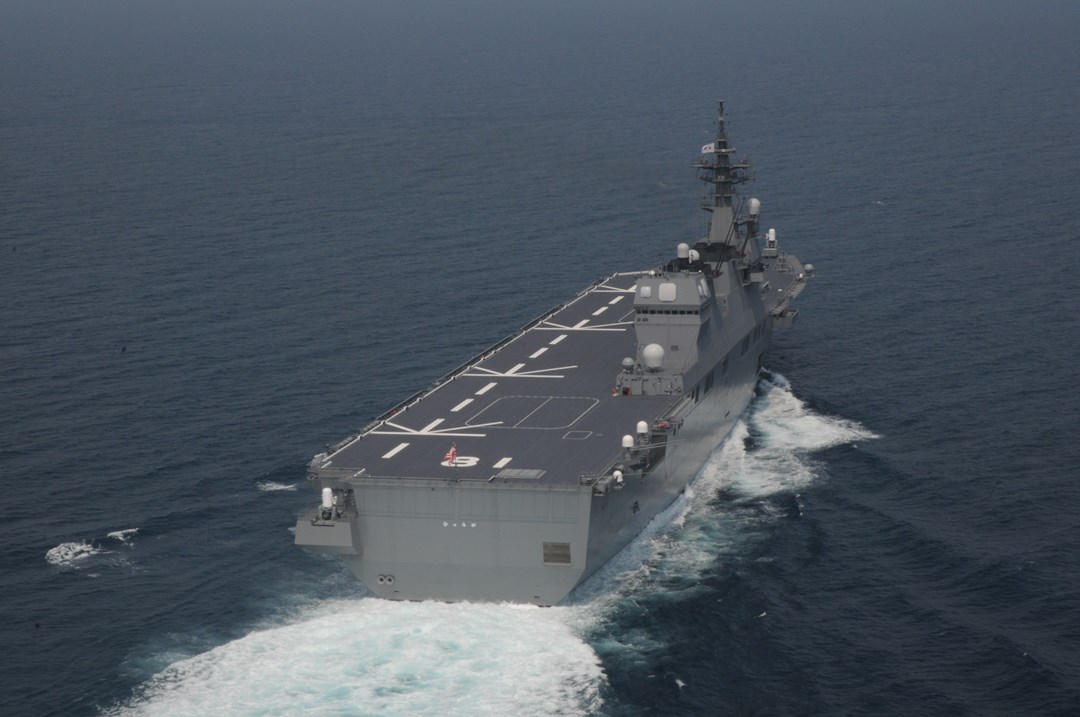

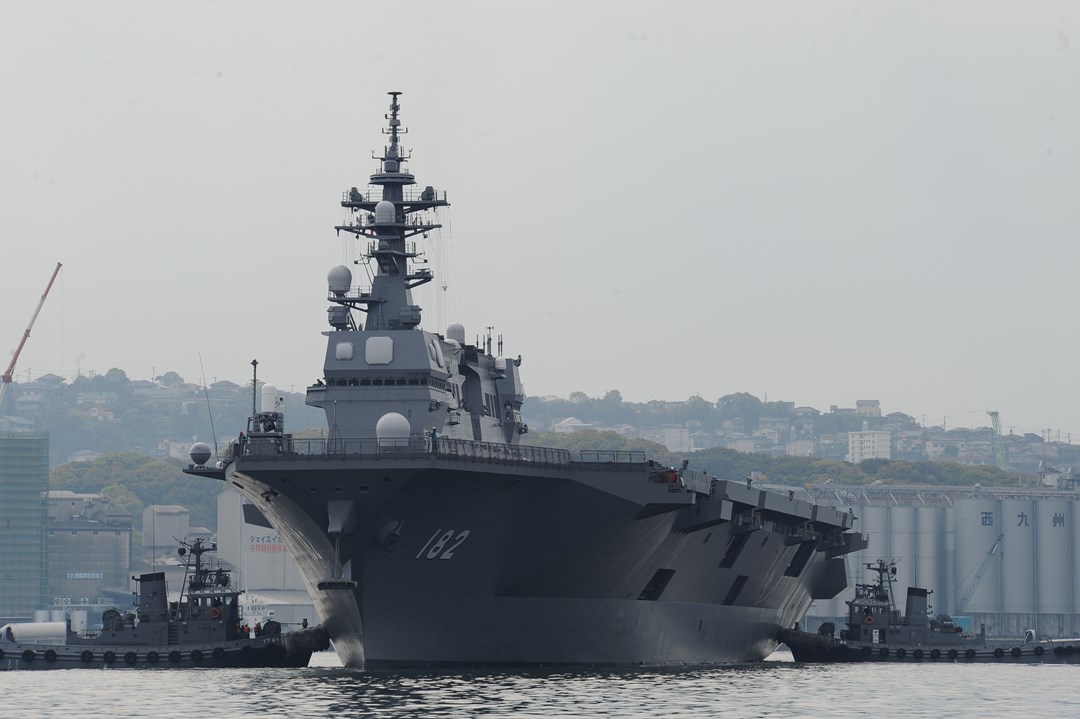

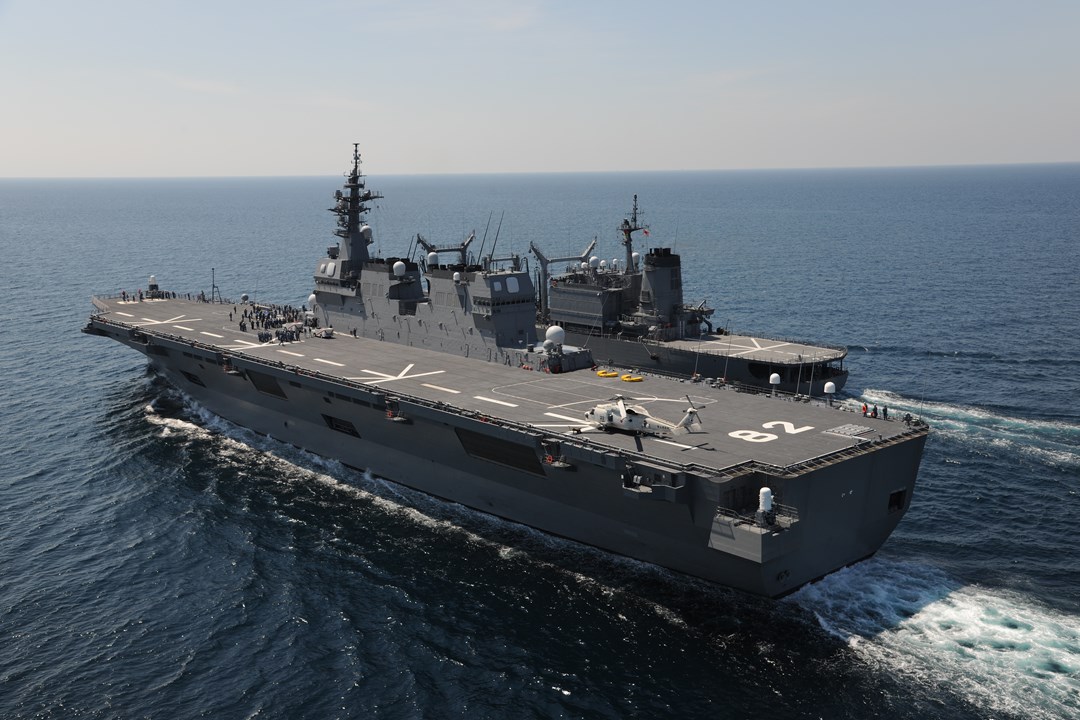

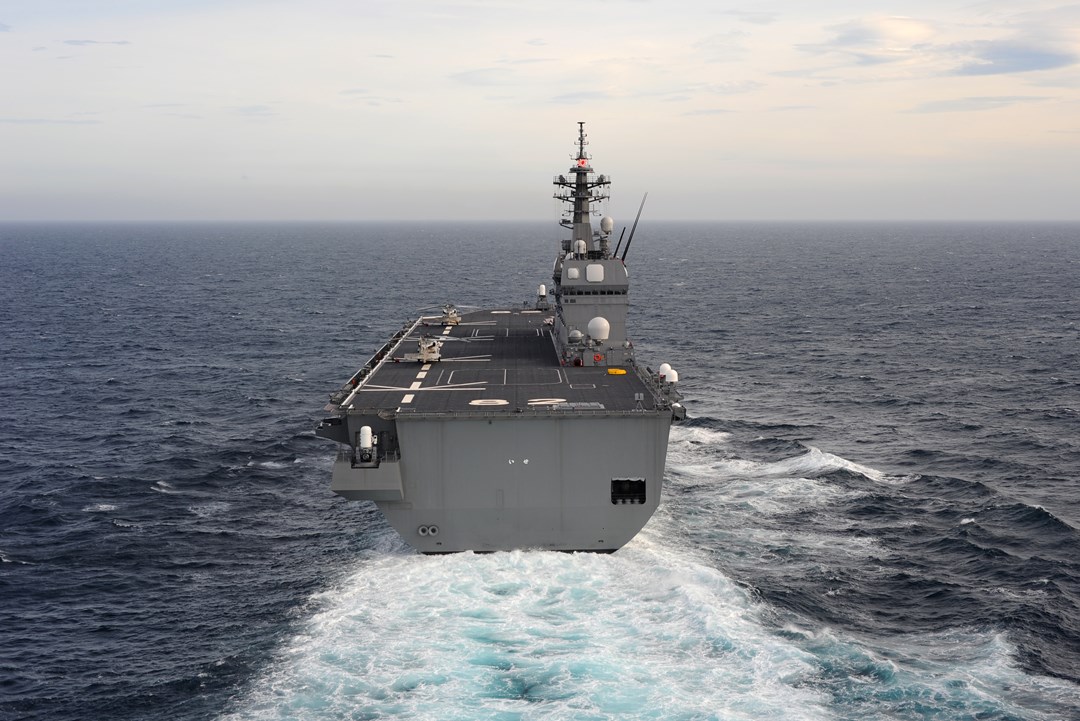

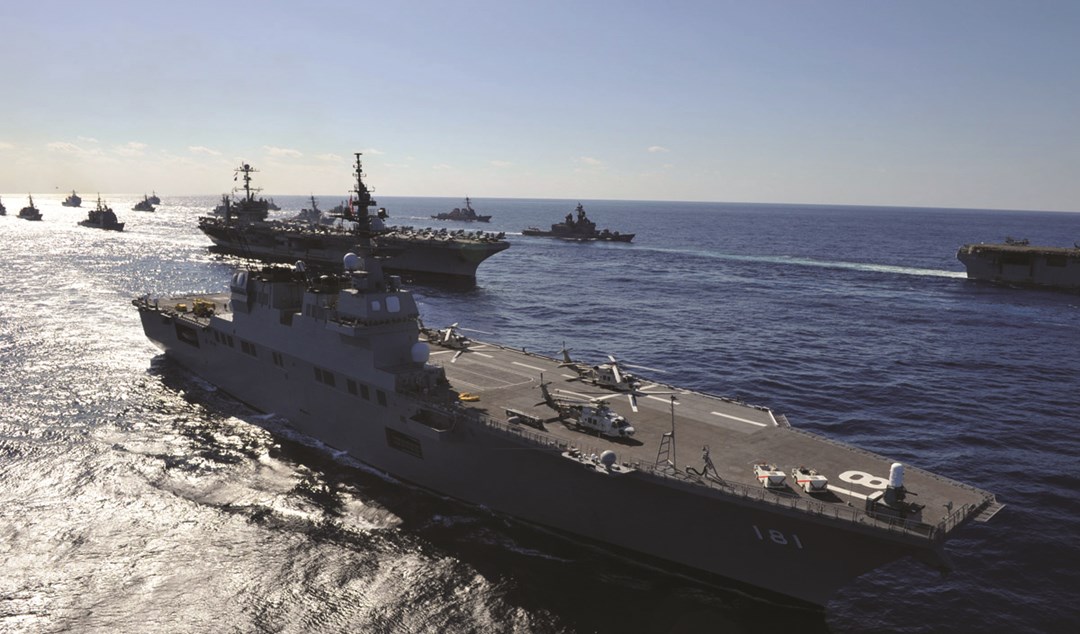

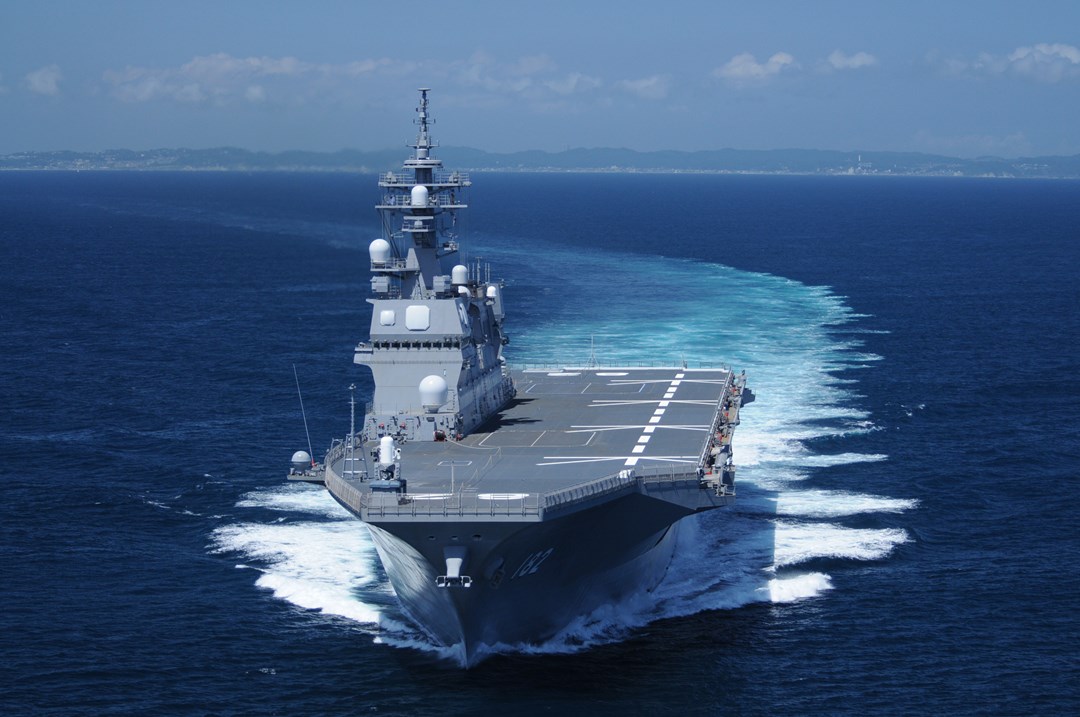

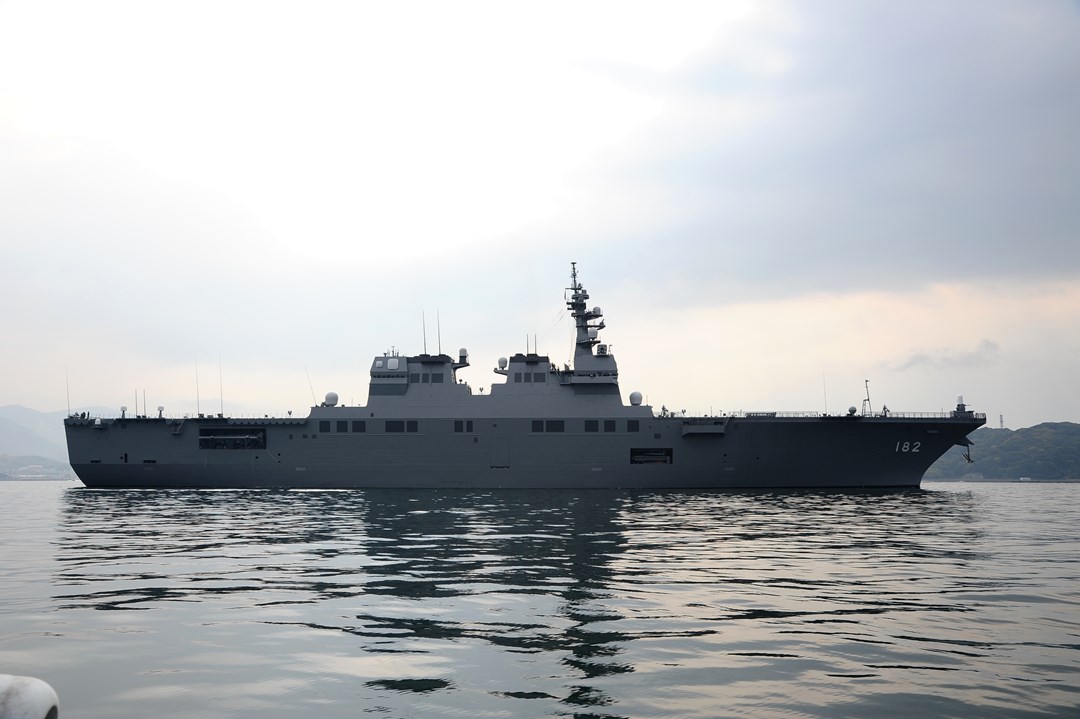

Operational Photo
deagel.com

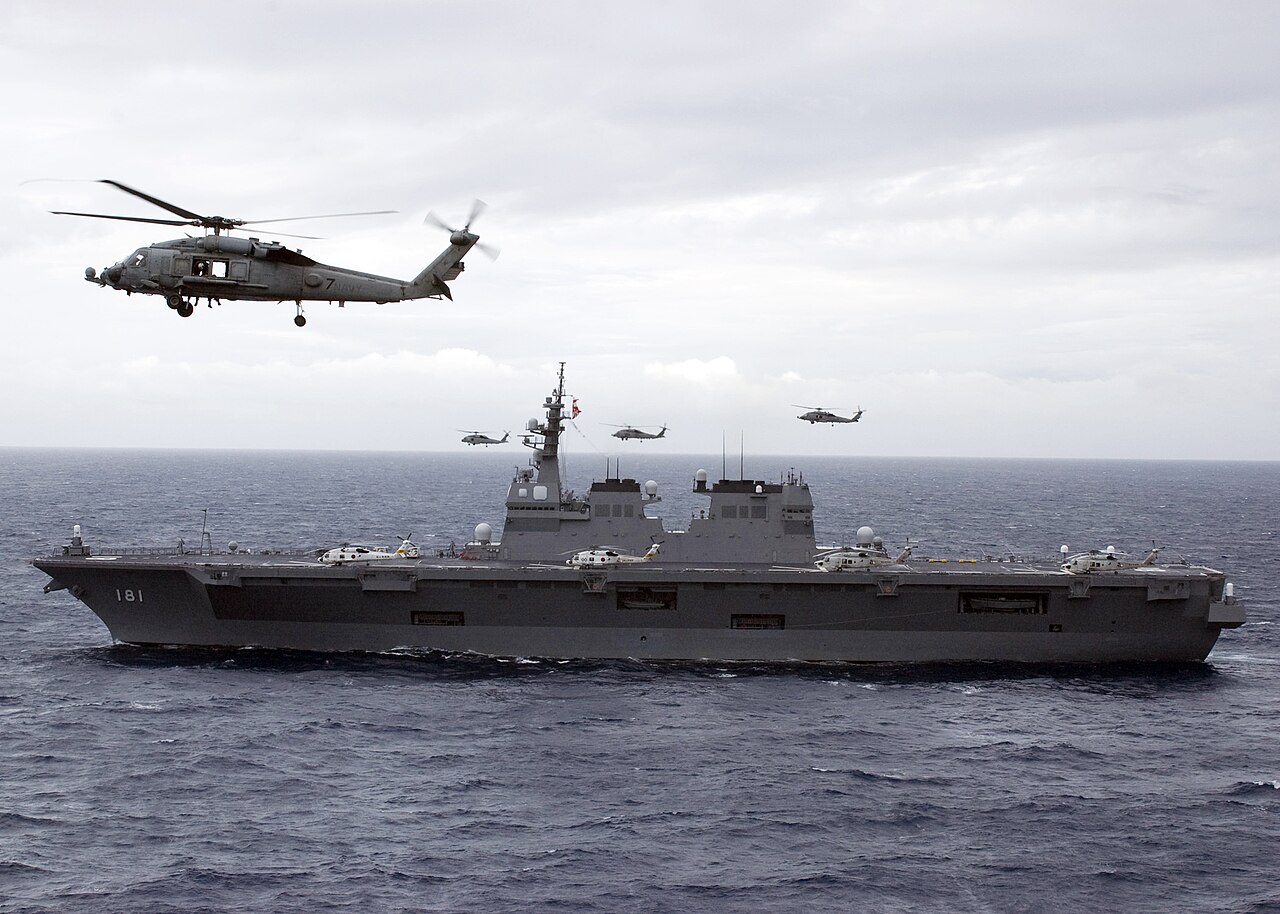

Helicopter carrier Hyūga (16DDH).jpg

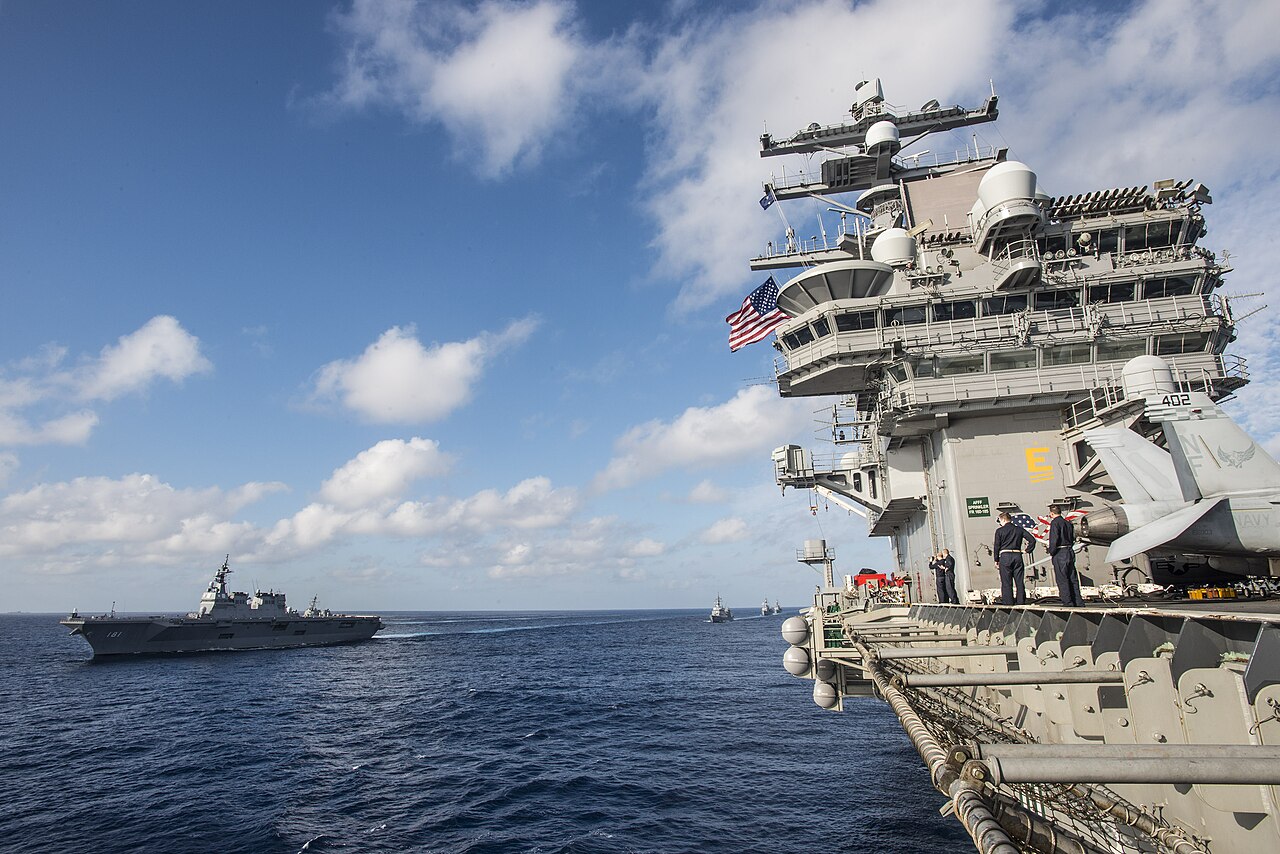

151123-N-TE278-055 (24145988250).jpg

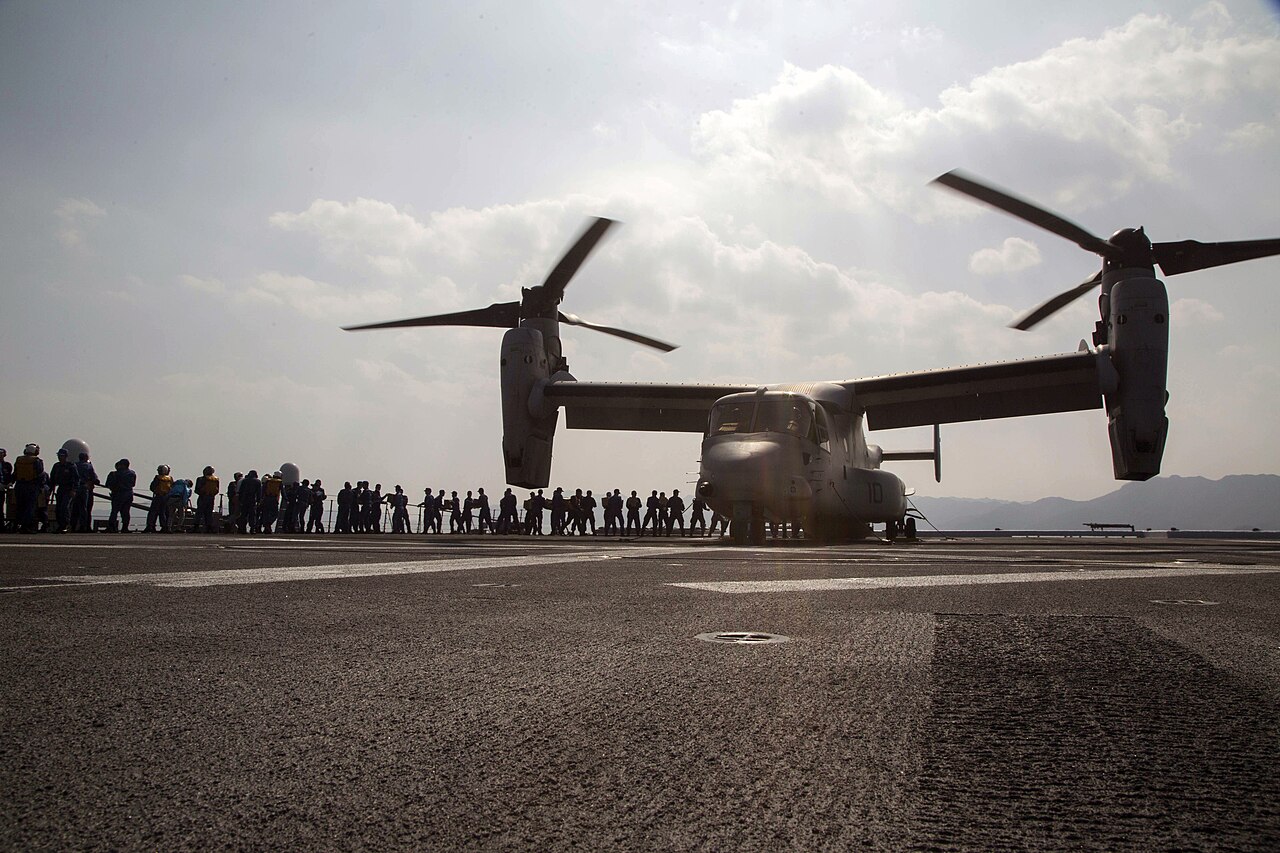

160419-M-TA699-051 (26586795346).jpg
Basic Information
Name
Hyuga
Designation
Hyuga
Alternate Designation
DDH 181
Equipment Type
Aircraft Carriers
Manufacturer
Ishikawajima-Harima Heavy Industries (IHI)
Date of Introduction
2009
Description

The Japan Maritime Self Defense Force (JMSDF) Hyuga (DDH181) aircraft carrier is a 14,000t class ship intended to transport up to six anti-submarine warfare (ASW) helicopters. It is provided with air defense capability based on the FCS-3 fire control radar system using two 20mm close-in weapon systems and vertical launch system (VLS) fitted with surface-to-air missiles (SAMs). Besides, it is equipped with torpedo launch tubes. The propulsion system consists of four gas turbines developing 100,000-hp and thus allowing a top speed of 30 knots. The JS Hyuga was commissioned by the JMSDF on March 18, 2009.

Naval & Littoral Specifications
Crew 340
Displacement 13950.00 tonnes
Beam 33.00 m
Max Speed 30.0 knots
Overview (Deagel)
Group Aircraft Carriers
Status Active
Also Known As DDH 181
Origin Japan
Contractor Ishikawajima-Harima Heavy Industries (IHI)
Initial Operational Capability (IOC) March 18, 2009
Total Production 2
Specifications (Deagel)
Crew 340
Number of Aircraft 6
Dimensions — Beam 33 meter
Dimensions — Length 197 meter
Dimensions — Main Gun Caliber 20 millimeter
Dimensions — Ship's Height 22 meter
Mass — Full Displacement 13,950 ton
Power — Total Combined Power 100,000 hp
Speed — Top Speed 30 knot
Gear (Deagel)
Item 1 ASW Helicopters: SH-60J (6)
Item 2 Radar Systems: FCS-3
Item 3 Sea-Based Air Defense Systems: Mk 15 Phalanx Block 1B (2)
Details
Country of Origin Japan
Category Aircraft Carriers
Naval > Aircraft Carriers
Sources

deagel.com: https://www.deagel.com/x/x/a002421 Wikidata (https://www.wikidata.org/wiki/Q210465)

Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
197 m
Width
33 m
Height
22 m
Weight
13950000 kg
Operators (1)
Japan
