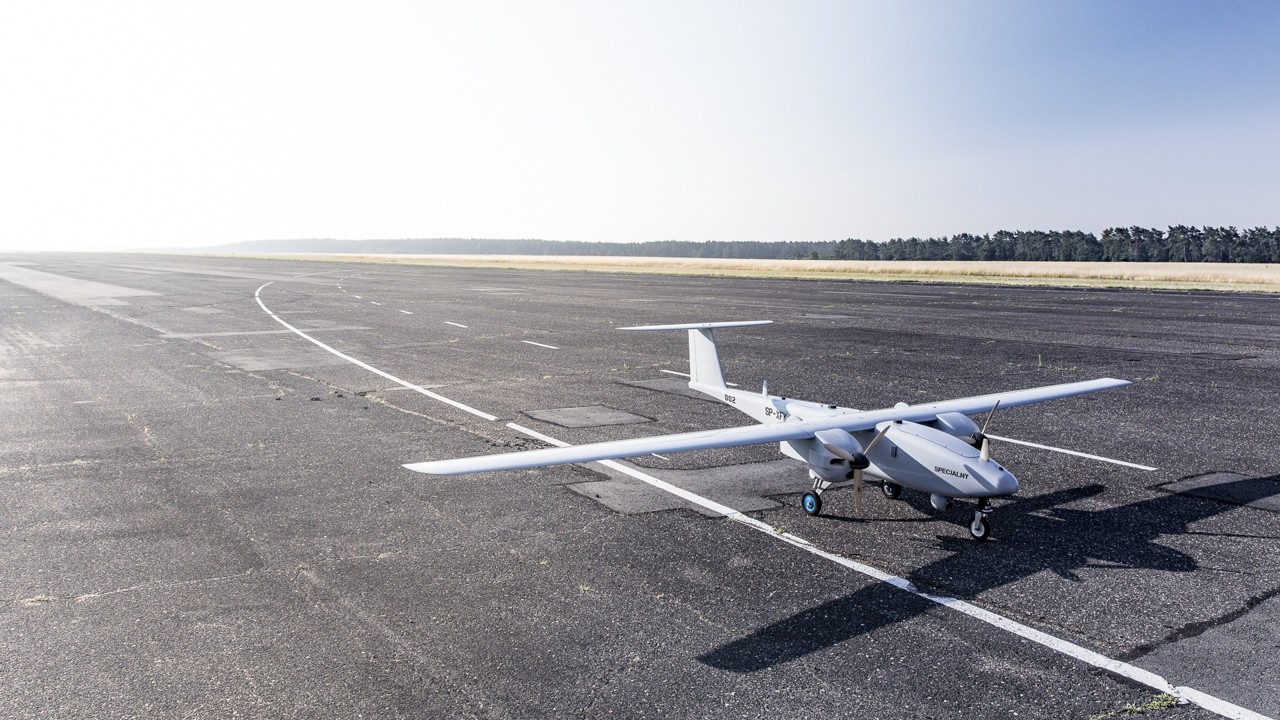

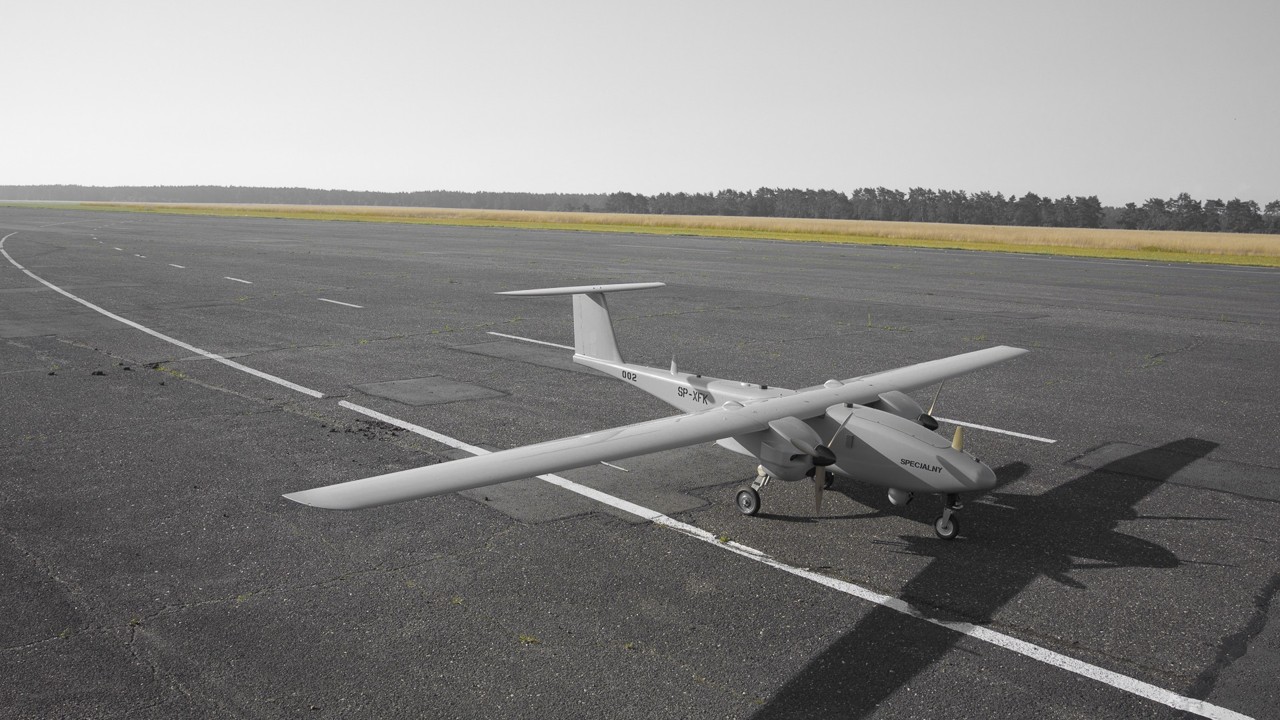

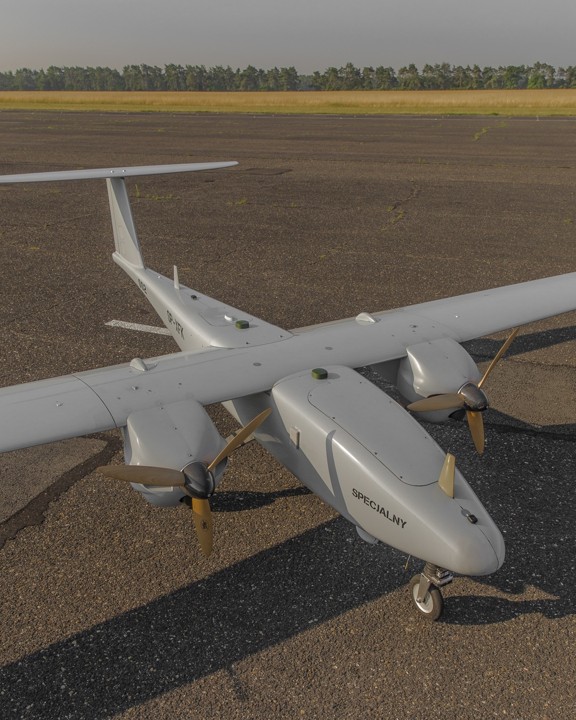

FT5 Polish Unmanned Aerial Vehicle (UAV)
FT5
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
FT5 Polish Unmanned Aerial Vehicle (UAV)
Designation
FT5
Alternate Designation
FT5
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
WB Group
Date of Introduction
2022
Description
The FT5 Polish Unmanned Aerial Vehicle (UAV) is a tactical aerial platform powered by EFI controlled, independent engines. It’s designed for battlefield surveillance, observation, patrolling state borders and surveying natural disasters.
Air & Air Defense Specifications
Engine
EFI controlled independent engines
Range
150.0 km
Endurance
10.00 hrs
Service Ceiling
5000 m
Wingspan
6.40 m
System
Alternate Designation
FT5
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
WB Group
Payload Capacity
Capable of carrying ordnance.
Flight Plan
An automatic flight following waypoints according to a flight plan made of
a set of defined geographic locations named waypoints. The path that is
followed by the UAV can be modified at any moment, both prior and during
the mission.
Camera Guided
The UAV moves in the direction that the camera is facing. This mode is
especially useful for following moving targets.
Manual
Control by the operator. The camera angle is fixed pointing forwards and the
operator controls the flight direction of the UAV. Turns are controlled by the
autopilot ensuring that operation is within safe boundaries. For enhanced
safety, this mode automatically switches down if there is no operator input
for a certain amount of time.
Return
An emergency flight mode. This mode is automatically started after the
loss of radio contact or GPS reception and makes the UAV fly to a preprogrammed
point. It is only possible to re-initiate the flight plan following
the re-establishment of radio contact between the GCS and the AV.
Take-off
Procedure is fully automatic. The air vehicle uses typical runway to speed up.
After achieving desired velocity, the AV perform rotation and starts climbing.
On 50 m altitude, the procedure finished and the AV begins the flight plan.
Landing
Procedure is fully automatic. Upon arrival at the descent area, the AV
lowers the flight down to 100 m and continue to short final. The AV touches
down on the pre-determined point and runway direction.
Dimensions
Length
1.3 m
Height
INA
Wingspan
6.4 km
Maximum Takeoff Weight
85 kg
Automotive
Engine Name
INA
Engine Type
EFI controlled independent engines
Engine Power
INA
Maximum Speed
INA
Maximum Range
150 km
Service Ceiling
5,000 m
Endurance
10 hours
Image Sources
Details
Country of Origin
Poland
Category
UAVs
Air > UAVs
Filter Label
F
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
1.3 m
Width
—
Height
—
Weight
85 kg
Operators (1)
Poland
