Basic Information

Name

XA-202 Finnish 6x6 Armored Command Vehicle

Designation

XA-202

Alternate Designation

XA-202

Equipment Type

6x6 Armored Command Vehicle

Manufacturer

Patria

Date of Introduction

2001

Description

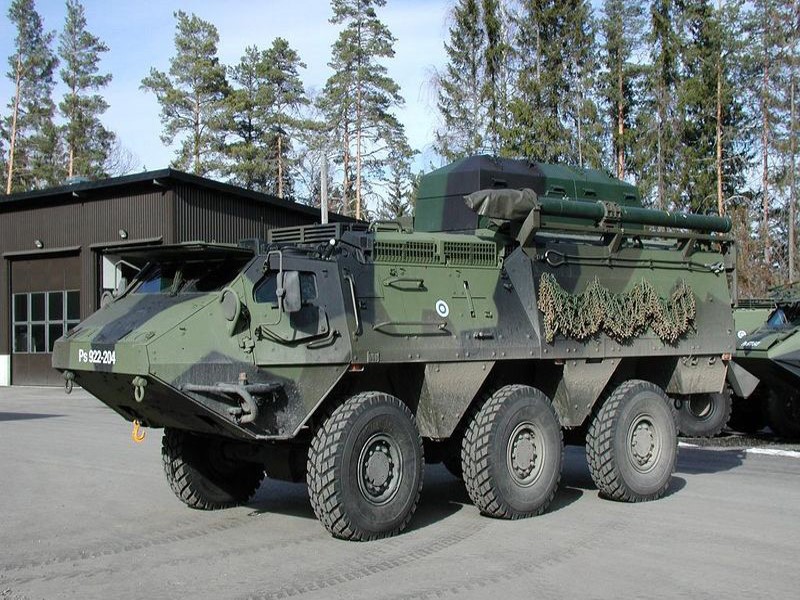

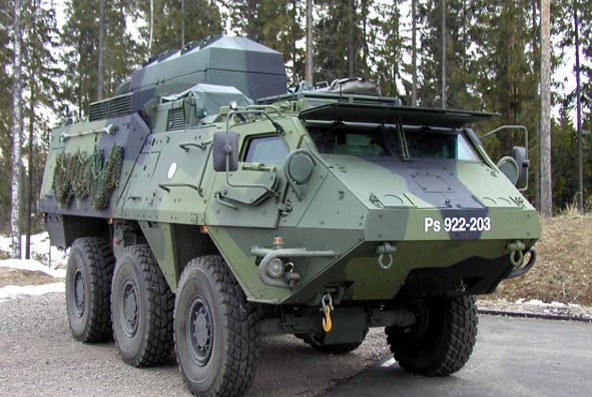

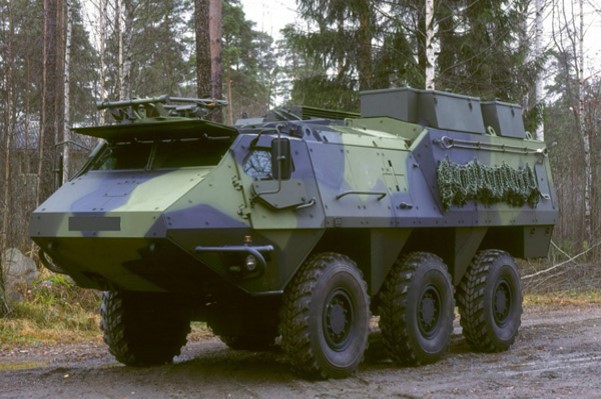

XA-202/XA-202S This is a command vehicle based on the XA-200 chassis. The hull is divided into four sections: auxiliary power unit (APU) room, engine room, driver/commander compartment and operator room. A ring mount for a 12.7-mm machine gun is fitted above the commander. The XA-200 series armoured 6×6 wheeled vehicle is an updated production version of the XA series, of which over 700 vehicles have been produced. The series is manufactured by Patria Vehicles of Hameenlinna, Finland, formerly Sisu Vehicles. The vehicle is in service with the Finnish Army (104 XA-200 armoured personnel carriers), the Swedish Army (86 XA-203S basic vehicles and 18 XA-202S command vehicles) and the Norwegian Army (32 XA-200 armoured personnel carriers). The AMOS advanced mortar system has been integrated on the XA-200 chassis and trialled and evaluated by the Finnish Army. 24 AMOS systems (developed by Patria Hagglunds) were ordered by Finland for integration on the Patria 8×8 armoured modular vehicle.

Ground Specifications

Crew 3

Mobility Type Wheeled (6x6)

Main Weapon 12.7-mm machine gun

Engine 6-Cylinder Turbocharged Diesel (295 hp)

Active Protection None

Max Speed 95.0 km/h

Range 600.0 km

Variants

XA-202/XA-202S This is a command vehicle based on the XA-200 chassis. The hull is divided into four sections: auxiliary power unit (APU) room, engine room, driver/commander compartment and operator room. A ring mount for a 12.7-mm machine gun is fitted above the commander.

XA-203/XA-203S This is an armored personnel carrier variant with a combat weight of 23 tons, including a payload of 7 tons.

XA-220 This is the latest variant, which was revealed by Patria in mid-2016. The vehicle offers more comfort, mine protection, armor protection, speed, all-terrain mobility and internal space compared to similar platforms, according to the manufacturer.

System

Alternative Designation XA-202

Type 6x6 Armored Command Vehicle

Manufacturer Patria Vehicles, Hameenlinna, Finland

Family XA Series

Crew 3 ea

Passenger Capacity 8 ea

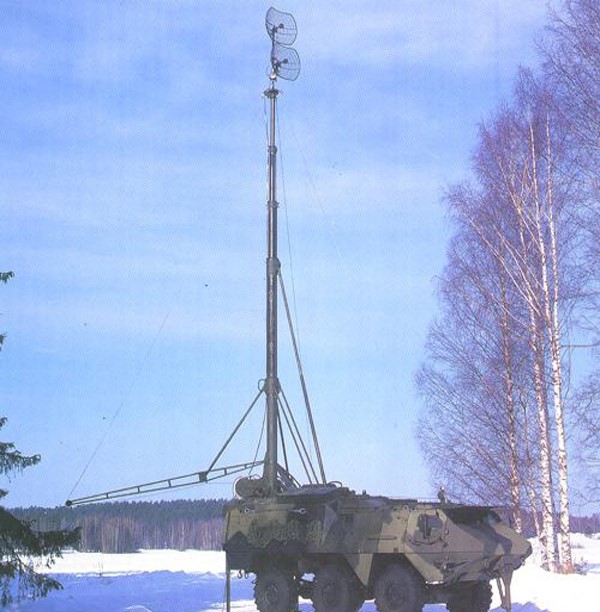

Note The vehicle can be fitted with a 78-ft 9-in (24-m) hydraulic mast, powered by the main engine's hydraulic pump. It has an automatic, hydraulically tightening guy rope system with a radius of 17 ft (5.2 m) and hydraulically powered support legs.

Dimensions

Length 7.45 m

Width 2.95 m

Height 2.60 m

Ground Clearance 0.40 m

Weight, Combat 22,500 kg

Weight, Unloaded 14,500 kg

Payload Weight 8,000 kg

Automotive

Engine Name Valmet 612DWIBIC (Euro 2)

Engine Type turbocharged intercooled six-cylinder inline Diesel

Engine Power 295 hp at 2,000 rpm

Power-to-Weight Ratio 13.4 hp/ton

Fuel Capacity 300 liters

Transmission Allison MD 3560PR automatic w/torque converter(6 forward gears, 1 reverse in high range)

Axles Sisu

Steering hydraulic, power steering, first two axles

Brakes dual circuit pneumatic

Suspensions parabolic leaf springs with hydraulic shock absorbers

Maximum Speed on Road 95 kph

Range 600 km

Gradient 60 percent

Side Slope 60 percent

Fording 1.5 m

Main Gun

Note A ring mount for a 12.7-mm machine gun is fitted above the commander.

Protection

Hull Armor High hardness welded armored steel

Applique Armor Available

Explosive Reactive Armor No

Active Protection System No

Mine Clearing No

NBC Protection Available

Smoke Equipment INA
