M1200 Chinese Unmanned Aerial Vehicle (UAV)

M1200

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
M1200 Chinese Unmanned Aerial Vehicle (UAV)
Designation
M1200
Alternate Designation
M1200
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
T-DRONES
Date of Introduction
2024
Description

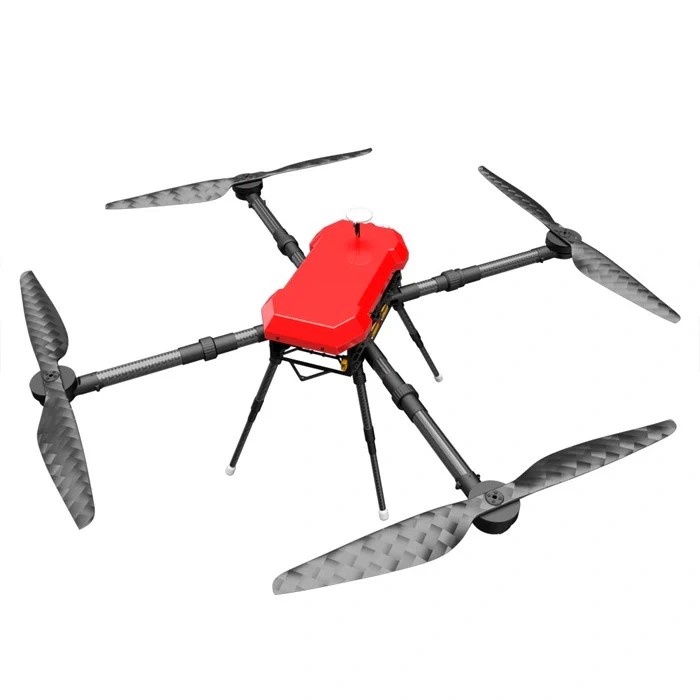

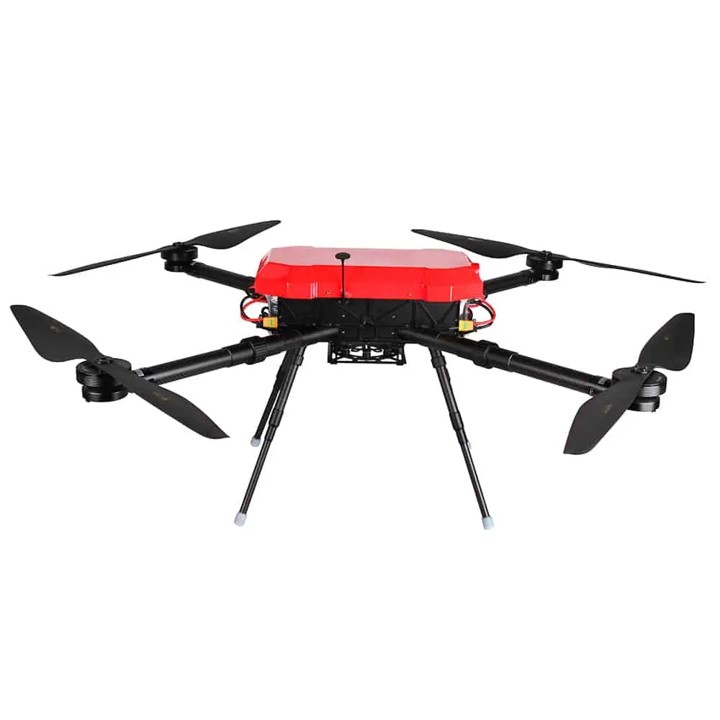

The M1200 Chinese Unmanned Aerial Vehicle (UAV) is a commercial-grade multirotor (quadcopter) platform manufactured by T-DRONES, a Chinese technology firm specializing in long-endurance industrial UAV systems. This system represents a mid-to-heavy payload industrial drone segment rather than a military platform. With a maximum takeoff weight of 18.5 kilograms, a payload capacity of 2–5 kilograms, and endurance exceeding 70 minutes with minimal payload, the M1200 is optimized for surveying, infrastructure inspection, surveillance, and cargo logistics in civilian applications. The platform's modular architecture, open-source flight controller (PIXHAWK), and customizable payload bay position it as a flexible platform for diverse commercial missions rather than a dedicated military system. From a military analysis perspective, the M1200 represents accessible dual-use technology capable of supporting logistics, reconnaissance, or surveillance missions through civilian procurement channels. However, the platform's limitations in endurance, payload, noise signature, and detectability preclude it from strategic military applications. It remains fundamentally a commercial platform with potential—but not primary—military utility, typical of small commercial quadrotor systems in the global market.

Air & Air Defense Specifications
Engine Electric
Range 30.0 km
Endurance 70.00 hrs
Payload Capacity 5 kg
System
Alternate Designation M1200
Type Unmanned Aerial Vehicle (UAV)
Manufacturer T-DRONES
Payload Capacity 5 kg
Control System PIXHAWK
Operating Temperature -15℃~50℃
Dimensions
Wheelbase 1,230 mm
Dimensions Folded 585mm x 585mm x 570mm
Dimensions (Unfolded) 990mm x 1,005mm 570mm
Weight of Drone (Without Battery) 5.14 kg
Weight of Drone (With Battery) 13.5 kg
Weight of Battery 8.36 kg(ARES 6S 22AH Battery or ARES 6S 27AH Battery* 4PCS)
Maximum Takeoff Weight 18.5 kg
Automotive
Engine Name T-MOTOR
Engine Type Electric
Engine Power INA
Maximum Ascent Speed 5 m/s
Maximum Descending Speed 3 m/s
Maximum Horizontal Flight Speed 15 m/s
GPS Hover Accuracy Vertical: ±0.5m; Horizontal: ±2.5m
Hover Time 2kg ≥70mins; 5kg ≥65mins (6S 27ah batteries)
Maximum Range 30 km
Service Ceiling INA
Endurance 70 min
Maximum Tolerable Wind Speed 13 m/s
Details
Country of Origin China
Category UAVs
Air > UAVs
Filter Label
M
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
18.5 kg
Operators (1)
China
