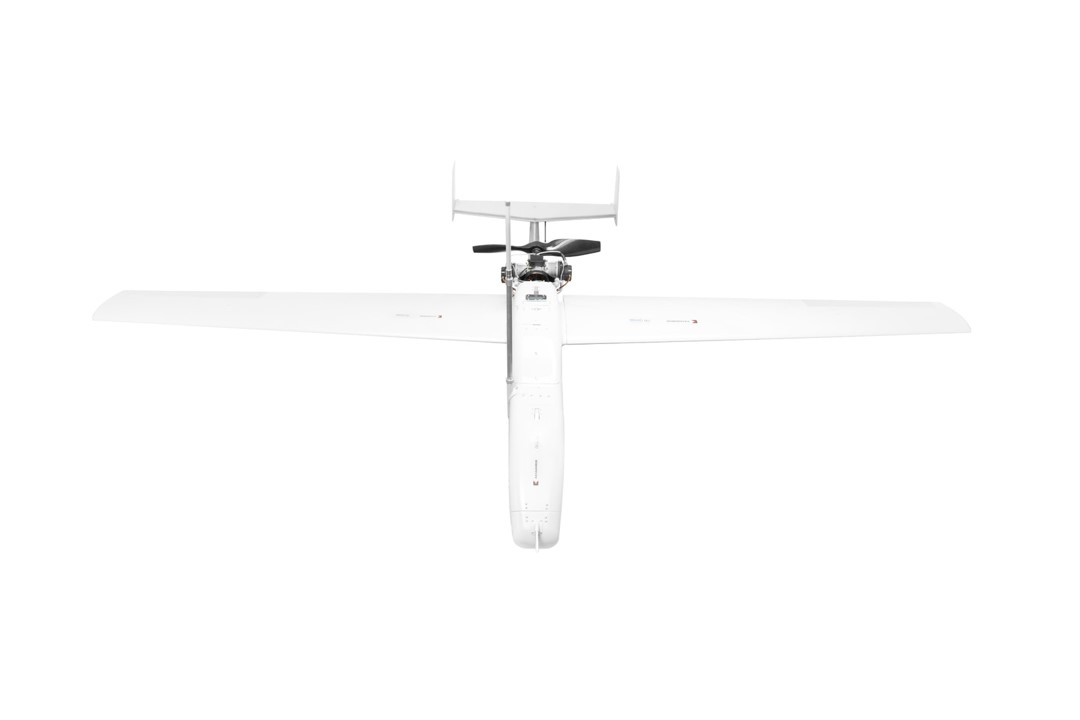

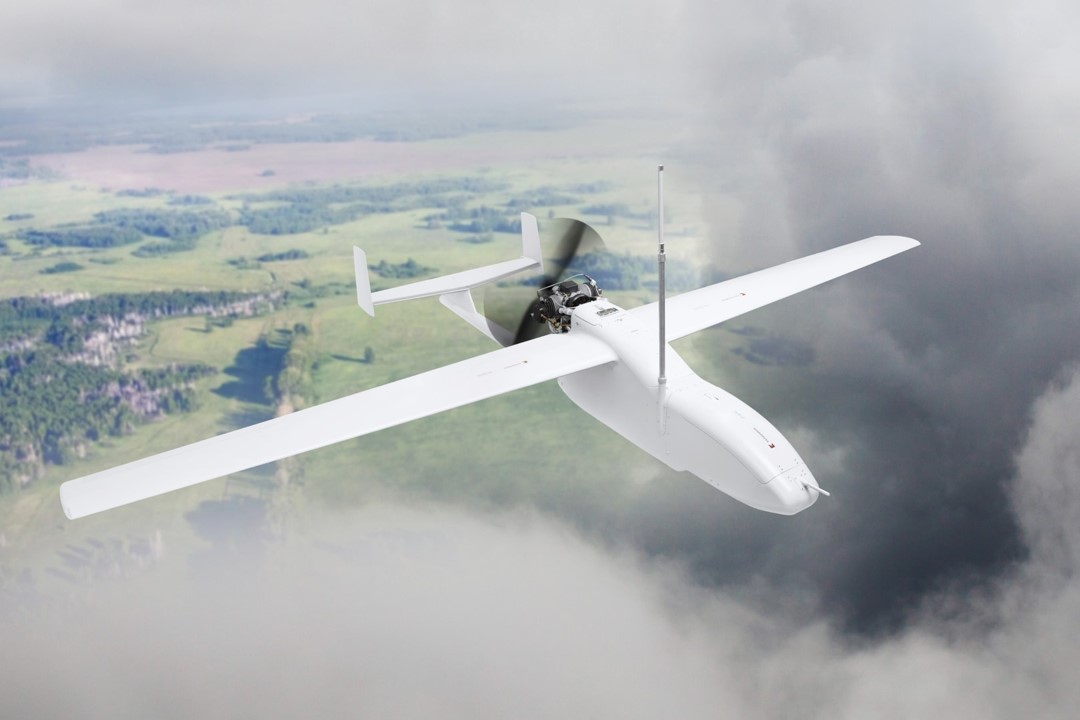

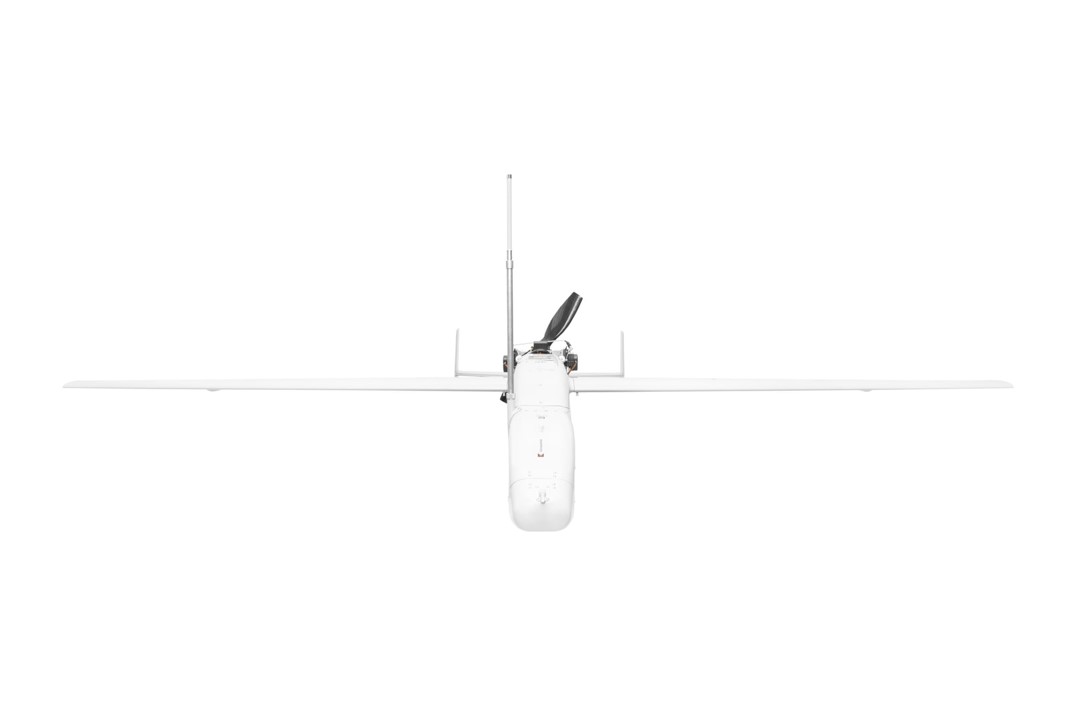

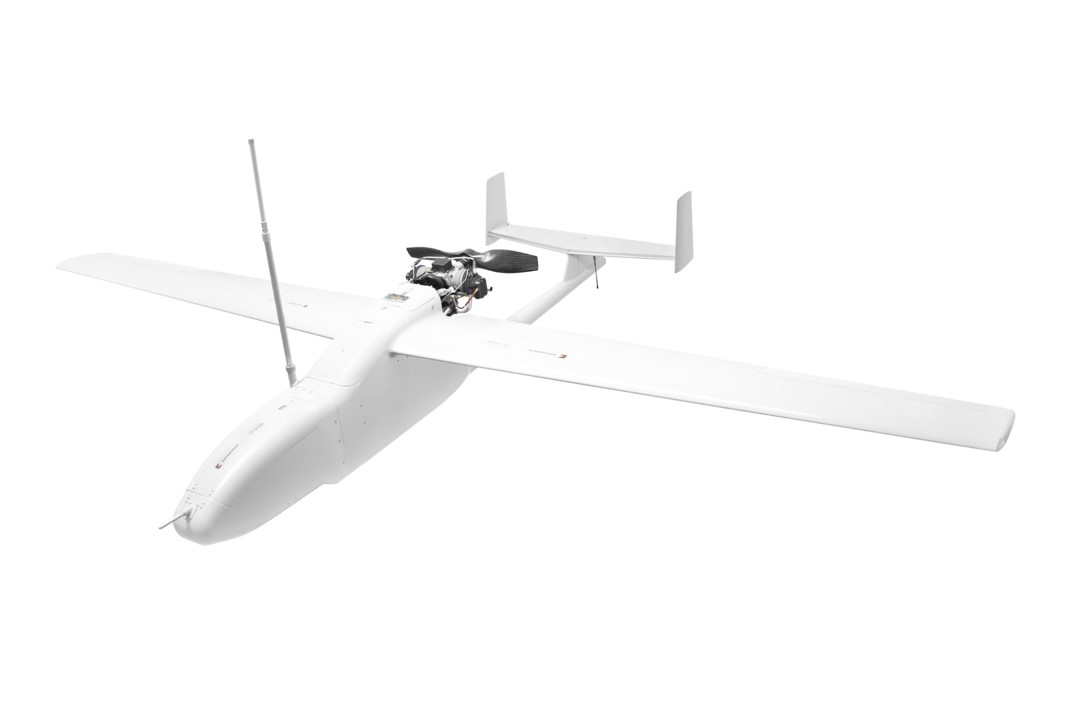

Granat-4-E Russian Unmanned Aerial Vehicle (UAV)
Granat-4-E
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
Granat-4-E Russian Unmanned Aerial Vehicle (UAV)
Designation
Granat-4-E
Alternate Designation
Granat-4-E
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Kalashnikov Concern
Date of Introduction
2025
Description
The Granat-4-E Russian Unmanned Aerial Vehicle (UAV) is designed for remote surveillance using photo-, video, and thermal-imaging equipment, day and night, at a distance of up to 55 km. The system is transported and controlled in a specially equipped mobile control station based on a KAMAZ truck.
Air & Air Defense Specifications
Engine
Internal Combustion Engine
Max Speed
140.0 km/h
Cruise Speed
90.0 km/h
Range
55.0 km
Endurance
8.00 hrs
Service Ceiling
3500 m
Wingspan
3.80 m
System
Alternate Designation
Granat-4-E
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Kalashnikov Concern JSC
Payload Capacity
INA
Photo Module
Image size, px
Full frame:
4.320 х 3.240
Short frame:
640 х 480
Quantity of practical picture elements, MP
14.1
Magnification
from 1х to 4х
Storage device
SD, SDHC
Video Module
Resolution, px
640 х 480
Maximum frame rate, frames/s
30
Angle of view
from 2.6° to 51°
Thermal Imaging Module
Resolution, px
388 х 246
Spectral band, µm
from 8 to 14
Sensitivity at ambient temperature 25 °C, mК
not more than 65
Thermal image receiver
IR module
Launching Method
catapult
Landing Method
automatic with parachute
Dimensions
Length
2.5 m
Height
INA
Wingspan
3.8 m
Maximum Takeoff Weight
45 kg
Automotive
Engine Name
INA
Engine Type
Internal combustion engine
Engine Power
INA
Maximum Speed
140 km/h
Cruise Speed
90 km/h
Maximum Range
55 km
Service Ceiling
3,500 m
Endurance
8 hours
Details
Country of Origin
Russia
Category
UAVs
Air > UAVs
Filter Label
G
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
2.5 m
Width
3.8 m
Height
—
Weight
45 kg
Operators (1)
Russia
