VBL

VBL

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
VBL
Designation
VBL
Alternate Designation
VB2L, Véhicule Blindé Léger
Equipment Type
Tactical Vehicles
Manufacturer
Panhard & Auverland
Date of Introduction
1990
Description

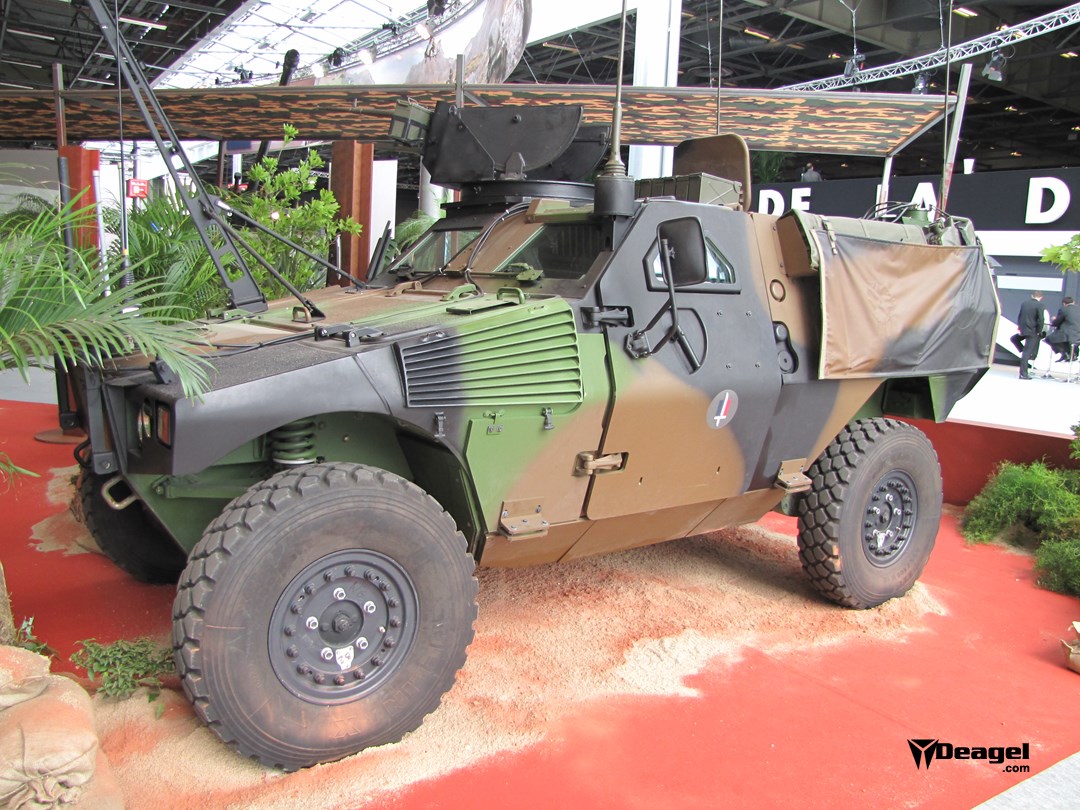

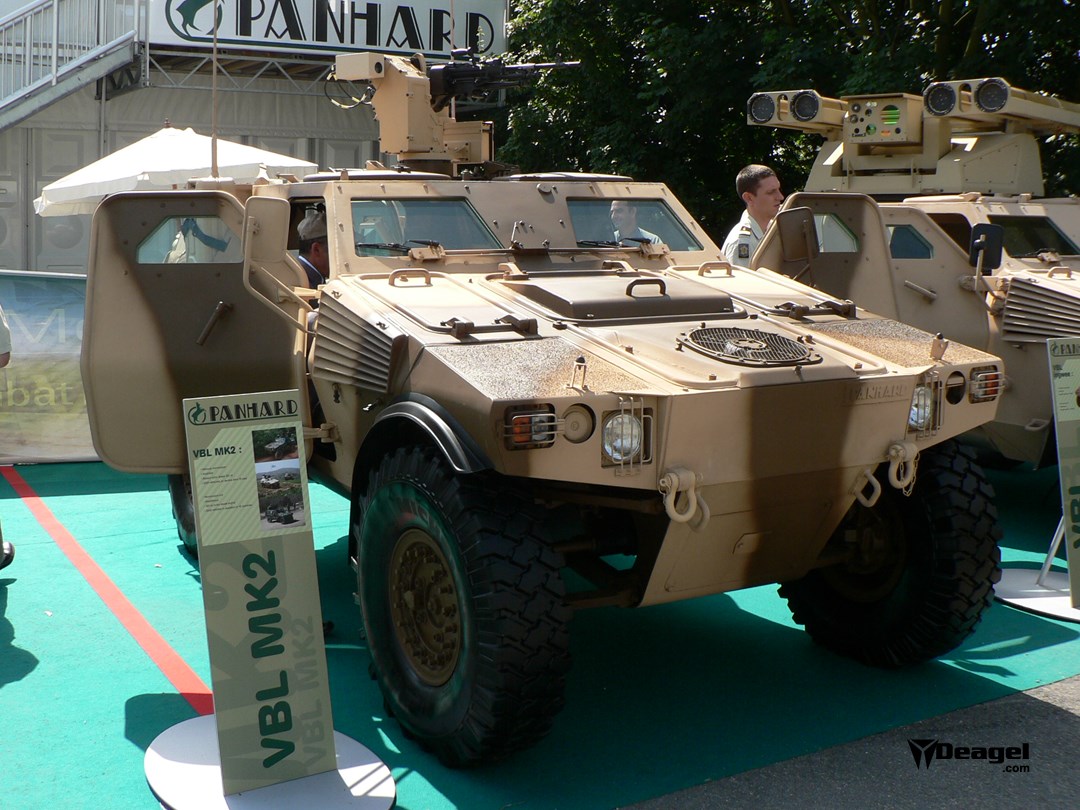

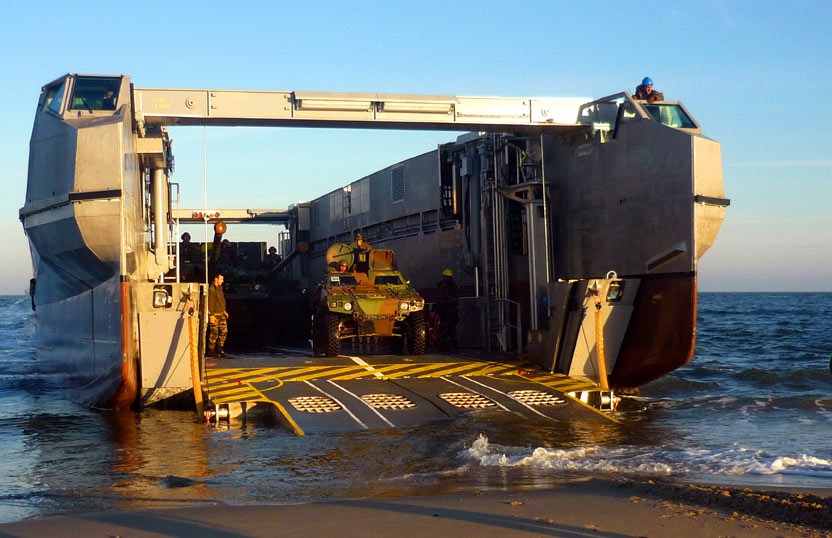

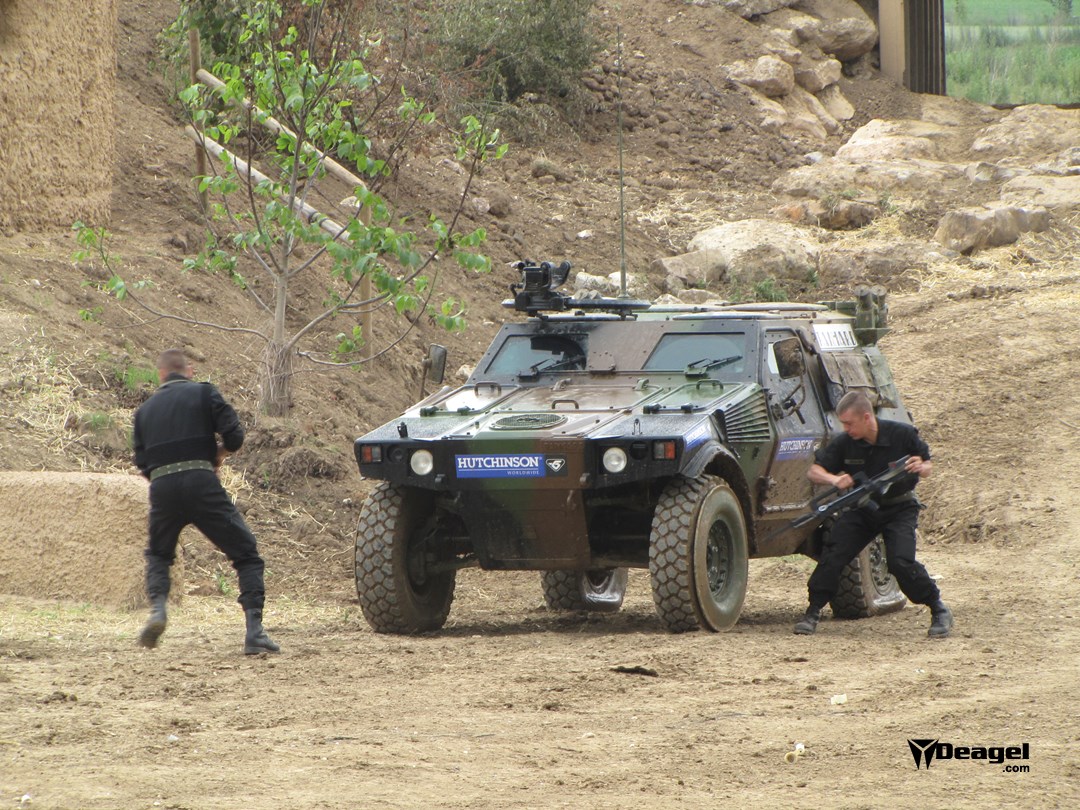

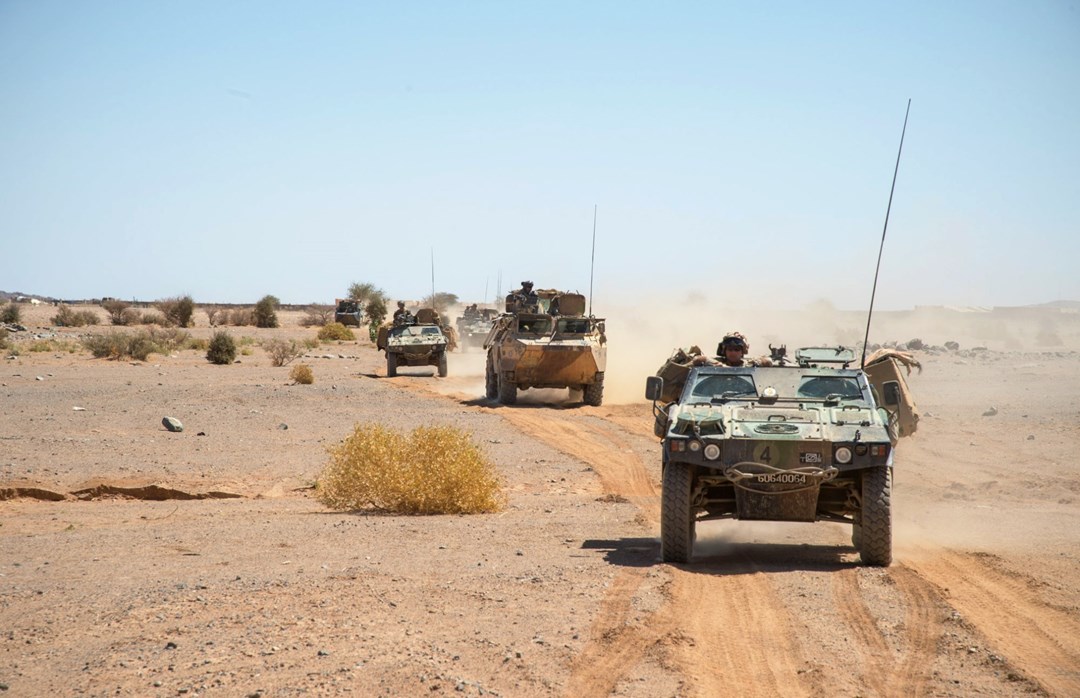

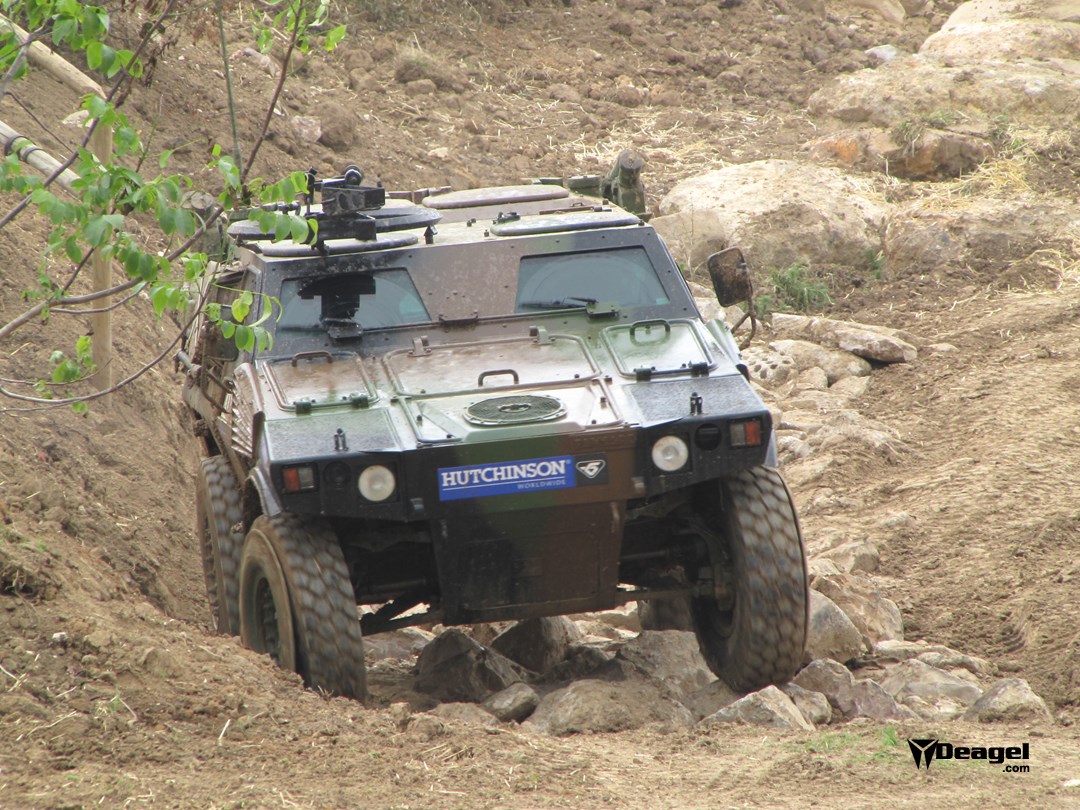

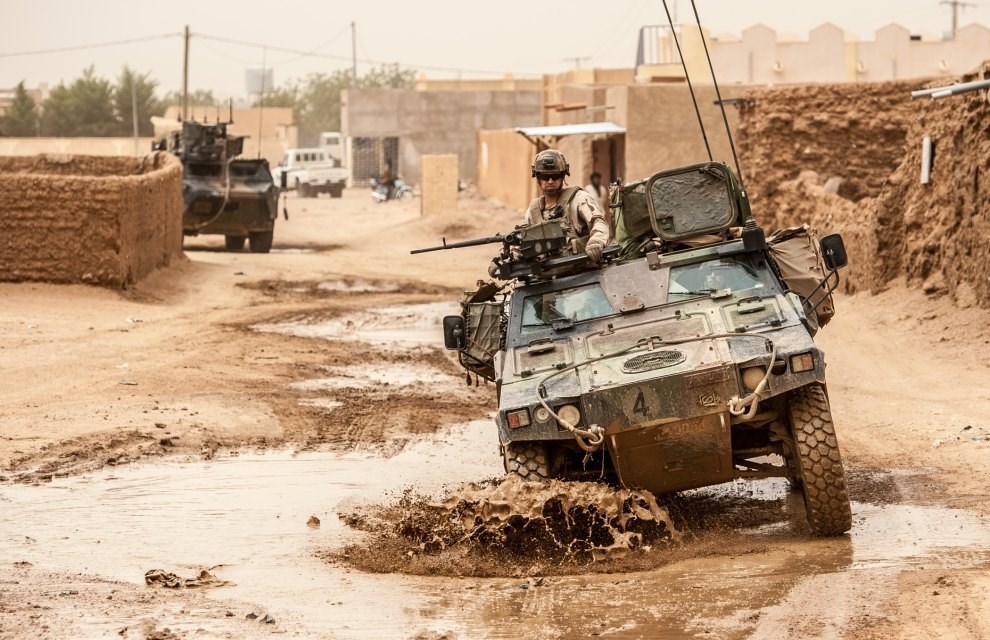

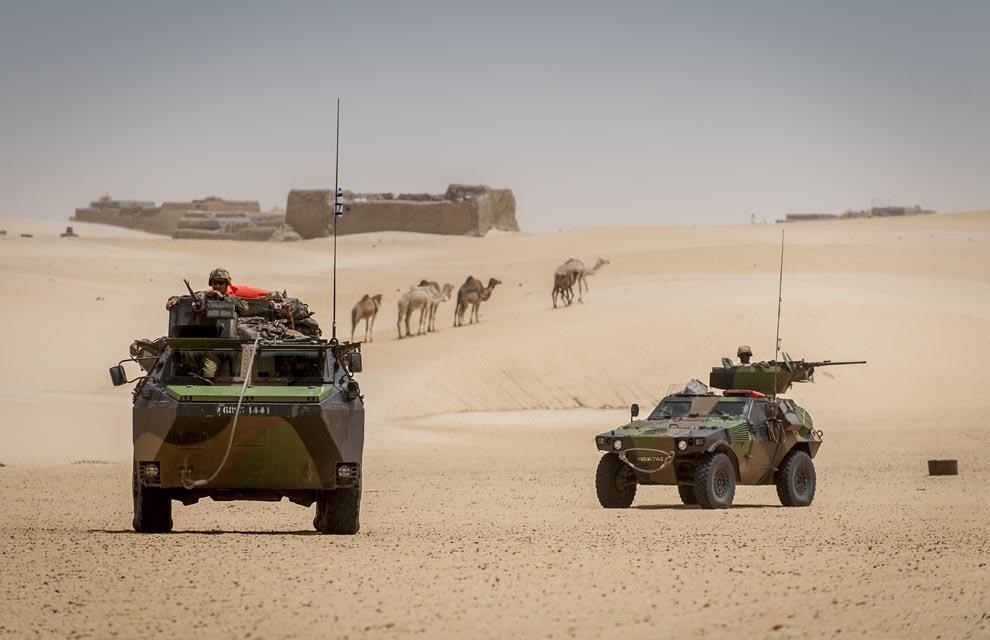

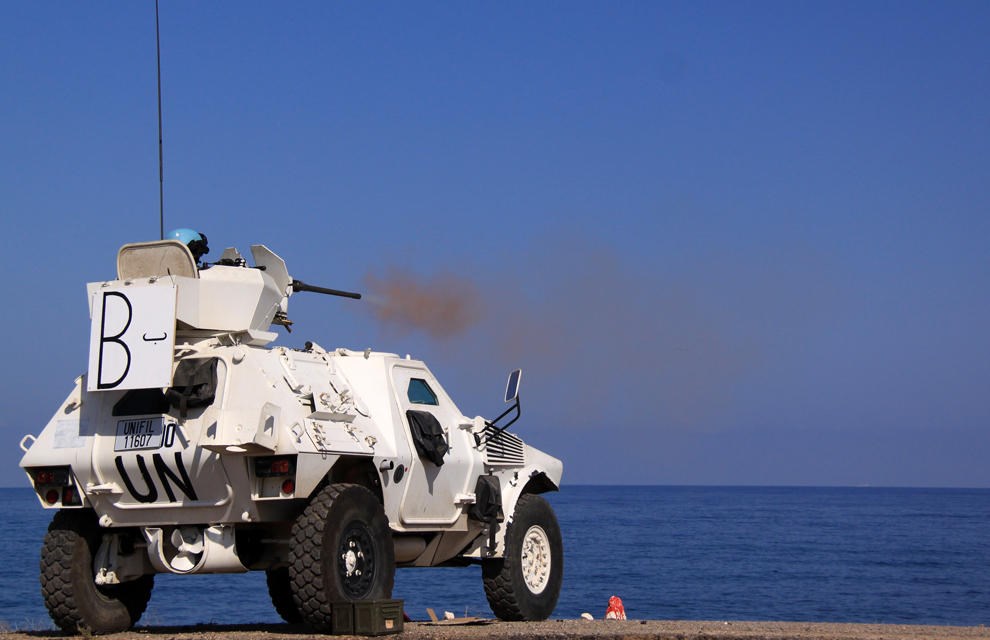

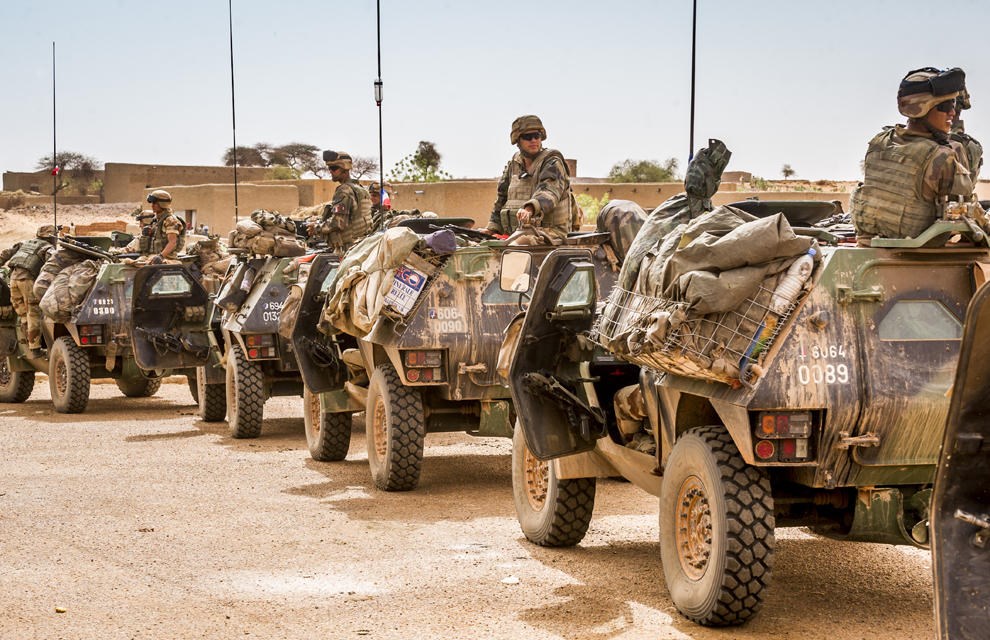

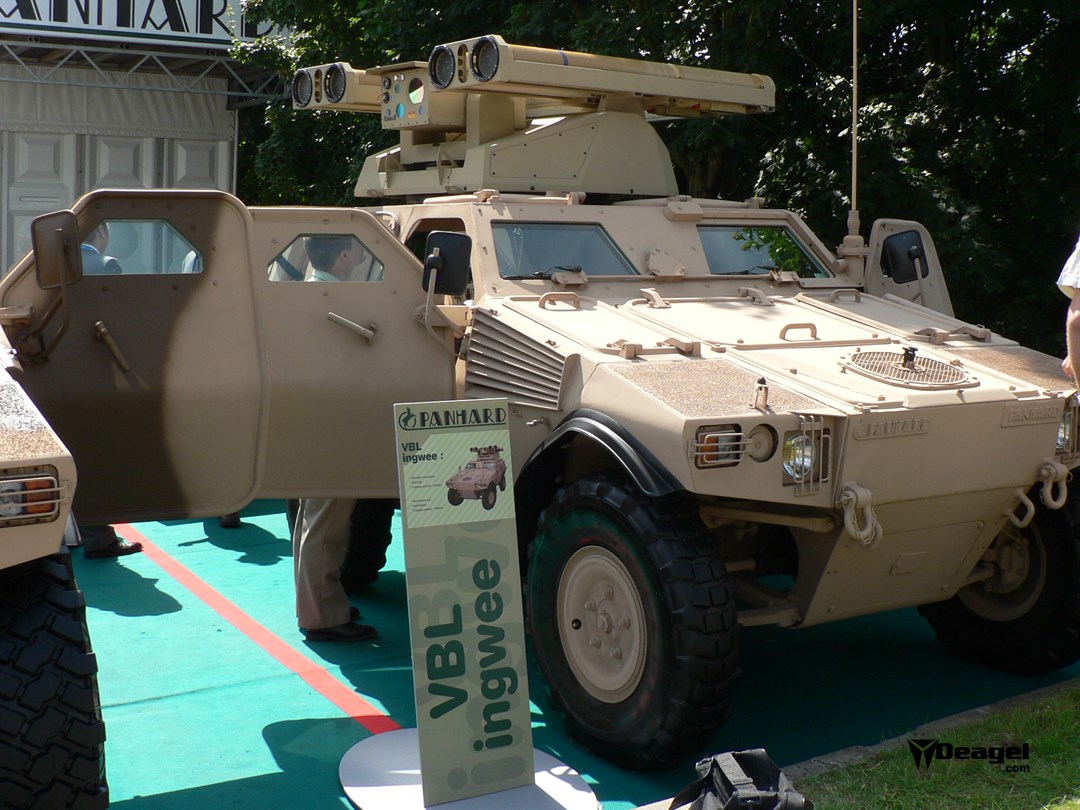

VBL (Véhicule Blindé Léger or Light Armored Vehicle) is a 4x4 tactical lightweight armored vehicle featuring high mobility, amphibious chassis and NBC protection. Powered by a 95-hp Peugeot turbo diesel engine the vehicle achieves a top speed of 95 kph on road and a maximum range of 600 km to 800 km. It is suitable for reconnaissance, infiltration and liaison vehicle roles. High mobility and STANAG level 1 light armor protection against ballistic threats are key elements of VBL design. VB2L is an improved version of VBL ordered by the French Army. Several variants have been developed based on the VBL vehicle's chassis. Following mission specific requirements VBL may be equipped with a 7.62mm roof-mounted machine gun; a Milan, TOW or Mistral missile launcher as well as other weapon systems and sensors furnished by the customer. Equipped with Milan VBL carries as many as six missiles. The VBL was developed in the late 1980s to meet the French Army requirements. So far, Panhard & Auverland have produced more than 2,300 VBLs for more than 16 international customers including the French Army which operates over 1,600 VBLs.

Ground Specifications
Crew 4
Mobility Type Wheeled (4x4)
Main Weapon 7.62mm roof-mounted machine gun
Max Speed 95.0 km/h
Range 600.0 km
Overview (Deagel)
Group Tactical Vehicles
Status Active
Also Known As VB2L, Véhicule Blindé Léger
Origin France
Contractor Panhard & Auverland
Initial Operational Capability (IOC) 1990
Total Production 2,300
Specifications (Deagel)
Crew 4
Wheel Drive 4
Wheels 4
Dimensions — Ground Clearance 370 millimeter
Dimensions — Height 1.7 meter
Dimensions — Length 4.1 meter
Dimensions — Width 2.0 meter
Mass — Empty Weight 3,100 kilogram
Mass — Max Weight 4,000 kilogram
Mass — Payload 900 kilogram
Performance — Max Range 600 kilometer
Power — Power 95 hp
Speed — Cruise Speed 70 kph
Speed — Top Speed 95 kph
Volume — Fuel Tank Capacity 100 liter
Gear (Deagel)
Item 1 Anti-Tank Guided Missiles: BGM-71D TOW 2
Item 2 Anti-Tank Guided Missiles: Milan
Item 3 Combat Management Systems: SIT-V1 (1)
Item 4 Surface-to-Air Missiles: Mistral
Details
Country of Origin France
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
4.1 m
Width
2 m
Height
1.7 m
Weight
4000 kg
Operators (19)
France
Benin
Botswana
Cameroon
Djibouti
Gabon
Greece
Indonesia
Kuwait
Mexico
Niger
Nigeria
Oman
Portugal
Qatar
Rwanda
Saudi Arabia
Togo
United Arab Emirates
