Shahid Mahdavi Iranian Aircraft Carrier

Shahid Mahdavi

Aircraft Carrier
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Shahid Mahdavi Iranian Aircraft Carrier
Designation
Shahid Mahdavi
Alternate Designation
Shahid Mahdavi
Equipment Type
Aircraft Carrier
Manufacturer
Date of Introduction
2023
Description

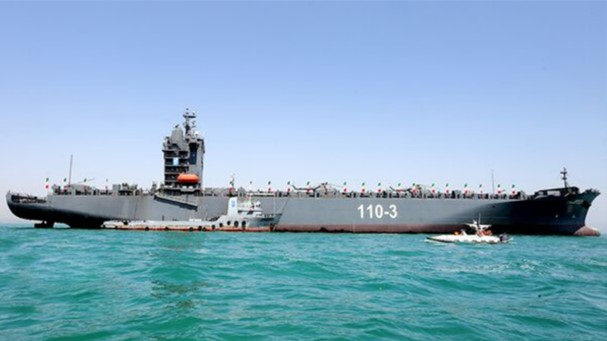

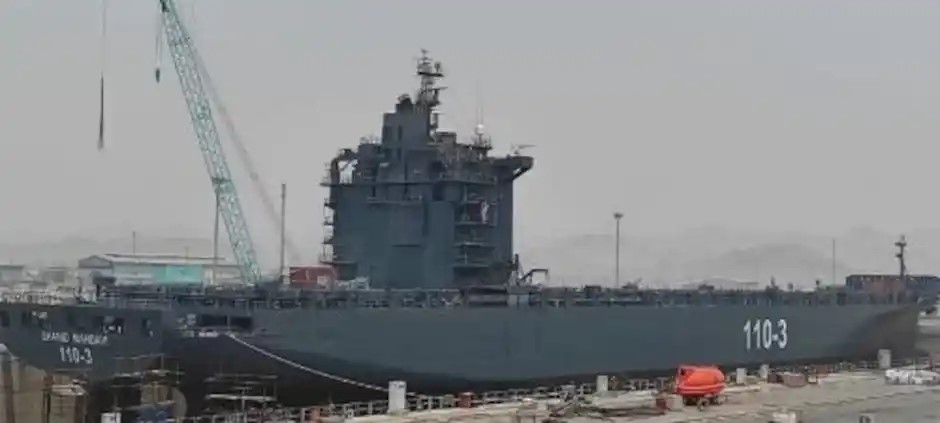

The Shahid Mahdavi Iranian Aircraft Carrier is a former Iranian flagged container ship that was converted into a warship at the Iran Shipbuilding & Offshore industries Complex Company (ISOICO) at Bandar Abbas. Since 2021, Iran has been working to turn merchant vessels into long-range strike platforms that extend the distance of its existing drone, cruise missile, and ballistic missile arsenals. The Shahid Mahdavi is at least the second such vessel to undergo such a transition and is certainly not going to be the last. The conversion adds a large cantilever flight deck on the port side. The fact that the superstructure spans the original deck means that a traditional aircraft carrier layout is not possible. The angles on the added flight deck are also not traditional. Possibly this hints at a flight deck running across from port to starboard ahead of the superstructure.

System
Alternative Designation Shahid Mahdavi
Type Aircraft Carrier
Builder Iran Shipbuilding & Offshore industries Complex Company (ISOICO) at Bandar Abbas.
Crew INA
Dimensions
Length 240 m
Height INA
Beam 27 m
Draft 7.7 m
Displacement, Full Load 36,000 tons
Propulsion System
Engine Name INA
Engine Type Diesel
Engine Power INA
Maximum Range INA
Maximum Speed INA
Main Weapon System
Note Reporting indicates that the ship is equipped with medium-range ballistic missiles (MRBMs), from the Zulfiqar class, dubbed Dezful. The containers can reportedly host missiles other than the Dezful-type missiles, which are capable of precisely hitting targets located up to 1,000 km from the point of launch.
Aviation

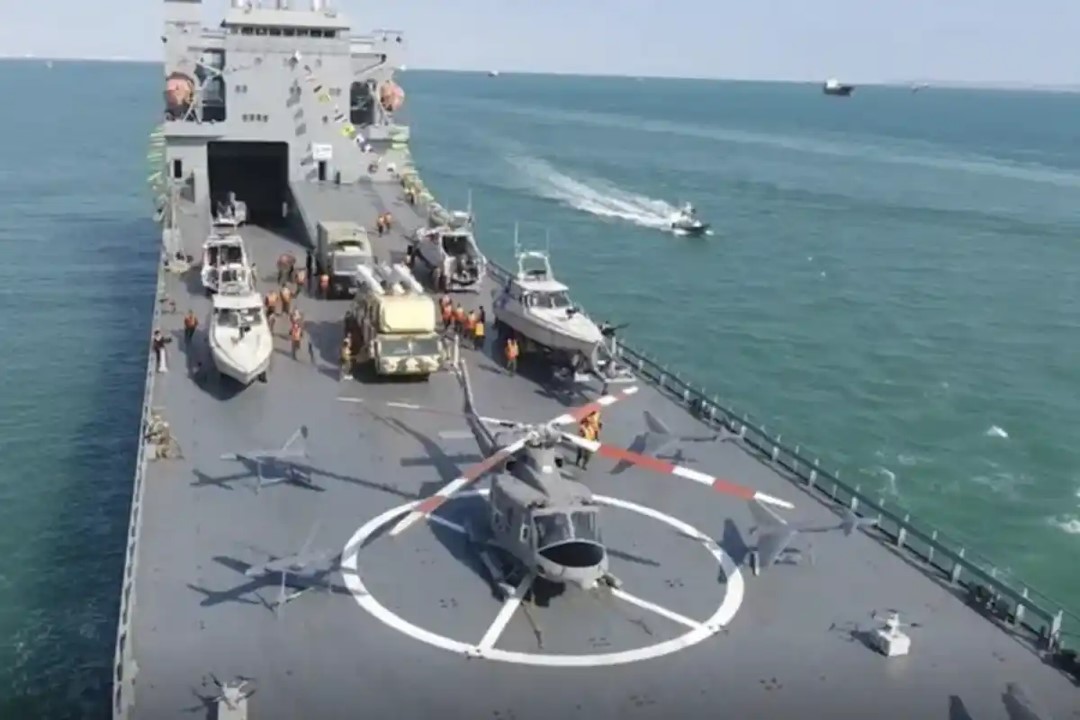

Note The ship can host speedboats, helicopters, and unmanned aerial vehicles, as well as defensive weapons.
Protection
Hull INA
Countermeasures INA
NBC Water Washdown System Yes
EW Intercept INA
Details
Country of Origin Iran
Category Naval
Naval
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
240 m
Width
Height
Weight
Operators (1)
Iran
